User manual

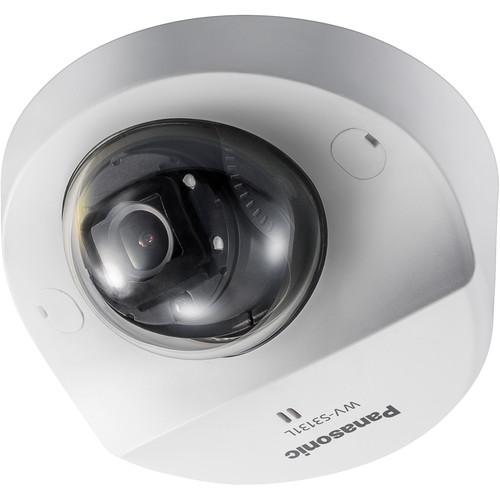

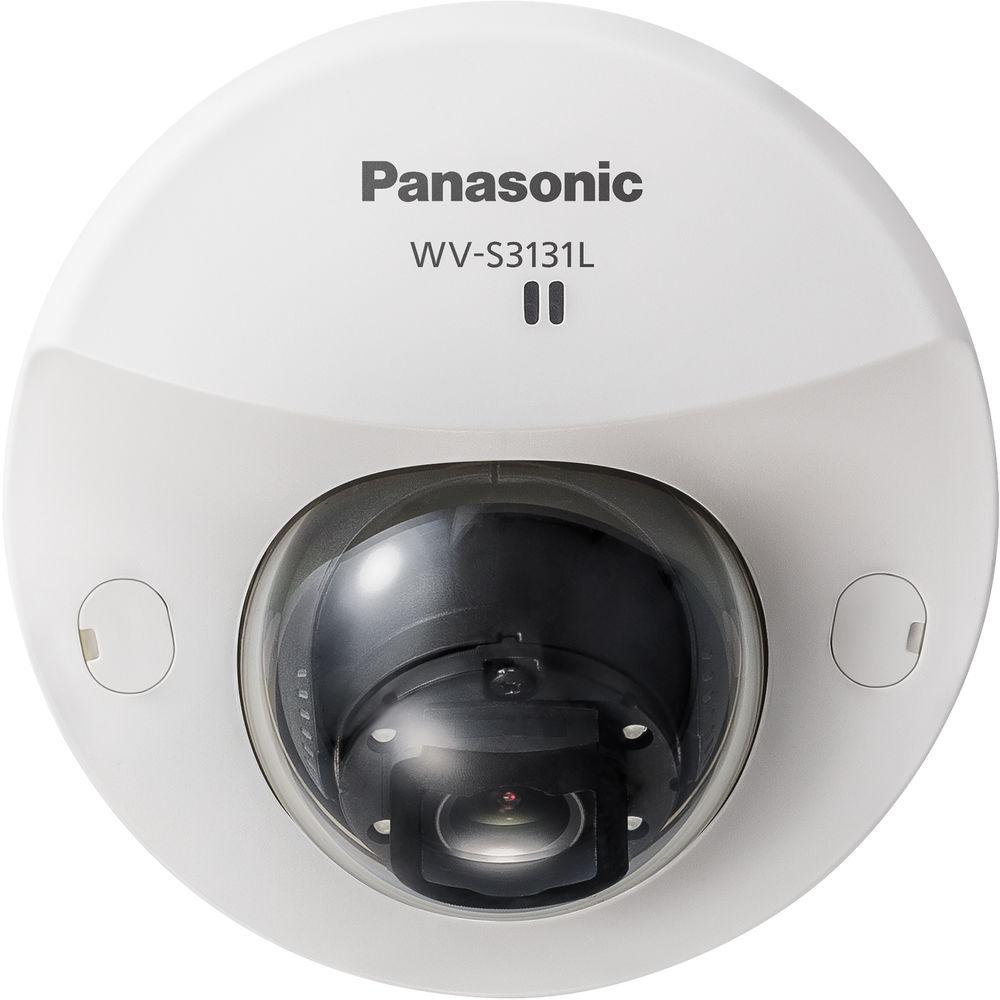

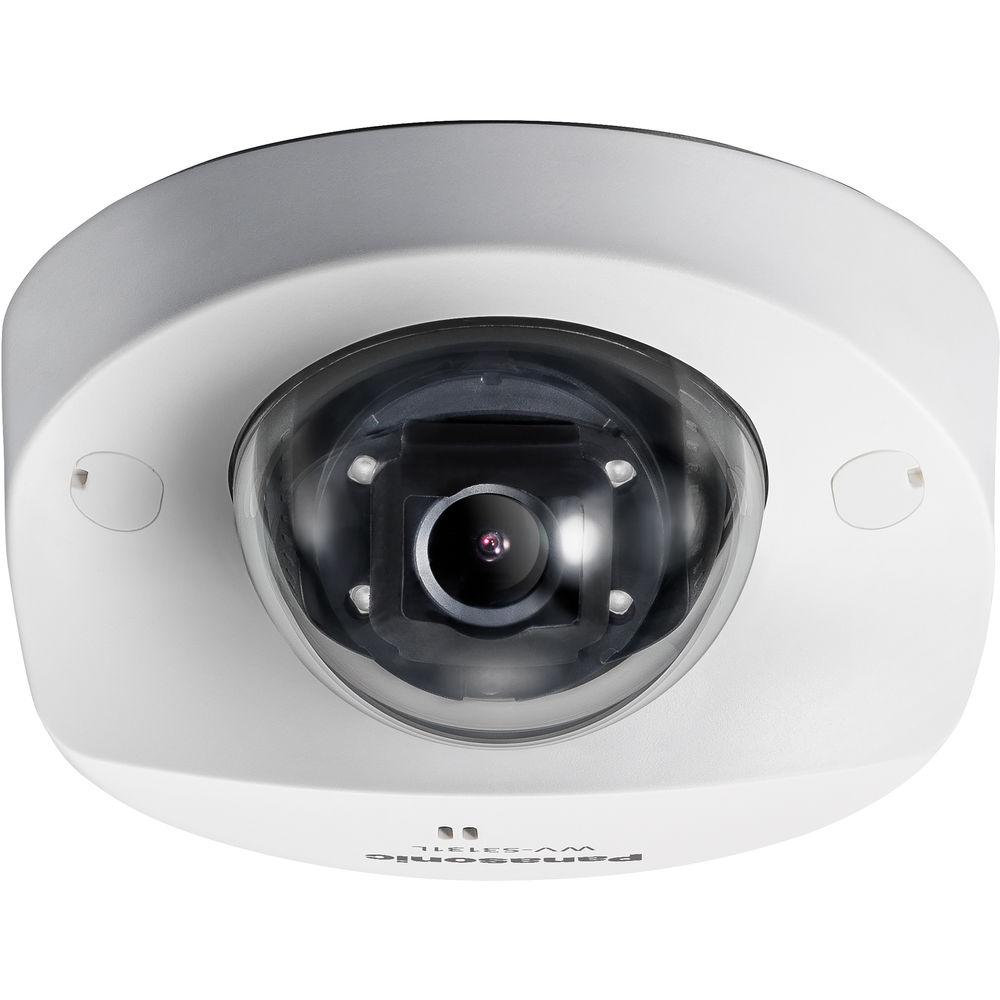

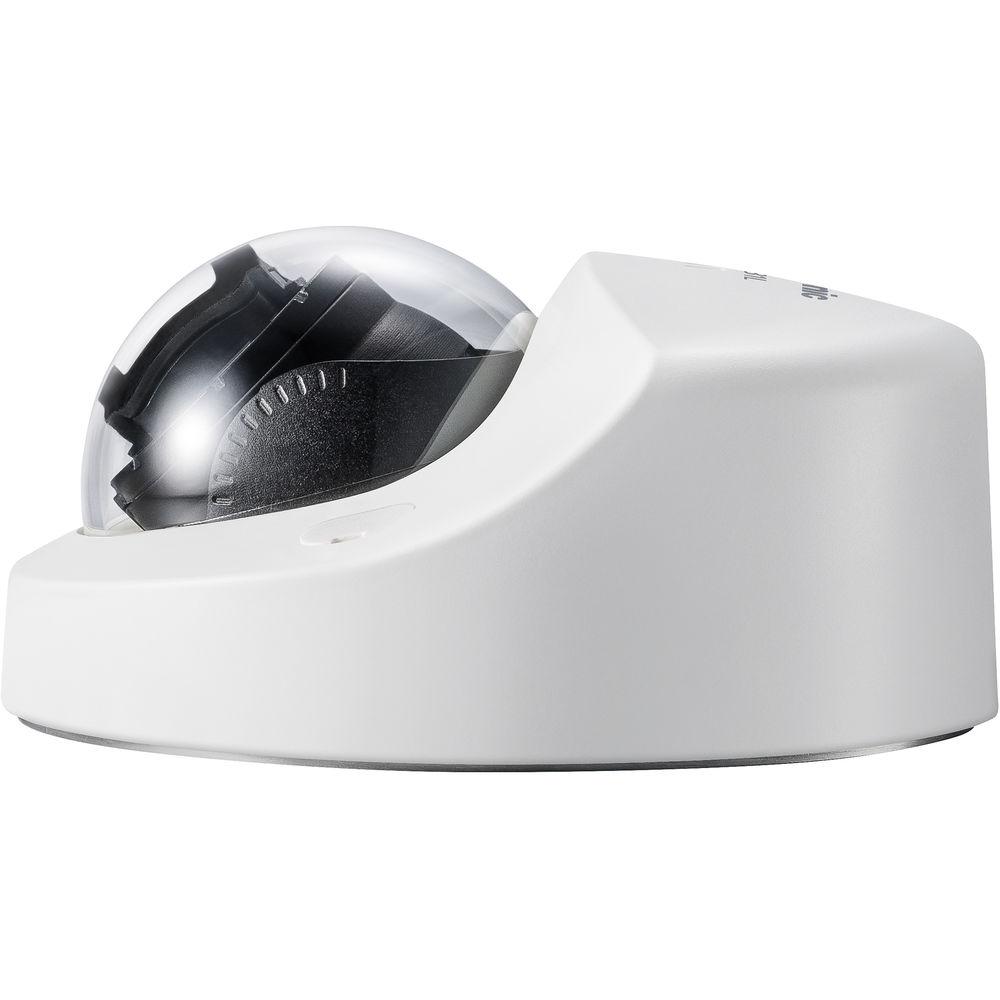

Panasonic WV-S3131L 1080p Network Dome Camera

User Manual for Panasonic WV-S3131L 1080p Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Wired IP Cameras

Product description

• Suitable for building, education, retail, and banking applications

• Intelligent Auto (iA) technology enables the camera to automatically adjust settings in real time to reduce distortion from motion blur and moving objects

• Auto shutter speed control for fast moving objects

• Color night vision provides low-light performance with accurate color rendition and saturation

• IR cut filter enables day and night functionality

• 1.64' to infinity focus distance

• 4x digital zoom

• Camera pivots horizontally ±45° and vertically from 0 to 90°

• ±90° rotation range

• H.265, H.264, and MJPEG compressions

• Unicast and multicast transmission

• CBR and VBR

• 144 dB dynamic range

• Adaptive black stretch

• Brightness control

• White balance

• Digital noise reduction

• Backlight compensation

• Highlight compensation

• Fog compensation

• Mirroring

• Image rotation for 0, 90, 180, and 270° (corridor mode in 90 or 270°)

• Privacy masking for up to eight zones

• Video motion detection for up to four areas

• Alarm sources include video motion detection, command alarm, and audio detection alarm

• Alarm actions include microSD/SDHC/SHXC card recording, email notification, HTTP alarm notification indication on browser, FTP image transfer, and Panasonic alarm protocol output

• Group of pictures (GOP) control

• Smart Facial Coding reduces bandwidth for ID camera applications that capture faces

• Optional intelligent extension software (available separately) adds intruder, loitering, direction, scene change, object, and line crossing detection

• Full end-to-end system encryption with supported VMS, full encryption microSD card edge recording, and FIPS 140-2 Level 1 compliant

• Camera title (OSD) displays up to twenty alphanumeric characters

• 100M RJ45 Ethernet connector

• Up to 14 users (depending on network conditions)

• UL, cUL, CE, and FCC certified

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Panasonic WV-S3131L Specs

Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45 1 x Power
IR Range	49.21' / 15 m
Supported Languages	English French German Italian Japanese Portuguese Russian Simplified Chinese Spanish
Internal Storage	None
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	3.8 W
Material of Construction	Plastic, Polymer
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 90%
