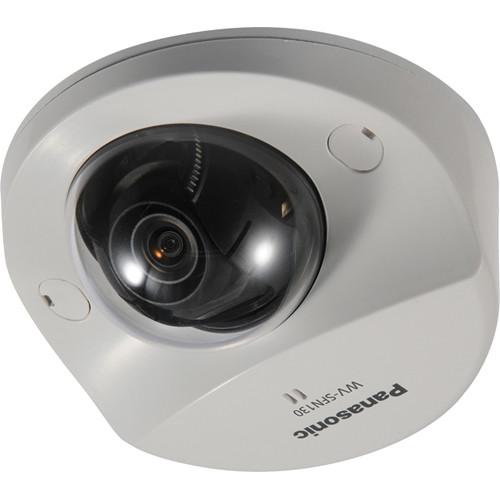

User Manual for Panasonic WV-SFN130 1080p Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Panasonic WV-SFN130 1080p Network Dome Camera
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic WV-SFN130 1080p Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Monitor an indoor space with the WV-SFN130 1080p Network Dome Camera from Panasonic. This camera uses a 1/3" progressive scan MOS sensor to capture 1920 x 1080 resolution video at 30 fps. The 2.8mm fixed lens delivers a 108° horizontal field of view. Audio pickup is possible thanks to a built-in electret condenser microphone. A built-in memory card slot accepts SD/SDHC/SHXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. A . - Low-profile design for a discreet installation
- IR cut filter enables day and night functionality
- 1.64' to infinity focus distance
- 16:9 Field of View: 108 x 60°
4:3 Field of View: 89 x 66° - H.264 and JPEG compression
- Quad display mode allows images from 16 cameras to be displayed on 4 different quad screens or 16 split screens (JPEG only)
- Prioritized stream control
- Unicast and multicast transmission
- Super Dynamic and ABS technologies deliver 122 dB wide dynamic range
- Digital noise reduction (3D-DNR)
- Backlight and highlight compensation
- Privacy masking for up to 8 areas
- VIQS (Variable Image Quality on Specified area) technology enables up to 8 areas to retain a higher image quality while excluded areas have reduced image quality
- Group of Pictures (GOP) control removes unnecessary information from the frame to deliver efficient encoding
- Light control includes ELC (maximum exposure time)
- Face Super Dynamic technology ensures clear images of faces
- Video motion detection for up to 4 areas
- Optional intelligent extension software (available separately) adds face detection, intruder detection, loitering detection, direction detection, scene change detection, object detection, and line crossing detection
- Alarm sources include video motion detection, command alarm, and audio detection alarm
- Alarm actions include SD card recording, email notification, indication on browser, FTP image transfer, and Panasonic protocol output
- Up to 14 users (depending on network conditions)
- Compatible with Microsoft Windows 7/8/8.1/10, Internet Explorer 8-11 (32-bit), Safari, Chrome, Firefox, iOS 4.2.1 or later, and Android
- Camera title displays up to 20 alphanumeric characters in the browser
- UL, cUL, CE, and FCC certified
UPC: 885170281578 In the Box Panasonic WV-SFN130 1080p Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-SFN130 1080p Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-SFN130 Specs | | | Sensor | 2 MP 1/3" MOS 3 MP in 4:3 mode (H.264 only) | | Focal Length | 2.8mm | | Maximum Aperture | f/2.3 | | Zoom | Digital: 4x | | Lens Field of View | Horizontal: 108°
Vertical: 60° | | Day/Night | Yes | | Minimum Illumination | Color: 0.007 Lux
B&W: 0.005 Lux | | Shutter Speed | 1/10,000 to 16/30 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps (40.96 Mb/s H.264) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | | | Security | HTTPS | | Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles G & S | | Analytics | Video Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8, 8.1, 10 | | Mobile Operating Systems | iOS, Android | | | | Recording Media | SD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | None | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Spanish | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4.3 W | | Material of Construction | Plastic, Polymer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Dimensions |
