User manual

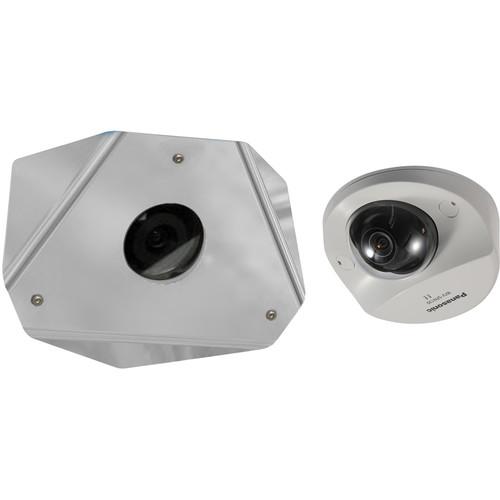

Panasonic WV-SFN130 1080p Network Dome Camera

User Manual for Panasonic WV-SFN130 1080p Network Dome Camera with Corner Mount Cover

• Product category: Wired IP Cameras Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Wired IP Cameras

Product description

• Low-profile design for a discreet installation

• IR cut filter enables day and night functionality

• 1.64' to infinity focus distance

• 16:9 Field of View: 108 x 60°
  4:3 Field of View: 89 x 66°

• 4x digital zoom

• H.264 and JPEG compression

• Quad display mode allows images from 16 cameras to be displayed on 4 different quad screens or 16 split screens (JPEG only)

• Prioritized stream control

• CBR and VBR

• Unicast and multicast transmission

• Super Dynamic and ABS technologies deliver 122 dB wide dynamic range

• Brightness control

• White balance

• Digital noise reduction (3D-DNR)

• Automatic gain control

• Backlight and highlight compensation

• Fog compensation

• Privacy masking for up to 8 areas

• VIQS (Variable Image Quality on Specified area) technology enables up to 8 areas to retain a higher image quality while excluded areas have reduced image quality

• Group of Pictures (GOP) control removes unnecessary information from the frame to deliver efficient encoding

• Light control includes ELC (maximum exposure time)

• Face Super Dynamic technology ensures clear images of faces

• Video motion detection for up to 4 areas

• Optional intelligent extension software (available separately) adds face detection, intruder detection, loitering detection, direction detection, scene change detection, object detection, and line crossing detection

• Alarm sources include video motion detection, command alarm, and audio detection alarm

• Alarm actions include SD card recording, email notification, indication on browser, FTP image transfer, and Panasonic protocol output

• Up to 5000 alarm logs

• Up to 14 users (depending on network conditions)

• Compatible with Microsoft Windows 7/8/8.1/10, Internet Explorer 8-11 (32-bit), Safari, Chrome, Firefox, iOS 4.2.1 or later, and Android

• Camera title displays up to 20 alphanumeric characters in the browser

• 2.1" radius dome cover

• UL, cUL, CE, and FCC certified

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Panasonic WV-SFN130 Specs

Recording Media	SD (Up to 128 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45 1 x Power
IR Illuminators	None
Supported Languages	English French German Italian Japanese Portuguese Russian Simplified Chinese Spanish
Internal Storage	None
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	4.3 W
Material of Construction	Plastic, Polymer
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 90%
