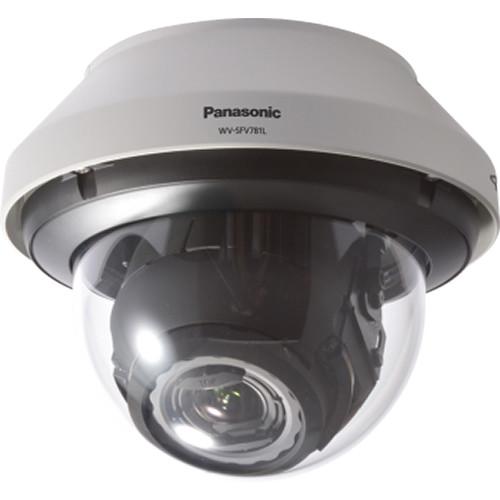

User Manual for Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR Dome Network Camera Click to enlarge the picture
Contents of the user manual for the Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR Dome Network Camera uses a 1/1.7" sensor and the Panasonic True 4K F1.6 lens to deliver images in 4K (3840 x 2160) resolution at 30 fps. It achieves a minimum illumination of 0.3 lux (color) and 0.04 lux (B&W). The camera provides a 96° (Wide) to 17° (Tele) horizontal angular field of view with a 16:9 aspect ratio and a 100° (Wide) to 17° (Tele) view with a 4:3 aspect ratio. Equipped with Smart IR LEDs that auto-adjust according to ambient lighting, the camera can capture clear images in complete darkness (0 lux) up to 98' (with IR LED setting at auto-high). It offers virtual PTZ operation that allows the operator to crop certain areas in the camera view while still recording the whole area, so no event is missed. The camera's rain wash coating allows visibility even in rainy conditions by ensuring that the water is sheeted from the surface of the camera rather than forming droplets which can scatter light and impair visibility. This weather- and impact-resistant camera comes with IP66, NEMA4x, and IK10 ratings, making it suitable for a range of outdoor applications. It can be installed for city surveillance at intersections, squares, prisons or parking spaces at airports, stations, or hub terminals, and in industrial environments like port facilities and plants. - Captures 4K (3840 x 2160) images up to 30 fps, 12MP (4000 x 3000) images up to 15 fps
- Comes with 1/1.7" high-sensitivity MOS image sensor
- 6x zoom lens with 3-drive lens system that offers a horizontal angle of 100° (Wide) to 17° (Tele) with a 4:3 aspect ratio
- Multiple H.264 (High Profile) and JPEG streams ensure simultaneous real-time monitoring and high-resolution recording
- Smart DoF (Depth of Field) feature automatically optimizes the DoF to enhance focus for objects within camera view that are both near and far
- 3D-DNR (Digital Noise Reduction) ensures noise reduction in various conditions
- Day & Night function with ICR filter allows the camera to offer a high sensitivity of 0.3 lux (color) and 0.04 lux (B/W) at F1.6
- Equipped with Smart IR LEDs that are controlled to match the environment, and allow the camera to capture clear images of human faces without white blur in complete darkness (0 lux)
- Camera attachment bracket allows easy camera installation with the possibility to adjust the camera in multiple directions to achieve the desired viewing area
- VIQS (Variable Image Quality on Specified area) technology allows the camera to retain higher image quality in eight designated locations, while the excluded areas will have decreased image quality, ensuring efficient use of storage space and bandwidth
- Cropping function allows the operator to view the entire image, as well as the selected area, simultaneously
- Up to 4 image capture areas can be specified, and it is also possible to control the sequence
- 1x, 2x, 4x digital zoom controlled by browser
- VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level, and 10 steps detection size
- Privacy Zone function to mask up to 8 areas, such as house windows and entrances/exits
- Camera title display with up to 20 alphanumeric characters on the browser
- Alarm sources, including 3 terminal input, VMD, and Panasonic alarm command, can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, indication on browser, alarm terminal output, and Panasonic alarm protocol output
- Full duplex bi-directional audio support allows interactive communication between camera site and monitoring site (speaker and mic not included)
- SDXC/SDHC/SD memory card slot for manual recording (H.264/JPEG), alarm recording (H.264/JPEG), and backup upon network failure (H.264/JPEG)
- Fog compensation function
- HLC (High Light Compensation) reduces effect of strong light sources such as vehicle headlights to prevent the camera being blinded
- SCC (Super Chroma Compensation) function achieves better color reproduction even in low illumination
- H.264 images can be transmitted over HTTP protocol in the Internet mode
- IPv4/IPv6 protocol supported
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Still images (JPEG) can be viewed on mobile phones via Internet
- ONVIF Profile S and G compliant for third party integration
- IP66-rated water and dust resistant enclosure
- Compatible with IEC60529 measurement standard; Type 4X (UL50), NEMA 4X compliant
- Integrated dehumidification device for use in various weather conditions
- Vandal resistant for high reliability (IK10)
- Rain wash coating on dome cover for visibility in adverse weather conditions
In the Box Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR Dome Network Camera Attachment Plate Base Bracket 5 x M4 x 8mm Fixing Screw For Attachment Plate Template A for the Attachment Plate Template B for the Base Bracket Bit (Hex Wrench, 6.35mm Screw Size {1/4"} T20) Waterproof Tape 4P Alarm Cable 2P Power Cable LAN Connector Cover Monitor Out Conversion Plug Protection Cover Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR Dome Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-SFV781L Specs | | | Sensor | 1/1.7 type MOS image sensor | | Effective Pixels | Approximately 12.4 MP | | Scanning Mode | Progressive scan | | Scanning Area (H x V) | 0.28 x 0.22" (7.40 x 5.55 mm) | | Minimum Illumination | Color: 0.3 lux, B&W: 0.04 lux
B&W with IR LED: 0 lux (F1.6, Maximum Shutter: Off (1/30 sec), Gain: High)
Color: 0.02 lx, B&W 0.003 lx (F1.6, Maximum Shutter: 16 / 30 sec, AGC: High) | | IR LED | Off / Auto (High / Mid / Low) | | IR Distance | Approximately 98.43 (30.0 m) at IR LED: Auto (High) | | White Balance | AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K) | | Light Control Mode | Outdoor scene
Indoor scene (50 Hz)
Indoor scene (60 Hz)
Fix shutter | | Shutter | Maximum: 1/1000, 1/500, 1/250, 1/120, 1/100, 2/120, 2/100, 1/30, 2/30, 4/30, 6/30, 10/30, 16/30 sec | | Shutter Speed | Off (1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec | | Wide Dynamic Range | On / off | | Adaptive Black Stretch | On / off (only when Wide Dynamic Range is off) | | Defog | Fog Compensation: On / off (only when Wide Dynamic Range / Adaptive Black Stretch is off) | | Light Compensation | HLC (High Light Compensation): On / off (only when Wide Dynamic Range / BLC (Back Light Compensation) is off)) | | AGC (Automatic Gain Control) | On (low, mid, high) / off | | Day & Night | IR Mode: Off / on / Auto 1 (normal) / Auto 2 (IR Light) / Auto 3 (SCC) | | Digital Noise Reduction (DNR) | High / low | | Video Motion Detection | On / off
4 definable areas | | Privacy Zone | On / off
Up to 8 zones | | VIQS | On / off
Up to 8 locations | | Focus Adjustment | ABF / manual (HTML only) | | Adjusting Angle | Horizontal: ±180°
Vertical: 0 to 85° | | Vertical Tilt Adjustment Range | -45° (Left) to +300° (Right) | | | | Focal Length | 4.2 to 25.2 mm | | Angular Field of View | 16:9 Mode
Horizontal: 17° (Tele) to 96° (Wide) Vertical: 9.3° (Tele) to 54° (Wide)
4:3 Mode
Horizontal : 17° (Tele) to 100° (Wide) Vertical : 13° (Tele) to 75° (Wide) | | Maximum Aperture | f/1.6 (wide) and f/3.3 (tele) | | Focusing Range | 1.96' (0.6 m) to infinity | | | | Aspect Ratio [16:9] | 8 MP (15 fps mode):
H.264 (1): 3840 x 2160, up to 15 fps Compliant with H.264
H.264 (2): 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180
JPEG (1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2)
JPEG (2): 640 x 360
8 MP (30 fps mode):
H.264 (1): 3840 x 2160
JPEG (2): 640 x 360
4 MP (30 fps mode):
H.264 (1): 2560 x 1440 / 1920 x 1080 / 1280 x 720
H.264 (2): 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180
H.264 (3): 1280 x 720 / 640 x 360 / 320 x 180
H.264 (4): 640 x 360
JPEG (2): 640 x 360
Cropping (30 fps mode):
H.264 (1) Channel 1 to 4: 1280 x 720 / 640 x 360
H.264 (2): 1920 x 1080 / 1280 x 720 / 640 x 360 /320 x 180
JPEG (1): Enables the setting of the resolution in the same way as for H.264 (2) or JPEG (2)
JPEG (2): 640 x 360 | | Aspect Ratio [4:3] | 12 MP (15 fps mode):
H.264 (1): 4000 x 3000
H.264 (2): 640 x 480 / 320 x 240
JPEG (1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2)
JPEG (2): 640 x 480
5 MP (30 fps mode):
H.264 (1): 2560 x 1920 / 2048 x 1536 / 1600 x 1200 / 1280 x 960 / 800 x 600
H.264 (2): 1280 x 960 / 800 x 600 / 640 x 480 / 320 x 240
JPEG (1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2)
JPEG (2): 640 x 480 | | | | Cropping | H.264 (1) Channel 1 to 4
Up to 4 image capture areas can be specified. Only when Image Capture Mode is Cropping [16:9] (30 fps mode) | | Camera Control | Brightness, Aux on / off | | Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or a 16 split screen (JPEG only)
20 characters camera title available | | Digital Zoom | 1x, 2x, 4x controlled by browser GUI | | Camera Title (OSD) | Up to 20 alphanumeric characters | | Clock Display | Time: 12 hours or 24 hours
Date: 5 formats on the browser, summer time (manual) | | Alarm Control | Reset | | One Shot Capture | A still picture will be displayed on a newly opened window | | Audio | Mic (Line) Input: On / off
Audio Output: On / off
Volume Adjustment: Low / middle / high | | SD Memory Data Download | Still or motion images recorded on the SDXC/SDHC/SD memory card can be downloaded | | GUI | Setup Menu Language: English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | System Log | Up to 100 (internal) error logs
Up to 4,000 (SDXC/SDHC/SD memory) error logs | | Supported OS | Microsoft Windows Vista / 7 / 8 / 8.1 Refer to "Notes on Windows Vista / 7 / 8" on the provided CD-ROM for further information about system requirements for a PC and precautions when using Microsoft Windows Vista / 7 / 8 | | Supported Browsers | Windows IE 7.0 / 8.0 / 9.0 / 10.0 / 11.0 (32-bit) | | | | Transmission mode | Constant bit rate / Frame rate priority / Best effort / Advanced VBR | | Frame Rate | 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 / 60 fps | | Bit Rate/Client | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 / 8,192 / 10,240 / 12,288 / 14,336 / 16,384 / 20,480 / 24,576 / 30,720 / 40,960 kb/s The H.264 bit rate varies depending on the setting selected for the Image Capture Size | | Image Quality | Low / Normal / Fine (constant bit rate is selected)
0 Super Fine / 1 Fine / 2 / 3 / 4 / 5 Normal / 6 / 7 / 8 / 9 Low (variable bit rate is selected) | | Refresh Interval | 0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 sec | | Transmission Types | Unicast / multicast | | | | Image Quality | 10 steps | | Transmission | Interval: 0.1 to 30 fps JPEG frame rate will be restricted when displaying both JPEG and H.264 images. | | Transmission Types | Pull / push | | | | Audio Compression | G.726 (ADPCM) @ 32 / 16 kb/s
G.711 @ 64 kb/s
AAC-LC 64 / 96 / 128 kb/s AAC-LC is only used when recording audio on an SD memory card. | | Audio Mode | Off / Mic (line) input / Audio output / Interactive (half duplex) / Interactive (full duplex) | | Authentication for Audio | Level 1 only / Level 2 higher / All users | | | | Network IF | 10 Base-T / 100 Base-TX, RJ45 connector | | Supported Protocols | IPv6 :
TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP
IPv4:
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP | | FTP Client | Alarm image transmission, FTP periodic transmission When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available. | | Number of Simultaneous Users | Up to 14 users, depends on network conditions | | Recording | SDXC/SDHC/SD Memory Card:
H.264 Recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / FTP error / Backup upon network failure | | Compatible Memory Cards | Panasonic 2, 4, 8, 16, and 32 GB SDHC cards and 64 GB SDXC card (not compatible with miniSD and microSD cards) Cards manufactured by Panasonic (SD speed class 4 or higher) recommended. Use cards compliant with UHS-1 (Ultra High Speed-1) in the case of SD Speed Class 10. | | Cellular Phone Compatibility | JPEG image, Aux control (by access level) | | Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android Terminal | | | | Alarm Source | 3 x terminals input, VMD, Command alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, indication on browser, FTP image transfer, Panasonic protocol output | | Alarm Log | 50,000 logs with SDXC / SDHC / SD memory card (SD card available separately) | | Schedule | Alarm / VMD / Access permission / H.264 recording / Scene file / FTP periodic image transmission | | Schedule | VBS: 1.0 Vpp @ 75 Ω, NTSC / PAL composite
3.5 mm mini jack monitor out (conversion plug included) | | | | Monitor Output | VBS: 1 Vpp / 75 Ω, NTSC / PAL Composite, RCA jack | | Microphone/Line Input | 3.5 mm stereo mini jack
Input Impedance: Approximately 2 kΩ (unbalanced)
For Microphone Input: Recommended Applicable Microphone: Plug-in power type
Supply Voltage: 2.5 V ±0.5 V
Recommended Sensitivity of Microphone: -48 dB ± 3 dB (0 dB = 1 V/Pa, 1 kHz)
For Line Input:
Input Level: Approximately -10 dBV | | Audio Output | 3.5 mm stereo mini jack
Output Impedance: Approximately 600 Ω (unbalanced)
Output Level: -20 dBV Note: It can be used as the monitor output by switching browser GUI. | | External I/O Terminals | Alarm in 1 / Day/Night in
Alarm in 2 / Alarm out
Alarm in 3 / Aux out, Day/Night out | | | | Approvals | Safety: UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
EMS: FCC (Part15 Class A), ICES003 Class A, EN55022 Class B, EN55024 | | Impact Protection | Compliant with IK10 (IEC 62262) | | Water and Dust Resistance | Main body: IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant | | Power Source | DC Power Supply: 12 VDC, 1050 mA
PoE (IEEE802.3af): 48 VDC, 265 mA | | Power Consumption | DC Power Supply: Approximately 12.6 W
PoE: Approximately 12.95 W (Class 0 device) | | Ambient Operating Temperature | -45 to 122°F (-45 to 50°C) | | Ambient Operating Humidity | 10 to 90 % (non-condensing) | | Finish | Main Body: Aluminum die cast
Dome Section: Clear polycarbonate resin
Dome Cover: Clear polycarbonate resin (Rain wash coating) | | Dimensions (Ø x H) | Camera:
8.97 x 7.44" (22.8 x 18.9 cm) with the attachment plate
8.97 x 8.84" (22.8 x 22.5 cm) with the base bracket
Dome Radius: 3.16" (8.0 cm) | | Weight | Approximately 7.05 lb (3.2 kg) with the attachment plate
Approximately 8.16 lb (3.7 kg) with the base bracket | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 17.0 x 13.0 x 13.0" |
