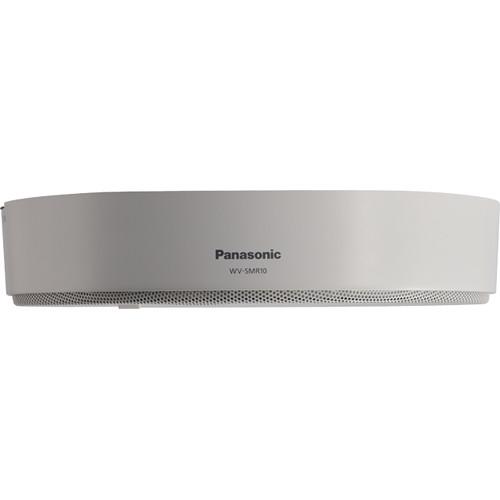

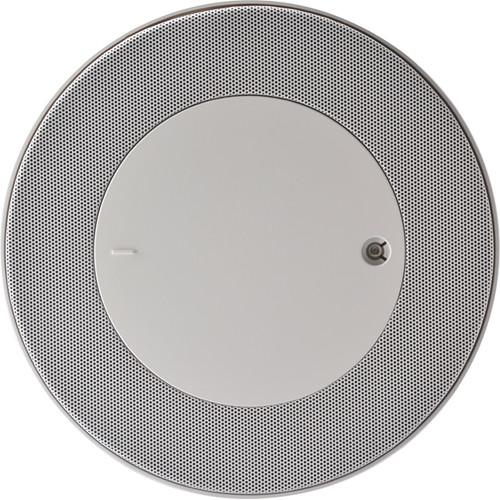

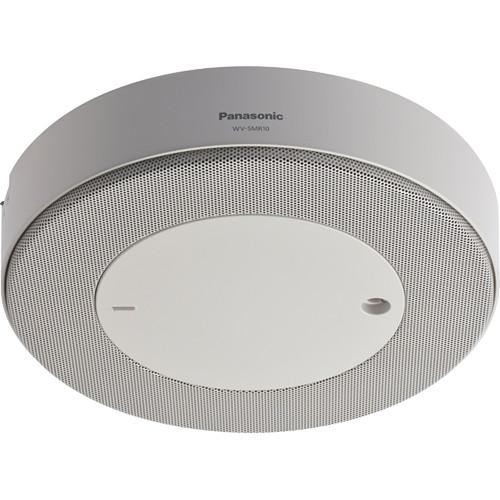

Product description The WV-SMR10 Network Microphone from Panasonic provides clear audio monitoring in any direction and can be used to complement the 360° view of PTZ network cameras with audio. Equipped with a 16-microphone array and Panasonic’s advanced audio processing technologies, the network microphone picks out clear sounds in a range of 20’ (6m) even in noisy environments (65dB SPL), electronically generating 20° directionality (half-width at half maximum) in any direction.The network microphone can be integrated with compatible network recorders and can be used in small to large systems. This microphone is also IK10-rated for impact resistance. - Can be installed with a 360° network camera (not included) as one unit
- Provides 360° audio monitoring from a specified direction (when multiple microphones are used)
- While viewing a Panasonic 360° network camera image, audio from the desired location can be freely specified by clicking on that location 1
Please Note: Specifying the direction is available when the image capture mode on the camera is Fisheye, Wall Panorama, or Quad PTZ. close - After recording audio to a compatible network disk recorder, the sound collecting direction can be specified while playing back the recorded image of the 360° network camera
- Vandal resistant installation for high reliability
- Features a SECC punching, sail white body and PC resin, sail white cover
UPC: 885170189010 In the Box Panasonic WV-SMR10 Network Microphone Instruction and Software CD Code Label Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-SMR10 Network Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-SMR10 Specs | | | Microphone Element | Electret condenser microphone (16-element) | | Sensitivity | -15 dBFS ±3 dB (1 Pa, 1 kHz) | | Maximum Input | 100 dBSPL rms | | S/N Ratio | 66 dB or more | | Dynamic Range | 72 dB or more | | Frequency Band | Approximately 300 Hz to 7 kHz | | Noise Suppression | Approximately 18 dB (suppression capacity of sound other than the sound collecting direction) Depends on the conditions of the installation environment | | Angle | Approximately 20° (1 kHz, half-width at half maximum) Depends on the conditions of the installation environment | | Sound Recording | Approximately 19.7' (6.0 m) (audible distance in an environment where the noise volume is about 65 dB SPL) The sound quality may deteriorate depending on obstacles surrounding the microphone and the direction in which the person speaking faces. | | | | Network IF | 10Base-T / 100Base-TX, RJ-45 connector | | Audio Compression | 16-channel Panasonic codec, approx. 2 Mb/s | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP | | Supported OS | Microsoft Windows 8.1, 8, 7, Vista | | Supported Browsers | Windows Internet Explorer 11.0 (32 bit), 10.0 (32 bit), 9.0 (32 bit), 8.0 (32 bit), 7.0 (32 bit) | | Number of Simultaneous Users | 3 (Number of sessions that can connect to microphones at the same time) | | Supported Devices | Network Camera: WV-SF438 / WV-SW458
Recorder: WJ-NV300 / WJ-ND400
Application: WV-ASM200 (Ver.3.0 or later) | | | | Standard | UL (UL60950-1), FCC (Part15 Class A), C-UL (CAN/CSA C22.2 No.60950-1), DOC (ICES003 Class A) | | Power | 12 VDC: 200 mA/ 2.4 W (power supply not included)
PoE 48 V: 60 mA/ 2.9 W (Class 1 devices) Only connect 12 VDC Class 2 power supply (UL 1310/CSA 223) or limited power source (IEC/EN/UL/CSA 60950-1). | | Shock Resistance | Compliant with 20J (IEC60068-2-75)/IK10 (IEC 62262) (Tamper-resistant enclosure when center cover is attached) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | Less than 90 % (no condensation) | | Dimensions (Ø x H) | 10.6 x 2.1" (27.0 x 5.5 cm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 15.3 x 14.6 x 6.4" |
