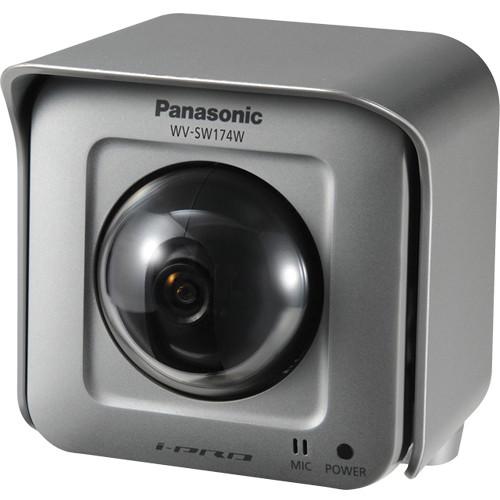

User Manual for Panasonic WV-SW174W HD Outdoor Pan-Tilt Wireless Network Camera with 1.95mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Panasonic WV-SW174W HD Outdoor Pan-Tilt Wireless
- Product category: Wireless Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wireless Cameras
|
User manual for the Panasonic WV-SW174W HD Outdoor Pan-Tilt Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Add to or set up a high quality surveillance system with the silver WV-SW174W HD Outdoor Pan-Tilt Wireless Network Camera from Panasonic. Capable of panning and tilting via a remote browser control and capture HD 1280 x 960 or 720p footage at up to 30 fps, this camera will easily record all details you may need. It uses a 1.3MP 1/4"-type progressive MOS sensor and a wide 1.95mm f/2.2 lens to ensure optimal quality in a variety of lighting conditions. Users will also have access to both H.264 and JPEG compression in order to handle a variety of different systems' needs. And, it has support for two-way audio thanks to a built-in microphone and the implementation of 3.5mm audio input and output jacks.
Able to be connected via a fast Wi-Fi network or with wired Ethernet cables, this camera is versatile and easy to set up. It also has an IP55 rating for dust and water resistance to ensure it stays operational in less than ideal conditions. Along with this, it has support for Video Motion Detection as well as Face Detection and can send alarms and notices out when needed. It also has a variety of image quality boosts, including Wide Dynamic Range. Additionally, it has the ability to be controlled and monitored from a smartphone. - 1.3 MP high-sensitivity MOS sensor delivers clear images of up to 1280 x 960 pixels
- Full frame transmission at HD resolutions of up to 1280 x 960 up to 30 fps
- Adaptive Black Stretch technology improves the visibility of subjects in dark areas without compromising on image quality in brighter areas
- Progressive scan ensures clear images with minimal blur even when the object is in motion
- UniPhier LSI chip allows the camera to stream multiple H.264 videos and JPEG images for simultaneous real-time monitoring
- High-sensitivity with day/night function: 0.6 lux (color), 0.5 lux (B&W) at f/2.2
- Face detection function ensures blur-free images of the human face
- 2-way audio with built-in microphone allows interactive communication between the camera and PC
- Video Motion Detection feature triggers alarm when activity is detected in the 4 programmable zones
- Wireless LAN function (IEEE802.11 n/g/b): Camera images can be monitored over a wireless router
- WPS (Wi-Fi Protected Setup) function enables the camera to automatically obtain the connection and security configuration settings of the wireless router
- Electronic sensitivity enhancement function increases the quantity of light stored on the sensor, making the image brighter
- Prioritized stream control allows one of the video streams to be prioritized when multiple recorders or client PCs are accessing the camera, so the prioritized recorder or client PC can maintain the frame rate
- 8x digital zoom controlled by browser
- Camera can be directly controlled from a smartphone
- Privacy masking feature allows concealment of up to 2 private areas, such as entrances and exits
- Integrated digital noise reduction ensures clear image reproduction by filtering signals that could result in grainy images
- H.264 images can be transmitted over HTTP protocol
UPC: 885170086838 In the Box Panasonic WV-SW174W HD Outdoor Pan-Tilt Wireless Network Camera with 1.95mm Fixed Lens (Silver) Sunshade Connector Cover Power Cable Plug AC Adapter AC Cord Extension Cord Flexible Stand Foam Strip Instruction & Software CD-ROM Limited 3-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-SW174W HD Outdoor Pan-Tilt Wireless Network Camera with 1.95mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-SW174W Specs | | | Image Sensor | 1/4"-type MOS sensor | | Effective Pixels | 1.3 MP | | Scanning Mode | Progressive | | Scanning Area | 0.14 x 0.10" / 3.52 x 2.64 mm | | Minimum Illumination | Color: 0.6 lux at 1/30 sec; 0.038 lux at 16/30 sec
Black & White: 0.5 lux at 1/30 sec; 0.031 lux at 16/30 sec | | White Balance | AWC: 2000-10000K
ATW2: 2000-6000K | | Shutter Speed | 1/30, 3/100, 1/40, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec | | Dynamic Range | 24 dB | | Image Resolution | H.264: 1280 x 960, 1280 x 720, VGA 640 x 480, VGA 640 x 360, QVGA 320 x 240, QVGA 320 x 180
JPEG: 1280 x 960, 1280 x 720, VGA 640 x 480, VGA 640 x 360, QVGA 320 x 240, QVGA 320 x 180 | | Frame Rate | Up to 30 fps | | Compression | H.264: 64, 128, 256, 384, 512, 768, 1024, 1536, 2048, 3072, 4096, 8192 kbps
JPEG: 10 steps of quality | | Audio Compression | G.726 (ADPCM) 32/16 kbps
G.711 64 kbps | | | | Focal Length | 1.95 mm | | Zoom | Digital: 2x | | Field of View | Horizontal: 85°
Vertical: 68° | | Aperture | f/2.2 | | Focusing Range | 1.6' / 0.5 m to infinity | | | | Panning Range | -47.5 to +47.5° (95° total) | | Panning Speed | 5-80°/sec | | Tilting Range | -45 to +10° (55° total) | | Tilting Speed | 5-80°/sec | | Preset Positions | 64 | | | | Interface | 10Base-T/100Base-TX RJ45 Ethernet
Wi-Fi | | Connections | NTSC composite, 3.5mm mini jack 1.0 V [p-p] / 75 ohms
3.5mm mono audio input
3.5mm stereo audio output
Alarm inputs
Alarm output
Aux output | | Wireless Standard | IEEE802.11b/g/n | | Wireless Data Rate | IEEE802.11b: 1-11 Mbps
IEEE802.11g: 6-54 Mbps
IEEE802.11n: 6.5-72.2 Mbps | | Wireless Security | WPA/WPA2-PSK (TKIP/AES)
WEP (64/128-bit) | | Network Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP | | | | Power Supply | 12 VDC | | Power Consumption | 510 mA | | IP Rating | IP55 (IEC60529) | | Standards & Certifications | DOC (ICES003 Class A)
Wireless: FCC Part 15C | | Finish | Main Body: PC/ABS resin, silver
Dome: Clear polycarbonate resin | | Operating Conditions | Temperature: -4 to 122°F / -20 to 50°C
Humidity: <90% non-condensing | | Dimensions | 3.9 x 3.9 x 3.3" / 100 x 100 x 84 mm | | Weight | 13 oz / 370 g | | | | Package Weight | 3.13 lb | | Box Dimensions (LxWxH) | 10.3 x 7.8 x 5.9" |
