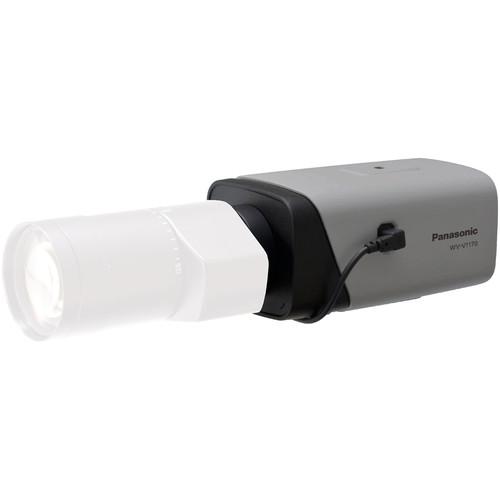

User Manual for Panasonic WV-V1170 12MP Network Box Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Panasonic WV-V1170 12MP Network Box Camera
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic WV-V1170 12MP Network Box Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Capture 12MP evidence around the clock with the WV-V1170 12MP Network Box Camera from Panasonic. Featuring an automatic IR cut filter, the camera switches to night mode as light levels drop, boosting IR sensitivity to deliver high-quality black-and-white images during the night. The integrated C/CS mount allows you to use the camera with the fixed or varifocal C- or CS-mount lens that best suits your application (lens available separately).
The camera comes with a built-in microphone and a 1-channel input/output audio interface for two-way audio. A built-in SD slot allows for up to 128GB of onboard storage, so you don't have to worry about losing crucial footage in the event of network loss. Bandwidth and storage use are optimized without compromising video quality using H.265, H.264, and MJPEG compression. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - 1/1.7" 12MP CMOS image sensor
- H.265, H.264 & MJPEG triple-stream encoding
- 20 fps at 12MP (4000 x 3000), 25/30 fps at 4K UHD (3840 x 2160)
- Supports ICR for day and night operation
- Privacy masking, up to four areas
- Motion detection, four zones
- Supports DC power and PoE (IEEE 802.3af compliant)
In the Box Panasonic WV-V1170 12MP Network Box Camera with Night Vision (No Lens) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-V1170 12MP Network Box Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic V-Series Specs | | | Sensor | 12 MP 1/1.7" CMOS | | Lens Mount | CS | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.002 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | | | Streaming Resolution | 4000 x 3000 at 20 fps
3840 x 2160 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Built-In Mic | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Analytics | Motion | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x 9-Pin Serial (RS-232)
1 x 9-Pin Serial (RS-485) | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 9.6 W
AC: 19.2 W
PoE: 9.6 W | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Dimensions | H: 5.3 x W: 2.9 x L: 2.6" / H: 13.5 x W: 7.4 x L: 6.6 cm | | Weight | 1.2 lb / 544.3 g |
