User manual
Panasonic WV-X4571LM 9MP Outdoor 360° Network

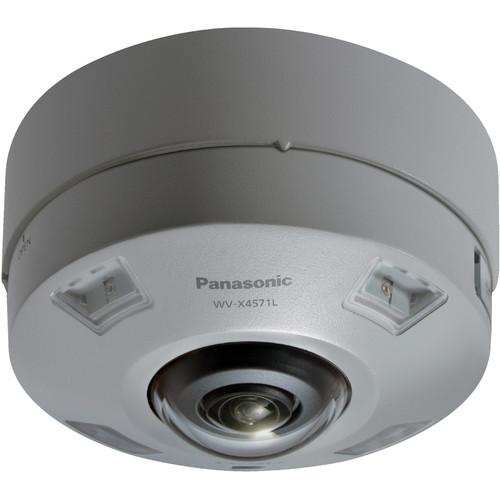

User Manual for Panasonic WV-X4571LM 9MP Outdoor 360° Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Panasonic
• Brand: Panasonic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Panasonic Wired IP Cameras

Product description

• Suitable for airports, train/subway stations, retail establishments, banks, factories, schools, and hospitals

• EN45545- and EN50155-compliant for railway applications

• Delivers 9MP fisheye images at up to 30 fps

• Viewing modes include fisheye, quad PTZ, single PTZ, double panorama, fisheye + double panorama, fisheye + quad PTZ, quad streams, panorama, and fisheye + panorama

• Clear image with minimal distortion of faces and objects at the edge of the fisheye

• IR cut filter

• H.265 and H.264 video compression

• Unicast and multicast transmission

• Instant response to sudden light changes such as tunnel entry and exit

• iA (intelligent Auto) monitors scene dynamics and motion to automatically adjust camera settings in real-time to reduce distortion on moving objects such as motion blur

• Auto shutter speed control for fast moving objects

• Image compensation includes adaptive black stretch, backlight compensation, fog compensation, highlight compensation, and digital noise reduction

• Automatic gain control

• White balance

• 108 dB wide dynamic range

• Up to 4x digital zoom

• 19.7" to infinity focus range

• Auto back focus

• Video motion detection for up to 4 areas

• Region of interest detects motion areas to keep vehicles and people visible in high quality images while lowering bandwidth

• Privacy masking for up to 8 zones

• Data security includes full end-to-end system encryption with supported VMS and devices, FIPS 140-2 level 1 compliance, and full encryption SD card edge recording

• Analytics such as heat mapping, people counting, MOR (moving object remover), intruder detection, loitering detection, line crossing detection, object detection, and scene detection are enabled with the optional WV-SAE200 software (available separately)

• Compatible with iOS and Android

• CVBS monitor output for adjustment

• Shock resistance

• Dehumidification functionality

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Panasonic WV-X4571LM Specs

Recording Media	SD (Up to 256 GB)
Pan/Tilt	None
Alarm I/O	3 / 2
I/O Connections	1 x M12 1 x Power 1 x RCA
IR Range	33' / 10.06 m
Video Management Software	WV-SAE200 for i-VMD (Optional, Available Separately)
Supported Languages	English French German Italian Japanese Portuguese Russian Simplified Chinese Spanish
Internal Storage	None
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	12.5 W
Material of Construction	Aluminum, Polymer
Operating Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	10 to 100%
IP Rating	IP66
IK Rating	IK10
