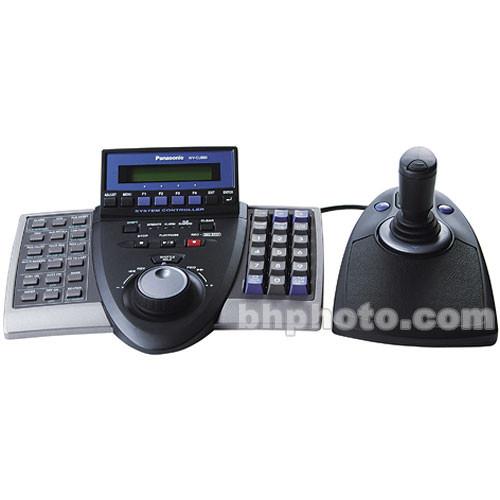

User Manual for Panasonic WVCU950 Controller For WJ-SX850 System, Jog Shuttle, Large Numeric Keyboard Click to enlarge the picture
Contents of the user manual for the Panasonic WVCU950 Controller For WJ-SX850 System,
- Product category: Keyboards & Controllers Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Keyboards & Controllers
|
User manual for the Panasonic WVCU950 Controller For WJ-SX850 System, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic WJ-SX850 controller is designed for use with Panasonic's Matrix 850 system. The controller features a cockpit style layout with the buttons positioned around the LCD for effective and comprehensive operation. A centrally positioned detachable joy stick enables smooth and quick control with seamless tracking. The joy stick is padded and can be adjusted to fit small or large hands, has a low center of gravity and an adjustable angle optimizing performance while keeping stress to a minimum. The WVCU950 also features a large numeric keyboard for direct camera access with dedicated record, play and search buttons and a built-in jog shuttle providing smooth ff/rewind and frame advance operation. - Camera Control
- A detachable joy stick enables smooth and quick operation over the entire control process including seamless pan, tilt and zoom tracking.
- Ergonomic Design
- The joy stick incorporates features to minimize stress over extended periods of use. The joy stick is padded for comfort and can be adjusted to fit small and large hands. It accommodates users that are right or left handed, has an adjustable angle and features a low center of gravity design.
- Jog/Shuttle
- Built-in jog shuttle for smooth ff/rewind and frame advance operation.
- System Management Capability
- Determines the level of accessibility for each user.
- User assignable buttons
- Features seven user assignable buttons, four in main unit plus three in palm rest.
UPC: 791871504284 In the Box Panasonic WVCU950 Controller For WJ-SX850 System, Jog Shuttle, Large Numeric Keyboard AC Power adapter 1 Year warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WVCU950 Controller For WJ-SX850 System, Jog Shuttle, Large Numeric Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CU950 Specs Control | Controller Number: 1 to 8 (rotary switch) Unit Number Selection: 1 to 99 Monitor Number Selection: 1 to 99 Camera Number Selection: 1 to 256 | Ports | Ethernet Port: 10Base-T/100Base-TX, RJ-45 x1 Data Output/Input Port: 6-conductor modular jack (RS-485, Full duplex) x2 Serial Port: 9-pin D-sub connector | Power Requirements | 9 VDC, 600 mA (using the supplied AC adapter) | Dimensions (WxHxD) | Main Unit: 11 7/16 x 4 3/8 x 8 11/16" (290 x 111 x 221mm) 3D Joystick Unit: 5 1/4 x 5 3/4 x 8 9/16" (134 x 146 x 218mm) | Weight | Main Unit: 2.86 lb (1.3 kg) 3D Joystick Unit: 1.76 lb (0.8 kg) | | Package Weight | 9.3 lb | Box Dimensions (LxWxH) | 19.4 x 13.6 x 9.2" |
