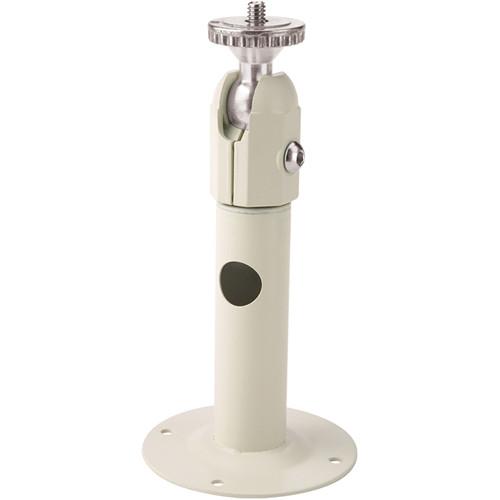

User Manual for PANAVISE 6" Pass Thru Standard Mount Click to enlarge the picture
Contents of the user manual for the PANAVISE 6" Pass Thru Standard Mount
- Product category: Mounting Hardware PANAVISE
- Brand: PANAVISE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PANAVISE Mounting Hardware
|
User manual for the PANAVISE 6" Pass Thru Standard Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PANAVISE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PANAVISE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PANAVISE product will considerably shorten its lifespan!
|
Product description The cream 6" Pass Thru Standard Mount from Panavise enables easy and clean installation of CCTV cameras onto a solid surface. The mount's hollow shaft serves to protect your video cable, while also maintaining a clutter-free installation. Camera positioning is simple thanks to the mount's ability to tilt up to 210°, turn up to 360°, and rotate 360°. A lockring securely holds your CCTV camera in place, and a 1/4-20 mounting stud allows for compatibility with most cameras. - Quick and easy camera positioning
- 1/4-20 mounting stud with lockring for firm attachment of the camera
- Hollow aluminum shaft with 1" outside diameter and 0.875" inside diameter
- Slot for cable pass thru for a neat installation
- Allows the full range of camera movement (210° tilt, 360°' turn, 360° rotation)
- Knob and tamper-resistant set-screw adjusting options included
- Features a 3" round mounting base for solid surfaces with four 0.188" holes on a 2.5" circle
- Matching vinyl cover adds to the finished look
UPC: 729315849622 In the Box PANAVISE 6" Pass Thru Standard Mount (Cream) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PANAVISE 6" Pass Thru Standard Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPANAVISE 849-06W Specs | Length | 6" (152.4 mm) from base to top of lockring | | Shaft Diameter | Outside diameter - 1" (25.4 mm)
Inside diameter - 0.875" (22.2 mm) | | Cable Pass Thru Hole | 0.625" (15.9 mm) | | Base Dimensions | 3" (76.2 mm) round mounting base
4 x 0.188" (4.8 mm) holes on a 2.5" (63.5 mm) circle | | Weight | Not specified by manufacturer | | | | Package Weight | 0.71 lb | | Box Dimensions (LxWxH) | 6.5 x 4.7 x 4.6" |
