User Manual for PANAVISE 870 CCTV Camera Tree Click to enlarge the picture
Contents of the user manual for the PANAVISE 870 CCTV Camera Tree
- Product category: Mounting Hardware PANAVISE
- Brand: PANAVISE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PANAVISE Mounting Hardware
|
User manual for the PANAVISE 870 CCTV Camera Tree contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PANAVISE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PANAVISE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PANAVISE product will considerably shorten its lifespan!
|

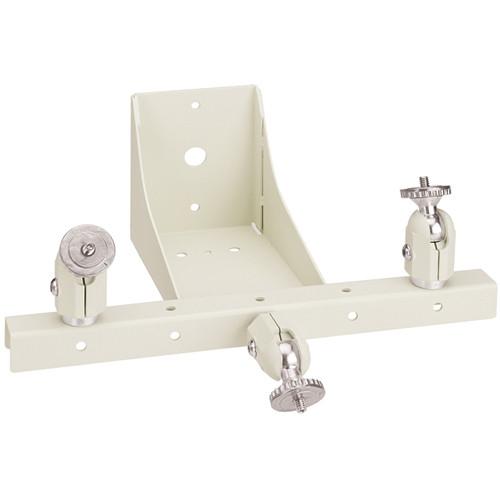

Product description The cream 870 CCTV Camera Tree from PANAVISE is a single J-box mount that allows you to mount up to five CCTV cameras to a wall or ceiling. It features a cable pass-through hole for easy installation. It includes three adjusting knuckles installing CCTV cameras, with the option to add up to two more (available separately). Positioning the camera is simple thanks to the knuckle's ability to tilt up to 210° and turn and rotate 360°, while a lock-ring securely holds your CCTV camera in place. In addition, the adjusting knuckles feature a 1/4"-20 thread, making them compatible with most cameras. - Holds up to three CCTV cameras with the ability to hold more with additional knuckles (available separately)
- J-box mounting plate for secure attachment on a solid surface
- Cable pass-through hole on the mounting plate for a neat installation
- 210° tilt and 360° rotation and turn
- 1/4"-20 thread with lock-ring
UPC: 729315870022 In the Box PANAVISE 870 CCTV Camera Tree (Cream) 3 x Adjusting Knuckles Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PANAVISE 870 CCTV Camera Tree in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPANAVISE 870W Specs | Tilt | Up to 210° | | Material | Steel | | Turn | 360° | | Rotate | 360° | | Cable Pass Thru Hole | 0.625" (15.9 mm) | | Thread | 14"-20 | | Dimensions | Wall to Center of Cross Bar: 6.25" (158.8 mm)
Height of Adjusting Knuckles: Approximately 2.75" (69.8 mm)
Mount Bar Width: 12" (304.8 mm) | | | | Package Weight | 3.885 lb | | Box Dimensions (LxWxH) | 12.85 x 10.7 x 7.0" |
