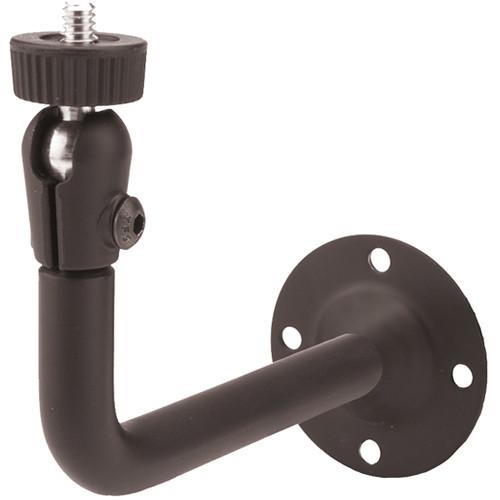

Product description The black Angle Micro Mount from PANAVISE is an L-shaped mount that mounts your CCTV camera 4" from the wall. It features a 1/4"-20 thread mount with a lock ring for a secure attachment. Camera positioning is simple thanks to the mount's ability to tilt up to 190° and turn and rotate 360°. Included are knob and tamper-resistant set-screws for a secure setup. - 1/4:-20 thread mount with lock ring for firm attachment of the camera
- 190° tilt, 360° turn, and 360° rotation
- Knob and tamper-resistant set-screw adjusting options included
- 0.5" diameter solid steel shaft
- 2" round base with four holes on a 1.6" bolt circle
UPC: 729315846010 In the Box PANAVISE Angle Micro Mount (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PANAVISE Angle Micro Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPANAVISE 846L Specs | Thread | 1/4"-20 | | Shaft Diameter | 0.5" (12.7 mm) | | Dimensions | Base to Front of Mount: 4" (102 mm)
Bottom of Angle to Top of Mount: 3.375" (85.7 mm)
Base Diameter: 2" (50.8 mm)
Screw Holes: 4x 0.188" (4.8 mm)
Bolt Circle: 1.6" (40.6 mm) | | Base Dimensions | 2" (50.8 mm) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.3 x 3.1 x 3.1" |
