User Manual for PANAVISE Deluxe Micro Mount Click to enlarge the picture
Contents of the user manual for the PANAVISE Deluxe Micro Mount
- Product category: Mounting Hardware PANAVISE
- Brand: PANAVISE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PANAVISE Mounting Hardware
|
User manual for the PANAVISE Deluxe Micro Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PANAVISE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PANAVISE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PANAVISE product will considerably shorten its lifespan!
|

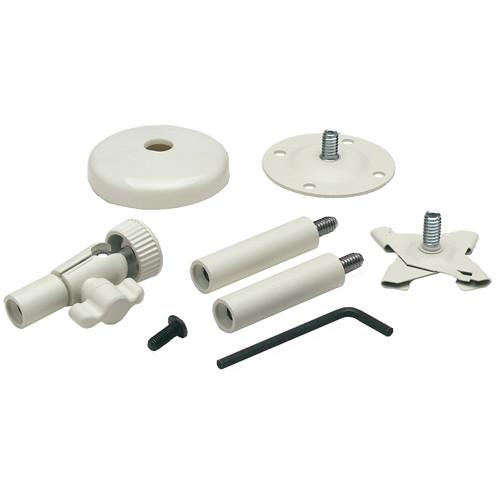

Product description The cream Deluxe Micro Mount from Panavise is a customizable mounting kit that offers 12 options for mounting CCTV cameras. A 2" round base with four holes on a bolt circle for solid surface mounting is included, along with a T-bar clip for drop ceiling rails. Two aluminum shafts allow you to vary the mount's length, making it possible to have a mount that is between 2-6" long. Camera positioning is simple thanks to the mount's ability to tilt up to 190° and rotate 360°, while a lock-ring securely holds the camera in place. In addition, the mount features a 1/4"-20 thread, making it compatible with most cameras. - Adjustable length from 2-6"
- Quick and easy positioning of the camera
- 1/4"-20 thread with lock-ring for secure attachment of the camera
- 190° tilt, 360° turn, and 360° rotation
- Knob and tamper-resistant set-screw adjusting options included
- 2" round base with four 0.188" holes on 1.6" bolt circle for attachment to a solid surface
- T-bar clip for mounting on drop ceiling rails
UPC: 729315845228 In the Box PANAVISE Deluxe Micro Mount (Cream) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PANAVISE Deluxe Micro Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPANAVISE 845-246W Specs | Mounting Options | Solid surfaces, ceiling | | Thread | 1/4"-20 | | Adjustments | Tilt: Up to 190°
Turn/Rotate: 360° | | Base | Diameter: 2" (50.8 mm)
Mounting Holes: 4 x 0.188" (4.8 mm)
Bolt Circle: 1.6" (40.6 mm) | | Shaft Length | 2 x 2" (50.8 mm) | | Shaft Diameter | 0.5" (12.7 mm) | | | | Package Weight | 0.375 lb | | Box Dimensions (LxWxH) | 4.3 x 3.2 x 2.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
