User Manual for Papago GoSafe 230 1080p Dash Camera Click to enlarge the picture
Contents of the user manual for the Papago GoSafe 230 1080p Dash Camera
- Product category: Dashcams Papago
- Brand: Papago
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Papago Dashcams
 |
User manual for the Papago GoSafe 230 1080p Dash Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Papago product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Papago user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Papago product will considerably shorten its lifespan!
|

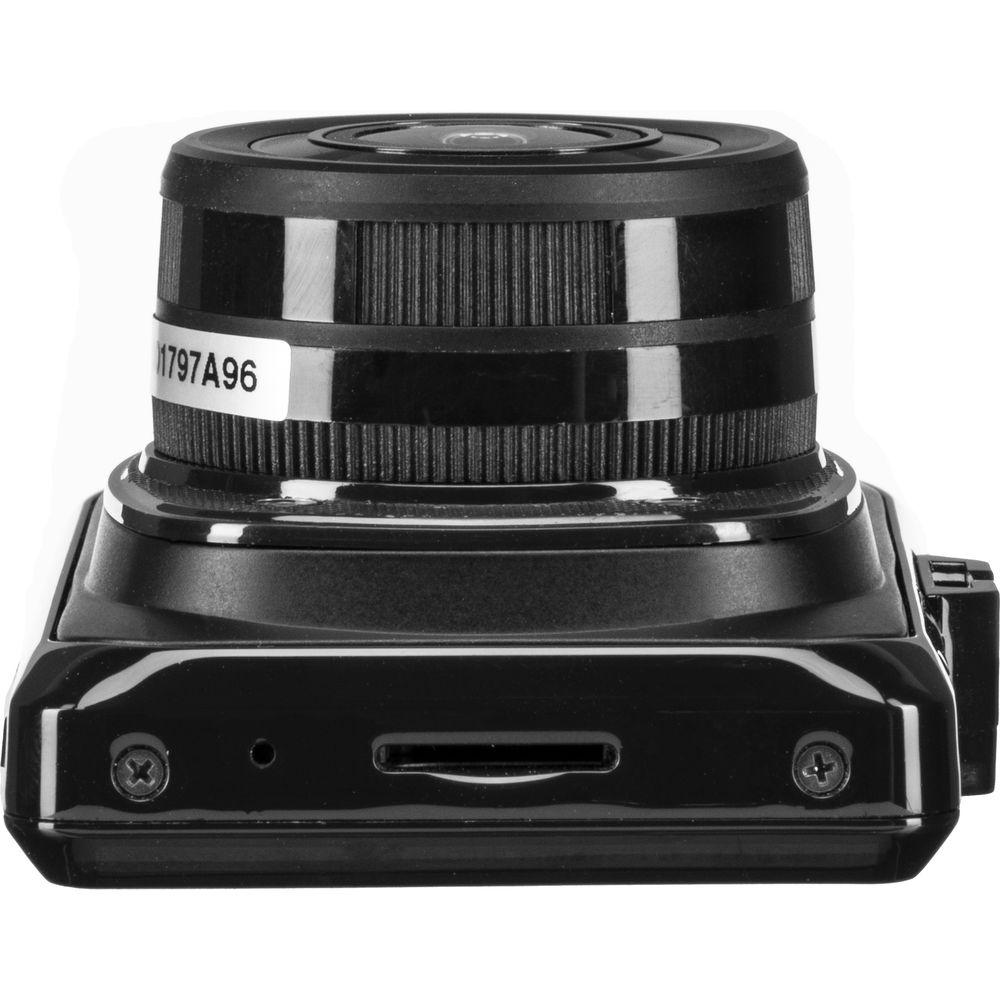

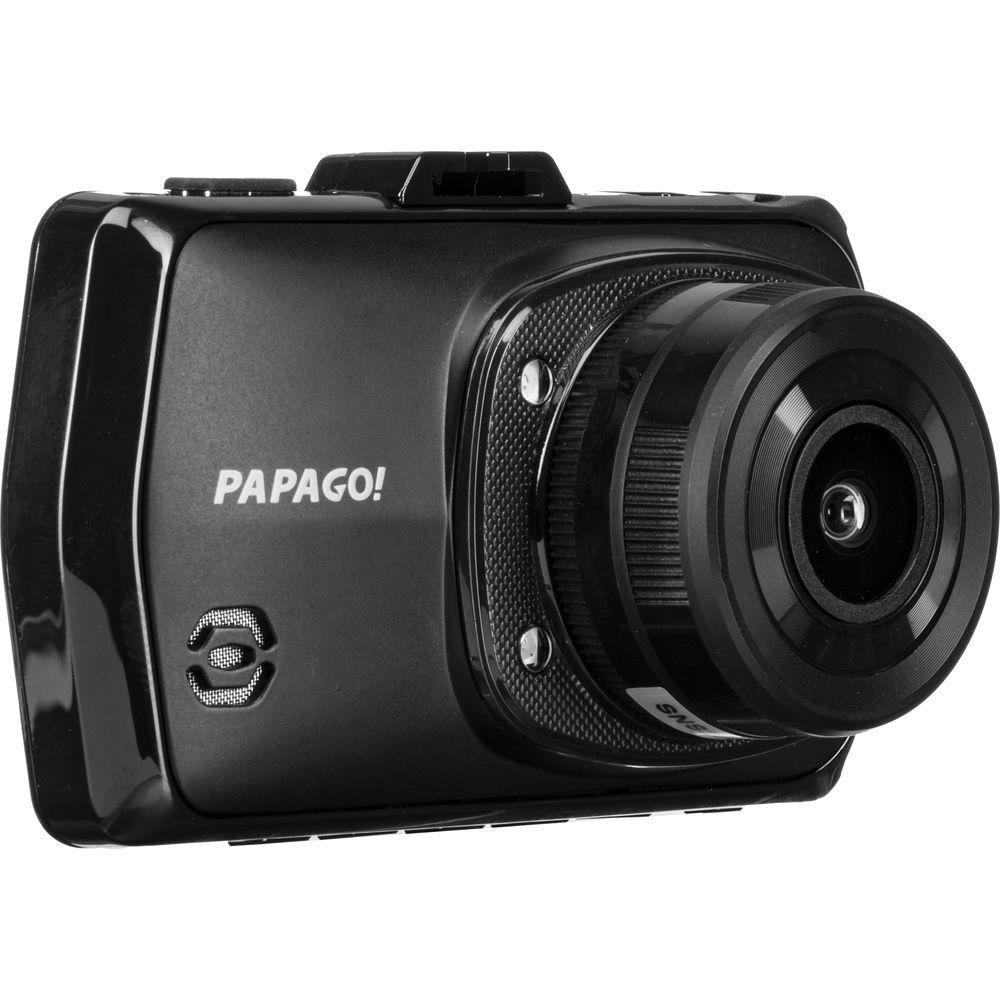

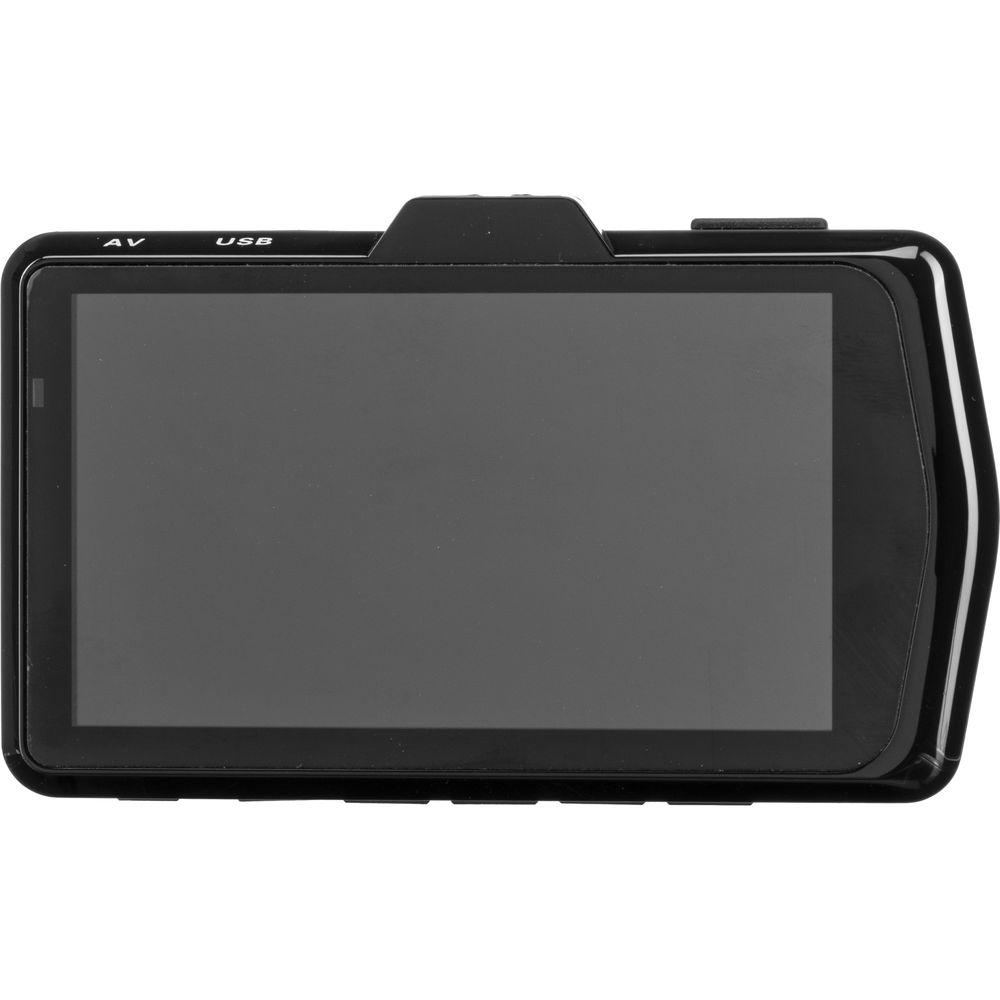

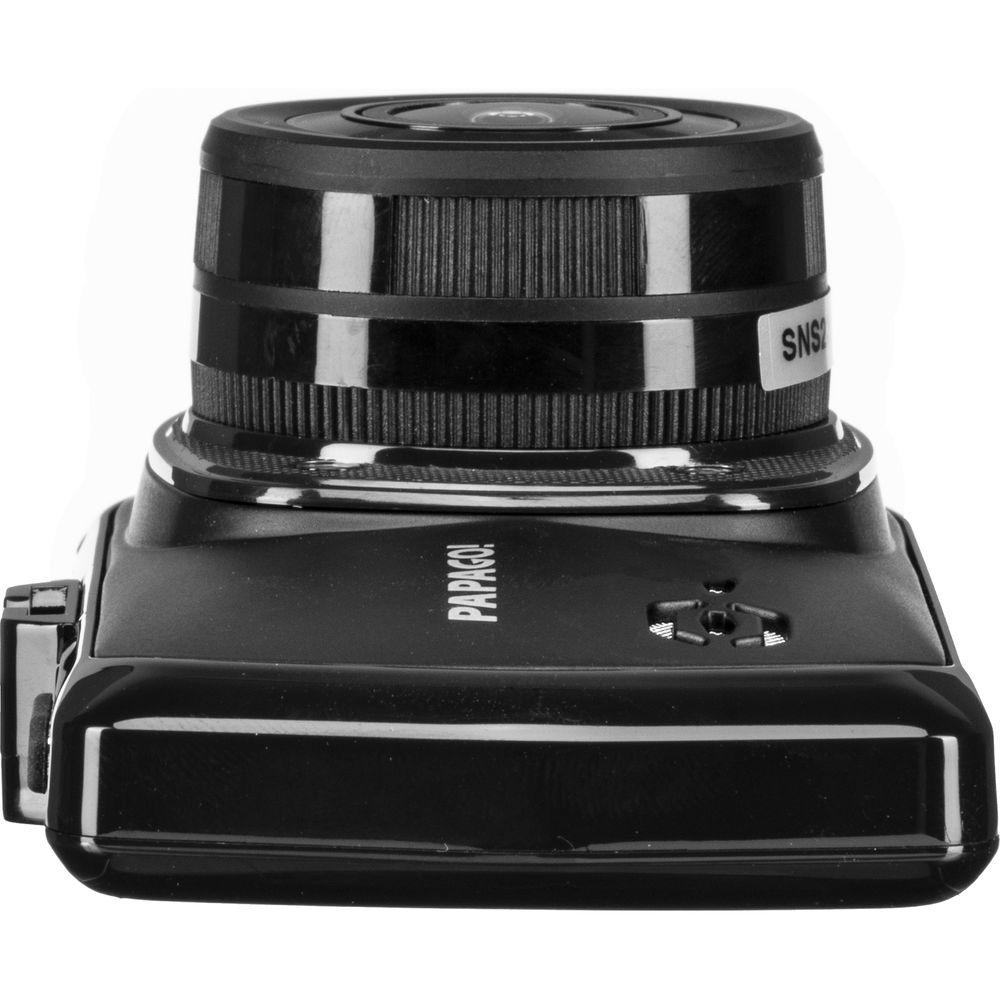

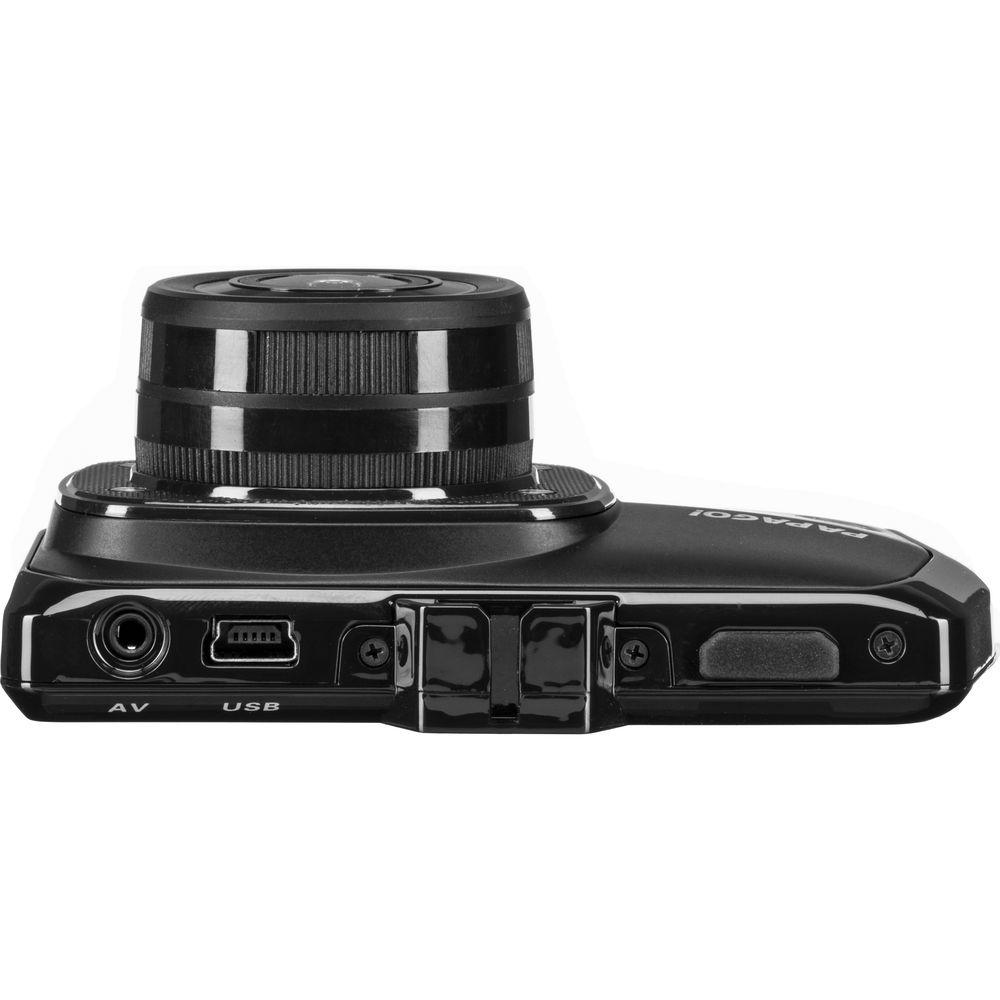

Product description Monitor what's in front of you with the GoSafe 230 1080p Dash Camera from Papago on its 3" color LCD screen. This camera features a resolution of 1920 x 1080 at up to 30 fps. The lens has a wide 120° field of view that enables you to see the entire road ahead of you.
The GoSafe 230 is equipped with multiple recording modes, including loop recording in 3-minute clips, motion detection recording, and camera mode for still images. Audio recording and playback are possible thanks to a built-in speaker and microphone. An onboard slot supports microSD cards up to 32GB, and an 8GB card is included. A lifetime of firmware updates ensures that your device will remain supported for many years to come. - Loop recording, motion detection, and camera mode
- Loop recording mode overwrites old files and continues to record when microSD card is full
- Captures still images at 12MP resolution
- JPEG and AVI file formats
- LED indicators include recording, standby, and charging

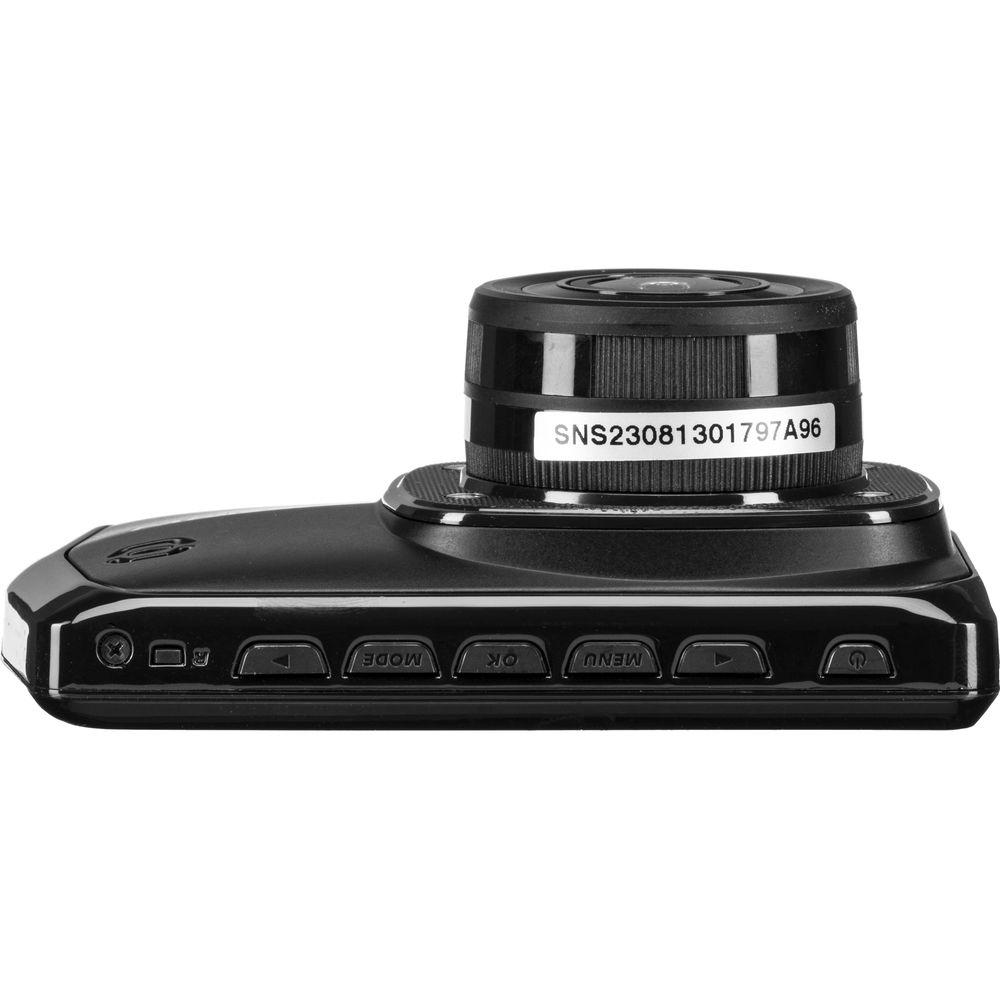

- Buttons include power, up, menu, OK/record, mode, down, and reset
- Built-in 3.7V lithium battery
- Includes car charger, 8GB microSD card, and suction mount
UPC: 840494180136 In the Box Papago GoSafe 230 1080p Dash Camera Suction Mount 12-24V Car Charger 8GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Papago GoSafe 230 1080p Dash Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPapago GoSafe 230 Specs | Screen | 3" / 76.2 mm color LCD | | Resolutions and Frame Rates | 1920 x 1080 at 30 fps
1280 x 720 at 30 fps
720 x 480 at 30 fps
640 x 480 at 30 fps
320 x 240 at 30 fps | | Field of View | 120° | | Aperture | f/2.0 | | Image Resolution | 12 MP | | Recording Modes | Loop, camera, and motion detection recording modes | | File Formats | AVI, JPEG | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | AV Output | Yes | | USB Port | Mini-USB | | Buttons | Power, up, menu, OK/record, mode, down, reset | | Fill Light | Yes | | LED Indicators | Recording, standby, charging | | Storage | Supports microSD cards up to 32 GB, 8 GB card included | | Battery | 3.7 V lithium battery | | Power Supply | 5 V / 1.5 A | | Operating Temperature | 14 to 149°F / -10 to 65°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Supported Languages | English
Russian
Korean
Simplified Chinese
Traditional Chinese
Portuguese
Japanese
French | | Dimensions | 2.2 x 2.6 x 1.2" / 57 x 65 x 30 mm | | Weight | 2.5 oz / 70 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.5 x 6.0 x 3.5" |
