User Manual for Papago GoSafe 760 Dual Lens Dash Camera Click to enlarge the picture
Contents of the user manual for the Papago GoSafe 760 Dual Lens Dash
- Product category: Dashcams Papago
- Brand: Papago
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Papago Dashcams
 |
User manual for the Papago GoSafe 760 Dual Lens Dash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Papago product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Papago user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Papago product will considerably shorten its lifespan!
|

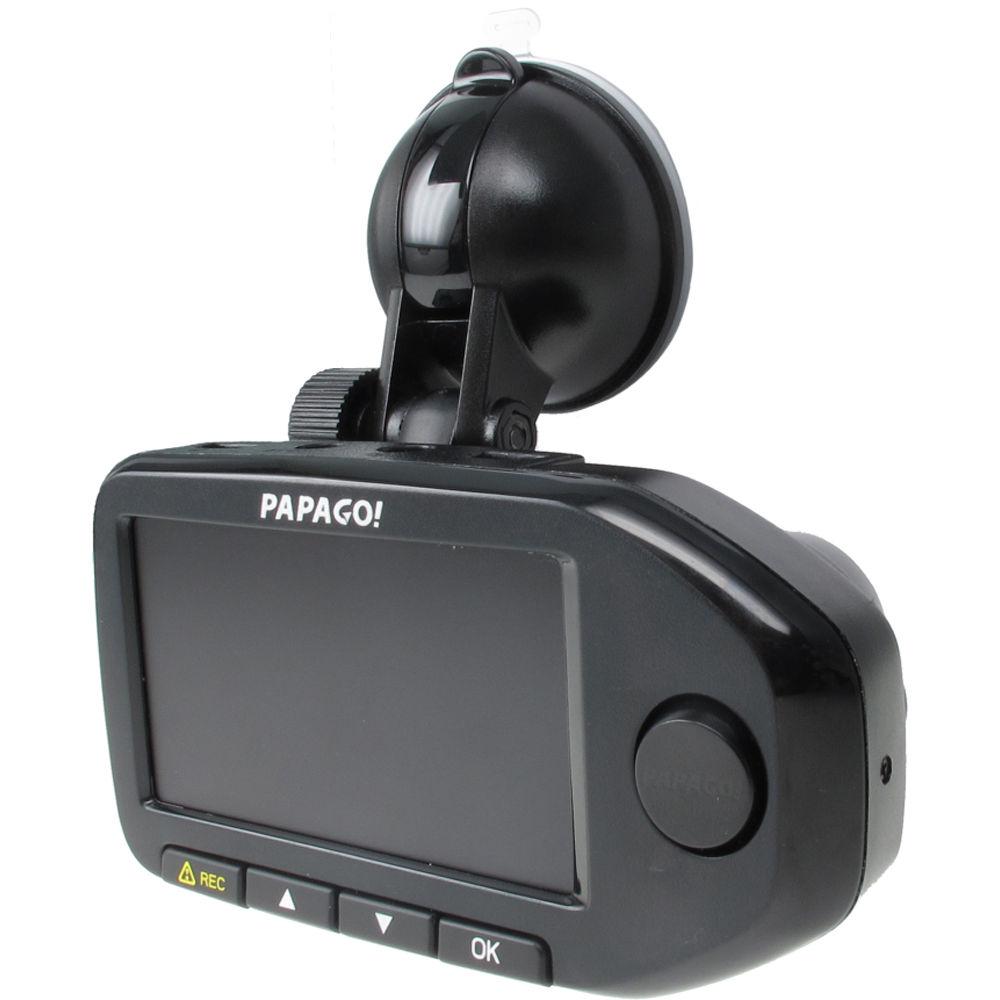

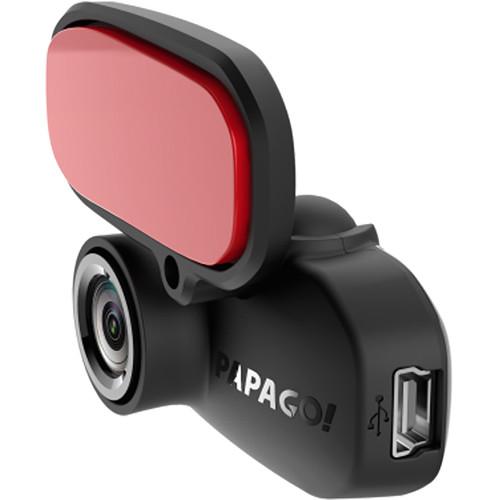

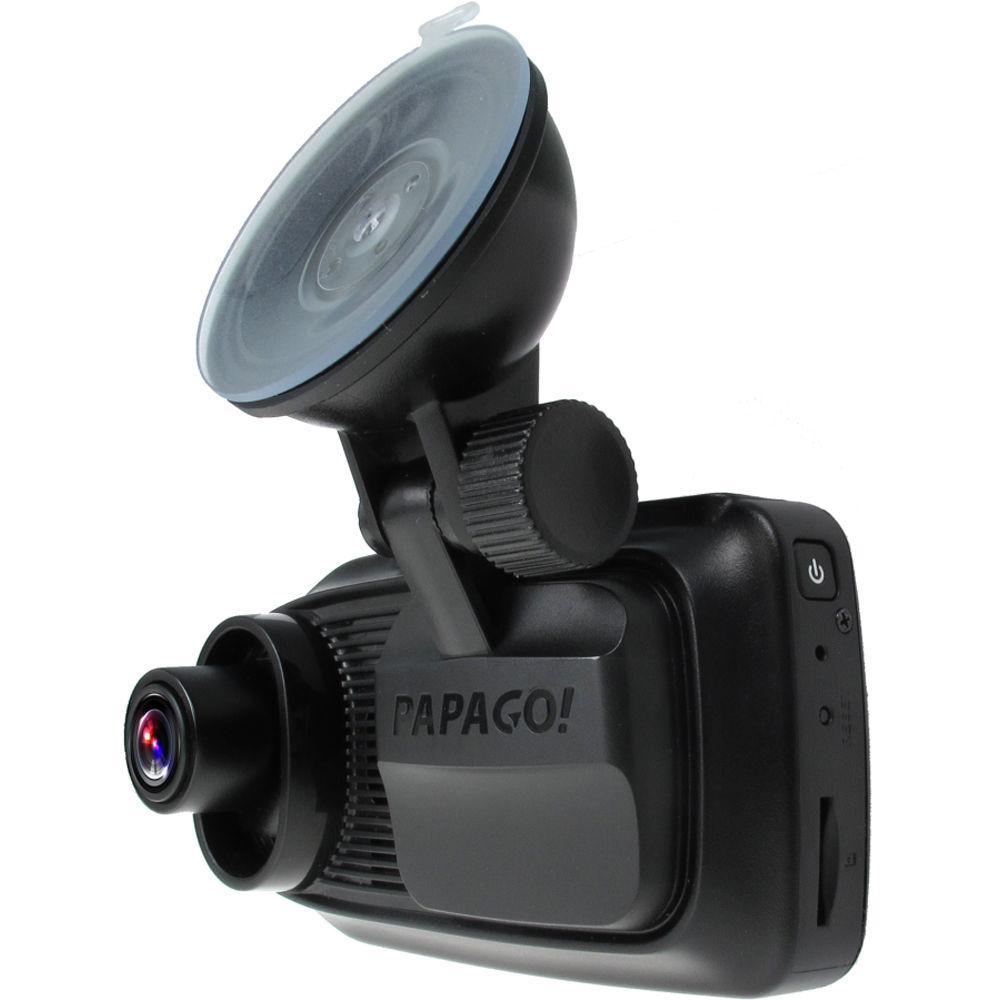

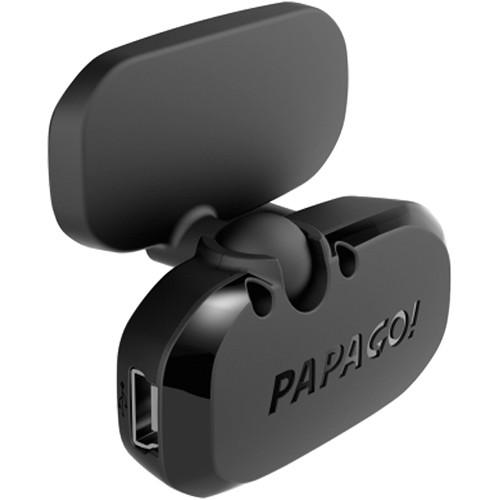

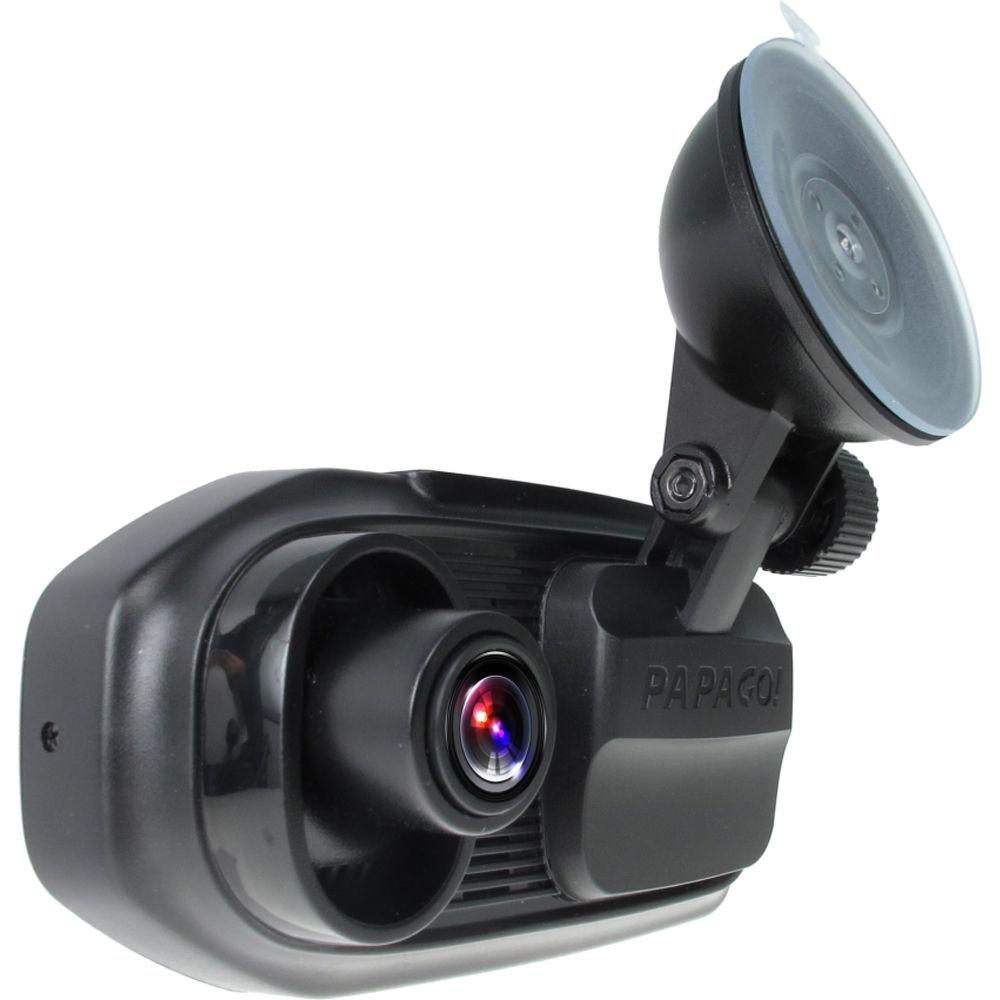

Product description Monitor the front and rear views from your car with the GoSafe 760 Dash Cam from PAPAGO. This dual-camera system features two wide-angle cameras capable of recording in 1080p at 30 fps. The GoSafe's integrated 2.7" LCD color screen has split-screen display capability so you can see and record what's happening in front of and behind you. The GoSafe's lenses can be moved up and down, and you can adjust the EV value manually according to your environment or to optimize night recording.
The GoSafe 760 supports microSD cards up 128GB, so you can record hours of footage before it loops over. It features PAPAGO's proprietary Driver Assist mode, which includes features like Stop Sign Recognition and Driver Fatigue Alarm. The GoSafe 760 also supports PAPAGO's GPS antenna and D10E TPMS System (sold separately), for even more functionality. Adhesive mounts and a 32GB microSD card are included. - Dual-Cam
- Sophisticated design with front and rear installation for full coverage of your vehicle
- Split Screen
- View both dash cam videos at the same time on the split screen
- Adjustable Lens
- The lens can be adjusted up and down, so you can position it to get the most accurate view
- Wide-Angle View
- Front lens has a wide field view of 140° and rear lens field view of 120° for a panoramic view of the road
- Adjustable Exposure Values
- Adjust the EV value manually according to environment and to optimize night recording
- Built-In G-Sensor
- The GoSafe 760 comes equipped with a built-in gravity sensor, which enables it to automatically save a video file in the event of a collision
- Driver Assist Features
- GoSafe 760 utilizes PAPAGO's Driver Assist Features, including Stop Sign Recognition, Stop and Go, Driver Fatigue Warning, and Headlight Reminder
- Lifetime Firmware Updates
- GoSafe 760 is eligible to receive a lifetime of free upgrades as soon as they are issued
- Supports TireSafe D10E
- Use GoSafe 760 with TireSafe D10E (sold separately) to efficiently view all four of your tires' pressures and temperatures on your dash cam screen
- GPS Support
- Use a PAPAGO GPS Antenna (sold separately) to record speed and for GPS logging on your videos, to automatically correct the time, and for other related functions
- High-Temp Protection
- The GoSafe 760 has a built-in high-temperature battery protection mechanism to avoid the risk of battery bursts, even in the heat of summer
UPC: 840494190029 In the Box Papago GoSafe 760 Dual Lens Dash Camera Car Charger Suction Cup Mount Sticker Mount Cable 32GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Papago GoSafe 760 Dual Lens Dash Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPapago GoSafe 760 Specs | Display | 2.7" (2.54 cm) color LCD | | Resolution | Dual Channel:
Front: 1080p @ 30 fps
Rear: 1080p @ 30 fps
Single Channel Only:
1440p @ 30 fps
1296p @ 30 fps
1080p @ 60 fps
1080p @ 30 fps
720p @ 120 fps
720p @ 60 fps
720p @ 30 fps | | Angle of View | Front: 140° f/2.0
Rear: 120° f/2.4 | | Video Format | MP4, JPG | | Storage | microSD card reader | | Storage Capacity | Supports microSD cards up to 128 GB, 32 GB included | | G-Sensor | Supported | | Battery Capacity | 250 mAh | | Power Supply | 5 V / 1 A | | Operating Temperature | 14 to 149° F (-10 to 65° C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Dimensions | Front: 3.75 x 2 x 1.25" (95 x 51 x 32 mm)
Rear: 1.8 x 1.1 x 1" (46 x 27 x 26 mm) | | Weight | Front: 2.6 oz (74 g)
Rear: .4 oz (12 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.4 x 4.8 x 3.9" |
