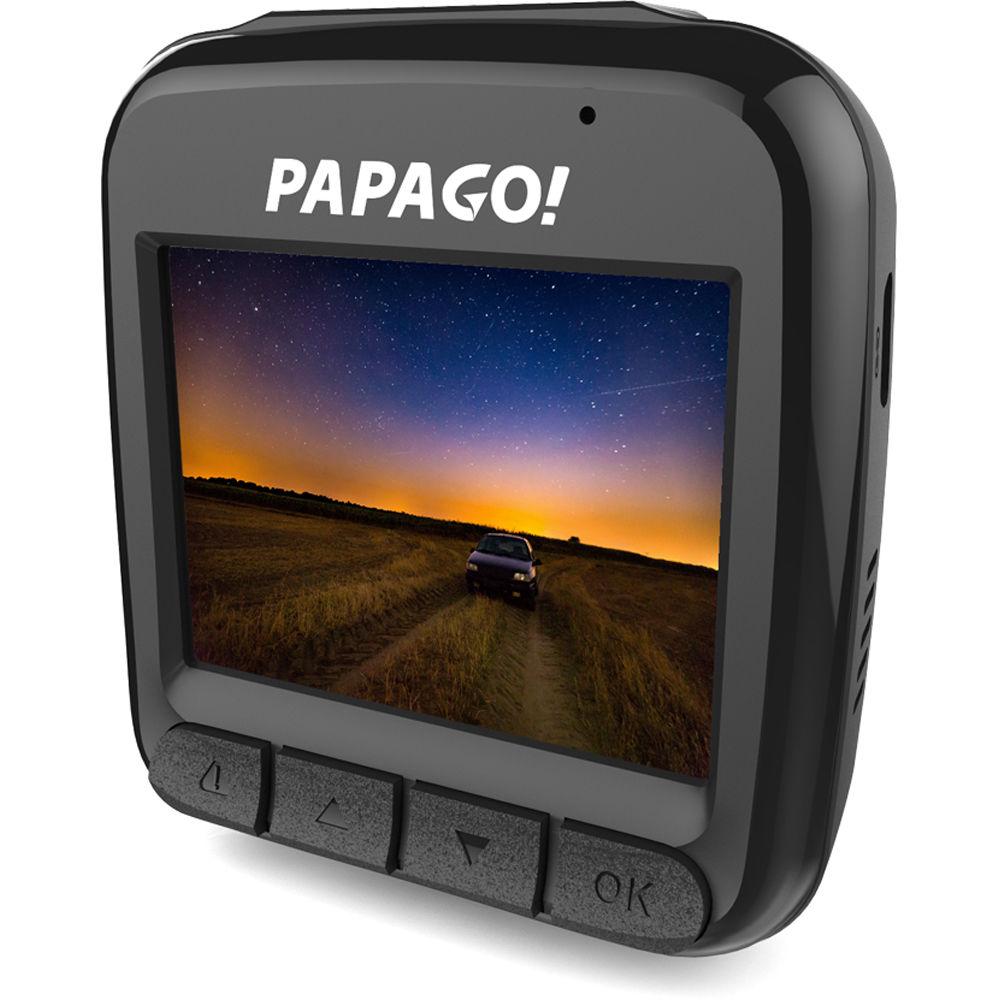

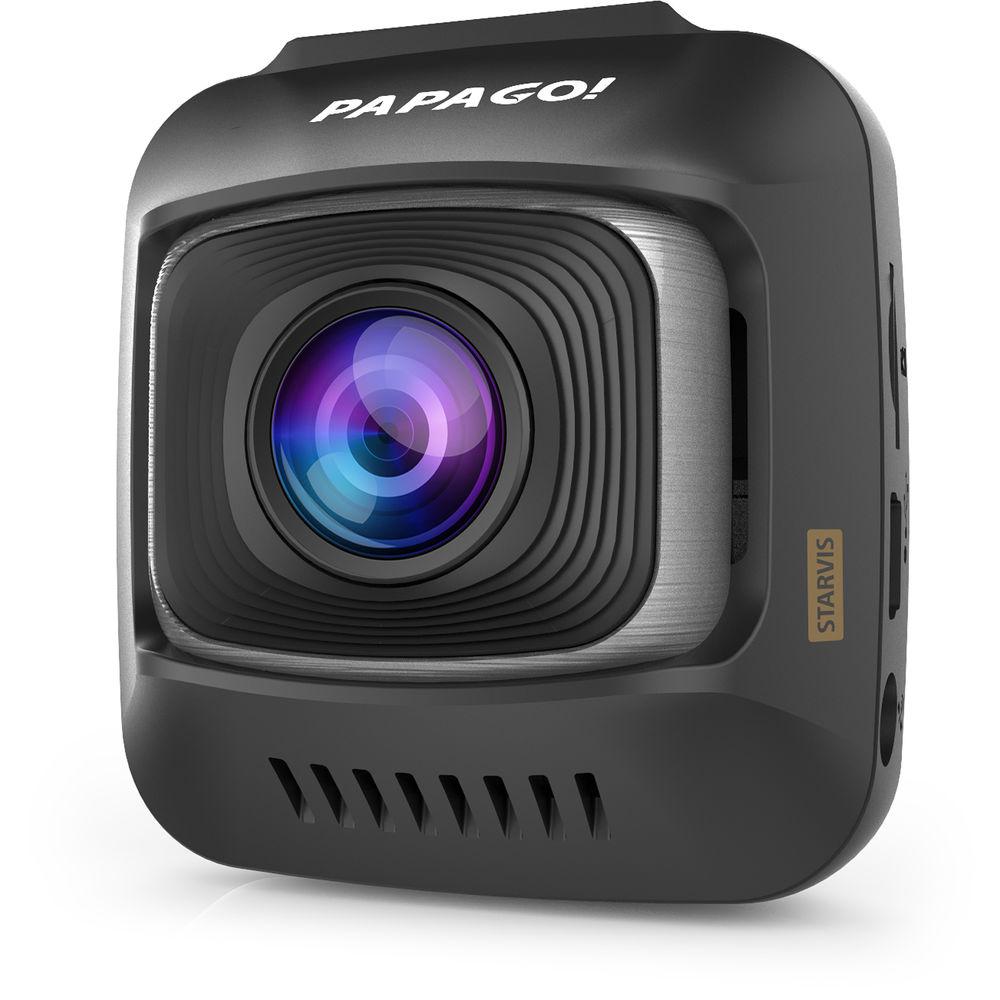

Product description Monitor what's in front of, behind, or inside your vehicle with the GoSafe S780 2-Channel 1080p Dash Camera from Papago. This dash cam houses a 2" LCD screen and features a resolution of 1920 x 1080 at up to 60 fps. Additionally, it has a wide 150° field of view. The included rear camera has an 180° field of view and can be mounted on your rear windshield to record behind you, or on your front windshield to record inside the cabin.
This device is equipped with multiple recording modes, including loop recording, monitoring mode for capturing still images during every second of motion detection, and motion detection recording. If there is no movement for more than 60 seconds, recording will stop and the device will switch to detection mode. In addition, driver assist features include stop sign recognition, stop and go, driver fatigue warning, headlight reminder, and speeding alert functions to help keep you safe while driving. The built-in G-sensor will automatically save video files in the event of a collision.
This dash cam supports microSD cards up to 128GB, and comes with a 16GB microSD card. It also comes with an interconnect cable, car charger, suction cup mount, 3M adhesive mount, and a lifetime of firmware updates. In addition, it supports the GPSA-US GPS antenna and Papago!'s Tiresafe D10E TPMS to check your tires' pressure and temperature in real time, both of which are available separately.
Note: This device does not support both the GPS antenna and TPMS simultaneously. Please use only one of the optional accessories at a time. - Sony Starvis sensor automatically adjusts to the sensitivity of light to render clear images at any time of the day
- Included rear camera features a Sony Exmor sensor and is IPX7-rated for protection when submerged in up 3.3' of water for 30 minutes
- Two-way installation allows you to place the second camera on your rear windshield to record behind you, or on your front windshield to record inside the cabin
- Automatically changes to rear view when the car is placed in reverse
- Recording modes include loop recording, motion detection, and monitoring mode
- Includes interconnect cable, car charger, suction cup mount, 3M adhesive mount, and a 16GB microSD card
UPC: 840494180242 In the Box Papago GoSafe S780 2-Channel 1080p Dash Camera Rear Camera Interconnect Cable Car Charger Suction Cup Mount 3M Adhesive Mount 16GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Papago GoSafe S780 2-Channel 1080p Dash Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPapago GoSafe S780 Specs | Screen | 2.0" / 51 mm color LCD display | | Chip | Professional Sony image sensor chip | | Resolutions & Frame Rates | 1920 x 1080 at 60 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps | | Video Format | MP4 | | Recording Modes | Loop recording, motion detection, and monitor mode | | Field of View | Front: 150° Ultra-Wide Angle Lens, f/1.5
Rear: 180°, f/1.9 | | GPS | Supports GPSA-US GPS antenna, available separately | | Tire Pressure | Supports PAPAGO! TireSafe D10E TPMS, available separately | | Storage | Supports Class 10 microSD cards from 8 to 128 GB
16 GB card included | | Battery | Built-in supercapacitor | | Power Supply | 5 V, 1.5 A | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Languages Supported | English, French, Spanish, German, Italian, Japanese, Portuguese, Russian, Traditional Chinese, Simplified Chinese | | Dimensions | 2.2 x 1.2 x 2.4" / 56 x 30.5 x 61 mm | | Weight | 0.12 lb / 54.4 g | | | | Package Weight | 1.53 lb | | Box Dimensions (LxWxH) | 6.4 x 5.8 x 3.55" |
