User Manual for Papago GoSafe S810 2-Channel 1080p Dash Camera with 16GB microSD Card Click to enlarge the picture
Contents of the user manual for the Papago GoSafe S810 2-Channel 1080p Dash
- Product category: Dashcams Papago
- Brand: Papago
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Papago Dashcams
 |
User manual for the Papago GoSafe S810 2-Channel 1080p Dash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Papago product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Papago user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Papago product will considerably shorten its lifespan!
|

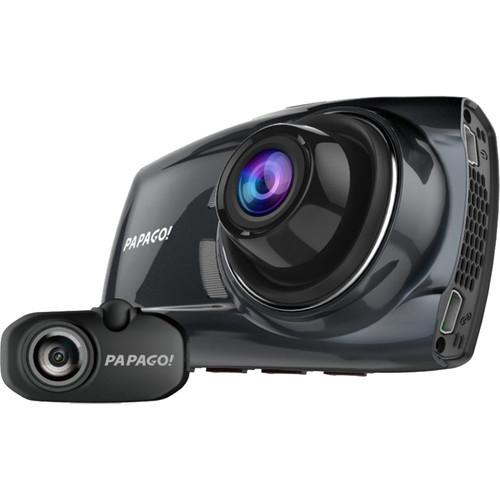

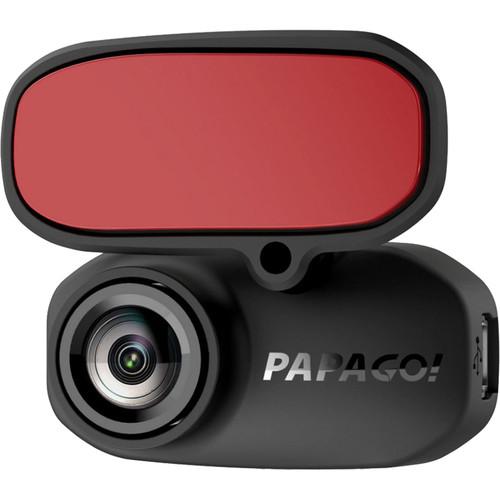

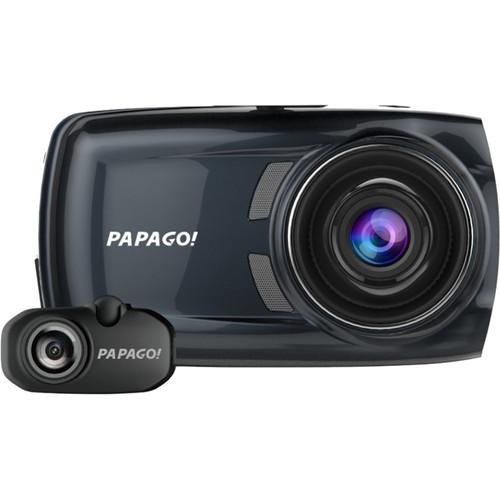

Product description Record what's in front of and behind your vehicle with the GoSafe S810 2-Channel 1080p Dash Camera from Papago. The front-facing camera uses a Sony Exmor image sensor that captures 1080p video at 30 fps. It has a 2.4" LCD screen and delivers a wide 140° field of view. The rear-facing camera captures 1080p video at 30 fps and delivers a 120° field of view.
Recording modes for this device include loop recording, motion detection, and monitoring mode. Driver assist features such as stop sign recognition, stop and go, driver fatigue warning, and headlight reminder help keep you safe while driving. The built-in G-sensor will automatically save video files in the event of a collision. An onboard memory card slot supports microSD cards up to 128GB. A 16GB microSD card is included. This device comes with lifetime firmware updates. - Supports Papago's Tiresafe D10E TPMS (available separately) to check your tires' pressure and temperature in real time
- Supports the GPSA-US GPS antenna (available separately) to record speed and for GPS logging
- Sony Exmor image sensor automatically adjusts to the sensitivity of light to render clear images at any time of the day
- Recording modes include loop recording, motion detection, and monitoring mode

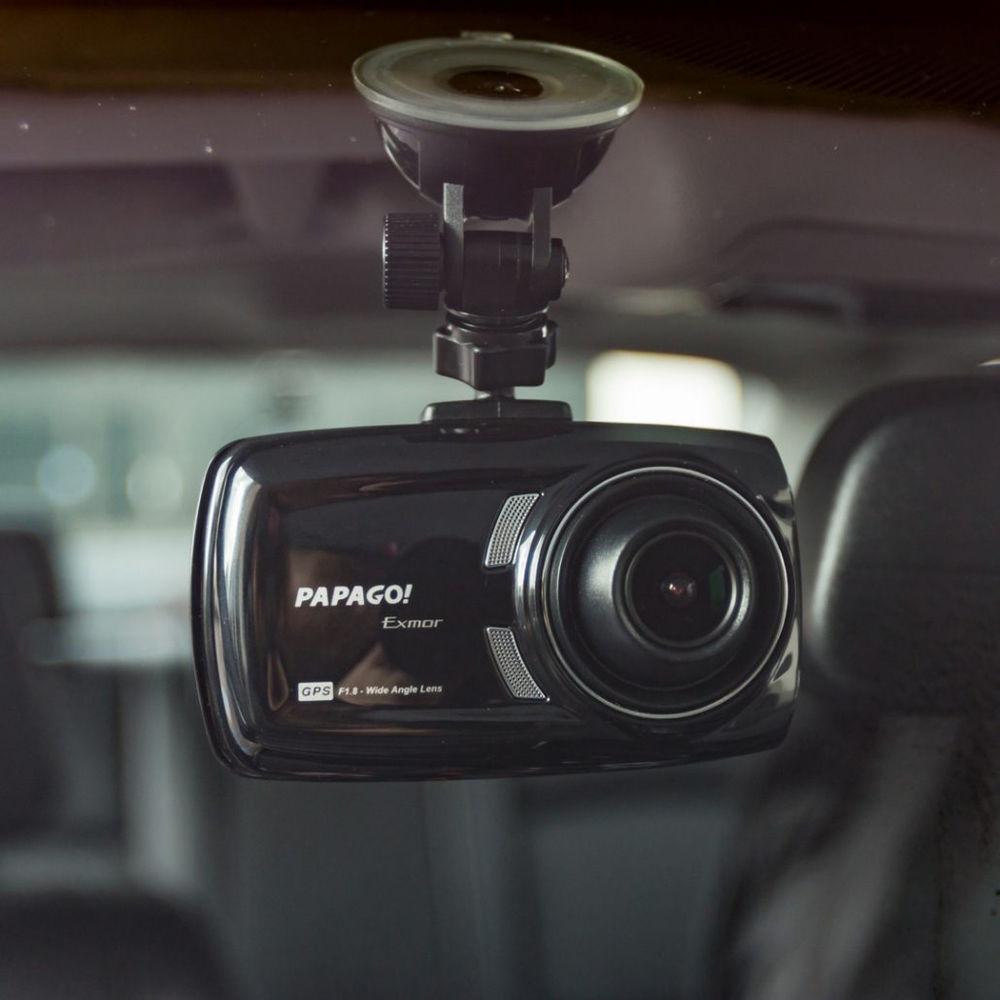

- Includes 3M adhesive mount, suction cup mount, long & short interconnect cables, car charger, and a 16GB microSD card
UPC: 840494160060 In the Box Papago GoSafe S810 2-Channel 1080p Dash Camera with 16GB microSD Card Rear Camera Long Interconnect Cable Short Interconnect Cable Car Charger 3M Adhesive Mount Suction Cup Mount 16GB microSD Card Limited 1-Year Warranty Quick start Guide PDF 41.5mbfdffasvucvfsbryzxdysfvcerbyqrscw Table of Contents
|
Upload User Manual
Have you got an user manual for the Papago GoSafe S810 2-Channel 1080p Dash Camera with 16GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPapago GoSafe S810 Specs | Screen | 2.4" / 6.1 cm color LCD display | | Chip | Professional Sony Exmor image sensor | | Resolutions and Frame Rates | 1920 x 1080 at 30 fps
1280 x 720 at 30 fps | | Video Format | MP4 | | Recording Modes | Loop recording, motion detection, and monitor mode | | Field of View | Front: 140° Ultra-Wide Angle Lens, f/1.8
Rear: 120°, f/2.4 | | G-Sensor | Built-in | | GPS | Supports GPSA-US GPS antenna (available separately) | | Tire Pressure | Supports PAPAGO! TireSafe D10E TPMS (available separately) | | Storage | Supports Class 10 microSD cards from 8 to 128 GB (16 GB card included) | | Battery | Built-in supercapacitor | | Power Supply | 5 V, 1.5 A | | Languages Supported | English
French
Spanish
German
Italian
Japanese
Portuguese
Russian
Traditional Chinese
Simplified Chinese | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Dimensions | 3.8 x 2.2 x 1" / 9.6 x 5.6 x 2.5 cm | | Weight | 4 oz / 113.4 g | | | | Package Weight | 1.245 lb | | Box Dimensions (LxWxH) | 6.5 x 5.8 x 3.7" |
