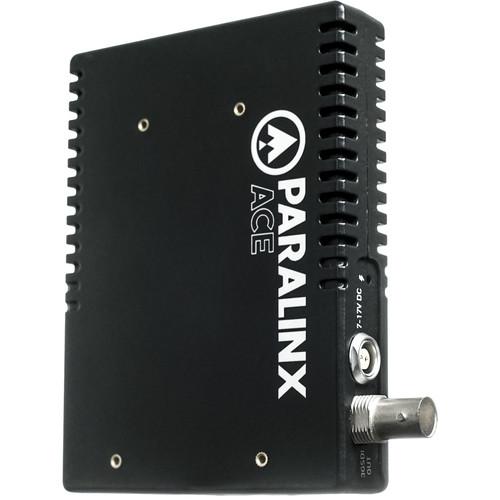

User Manual for Paralinx Ace 300 ft SDI Wireless Video Receiver Click to enlarge the picture
Contents of the user manual for the Paralinx Ace 300 ft SDI Wireless
- Product category: Wireless Transmission Systems Paralinx
- Brand: Paralinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Paralinx Wireless Transmission Systems
|
User manual for the Paralinx Ace 300 ft SDI Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Paralinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Paralinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Paralinx product will considerably shorten its lifespan!
|
Product description The cutting-edge Paralinx Ace SDI Receiver pairs with an optional Ace transmitter to provide a short-range wireless transmission solution for professional filmmakers. It supports up to 300 ft line-of-sight uncompressed 1080p60 transmission in real time with zero latency (less than 1 ms).
Up to four Ace transmitters can be synced up to a single transmitter for simultaneous transmission to all four. The unit is compact and lightweight and features a rugged aluminum and ABS plastic enclosure. It offers a 1/4"-20 mounting thread, as well as threaded inserts for attaching optional Paralinx Ace onboard battery plates, available in BP-9, LP-E6, NP-F, and BP-U versions. Note: Requires D-Tap to 2-Pin Power Connector Cable, sold separately (model # PAPL18). - Key Features
-
- 300 ft uncompressed 1080p60 transmission in real time with zero latency (less than 1 ms)
- Rugged aluminum, ABS plastic enclosures
- Sync up to four units to a transmitter
- 1/4"-20 mounting thread
- Optional onboard battery plate support (BP-9, LP-E6, NP-F, and BP-U)
UPC: 788490311713 In the Box Paralinx Ace 300 ft SDI Wireless Video Receiver BNC Video Cable (18") Mini-USB to USB Cable (18") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Paralinx Ace 300 ft SDI Wireless Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersParalinx 10-1284 Specs | Range | Up to 300 ft / 100 m, line-of-sight | | Supported Signal | Up to 1080p60 uncompressed | | Latency | Less than 1 ms | | Output | 1 x SDI | | Power Input | 7-17 V (2-pin power connector) | | Enclosure | Aluminum and ABS plastic | | Dimensions | 3.4 x 4.5 x 0.6" / 8.6 x 11.5 x 1.5 cm | | Weight | 5.2 oz / 146 g | | | | Package Weight | 1.355 lb | | Box Dimensions (LxWxH) | 6.9 x 5.7 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
