User Manual for Paralinx Ace 300 ft SDI Wireless Video System with 1 x Receiver Click to enlarge the picture
Contents of the user manual for the Paralinx Ace 300 ft SDI Wireless
- Product category: Wireless Transmission Systems Paralinx
- Brand: Paralinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Paralinx Wireless Transmission Systems
 |
User manual for the Paralinx Ace 300 ft SDI Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Paralinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Paralinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Paralinx product will considerably shorten its lifespan!
|

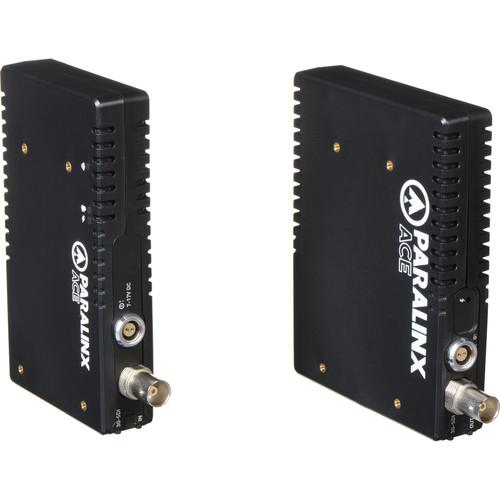

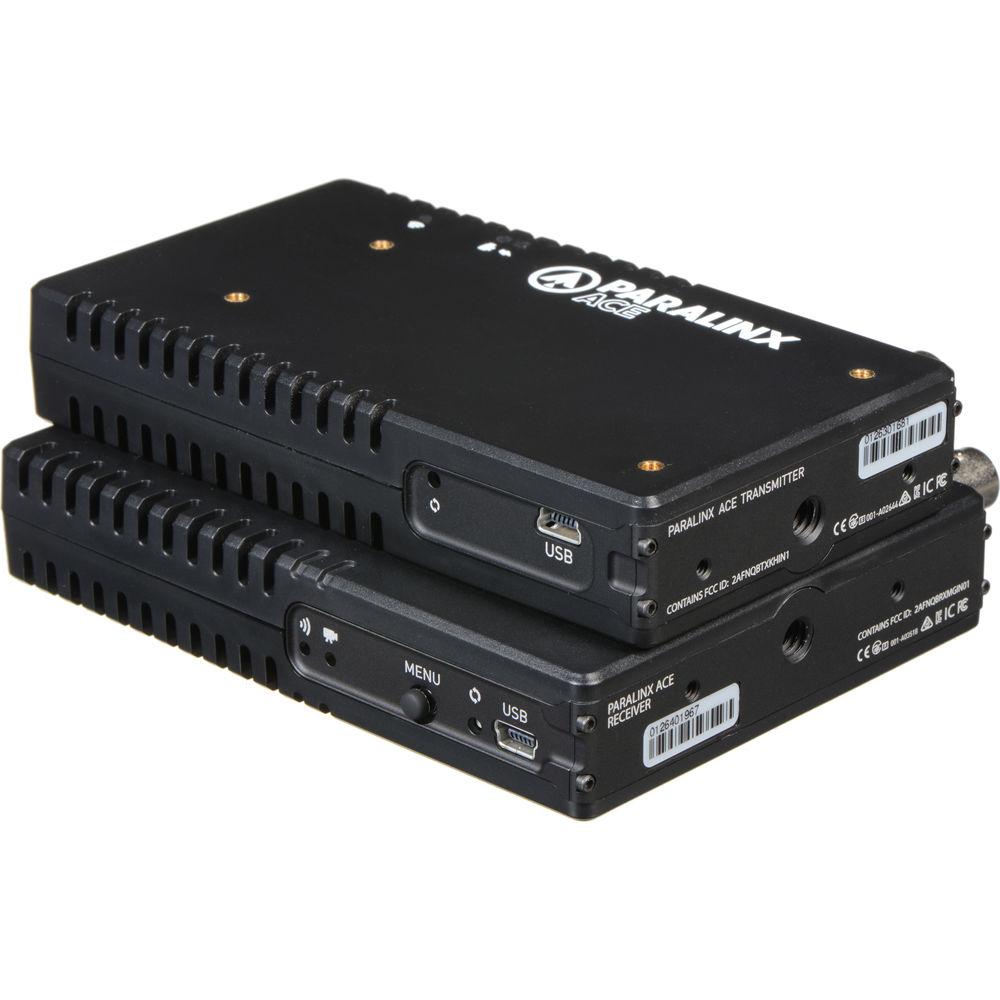

Product description The cutting-edge Paralinx Ace is a short-range wireless transmission solution for professional filmmakers. It offers up to 300 ft line-of-sight uncompressed 1080p60 transmission in real time with near zero latency (less than 1 ms). This Ace SDI package includes one transmitter and one receiver, along with power and video cables.
The transmitter is capable of multicasting simultaneously to up to four receivers, so you can add additional receivers at a future time and simply pair them via an on-screen display. The units are compact and lightweight and feature rugged aluminum and ABS plastic enclosures. They offer 1/4"-20 mounting threads, as well as threaded inserts for attaching optional Paralinx Ace onboard battery plates, available in BP-9, LP-E6, NP-F, and BP-U versions. - Key Features
-
- 300 ft uncompressed 1080p60 transmission in real time with zero latency (less than 1 ms)
- Capable of multicasting to four receivers
- Rugged aluminum, ABS plastic enclosures
- 1/4"-20 mounting threads
- Optional onboard battery plate support (BP-9, LP-E6, NP-F, and BP-U)

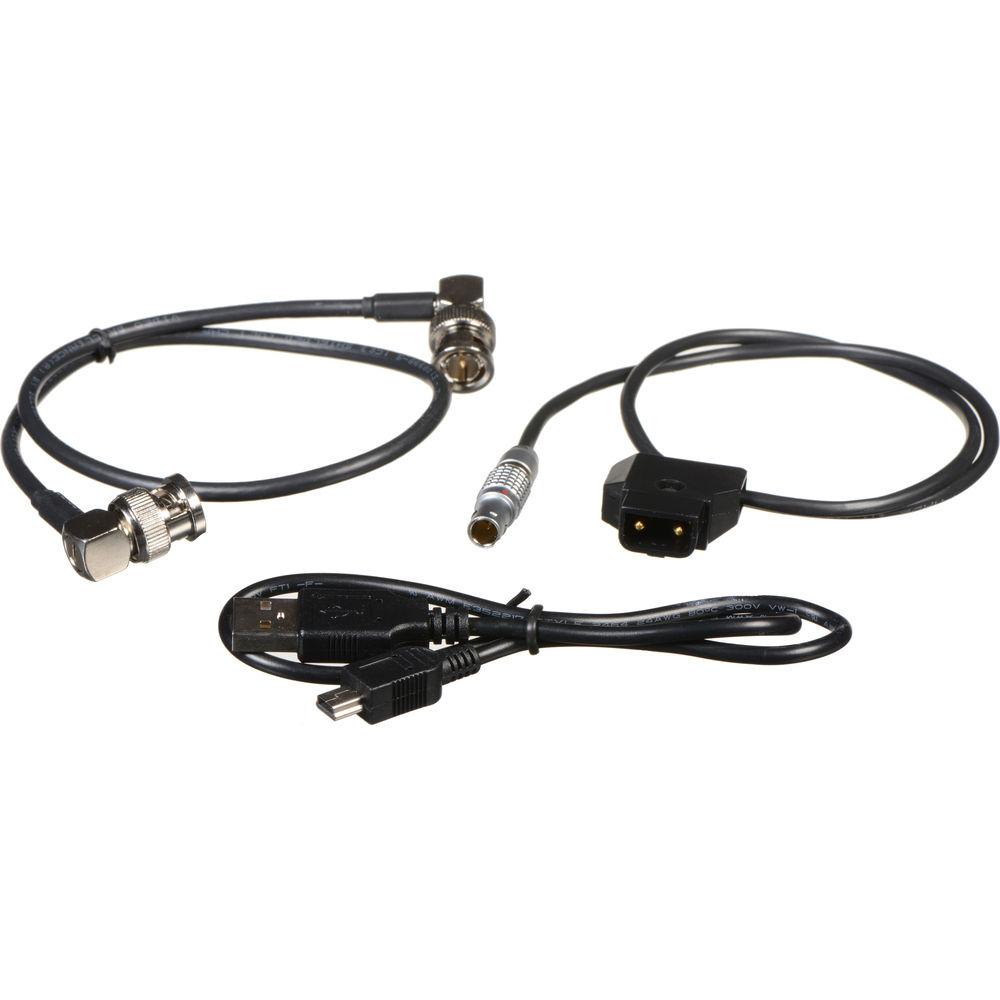

UPC: 788490311683 In the Box Paralinx Ace 300 ft SDI Wireless Video System with 1 x Receiver Ace SDI Transmitter Ace SDI Receiver 18" D-Tap to 2-Pin Power Connector Power Supply Unit with International Plugs (US, UK, Euro) 18" Right-Angle to Right-Angle BNC Cable 18" Mini-USB to USB Firmware Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Paralinx Ace 300 ft SDI Wireless Video System with 1 x Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersParalinx 10-1281 Specs | Range | Up to 300 ft (100 m) line-of-sight | | Supported Signal | Up to 1080p60 uncompressed | | Latency | Less than 1 ms | | Input | 1 x SDI (on transmitter) | | Output | 1 x SDI (on receiver) | | Power Input | 7-17 V (2-pin power connector) | | Enclosure | Aluminum and ABS plastic | | Dimensions | Transmitter: 2.6 x 4.7 x 0.6" (6.7 x 11.9 x 1.5 cm)
Receiver: 3.4 x 4.5 x 0.6" (8.6 x 11.5 x 1.5 cm) | | Weight | Transmitter: 4.4 oz (126 g)
Receiver: 5.2 oz (146 g) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.5 x 6.5 x 3.4" |
