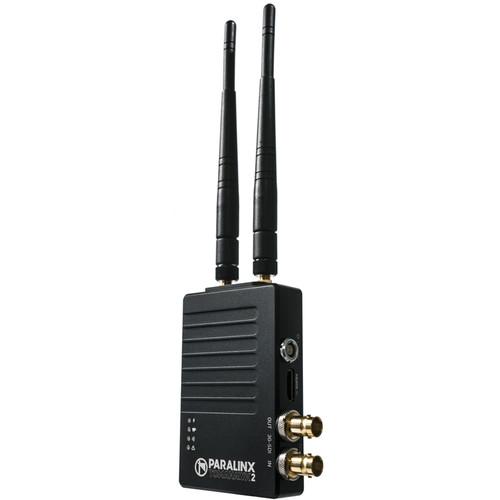

User Manual for Paralinx Tomahawk2 2000' SDI HDMI Wireless Video Transmitter Click to enlarge the picture
Contents of the user manual for the Paralinx Tomahawk2 2000' SDI HDMI Wireless
- Product category: Wireless Transmission Systems Paralinx
- Brand: Paralinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Paralinx Wireless Transmission Systems
|
User manual for the Paralinx Tomahawk2 2000' SDI HDMI Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Paralinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Paralinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Paralinx product will considerably shorten its lifespan!
|
Product description The Paralinx Tomahawk2 SDI/HDMI Wireless Video Transmitter is a long-range HD video system offering real-time wireless HD transmission for your television, film, broadcast, industrial, or UAV/UAS applications. The Tomahawk2 has a range of up to 2000' and maintains a <1 ms latency glass-to-glass.
The transmitter features 2-pin power connectors and a wide 6 to 28V input voltage range. It features both 3G-SDI (with loop-out) and HDMI inputs. The Tomahawk2 transmits full HD videos (up to 1080p/60 4:2:2) and can send videos to up to 4 receivers simultaneously. - Dual-input transmitter (HD-SDI and HDMI)
- Integrated 1/4"-20 and 4-40 mounting points
- Compatible with Teradek Sidekick (1st gen)
- Compatible with Teradek Bolt 2000, Sidekick1, or Paralinx Tomahawk (1st gen)
Note: When linked to a Bolt 2000 or Paralinx Tomahawk (1st Gen) unit the following features are not supported: PsF video, Run/Stop, and Timecode - Lightweight minimalist design for handheld, Steadicam, gimbal, and UAV payload
- Features both 3G-SDI & HDMI inputs and SDI loop-out
- Rugged machined-aluminum enclosure
- Visually lossless full-HD video signal for accurate monitoring
- Multicast capable (up to 4 receivers per transmitter)
- 128-bit AES Encryption for secure transmission
- Operates on 5 GHz frequency band
UPC: 788490311966 In the Box Paralinx Tomahawk2 2000' SDI/HDMI Wireless Video Transmitter D-Tap to 2-Pin Connector Power Cable (18") 18" BNC Cable Right Angle to Right Angle 18" Ultra Thin HDMI Cable 5 dBi Transmitter Antennas (Set of 2) Mini USB to USB Cable (for Firmware Updates) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Paralinx Tomahawk2 2000' SDI HDMI Wireless Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersParalinx 10-1289 Specs | Latency | <1 ms | | Frequency Band | 5 GHz | | Security | 128-bit AES Encryption | | Range | 2000' (600 m) | | Inputs | 3G-SDI & HDMI | | Loop-out | SDI | | Input Voltage | 6 to 28 V | | Power Connector | 2-pin | | Certifications | FCC, CE, MIC (TELEC), RoHS | | Dimensions | Not Including Antennas/Connectors: 4.1 x 2.6 x 0.9" (104 x 66 x 22 mm) | | Weight | Without Antennas: 7.3 oz (208 g) |
