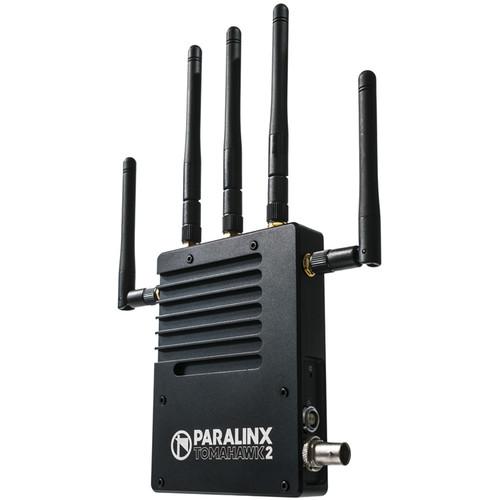

User Manual for Paralinx Tomahawk2 2000' SDI Wireless Video Receiver Click to enlarge the picture
Contents of the user manual for the Paralinx Tomahawk2 2000' SDI Wireless Video
- Product category: Wireless Transmission Systems Paralinx
- Brand: Paralinx
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Paralinx Wireless Transmission Systems
|
User manual for the Paralinx Tomahawk2 2000' SDI Wireless Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Paralinx product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Paralinx user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Paralinx product will considerably shorten its lifespan!
|
Product description The Paralinx Tomahawk2 SDI Wireless Video Receiver is a long-range HD video system offering real-time wireless HD transmission for your television, film, broadcast, industrial, or UAV/UAS applications. The Tomahawk2 has a range of up to 2000' and maintains a <1 ms latency glass-to-glass.
The receiver features a 2-pin power connector and a wide 7 to 17V input voltage range. It features 3G-SDI output and transmits full HD videos (up to 1080p/60 4:2:2). The receiver is also capable of sending videos to up to 4 receivers simultaneously. - Integrated 1/4"-20 and 4-40 mounting points
- Compatible with Teradek Sidekick (1st gen)
- Compatible with Teradek Bolt 2000, Sidekick1, or Paralinx Tomahawk (1st gen)
Note: When linked to a Bolt 2000 or Paralinx Tomahawk (1st Gen) unit the following features are not supported: PsF video, Run/Stop, and Timecode - Lightweight minimalist design for handheld, Steadicam, gimbal, and UAV payload
- Rugged machined-aluminum enclosure
- Visually lossless full HD video signal for accurate monitoring
- Multicast capable (up to 4 receivers per transmitter)
- 128-bit AES Encryption for secure transmission
- Operates on 5 GHz frequency band
UPC: 788490311980 In the Box Paralinx Tomahawk2 2000' SDI Wireless Video Receiver AC Power Supply with 2-Pin Connector 18" BNC Cable Right Angle to Right Angle sxacdzctestwrcybvfxfuczfbqxbyr 2 dBi Transmitter/Receiver Antennas (Set of 5) Lightstand Adapter Mini USB to USB Cable (for Firmware Updates) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Paralinx Tomahawk2 2000' SDI Wireless Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersParalinx 10-1291 Specs | Latency | <1 ms | | Frequency Band | 5 GHz | | Security | 128-bit AES Encryption | | Range | 2000' (600 m) | | Input Voltage | 7 to 17 V | | Outputs | 3G-SDI | | Power Connector | 2-pin | | Certifications | FCC, CE, MIC (TELEC), RoHS | | Dimensions | Not Including Antennas/Connectors: 4.6 x 3.5 x 0.9" (117 x 88 x 22 mm) | | Weight | Without Antennas: 8.9 oz (252 g) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
