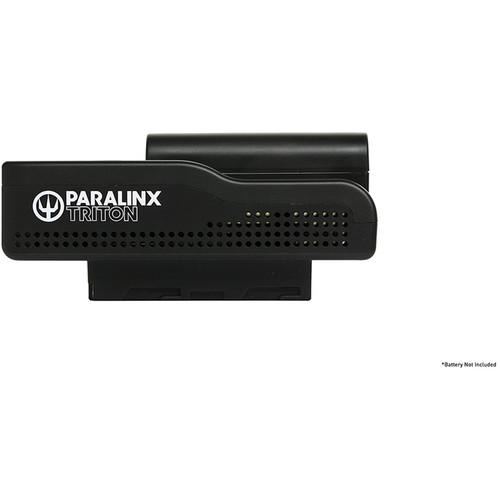

Product description The Paralinx Triton Receiver receives wireless video with audio up to 1080p60 from an optional Triton transmitter from up to 450' away with a delay of less than 1ms. You can link an unlimited number of Triton receivers to one transmitter, however Triton receivers only work with optional Triton transmitters. The system supports 128-bit AES encryption to protect the security of your footage.

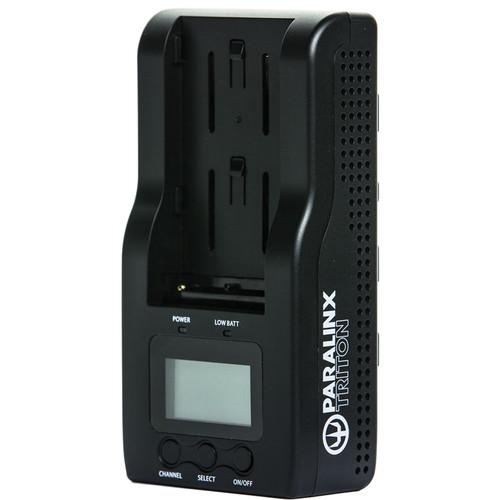

The receiver features an HDMI output, and it incorporates an NP-F type battery plate with power pass through capability. The system operates on the license-free 5 GHz frequency band with 8 available channels. It utilizes 1/4"-20 mounting and features an LCD screen that displays signal strength, remaining battery power, and channel selection. -
- Wireless 450' transmission of 1080p60 video with audio
- Less than 1 ms latency

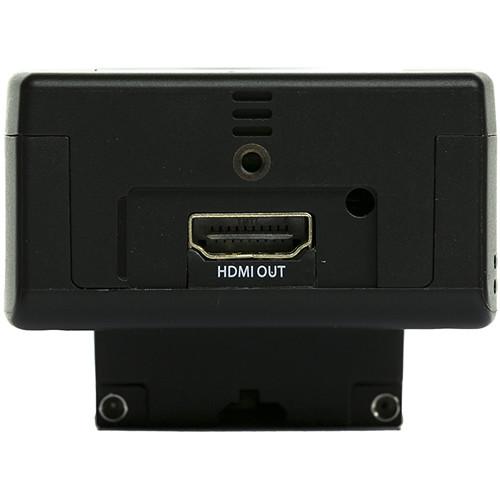

- HDMI output
- 1/4"-20 mounting threads
- Operates on the license-free 5 GHz frequency band
- Uses secure 128-bit AES encryption
- The system supports linking of an unlimited number of optional Triton receivers to one Triton transmitter. Linking is accomplished with the push of a button as long as the receiver is set to the same channel as the transmitter. Please note that the Triton receivers only work with Triton transmitters.

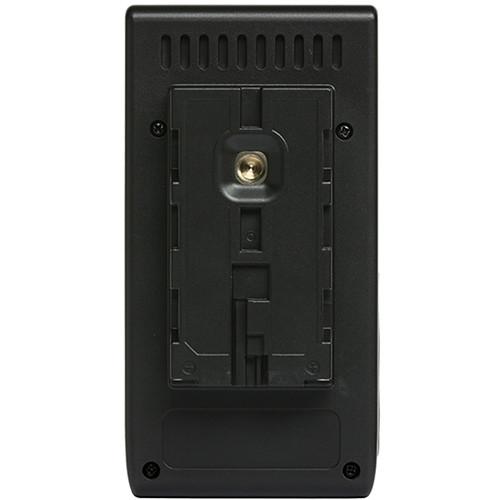

- The receiver incorporates an NP-F type battery plate that features a power pass through that allows you to mount the receiver to a monitor with an NP-F battery plate, and power both the receiver and the monitor via a single NP-F type battery.
UPC: 788490310969 In the Box Paralinx Triton Receiver P-Tap to 3.5mm Barrel Power Cable 1 AC Adapter Cold Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Paralinx Triton Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersParalinx 10-1270 Specs | Supported Video | Up to 1080p60 4:2:2 uncompressed | | Transmission Distance | Line-of-Sight: 450' / 140 m | | Latency | Less than 1 ms | | Output | 1x HDMI type A input | | Image Resolution / Frame Rate | 1080p: 60/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p
720i: 59.94/50 | | Frequency Band | Channels
1: 5150 MHz
2: 5190 MHz
3: 5210 MHz
4: 5230 MHz
5: 5735 MHz
6: 5755 MHz
7: 5775 MHz
8: 5795 MHz | | Encryption | 128 bit AES | | Mounting | 1/4"-20

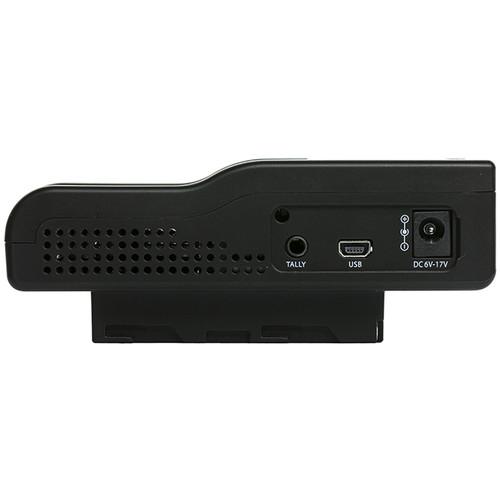

Cold shoe adapter | | Power Input | DC Jack: 1 x 3.5 mm barrel
Integrated Battery Plate: 1 x NP-F type | | Dimensions | 4.6 x 2.4 x 1.8" / 118 x 60.5 x 44.5 mm (without antennas) | | Weight | Receiver: 4.8 oz / 136 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.0 x 6.6 x 2.8" |
