User Manual for ParaZero SafeAir Drone Safety System for DJI Matrice 200 210 Click to enlarge the picture
Contents of the user manual for the ParaZero SafeAir Drone Safety System for
- Product category: DJI Accessories ParaZero
- Brand: ParaZero
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ParaZero DJI Accessories
 |
User manual for the ParaZero SafeAir Drone Safety System for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ParaZero product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ParaZero user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ParaZero product will considerably shorten its lifespan!
|
Product description - ParaZero Drone Safety System: SafeAir M-200 Product Video
- ParaZero Drone Safety System: SafeAir M-200 Documentary Movie
- ParaZero SafeAir M200 Installation Guide

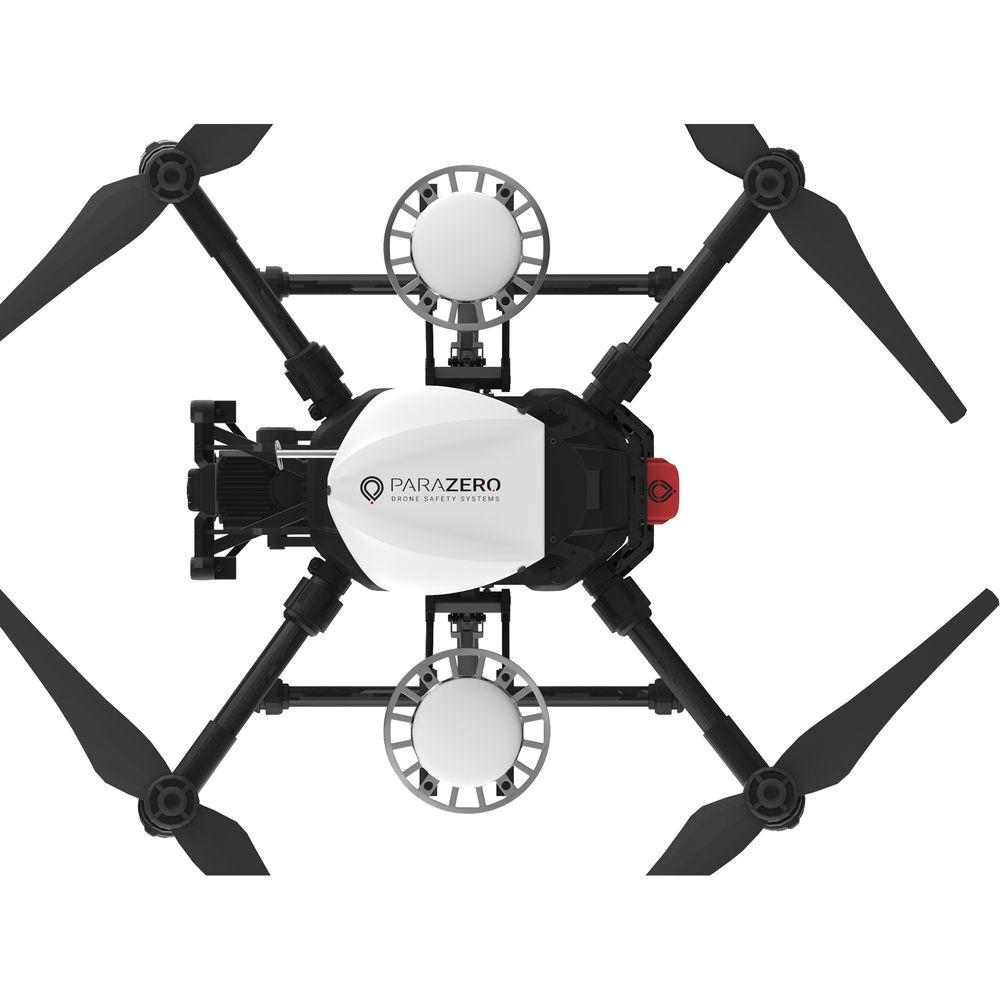

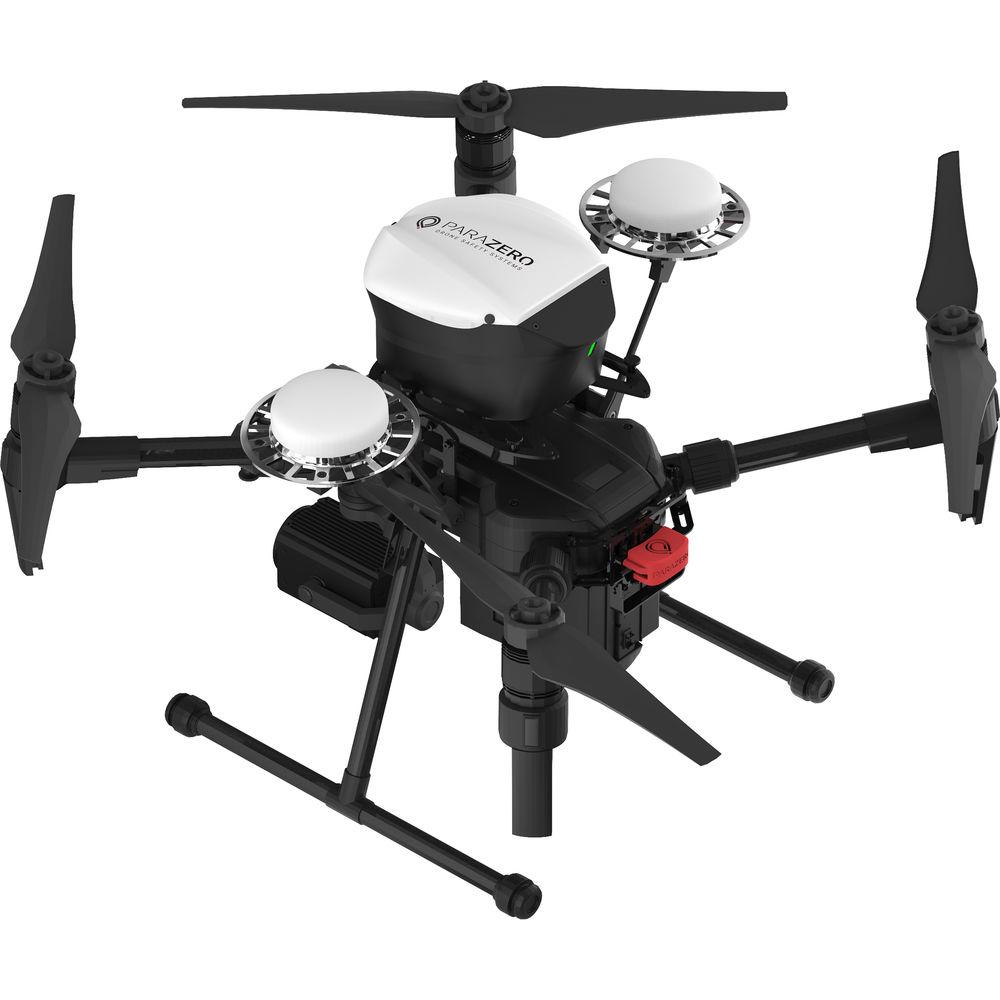

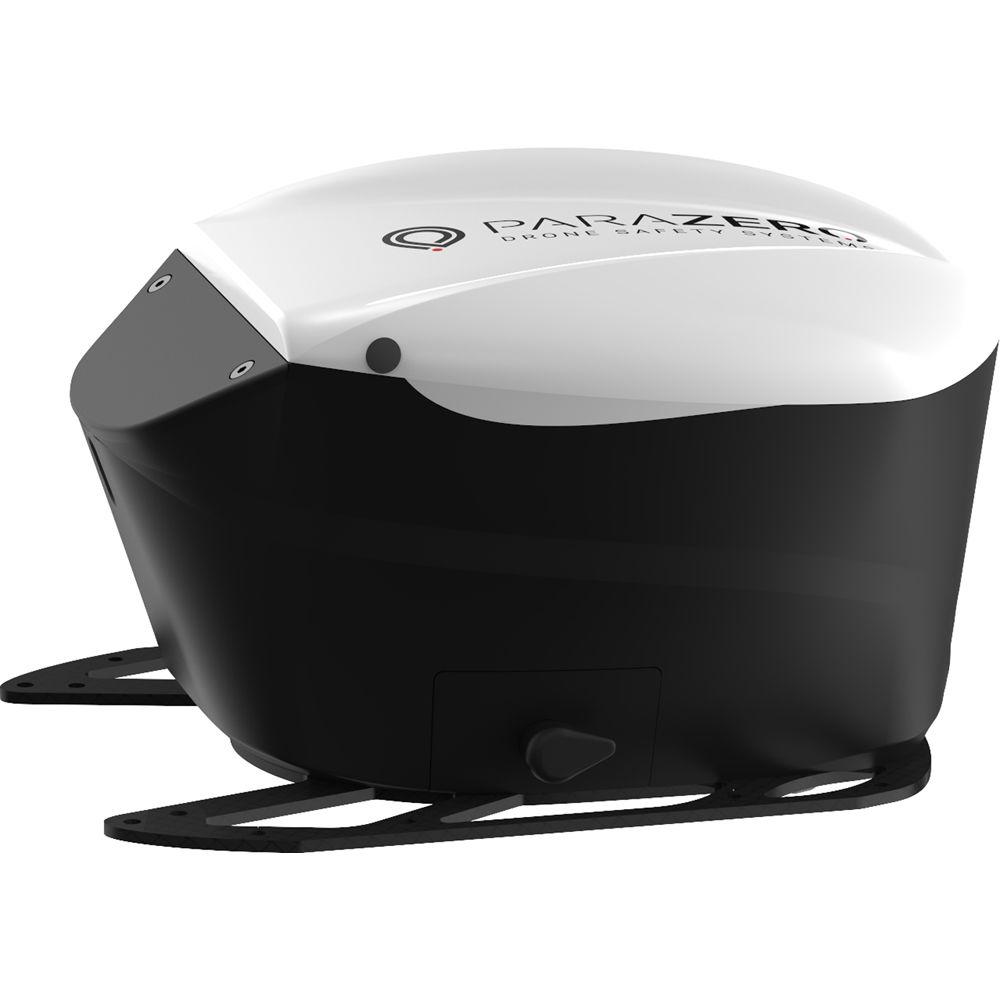

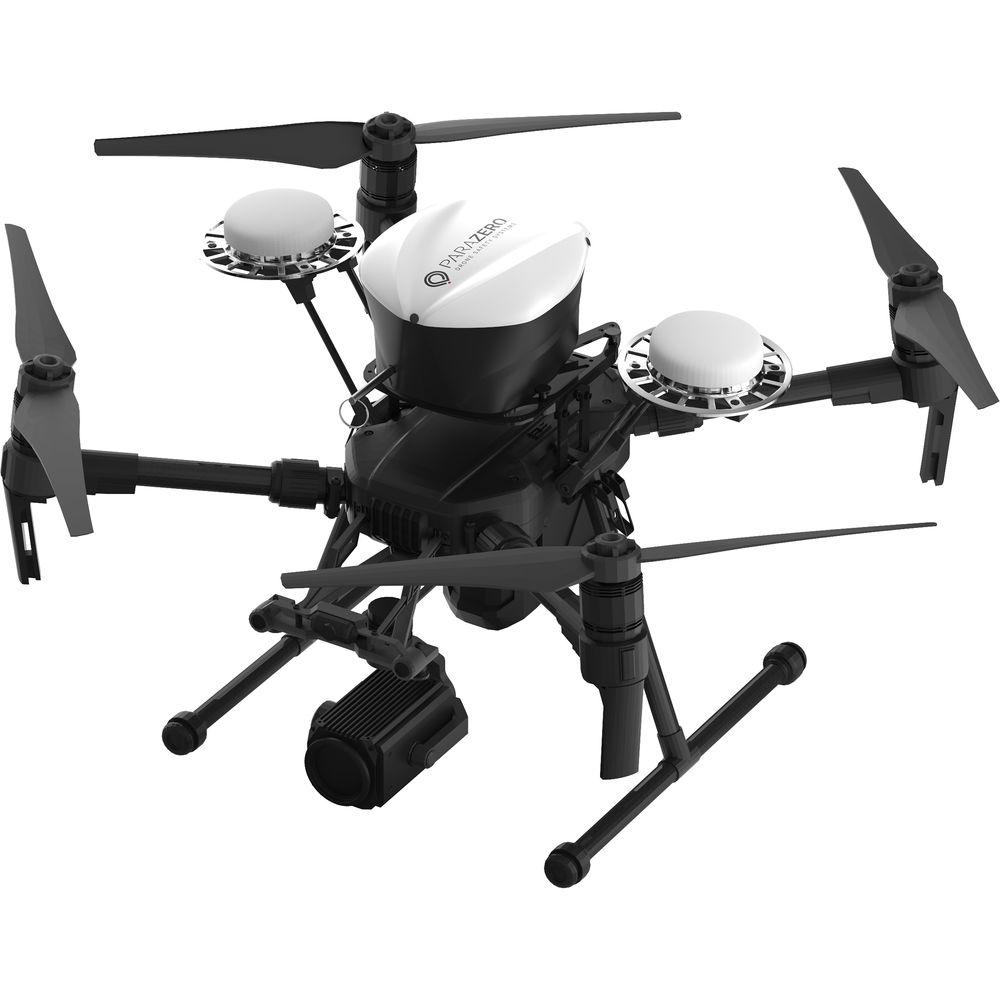

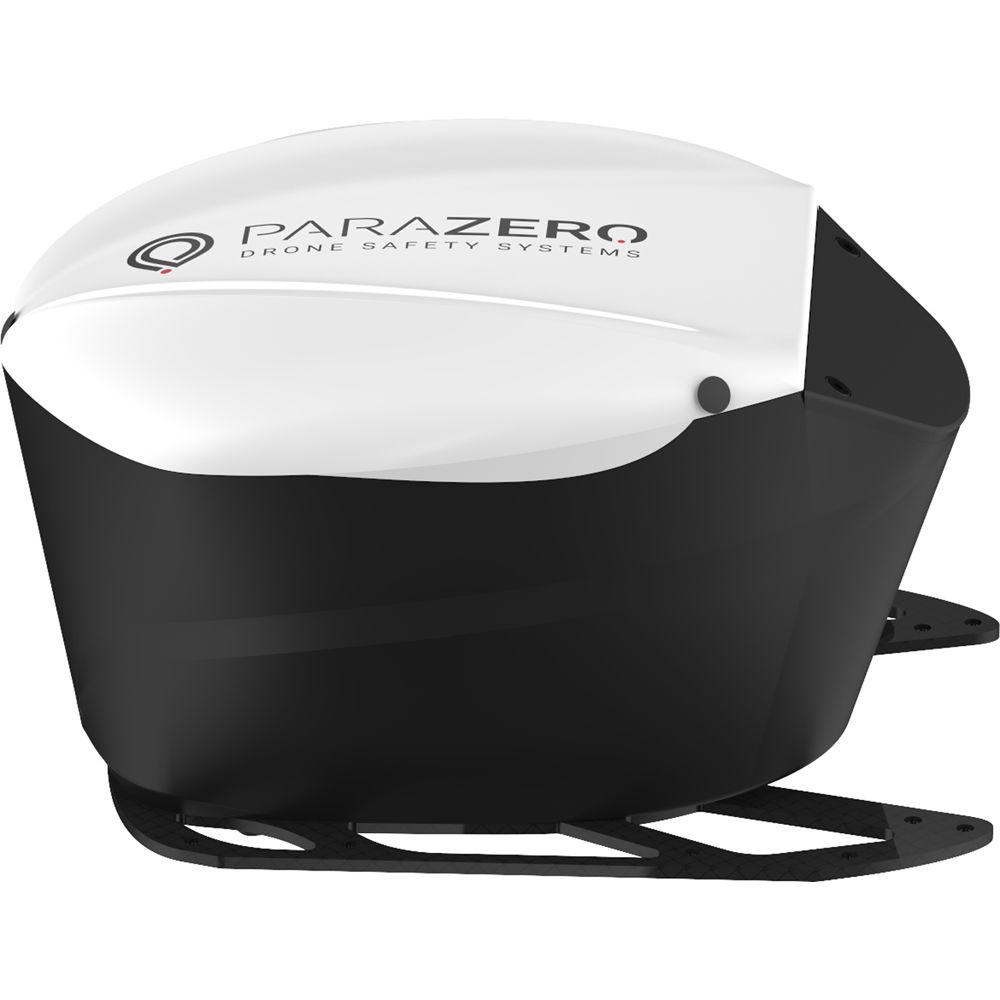

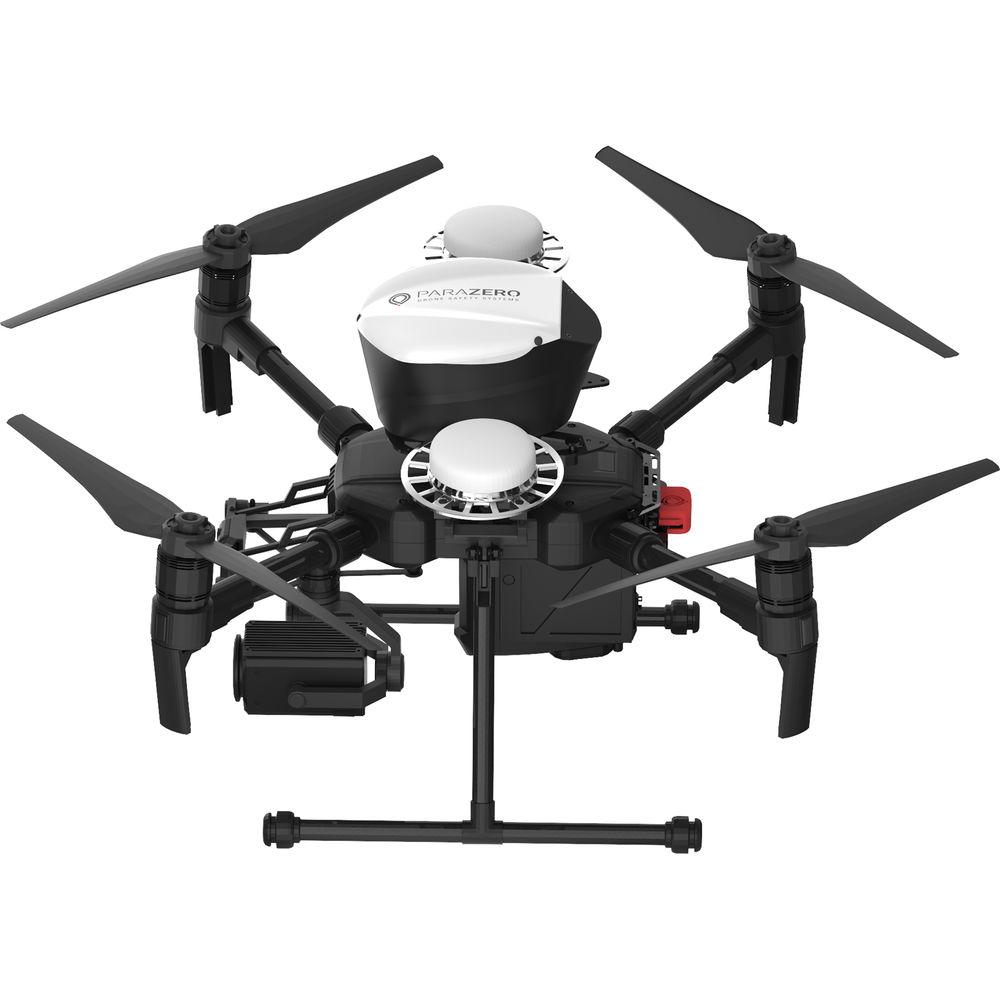

Protect your drone and everyone under it with a SafeAir Drone Safety System for DJI Matrice 200/210 from ParaZero. The SafeAir is a parachute deployment system for your Matrice 200 or 210 series drone. It is fully autonomous, which means it deploys on its own when encountering a variety of emergency scenarios such as complete loss of drone control, short (millisecond-long) free fall, extreme pitch/roll angles, and complete loss of power. The onboard smart computer and independent sensors help detect these critical system failures. Once one of these scenarios is detected, the SafeAir initiates a series of safety measures to help ensure that the drone and payload land safely, and anyone nearby is unharmed. - Safety Measures
- In the event of an emergency that triggers the SafeAir recovery system, the following series of events will take place to ensure the safety of the drone, payload, and bystanders:
Flight Termination: Power to the motors is interrupted to stop the blades from spinning
Deploy Parachute: A parachute is fired from a ballistic launcher and opens to a full canopy within a fraction of a second
Alarm: An audible warning buzzer is sounded to warn bystanders below of the incoming drone
Landing & Analysis: The drone will land safely and flight data in the SafeAir can be retrieved via the built-in SD card for analysis of the event. - Easy Installation
- ParaZero includes instructions that are designed to allow the SafeAir to be installed by the end user in approximately 15-20 minutes.
- Safe for Commercial Flights
- With proper documentation, the SafeAir is approved for shipping on commercial flights thanks to the included safety pin and safety cover, which are intended to prevent the unintended arming or activation of the parachute. When properly applied, this feature provides no risk of uncontrolled activation during handling, maintenance, and transportation.
- Additional Features
- Automatic system arm and disarm
Compatible with all DJI M200/210 antenna configurations, including the D-RTK UPC: 855755008210 In the Box ParaZero SafeAir Drone Safety System for DJI Matrice 200/210 Mounting and Installation Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ParaZero SafeAir Drone Safety System for DJI Matrice 200 210 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersParaZero PZ-SA-M200 Specs | Compatibility | DJI Matrice 200, 210, and 210 D-RTK | | Parachute | Altitude Loss Before Chute Fully Deploys: 19 to 33' / 5.8 to 10.1 m | | Descent Speed | 13.1 to 15.4' / 4 to 4.7 m | | Impact Rating | Approximately 36-38 joules of impact force | | Storage Temperature | 50 to 81°F / 10 to 27°C | | Operating Temperature | -13 to 131°F / -25 to 55°C | | Weight | 1.63 lb / 0.7 kg | | | | Package Weight | 3.62 lb | | Box Dimensions (LxWxH) | 13.0 x 12.0 x 6.5" |
