Parrot Bebop Pro 3D Modeling Drone

User Manual for Parrot Bebop Pro 3D Modeling Drone with 14 Megapixel Flight Camera

• Product category: See All Drones Parrot
• Brand: Parrot
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Parrot See All Drones

Product description

14 Megapixel "Fisheye" Camera with 3-Axis Stabilization
• The built-in camera can record up to 1080p video as well as capture photos at 4096 x 3072 resolution. Notably, the camera uses a 3-axis electronic image stabilization system to avoid the added weight and power consumption of a mechanical gimbal. The system works by cropping a windowed portion of the total image yielded by the camera's 180° fisheye lens, thus counteracting the effects of wind turbulence for stabilized, horizontally level video. Plus, you can use the piloting app to electronically adjust the camera angle, even pointing it down 90° with no loss off quality for shots of the ground

3D Modeling with Pix4D

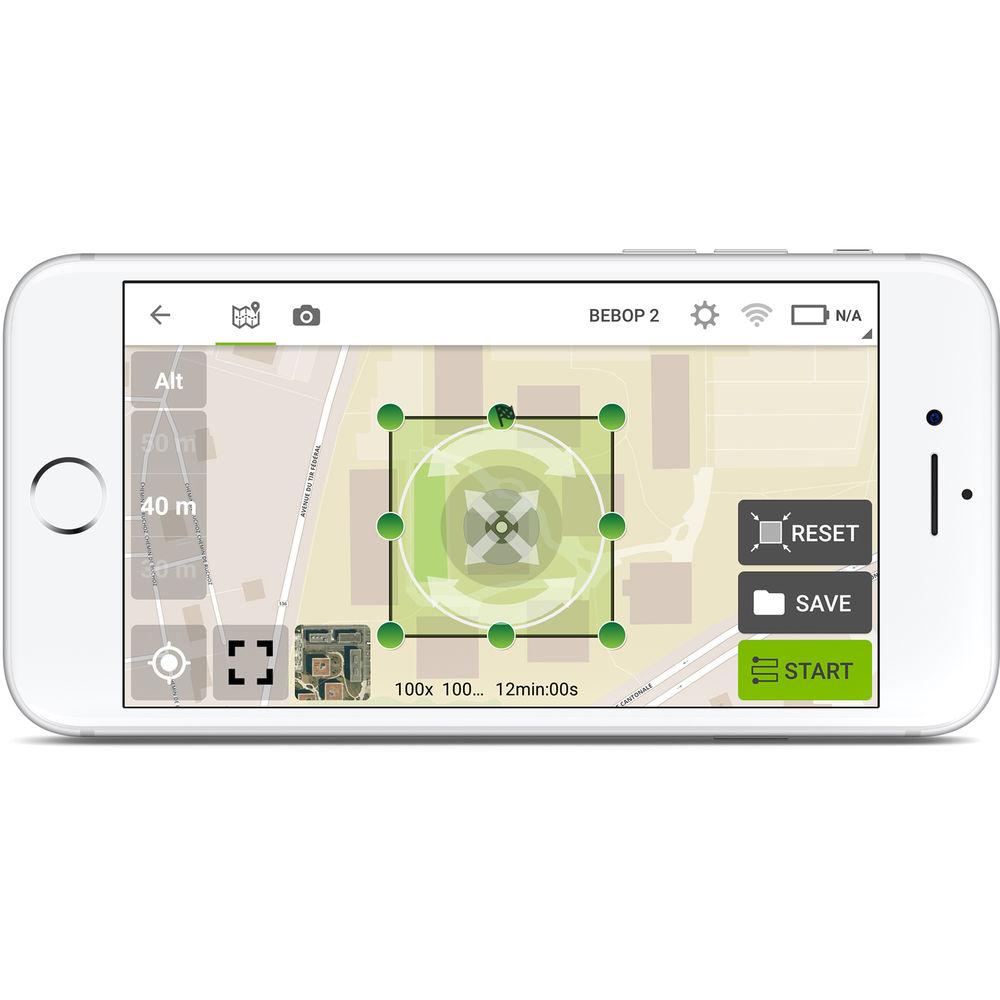

• The process starts by utilizing Pix4Dcapture on your iOS or Android mobile device. The software allows you to choose from a variety of missions, which scan an area in specific patterns. You can choose from a polygon, grid, double grid, circular, or free flight mission, which is used for vertical object mapping with manual flight control.

  It starts by flying above the structure or area and dragging a box around it on your mobile device's screen. Once the area is set, the Parrot Bebop 2 will automatically fly the selected mission around the area, taking photos along the flight path.

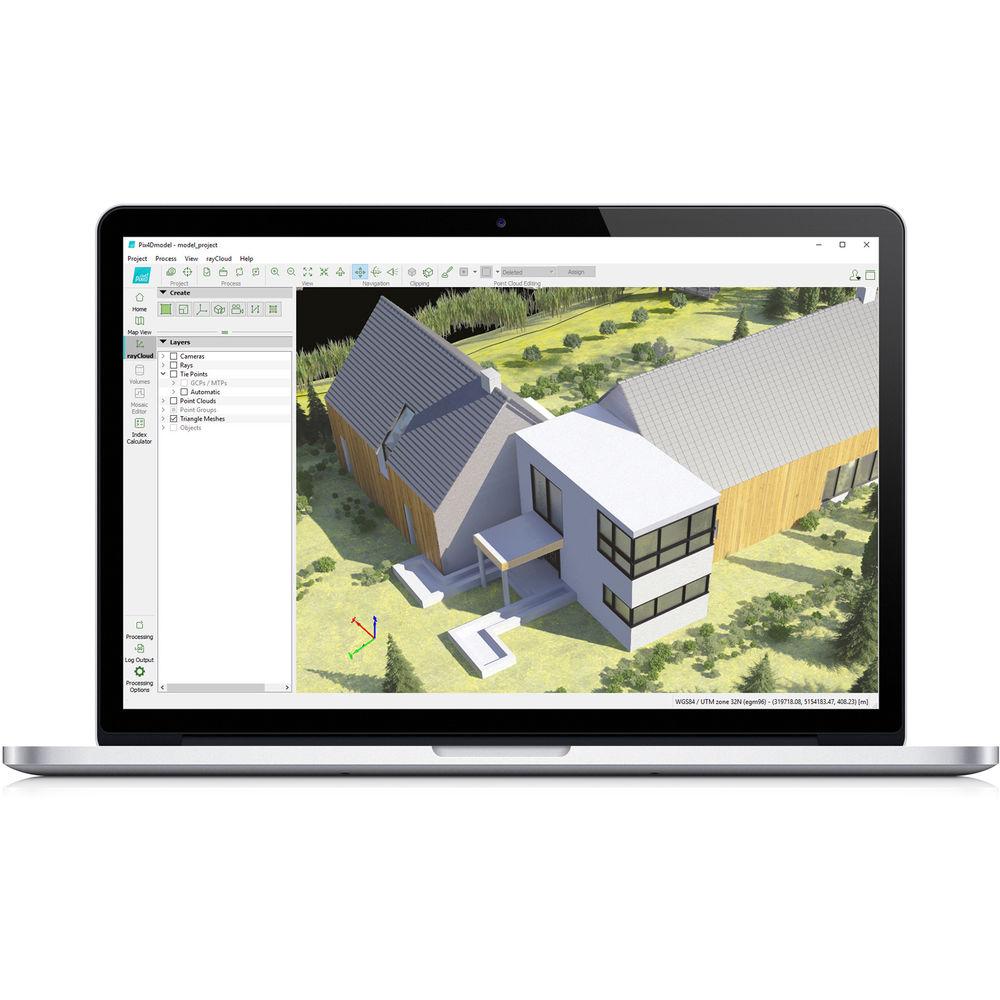

  The photos are taken at precise locations, and when finished, the Bebop returns to its starting point. You can then upload the images onto Pix4Dcloud in preparation of creating the final model in Pix4Dmodel.

Pix4D Additional Features
• Supports annotation on your 3D model
  Measure aspects of the property, such as the length of a building or surface area of a facade
  Download projects onto your desktop for more advanced editing
  Edit processing settings for different resolutions
  Export 3D files for architecture and animation software (sold separately)
  Share and promote models with a simple URL
  Create 3D video animations
  Create 3D printed mock-ups
  Embed 3D models onto websites

FreeFlight 3 App-Based Wi-Fi Control
• Using standard Wi-Fi, the BeBop Drone 2 is controlled by an iOS or Android smartphone or other mobile device and features a range of up to 984' line-of-sight. You simply need to create an "ad-hoc" connection between the controlling device and the aircraft. No router or other hardware is required, though a separately available range extender (part of the Skycontroller system) allows the BeBop Drone to be operated from up to 1.2 miles away. Antennas are included for 2.4 and 5 GHz, so you can choose the frequency that works best depending on other sources of interference

Live FPV Monitoring from Mobile Device
• The FreeFlight 3 app enables live monitoring of the camera image along with flight telemetry overlay. Using the app's touch interface, you can even digitally pan the image across the camera's 180° field of view

Dual-Core Flight Computer
• At the heart of the flight controller is a Linux-based dual-core CPU with quad-core graphics. It features 8GB of flash memory for video and photo storage

Compatible with Skycontroller System
• The separately available Skycontroller extends the BeBop Drone's Wi-Fi range up to 1.2 miles and features a hardware-based control pad as well as a holder for a tablet. To maximize the first-person flying experience, the Skycontroller allows you can connect third-party FPV glasses, including the Zeiss Cinemizer, Epson Moverio, and Sony Personal Viewer

Up to 25 Minutes Flying Time
• A larger battery from the original BeBop enables flight times of up to 25 minutes, depending on conditions. This new LiPo battery features a capacity of 2700mAh

6" Flexible Propellers
• Larger propellers from the original BeBop help yield its improved flight performance of 52.5 ft/s horizontal and 19.7 ft/s vertical top speeds. The propellers are flexible and will lock in the event of contact for enhanced safety

7-Sensor Stabilization System
• A total of seven sensors are used to keep the BeBop Drone 2 flying steady. These included a vertical optical flow camera, ultrasound, barometer, accelerometer, magnetometer, gyroscope, and GPS. Together they help the drone keep track of where it is in space, allowing it to compensate for overzealous pilot inputs and counteract wind conditions

GPS Navigation System
• Helps aid the flight stabilization system by providing precise positional data. In addition, automatic return home and landing are possible
