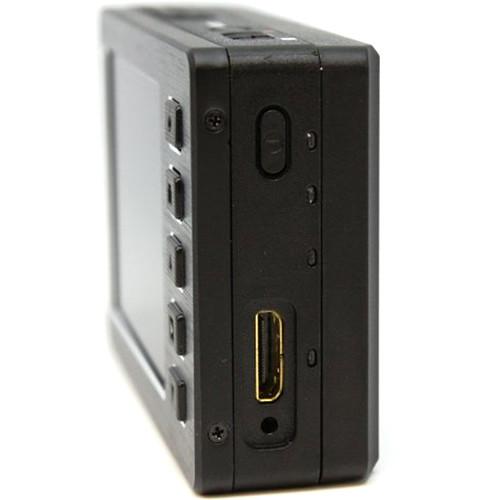

Product description Designed for law enforcement, the 1080p IR Body Camera and DVR from PatrolEyes records video, stills, and audio in day or night settings with immediate playback options. With a camera and DVR, the kit captures video footage in 1920 x 1080 resolution and stills in up to 16MP, with a 3-photo burst option. The camera uses a 3.7mm lens to capture scenes in a 120° angle of view. It also features integrated automatic IR LEDs for nighttime recording, which will automatically power on in dark conditions. IR LEDs allow the camera to record subjects in black and white up to 24' away. The camera can be set to record using its 1-touch on-camera button or the included RF remote control. The DVR features a 2.7" LCD screen for immediate video playback, and an integrated SD slot for recording footage to SD cards as large as 32GB. Footage is automatically date and time stamped and can be set to show an officer's ID number for further organization and tamperproofing. The camera is enclosed in a metal case for versatility and can be fixed to a shirt or vest using the attached 360° rotating clip. A protective case is included for the DVR which can be kept safe in a pocket or clipped to a belt. - Camera records 1080p video and 16MP pictures
- Stills can be captured in 1- or 3-picture bursts
- IR LEDs automatically activate to record subjects up to 24' away in complete darkness
- Connected DVR features a 2.7" LCD for video playback and adjusting settings
- Footage is stored to an SD card, up to 32GB, and auto-loops
- RF remote control allows you to change camera settings remotely
- Battery lasts up to 4 hours in constant recording mode, or up to 35 hours in standby mode
- Footage is time/date stamped to avoid tampering and includes officer ID number

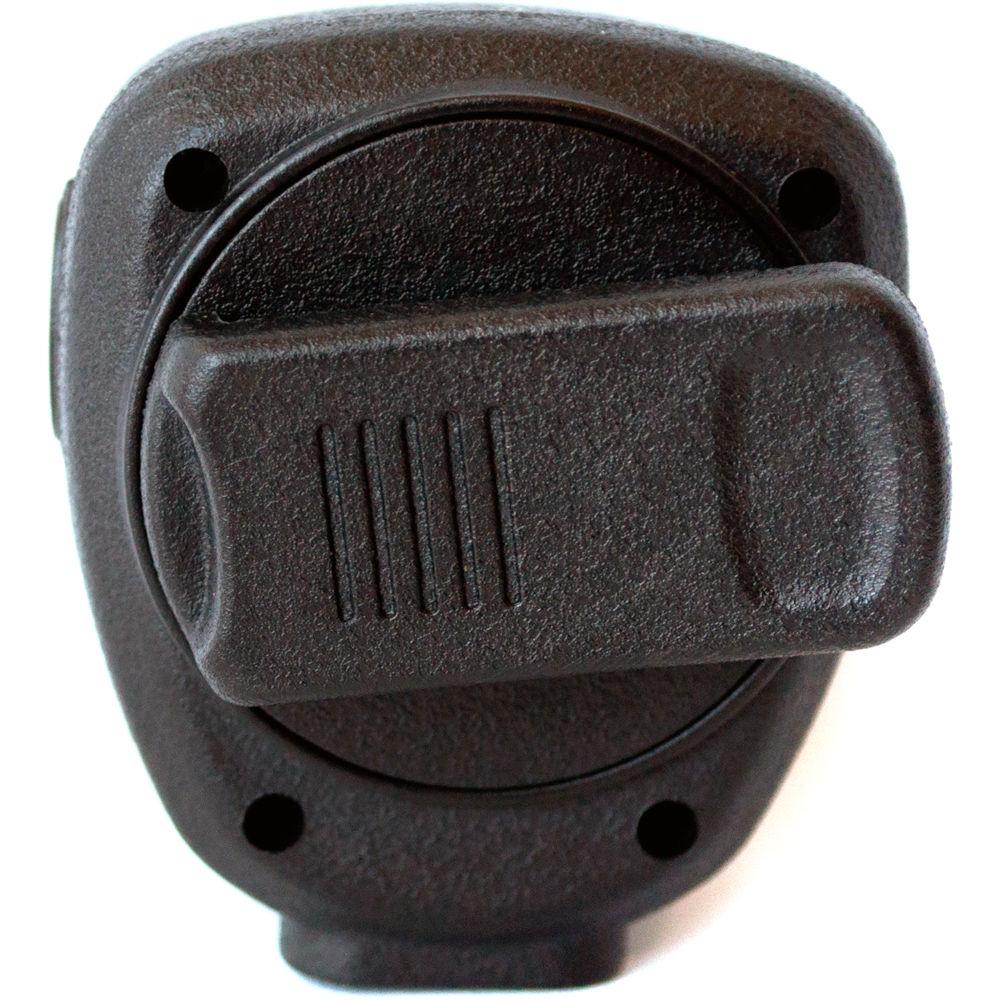

- Camera has an attached 360° rotating clip for attachment to a shirt or vest
- Camera is enclosed in metal for durability, DVR case is included
UPC: 852659769322 In the Box PatrolEyes 1080p IR Body Camera and DVR USB Cable HDMI Cable A/V Output Cable Remote Control Headphones DVR Carrying Case and Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PatrolEyes 1080p IR Body Camera and DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPatrolEyes SC-DVAI Specs | | | Image Sensor | 1/4" progressive scan CMOS | | Total Pixel Number | 5 MP (Max 16 MP digital resolution) | | Lens | 3.7mm | | Aperture | f/2.0 | | Angle of View | 120° | | Illumination | 0.03 lux | | Night Vision Range | 24' / 7.3 m | | Shutter Speed | 1/30,000 to 1/8 sec | | Video Format | AVI | | Audio | Yes, 350 mV max. (20 Hz to 20 kHz) | | Video Storage | 1920 x 1080 at 30 fps (1 hour of footage = 4.6 GB)
1280 x 720 at 60 fps (1 hour of footage = 2.5 GB)
640 x 480 at 30 fps (1 hour of footage = 1.2 GB) | | Photo Burst | 1 or 3 pictures | | Pre Recording | 5 seconds | | Fast Forward/Rewind Functions | Yes | | Power | Voltage: 3.3 VDC ±5%
Current: 200 mAh | | Battery Life | 1920 x 1080 at 30 fps: 2 hours 1280 x 720 at 30 fps: 3 hours 640 x 480 at 30 fps: 3 hours | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 2.2 x 1.9 x 1.5" / 5.5 x 4.8 x 3.8 cm (with clamp) | | Weight | 0.4 oz / 10.0 g | | | | Resolution | Video: 1080p at 30 fps
720p at 30/60 fps
480p at 30
Digital Picture: 16 MP, 12 MP, 5 MP, 3 MP | | LCD Screen | 2.7" / 6.9 cm, 960 x 320 | | Video Format | NTSC and PAL Compatible | | Video Codec | H.264 | | Memory Capacity | SD cards up to 32 GB | | Ports | DC input
USB input
A/V output | | Battery Type | Li-ion, 2200 mAh, 3.7 V | | Battery Life | Record Time: 4 hours
Standby Time: 35 hours | | Power | 2 A, 5 VDC | | Dimensions | 3.1 x 2.0 x 0.9" / 7.9 x 5.1 x 2.2 cm | | Weight | 5.0 oz / 141.7 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.2 x 5.5 x 2.8" |
