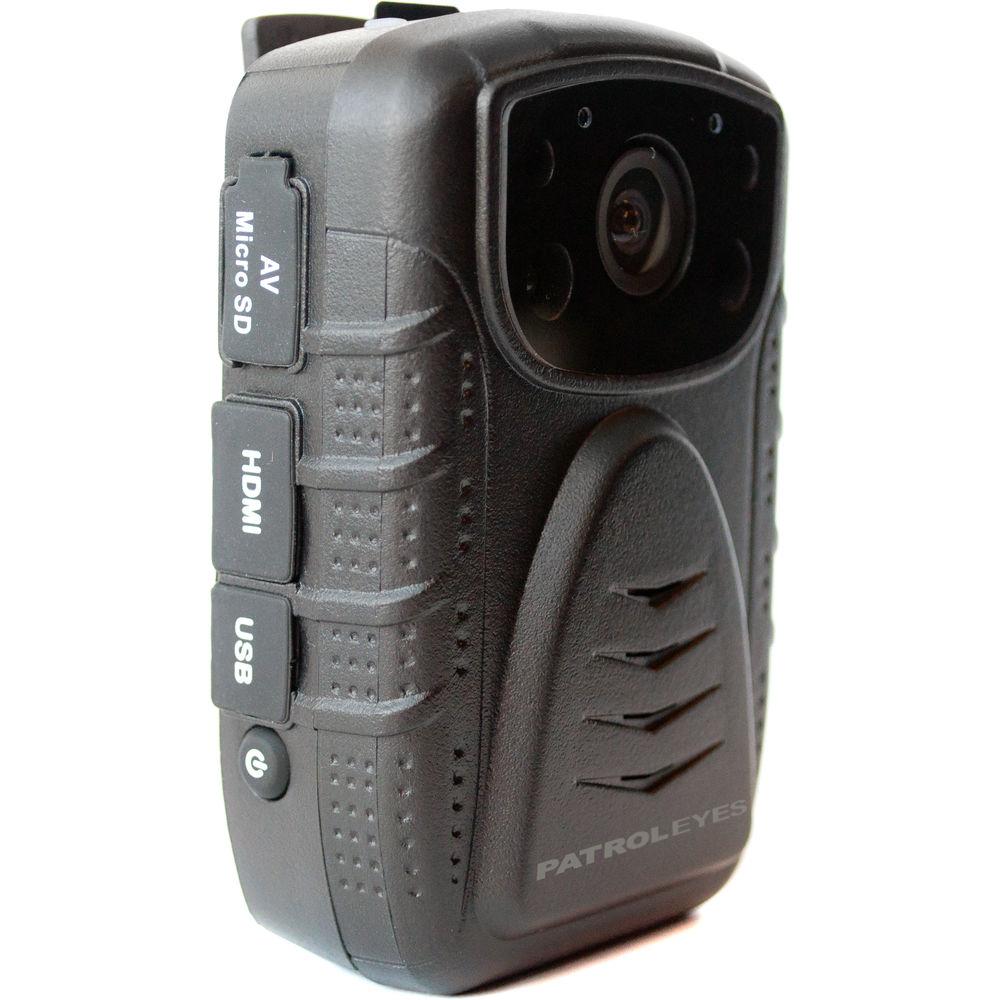

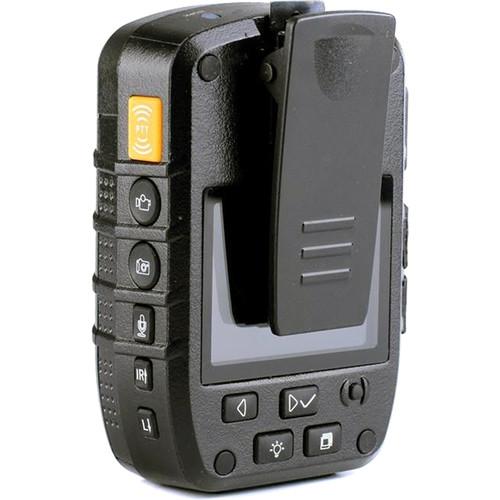

Product description The PE-DV1-2-XL 1296p Body Camera with Night Vision and GPS from PatrolEyes captures 2304 x 1296 resolution video at up to 30 fps. The included metal swivel clip enables you to attach the body camera to your clothes, backpack, or bag for continuous, hands-free recording. The camera features a wide 140° field of view, and two 850nm IR LEDs that deliver up to 32' of night vision. Additionally, this camera is able to take still photos at 33MP.

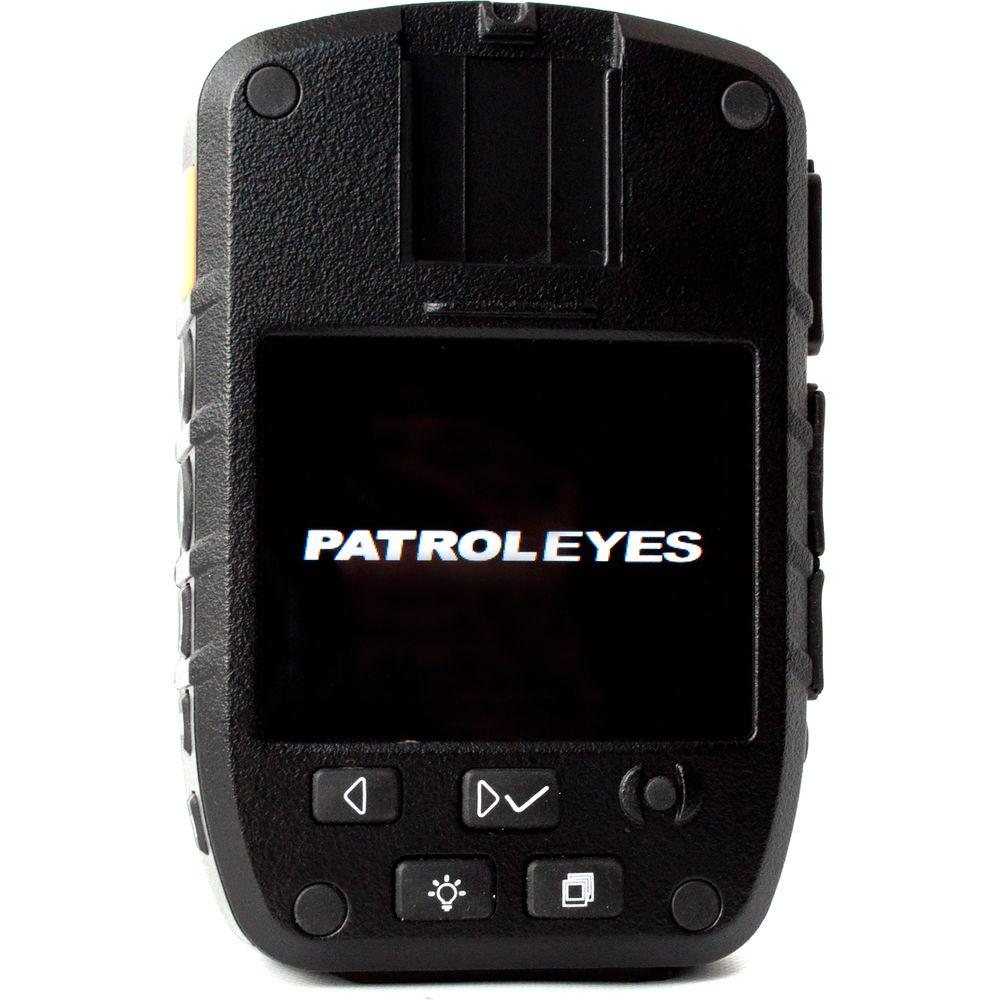

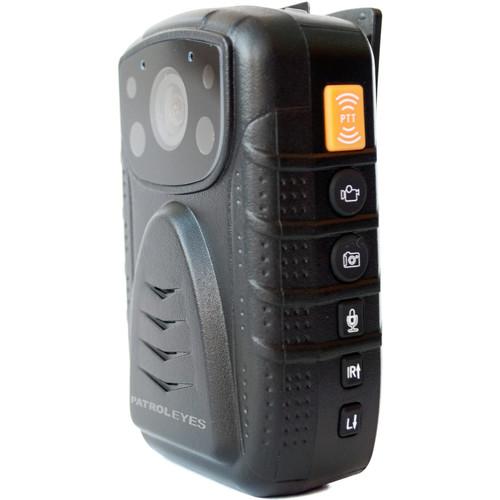

This device comes equipped with built-in GPS functionality. GPS coordinates are embedded in the recorded video file. A 2" color LCD screen allows you to view videos and photos on the go, while audio playback is possible thanks to a built-in speaker. A rechargeable 4000mAh built-in battery delivers up to 13 hours of battery life. An integrated memory card slot supports microSD cards up to 128GB. microSD cards are available separately. This body camera is IP57-rated weather resistant. - Walkie-talkie (PTT) function with compatible cable (available separately)

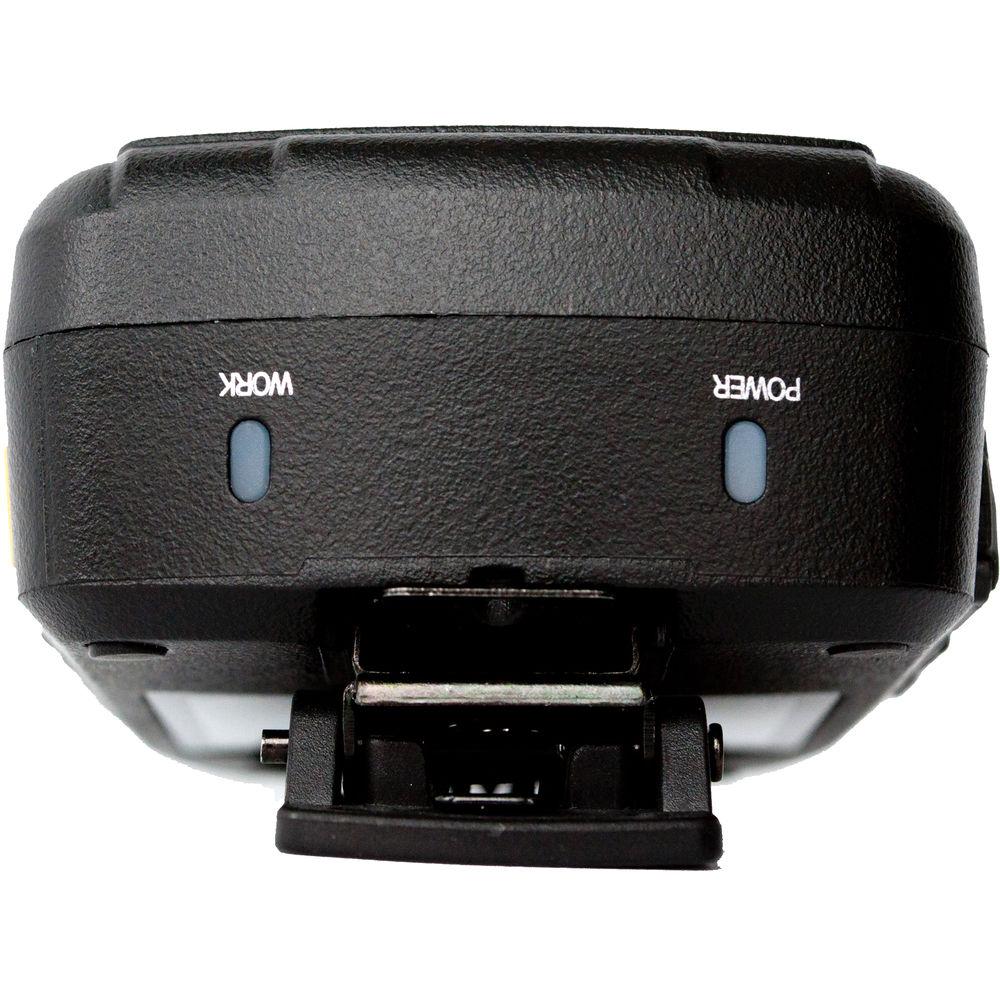

- One-touch recording with LED indicators, audio, and vibration alerts that notify you when recording has started or stopped
- Advanced electronic image stabilization (EIS)
- Multiple firmware options allow you to manage the camera in multiple modes and choose between password-protected or non-password-protected versions of firmware

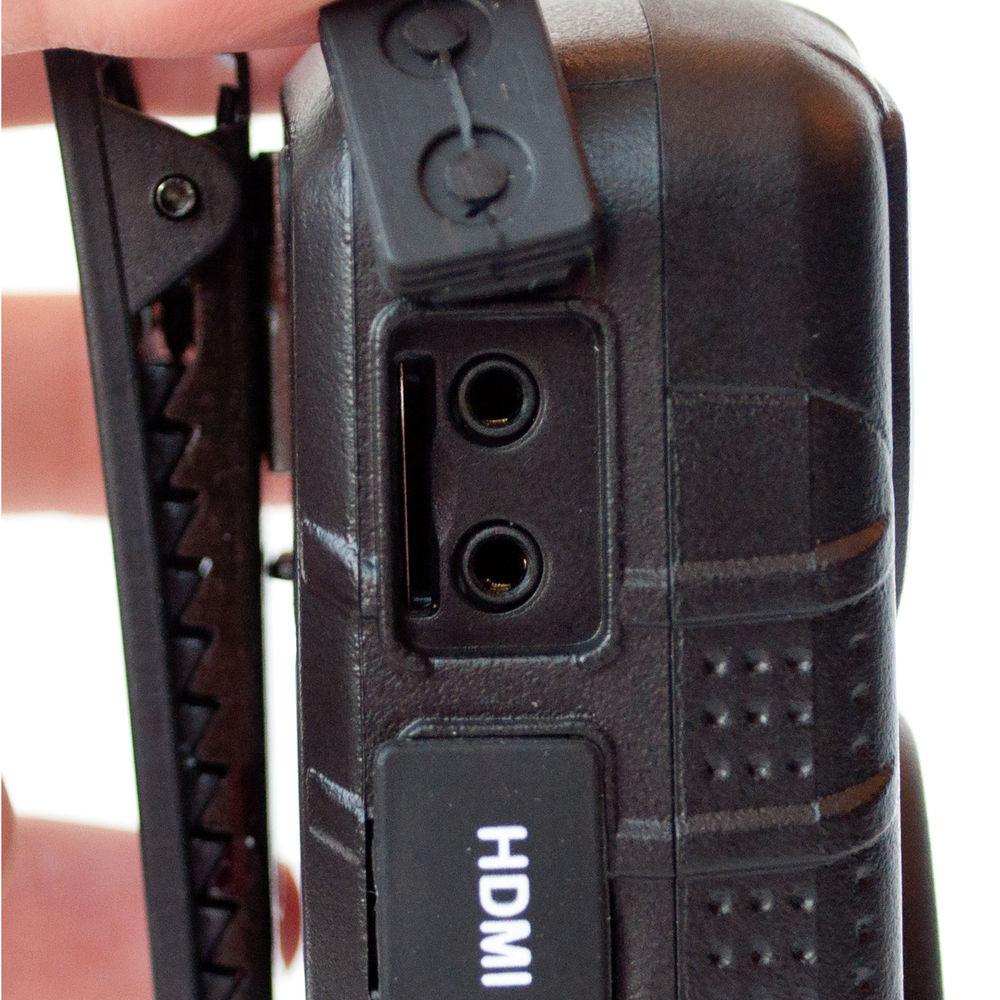

- AV and mini-HDMI outputs enable you to view footage on larger displays
- Includes USB cable, USB wall charger, USB car charger, and metal swivel body clip
- IP57-rated weather-resistant case that's drop-proof from up to 10'
UPC: 683318832985 In the Box PatrolEyes PE-DV1-2-XL 1296p Body Camera with Night Vision and GPS Metal Swivel Body Clip USB Cable USB Wall Charger USB Car Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PatrolEyes PE-DV1-2-XL 1296p Body Camera with Night Vision and GPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPatrolEyes PE-DV1-2-XL Specs | | | Chipset | Ambarella A7 | | Video Resolutions | 2304 x 1296 (1296p) at 30 fps
1920 x 1080 (1080p) at 30 fps
1280 x 720 (720p) at 60 fps
1280 x 720 (720p) at 30 fps
848 x 480 (480p) at 60 fps
848 x 480 (480p) at 30 fps | | Video Format | MP4 | | Field of View | 140°
170° in 480p mode | | Still Image Resolution | 33 MP | | Photo Format | JPEG | | Burst Mode | 3 or 5 photos at once | | Night Vision | Manual | | IR LEDs | 2 x 850 nm | | Night Vision Range | Up to 32' / 9.8 m with visible face detection | | Built-in Speaker | Yes | | | | Image Stabilization | Advanced electronic image stabilization (EIS) | | Date & Time Stamp | Yes | | GPS | Yes | | Fast Forward/Rewind Functions | Speeds: 2, 4, 8, 16, 32, and 64x | | Pre/Post Event Recording | Yes | | Continuous Recording | Yes | | One Touch Recording | Yes | | Loop Recording | Yes | | Push-to-Talk (PTT) | Yes | | | | IP Rating | IP57 | | Display | 2" / 51 mm LCD | | External Camera | Supported | | USB | Yes, mini-USB B | | Mini HDMI | Yes | | A/V Inputs/Outputs (RCA) | 1 x input
1 x output | | Extension Interface | PTT, GPS | | | | Memory | Supports microSD cards up to 128 GB | | Video Storage | 1080p at 30 fps: 5 GB per hour
720p at 30 fps: 3.6 GB per hour
480p at 60 fps: 2.1 GB per hour
480p at 30 fps: 2.1 GB per hour | | | | Battery Type | Built-in 4000 mAh battery | | Battery Life | 13 hours | | Battery Charge Time | 150 minutes | | | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Dimensions | 3.7 x 2.4 x 1.3" / 94 x 61 x 33 mm | | Weight | 7.3 oz / 207 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 3.6" |
