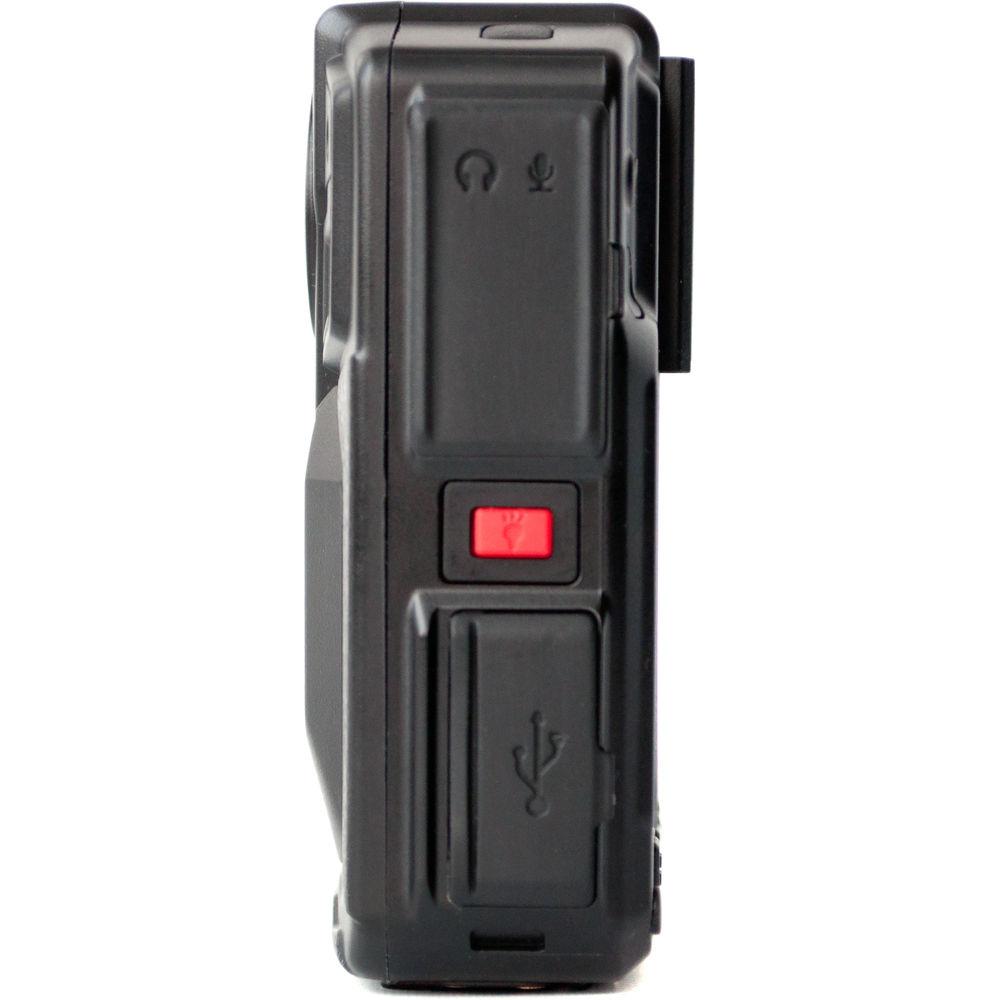

User Manual for PatrolEyes PE-DV5-2 1296p Body Camera with Night Vision and GPS Click to enlarge the picture
Contents of the user manual for the PatrolEyes PE-DV5-2 1296p Body Camera with
- Product category: Body Cameras PatrolEyes
- Brand: PatrolEyes
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PatrolEyes Body Cameras
 |
User manual for the PatrolEyes PE-DV5-2 1296p Body Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PatrolEyes product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PatrolEyes user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PatrolEyes product will considerably shorten its lifespan!
|

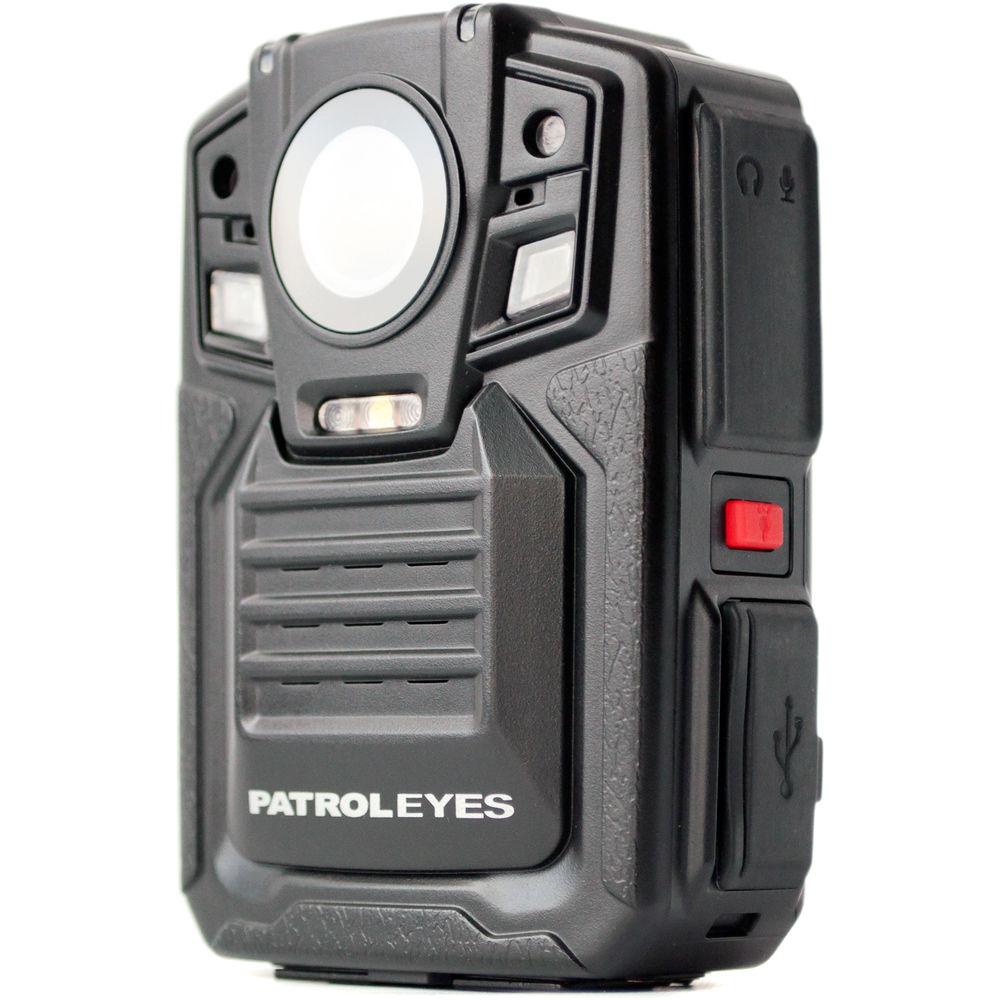

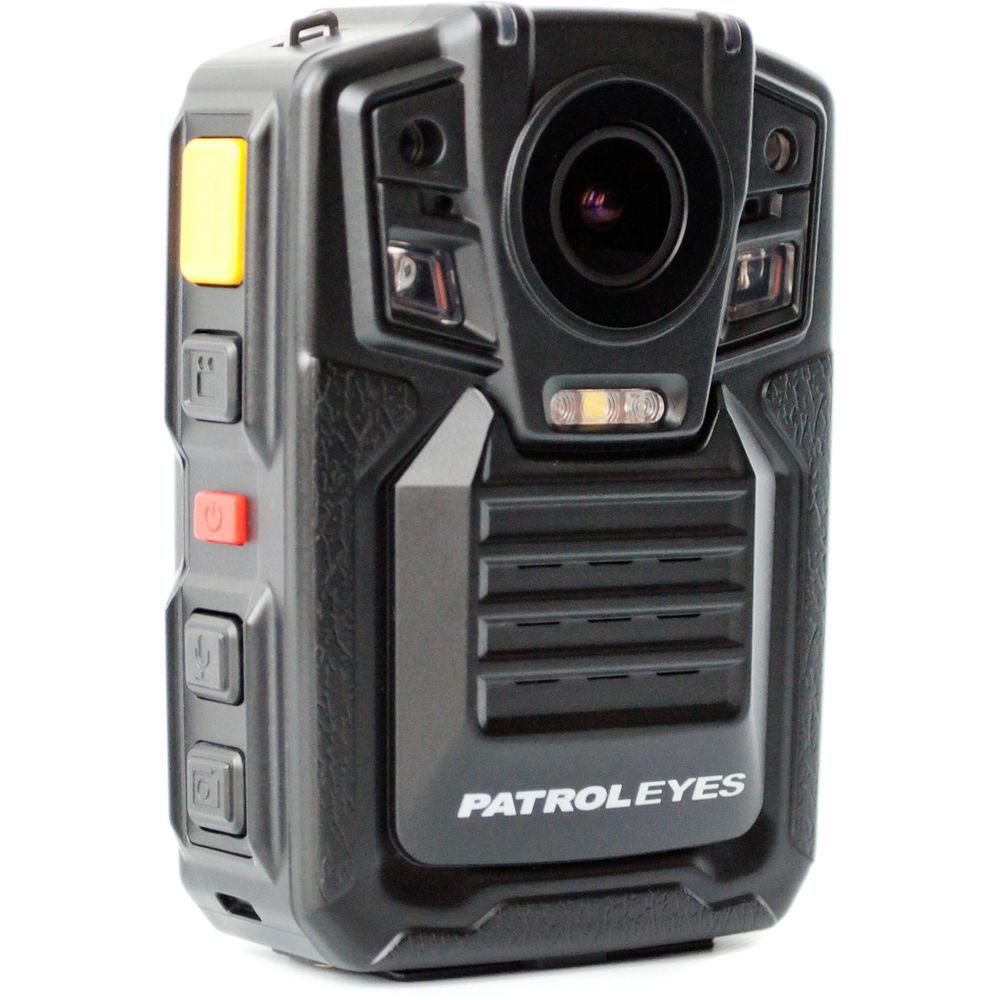

Product description The PE-DV5-2 1296p Body Camera with Night Vision and GPS from PatrolEyes can capture up to 2304 x 1296 video at up to 30 fps for smooth and clear playback. The metal clip allows you to attach the camera to your clothes, backpack, or bag for continuous, hands-free recording. IR LEDs allow the camera to capture images in dark environments with its wide, 170° field of view. It can take still images at resolutions up to 33MP for high-quality photos.

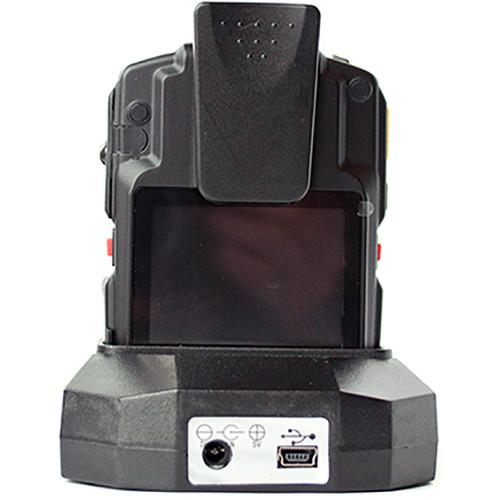

An LCD screen provides quick access to video and photo playback, and lets you adjust settings on the go. The body camera comes with 32GB of internal storage to record video and photos. The removable 1950mAh battery provides up to 15 hours of standby power and up to 5.6 hours of continuous use. A wall charger and car charger are included to charge the body camera while at home or on the go. - Up to 2304 x 1296 resolution video at up to 30 fps
- IR LEDs for night vision up to 30'
- LCD screen for menu navigation
- Built-in GPS tracks location of video with included software

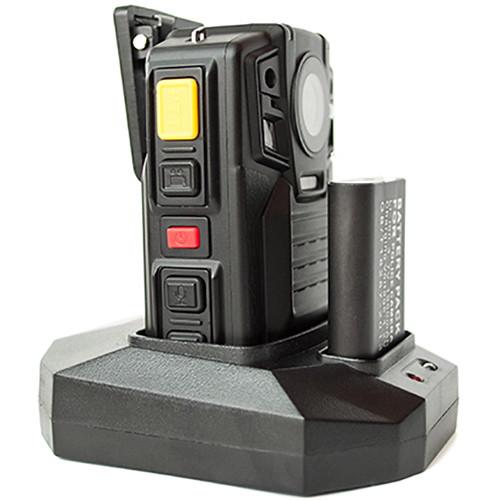

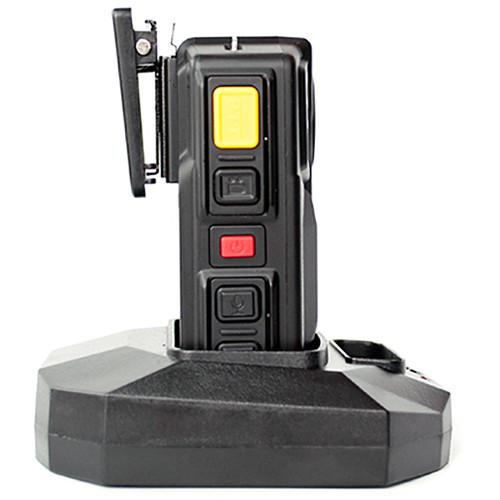

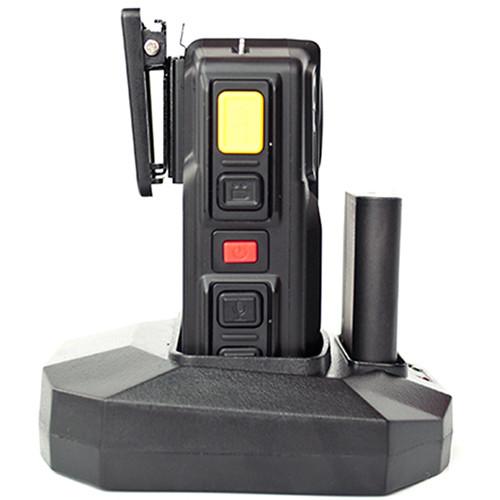

- Charging station allows you to simultaneously charge the camera and extra battery (available separately)
- Removable 1950mAh battery for up to 5.6 hours of continuous use
- Motion detection recording mode to save storage space
- Snap Shot feature lets you take still photos while recording video
- Device logging organizes saved files
- Walkie Talkie function with cable (available separately)
- IP57-rated for water resistance
UPC: 852659768899 In the Box PatrolEyes PE-DV5-2 1296p Body Camera with Night Vision and GPS USB Cable Lithium Battery Car USB Charger Wall Charger Drop-In Charging Station Metal Body Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PatrolEyes PE-DV5-2 1296p Body Camera with Night Vision and GPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPatrolEyes PE-DV5-2-32GB Specs | | | Chipset | Ambarella A7 | | Resolutions Supported | 2560 x 1080 at 30 fps
2304 x 1296 at 30 fps
1920 x 1080 at 30 fps
1280 x 720 at 60 fps
1280 x 720 at 30 fps
848 x 480 at 60 fps
848 x 480 at 30 fps | | Video Format | MOV | | Field of View | 170° | | Still Image Resolution | 33 MP | | Photo Format | JPG | | Burst Mode | 1, 3, or 5 photos at once | | Storage Capacity | 32 GB | | Night Vision | Auto | | IR LEDs | Night vision up to 30' (9.1 m) | | Recording Modes | Motion detection, continuous, loop recording
Continuous and loop recording modes require USB mode firmware | | Time and Date | Time and date stamp embedded on every video with user ID | | Fast Forward/Rewind Functions | Speeds: 2, 4, or 8x | | Video Storage | 1080p at 30 fps: 5 GB per 1 hour
720p at 30 fps: 3.6 GB per 1 hour
480p at 30/60 fps: 2.1 GB per 1 hour | | | | IP Rating | IP57 | | External Camera | Supported | | Interfaces | Mini-USB B, mini HDMI, PTT port | | Display | LCD | | Buttons | Menu, up, down, playback, PTT, video, on/off, photo, reset | | | | Type | Removable 1950 mAh battery | | Lifespan | Standby: Up to 15 hours
1080p: Up to 4 hours
720p: Up to 5 hours
480p: Up to 5.6 hours | | Charge Time | 200 min | | | | Pre/Post Event Recording | Supported | | Recording | One-touch recording | | GPS | Built-in | | Password Protection | Supported | | | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Dimensions | 3.3 x 2.4 x 1.2" (8.4 x 6.1 x 3 cm) | | Weight | 5.75 oz (163 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.2 x 6.0 x 3.0" |
