User Manual for PatrolEyes SC-DV10 1296p Body Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the PatrolEyes SC-DV10 1296p Body Camera with
- Product category: Body Cameras PatrolEyes
- Brand: PatrolEyes
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PatrolEyes Body Cameras
 |
User manual for the PatrolEyes SC-DV10 1296p Body Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PatrolEyes product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PatrolEyes user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PatrolEyes product will considerably shorten its lifespan!
|

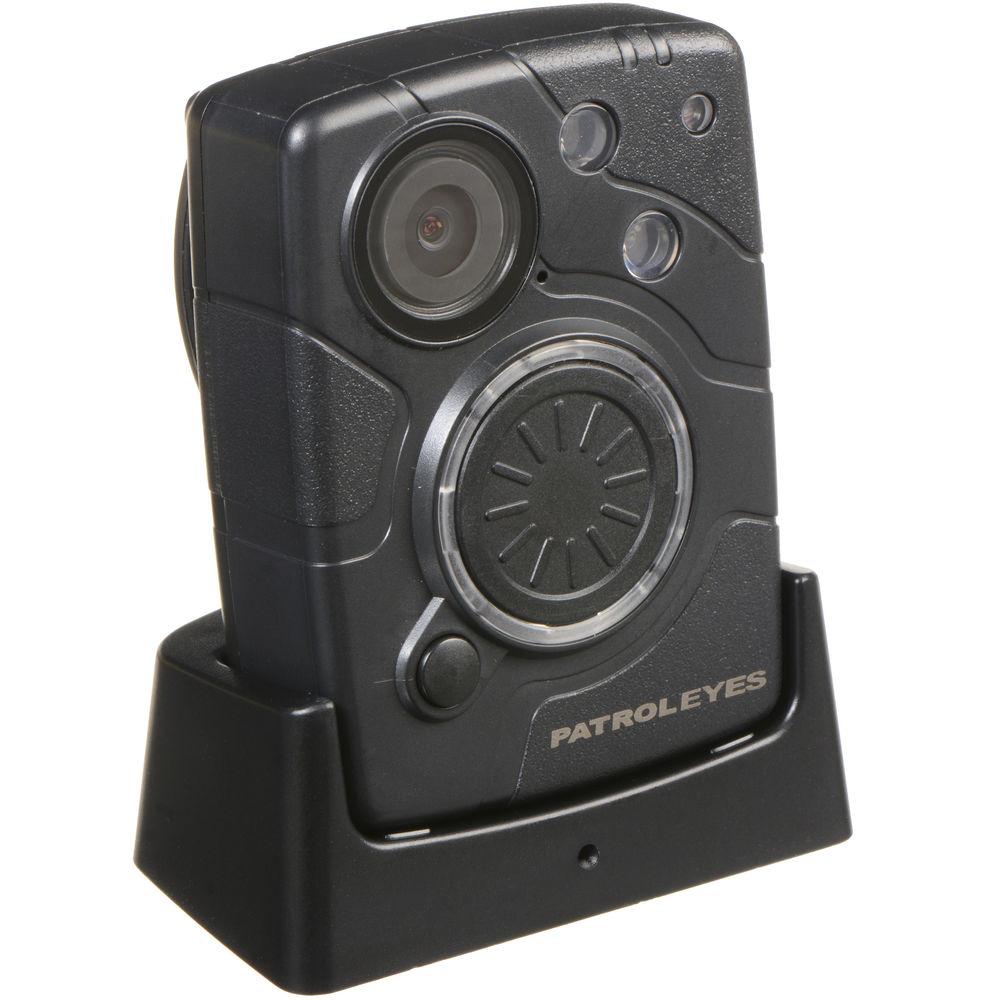

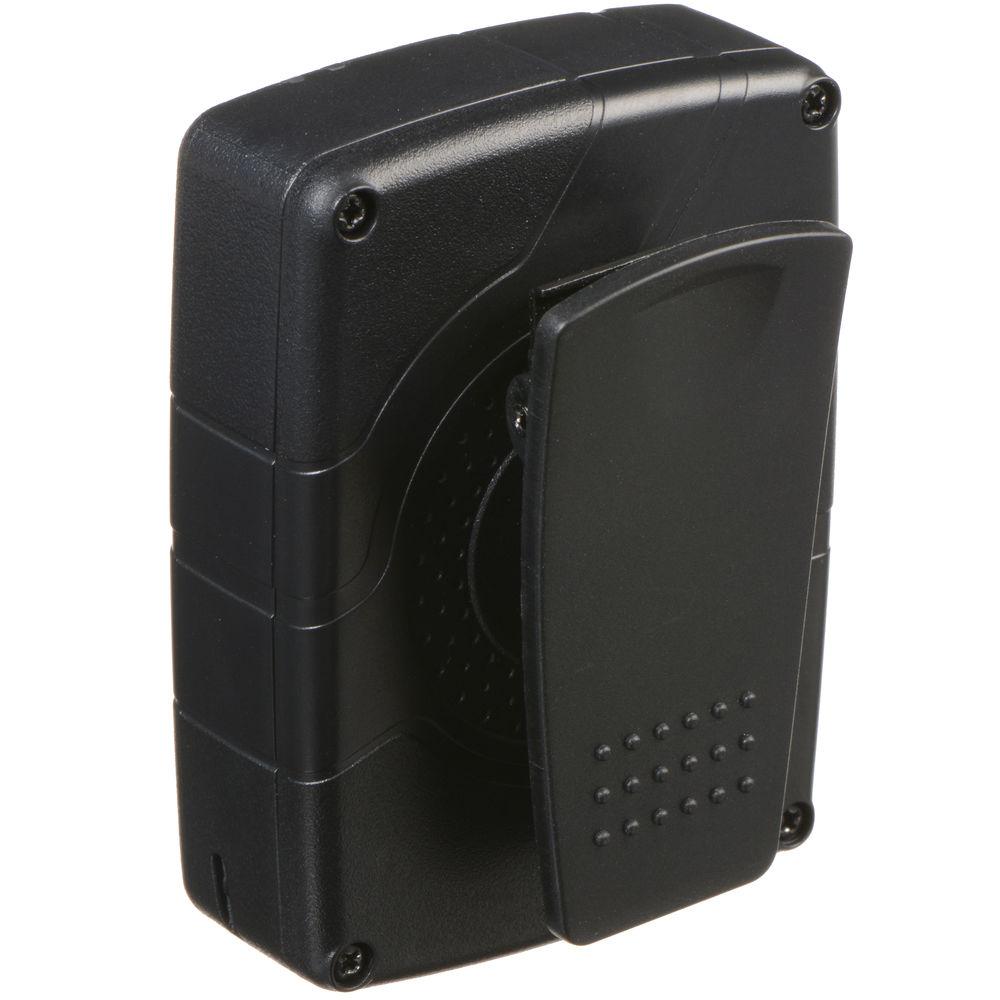

Product description The SC-DV10 1296p Body Camera with Night Vision from PatrolEyes can capture up to 2304 x 1296 video at up to 30 fps for smooth and clear playback. The metal clip allows you to attach the camera to your clothes, backpack, or bag for continuous, hands-free recording. IR LEDs allow the camera to capture images in dark environments with its wide, 140° field of view. It can take still images at resolutions up to 32MP for high-quality photos and has a built-in microphone to record nearby audio.
Wi-Fi connectivity allows you to access settings and a live video feed of the camera via the free LinkinEye app for iOS and Android devices. The body camera comes with 32GB of internal storage to record video and photos. The built-in 3200mAh battery provides up to 10 hours of continuous use. A wall charger and car charger are included to charge the body camera while at home or on the go. - Up to 2304 x 1296 resolution video at up to 30 fps
- IR LEDs for night vision up to 30'
- Wi-Fi connectivity for mobile access via LinkinEyes app for iOS and Android
- Charging station allows you to simultaneously charge the camera and transfer data
- 3200mAh battery for up to 10 hours of continuous use
- Motion detection recording mode to save storage space
- Take still photos while recording video
- Device logging organizes saved files
- IP67-rated for outdoor use
UPC: 683318832558 In the Box PatrolEyes SC-DV10 1296p Body Camera with Night Vision USB Cable USB Car Charger Wall Charger Drop-In Charging Station Metal Body Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PatrolEyes SC-DV10 1296p Body Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPatrolEyes SC-DV10 Specs | | | Chipset | Ambarella A7 | | Resolutions Supported | 2560 x 1080 at 30 fps
2304 x 1296 at 30 fps
1920 x 1080 at 30 fps
1440 x 1080 at 30 fps
1280 x 720 at 60 fps
1280 x 720 at 30 fps
848 x 480 at 60 fps
848 x 480 at 30 fps | | Video Format | MOV | | Field of View | 140° | | Still Image Resolution | 16, 12, 8, 5, 3 MP | | Photo Format | JPG | | Burst Mode | 1, 3, or 5 photos at once | | Storage Capacity | 32 GB | | Night Vision | Auto | | IR LEDs | Night vision up to 30' (9.1 m) | | Recording Modes | Motion detection, continuous, loop recording
Continuous and loop recording modes require USB mode firmware | | Time and Date | Time and date stamp embedded on every video with user ID | | Video Storage | 1080p at 30 fps: 4.3 GB per 1 hour
720p at 30 fps: 3.7 GB per 1 hour
480p at 30/60 fps: 2.3 GB per 1 hour | | | | IP Rating | IP67 | | Buttons | Power/record, Wi-Fi/photo, reset | | Indicator Lights | Activity, charging | | | | Type | 3200 mAh battery | | Lifespan | 1080p: Up to 7 hours
720p: Up to 8.5 hours
480p: Up to 10 hours | | Charge Time | 180 min | | | | Pre/Post Event Recording | Supported | | Recording | One-touch recording | | Password Protection | Supported | | | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Dimensions | 3 x 2.2 x 0.87" (7.6 x 5.6 x 2.2 cm) | | Weight | 3.7 oz (104 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.2 x 4.7 x 3.7" |
