Product description

The SC-DV7 Ultra 1296p Body Camera with Night Vision from PatrolEyes can capture up to 2304 x 1296 video at up to 30 fps for smooth and clear playback. The swivel clips allow you to attach the camera to your clothes, backpack, or bag for continuous hands-free recording. IR LEDs allow the camera to capture images in dark environments with its wide, 170° field of view. It can take still images at resolutions up to 32MP for high-quality photos.

A 2" LCD screen provides quick access to video and photo playback, and lets you adjust settings on the go. Additional features include a built-in microphone and speaker to record and playback audio, as well as a laser pointer. The body camera comes with 64GB of internal storage to record video and photos. The 2650mAh battery provides up to 12 hours of standby power and up to 8 hours of continuous use. A drop-in charger, wall charger, and car charger are included to charge the body camera while at home or on the go.
  • Up to 2304 x 1296 resolution video at up to 30 fps
  • IR LEDs for night vision up to 30'
  • 2.5" LCD screen for menu navigation
  • Up to 32MP still photos
  • Charging station allows you to simultaneously charge the camera and transfer data
  • 2650mAh battery for up to 8 hours of continuous use
  • Built-in microphone picks up nearby sound
  • 64GB of internal storage
  • Motion detection recording mode to save storage space
  • Snapshot feature lets you take still photos while recording video
  • Device logging organizes saved files
  • Walkie talkie function with cable (available separately)
  • Drop-resistant up to 6'
  • IP67-rated for outdoor use
UPC: 852659768813 In the Box PatrolEyes SC-DV7 Ultra 1296p Body Camera with Night Vision
  • USB Cable
  • USB Car Charger
  • USB Wall Charger

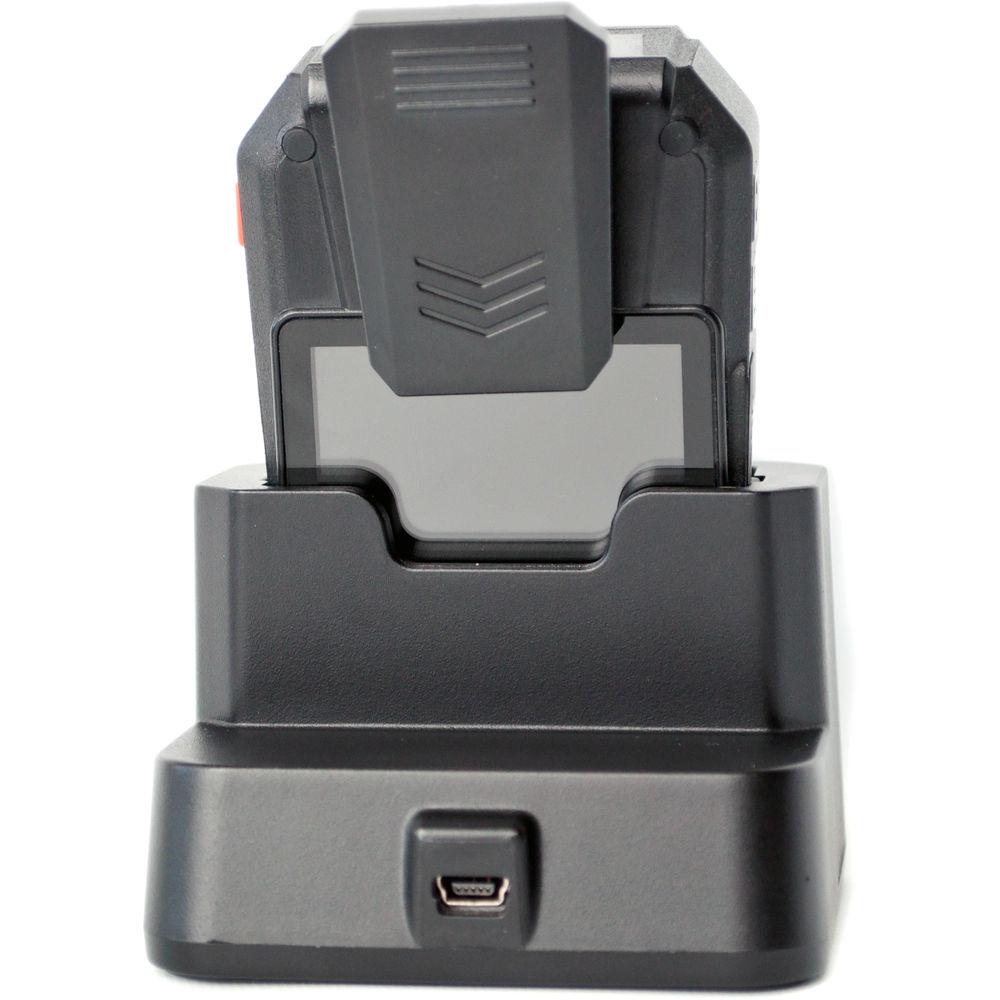

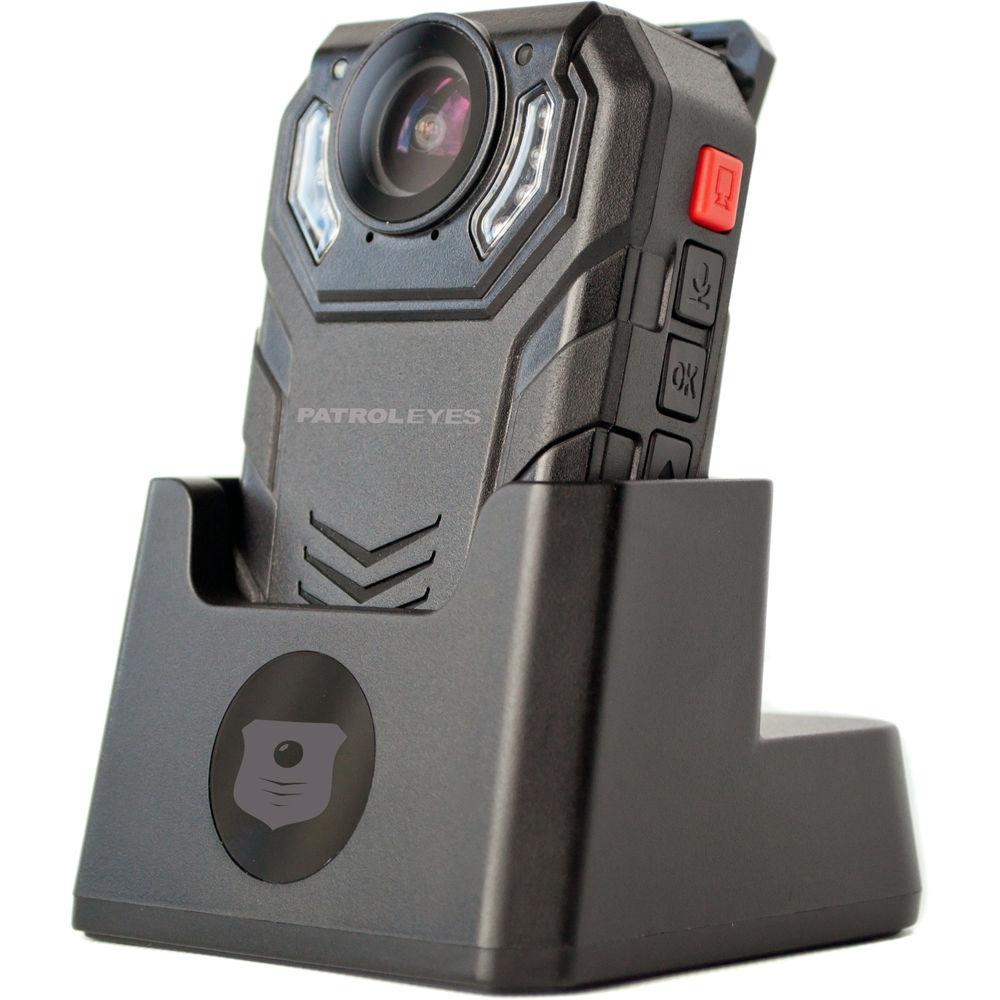

  • Drop-In Charging Station
  • Plastic Long Swivel Body Clip
  • Metal Swivel Body Clip
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the PatrolEyes SC-DV7 Ultra 1296p Body Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    PatrolEyes SC-DV7 Specs

    Chipset Ambarella A7
    Video Resolution 2560 x 1080 at 30 fps, 21:9
    2304 x 1296 at 30 fps, 16:9
    1920 x 1080 at 30 fps, 16:9
    1920 x 1080 at 45 fps, 16:9
    1280 x 720 at 60 fps, 16:9
    1280 x 720 at 30 fps, 16:9
    848 x 480 at 30 fps, 16:9
    Video Format H.264, MP4
    Field of View 170°
    Still Image Resolution 32 MP (7552 x 4248, 16:9) 30 MP (6400 x 4800, 4:3) 23 MP (6400 x 3600, 16:9) 20 MP (5120 x 3840, 4:3) 18.5 MP (4976 x 3732, 4:3) 16 MP (5376 x 3024, 16:9) 4 MP (2688 x 1512, 16:9)
    Photo Format JPG
    Burst Mode 1, 5, 10, or 20 photos at once
    Storage Capacity 64 GB
    Laser Laser light
    Night Vision Auto
    LED White LED
    IR LEDs 8 x IR LEDs for night vision up to 30' / 9.1 m
    Recording Modes Motion detection, continuous, loop recording
    Continuous and loop recording modes require optional firmware
    Stamp Optional: Date, time, police ID
    Video Storage 1080p at 30 fps: 3 GB per 1 hour
    720p at 30 fps: 1.6 GB per 1 hour
    480p at 30/60 fps: 1.1 GB per 1 hour
    Audio Built-in microphone and speaker
    IP Rating IP67
    Interfaces Mini-USB B, PTT

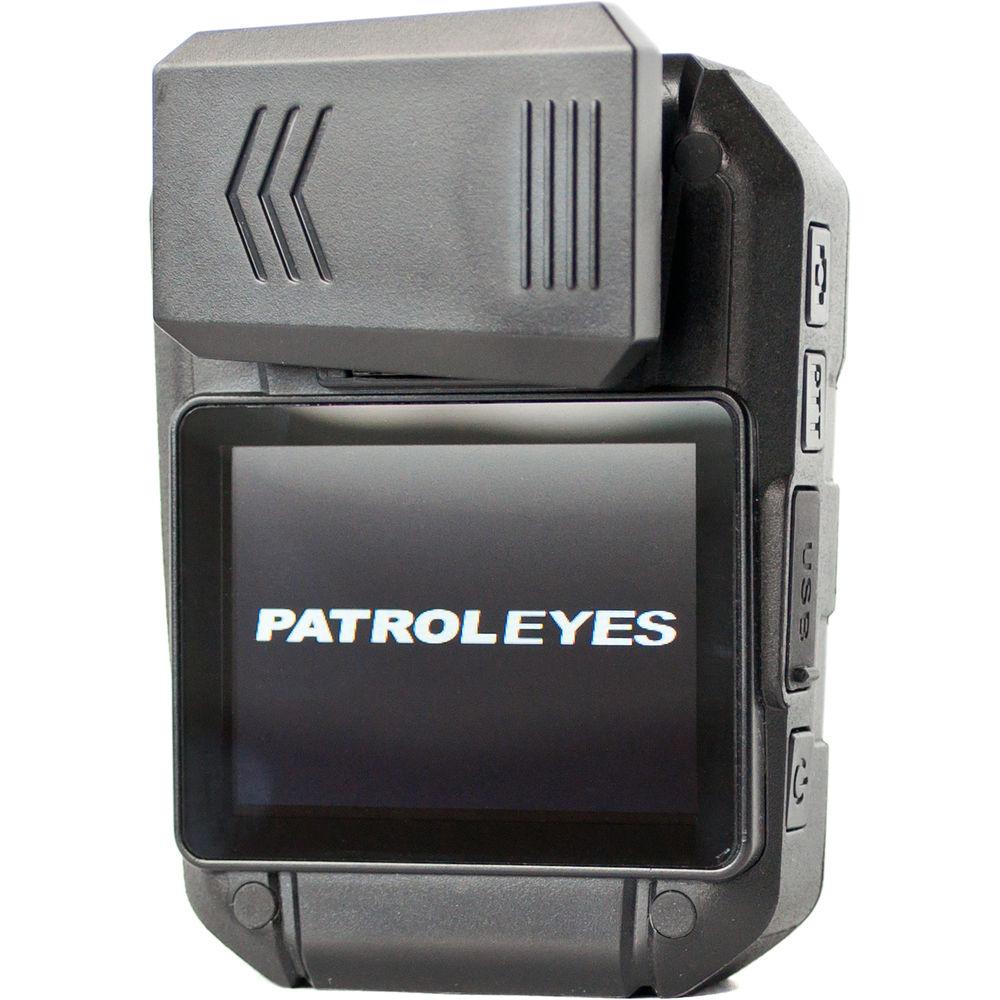

    Display 2" / 5.1 cm TFT LCD

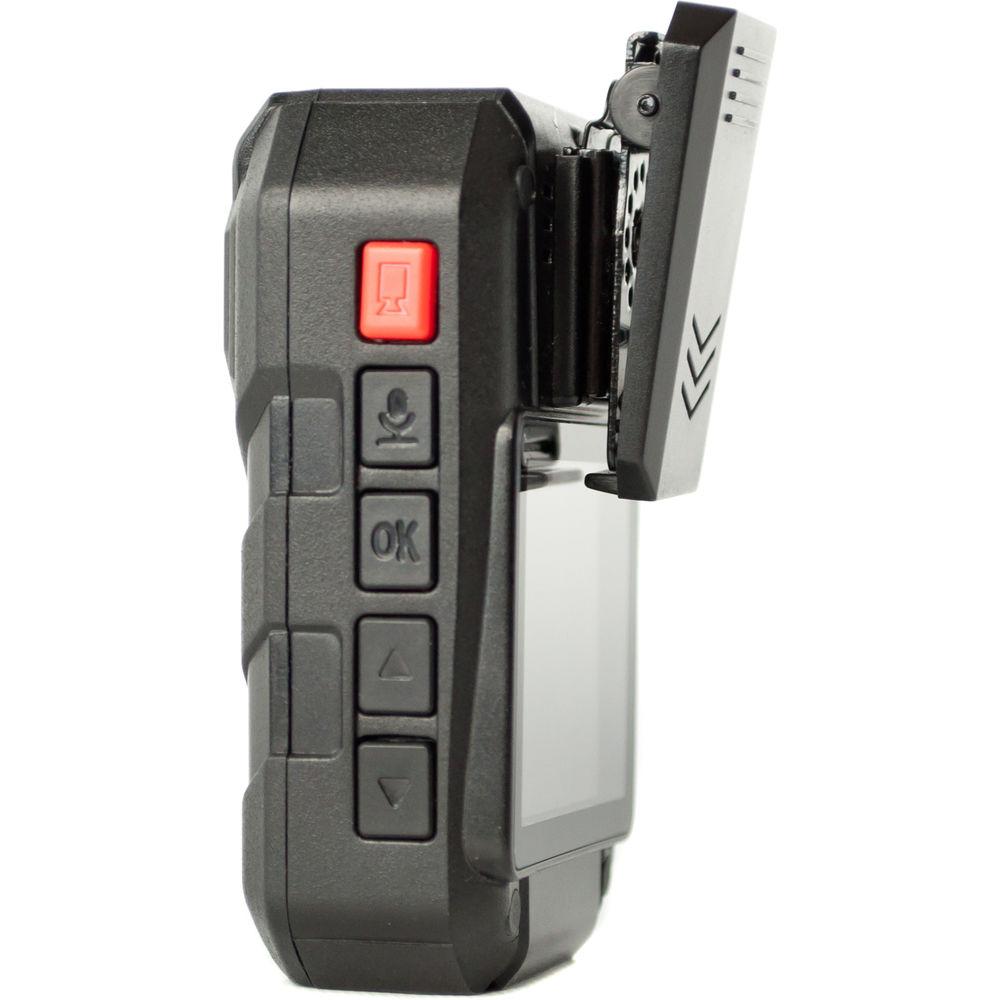

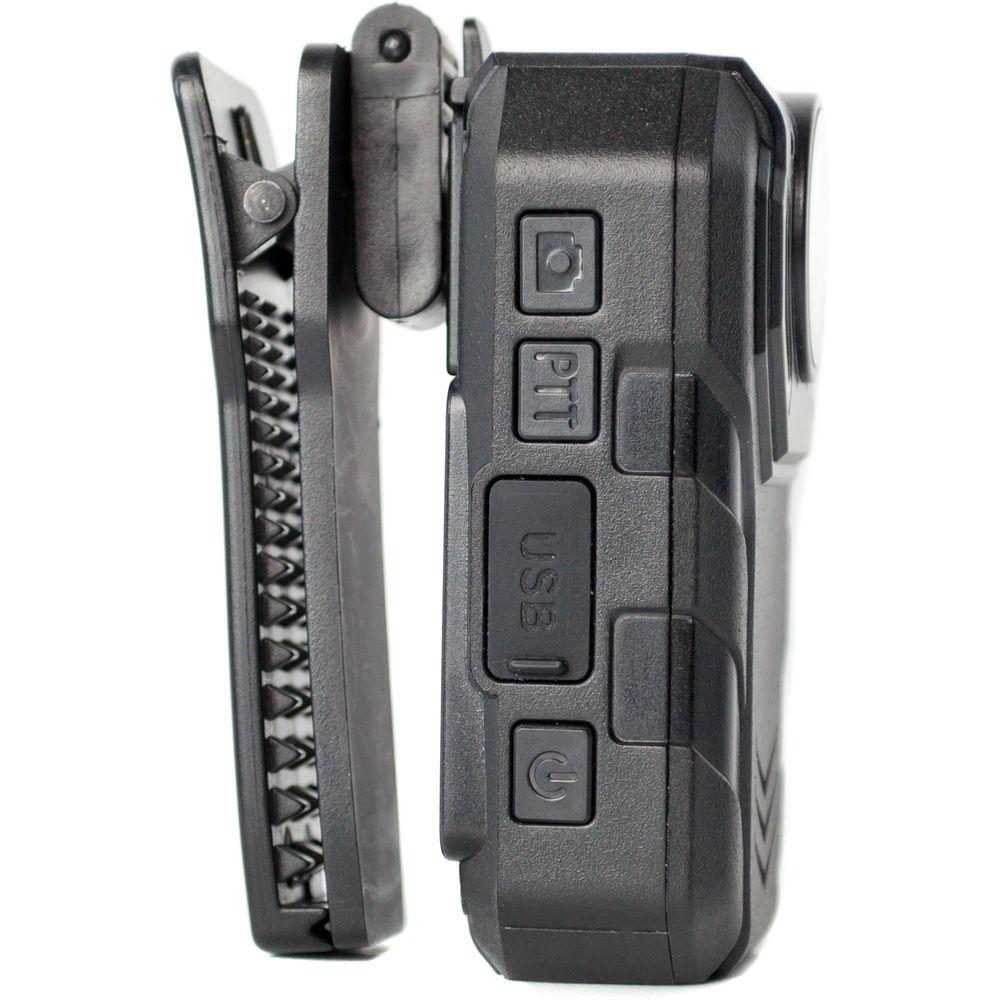

    Buttons Video, audio, playback/OK, up/night vision, down/white LED/menu, photo, PTT, reset, power/laser
    Indicator Lights Activity, power/charging
    Type 2650 mAh battery
    Lifespan Standby: Up to 12 hours
    1080p: Up to 6.5 hours
    720p: Up to 7.25 hours
    480p: Up to 8 hours
    Charge Time 250 minutes
    Pre/Post Event Recording Supported
    Recording One-touch recording
    Password Protection Supported
    Operating Temperature -40 to 140°F / -40 to 60°C
    Storage Temperature -4 to 131°F / -20 to 55°C
    Dimensions 3 x 2.2 x 1.1" / 7.6 x 5.6 x 2.8 cm/
    Weight 4.5 oz / 128 g
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 7.3 x 5.8 x 2.7"
