Product description - Capture Camera Clip v3 - Design Deep Dive
- Capture V3: Tips & Instructions

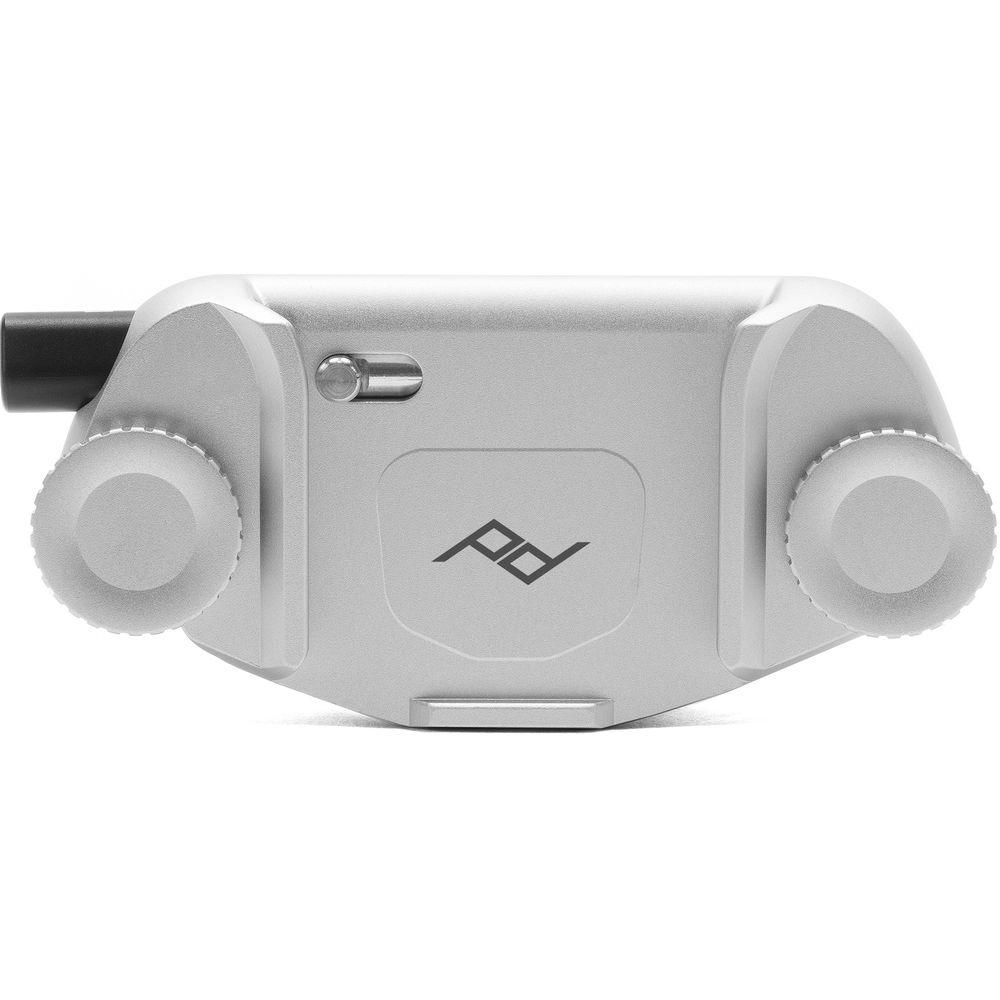

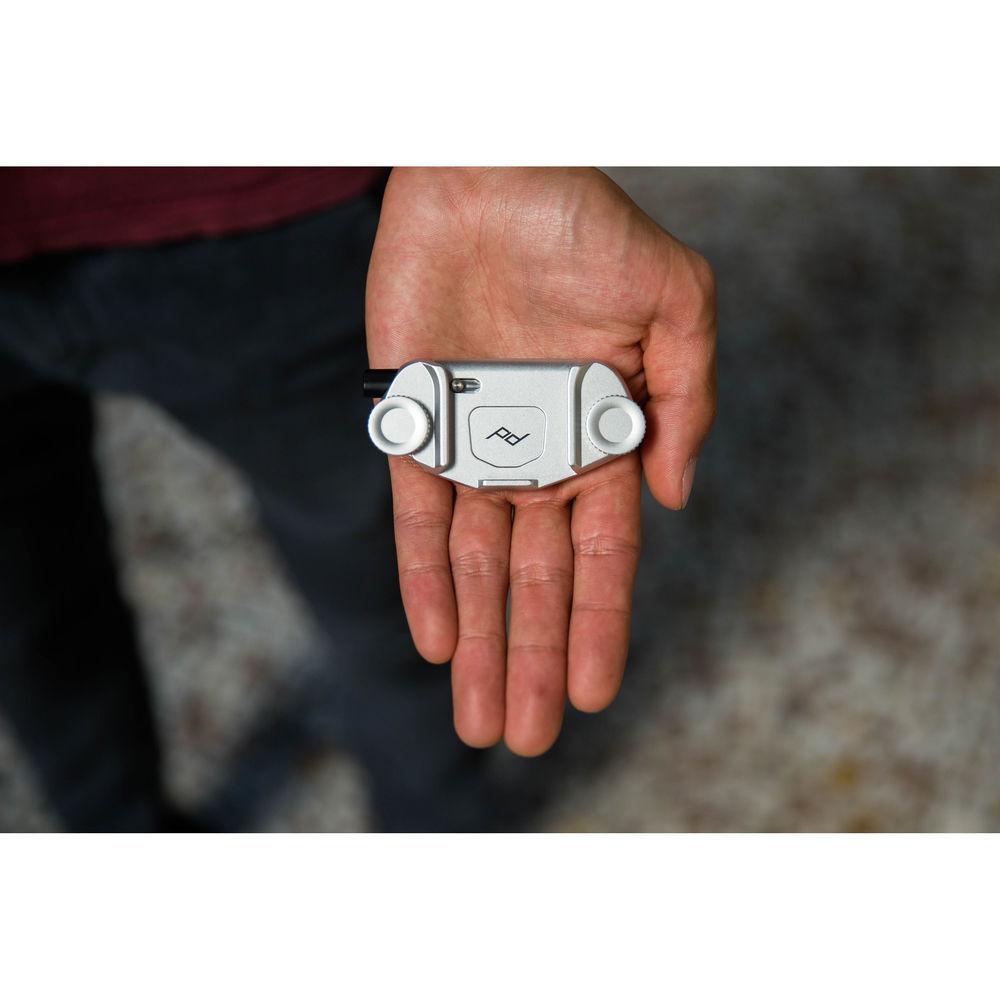

Marrying stability and quick access, the silver Capture Camera Clip v3 from Peak Design is a harness system for professional gear that is designed to withstand forces up to 200 lb. The main component is a durable metal clip, which uses included thumbscrews or hex-head bolts to clamp onto any strap or belt as wide as 2.5" and as thick as 0.87". Paired with it is an Arca-type compatible quick release plate that slides onto the clip to lock movement in all four directions, and features four loops for attaching optional Peak Design anchors.The Capture v3 keeps a slim profile at only 3.3" in length and weighing 3 oz, and all its parts are made of weatherproof aluminum that resists rust. The clip is equipped with a quick release button so you can instantly grab your camera and start shooting, and has a security lock that can be activated to prevent accidental release during longer trips. For enhanced stability, an anti-slip pad is used on the back plate for grip. All legacy Peak Design plates work with the Capture v3 except for the DUALplate v1, allowing you to carry objects such as lenses, binoculars, or GoPro cameras with optional accessories. -
- Clip and plate system for camera support, made entirely of rust-resistant aluminum and designed to withstand up to 200 lb of force

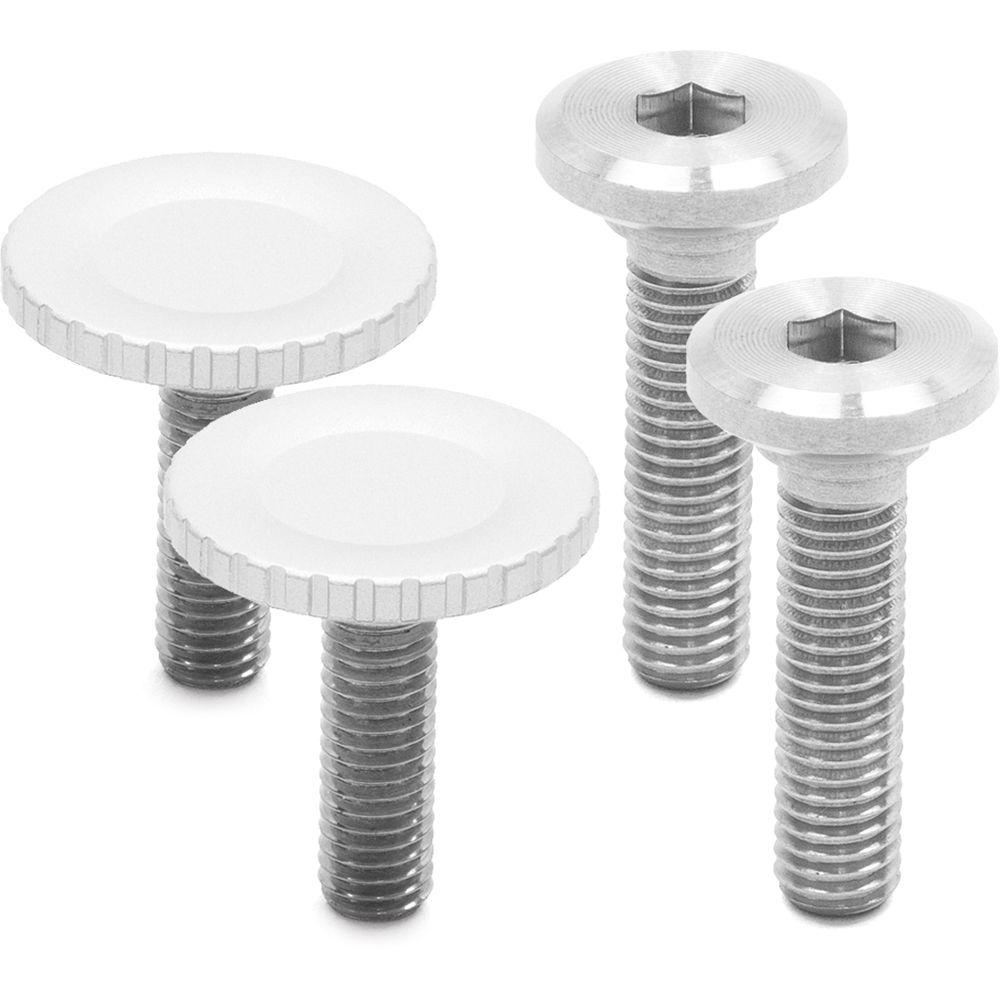

- Clip fits straps or belts up to 2.5" wide, and as thick as 0.63" with the thumbscrews and up to 0.87" thick with the hex-head bolts
- Anti-slip pad for a better grip on the mounting surface, increasing stability

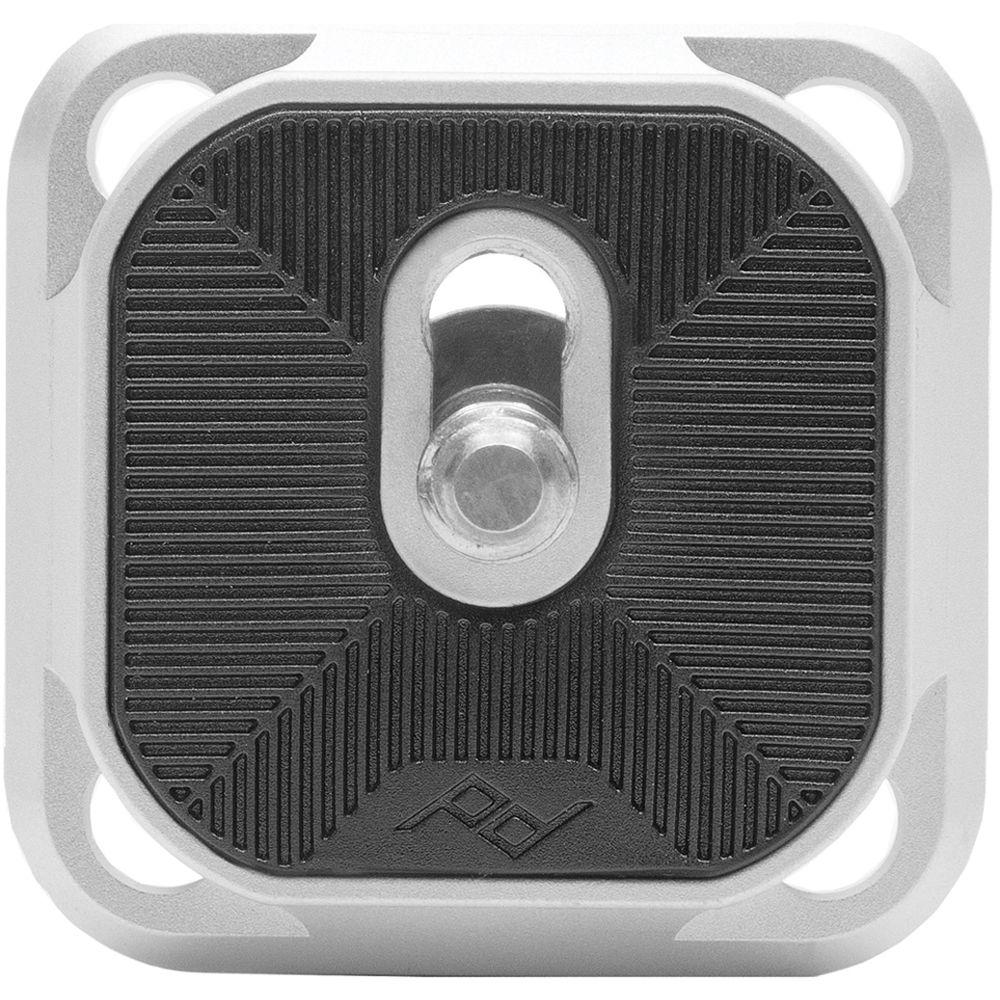

- Plate is compatible with most Arca-type tripod attachments and releases with a button on the clip for quick access to camera
- Four loops at the bottom of the plate allow for optional Peak Design anchors to be used
- Quick release button can be locked to help prevent accidents during longer excursions
- Slim design with a length of 3.3" and a total weight of 3 oz
- Compatible with all Peak Design plates except for the DUALplate v1, allowing for objects such as GoPro, lenses, and binoculars to be used with optional accessories

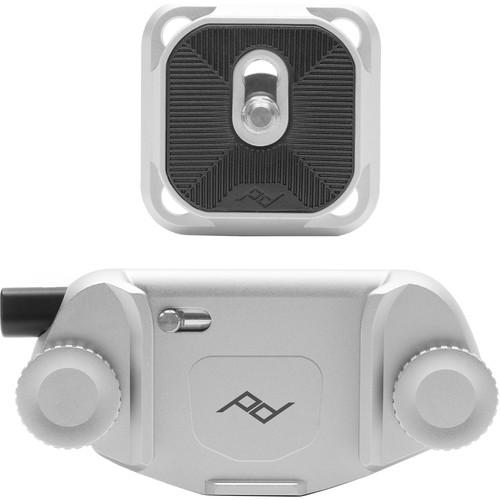

UPC: 818373020538 In the Box Peak Design Capture Camera Clip v3 (Silver) Clip for Capture v3 (Silver) cdtatubcarxbttxdxauszudte Standard Quick Release Plate Bolt Pack for Capture Camera Clip (Silver) Hex Wrench Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peak Design Capture Camera Clip v3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeak Design CP-S-3 Specs | Compatibility | Any strap or belt with these dimensions:
Width: Up to 2.5" (6.4 cm)
Thickness: Up to 0.63" (1.6 cm) with thumbscrews, or up to 0.87" (2.2 cm) with hex-head bolts | | Mounting Type | Thumbscrews
Hex-head clamping bolts | | Material | Aluminum | | Dimensions | Clip: 3.3 x 1.6 x 0.8" (8.3 x 4 x 2 cm)
Plate: 1.5 x 1.5 x 0.3" (3.8 x 3.8 x 0.7 cm) | | Weight | Clip: 2.5 oz (70 g)
Plate: 0.5 oz (14 g)
Total: 3 oz (84 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 1.0" |
