Product description

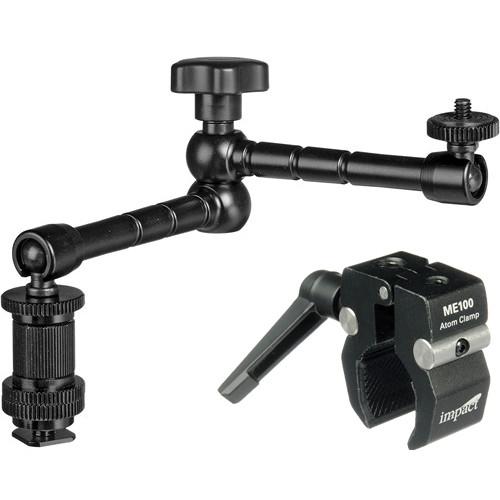

• Pearstone 11" Articulating Arm The Pearstone 11" Articulating Arm is an arm used to mount small displays on prosumer and professional camcorders. The arm's unique design features a single-point locking mechanism, which gives the user maximum flexibility. Moving the display on multiple axes is quick and easy, allowing users to find the best possible viewing angle. In addition, the bottom verticle spacer piece is removeable to reveal a 1/4"-20 male screw, and the bottom shoe mount is removeable to reveal a 1/4"-20 female thread. The full length of this arm (tip-to-tip) measures 11", and the usable extension range (end-joint to end-joint) measures 8.3".
  • Maximum mounting flexibility
  • Single point locking mechanism
  • Fits on any standard shoe mount
  UPC: 847628015005
• Impact Atom Clamp with Ratchet Handle The Impact Atom Clamp is a smaller version of the popular Impact Super Clamp. Weighing in at a mere 4.0 oz, the Atom Clamp can support a payload of over 15 lb. This, and the fact that it comes with 1/4"-20 and 3/8" female sockets, makes it ideal for use with most standard camera and grip accessories. It's ideal for small sets or tabletop photography. The Atom Clamp is made of lightweight aluminum and features a textured, non-slip jaw grip that is optimized to work with poles or flat objects.
  • Light and compact enough to carry around in your jacket pocket or camera bag
  UPC: 847628540248

• 11" Articulating Arm ayxuytcbveyrcrsubbedxt
• Limited 1-Year Warranty

• Impact - Atom Clamp with Ratchet Handle

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pearstone 11" Articulating Arm

  Load Capacity	5 lb (2.3 kg)
  Length, Fully Extended	11" (28 cm)
  Arm Length	8.3" (21.1 cm) (joint-to-joint length)
  Mount Compatibility	Top: 1/4"-20 male screw Bottom: cold shoe 1/4"-20 female thread (with spacer piece attached) 1/4"-20 male screw (with spacer removed)

  Box Dimensions (LxWxH)	7.65 x 2.9 x 1.75"

• Impact Atom Clamp with Ratchet Handle

  Clamp Type	Jaw
  Jaw Shape	Flat, Round
  Jaw Opening	0.59 to 1.37 " / 15.00 to 35.00 mm
  Mount Type	1 x 1/4"-20 Female 1 x 3/8"-16 Female
  Load Capacity	15.4 lb / 7.0 kg
  Material	Aluminum
  Weight	4.0 oz / 113.4 g

  Box Dimensions (LxWxH)	15.15 x 8.0 x 1.1"
