User Manual for Pearstone HBOX-4000 4-Channel Stereo Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Pearstone HBOX-4000 4-Channel Stereo Headphone Amplifier
- Product category: Headphone Amplifiers Pearstone
- Brand: Pearstone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pearstone Headphone Amplifiers
 |
User manual for the Pearstone HBOX-4000 4-Channel Stereo Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pearstone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pearstone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pearstone product will considerably shorten its lifespan!
|

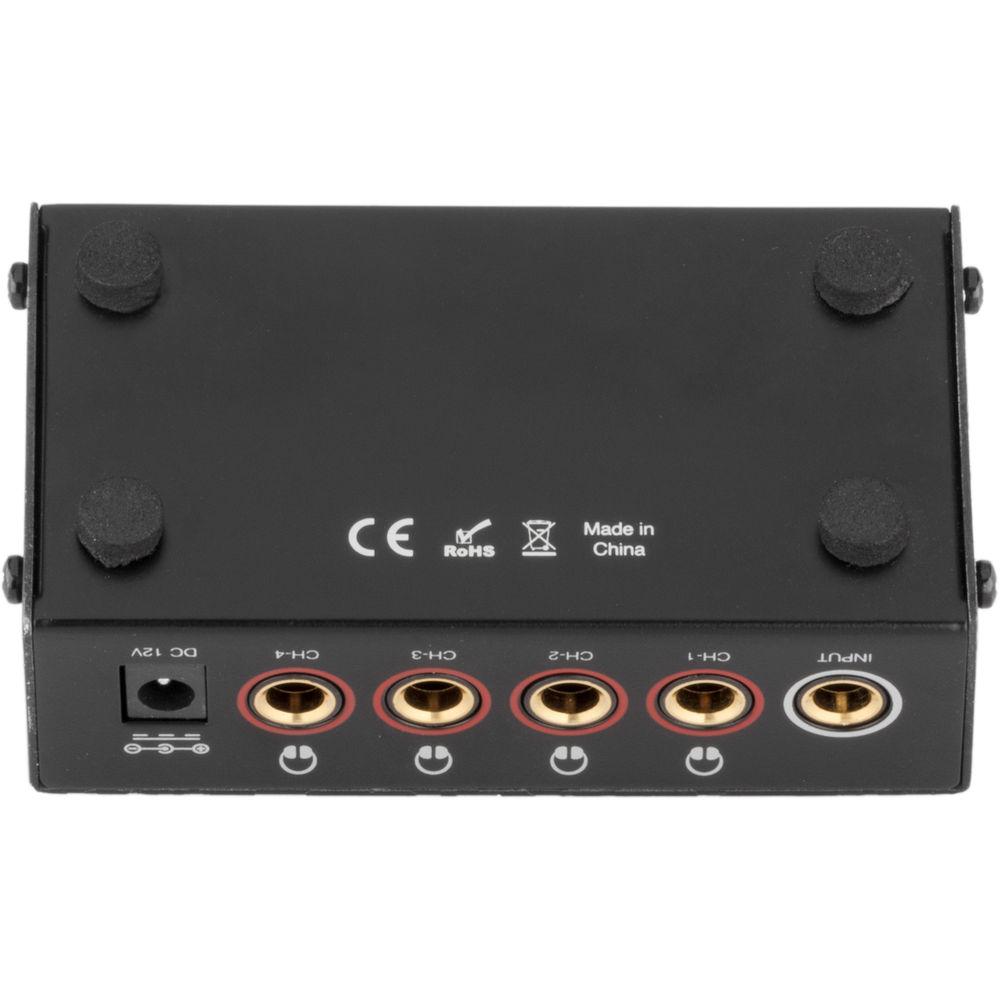

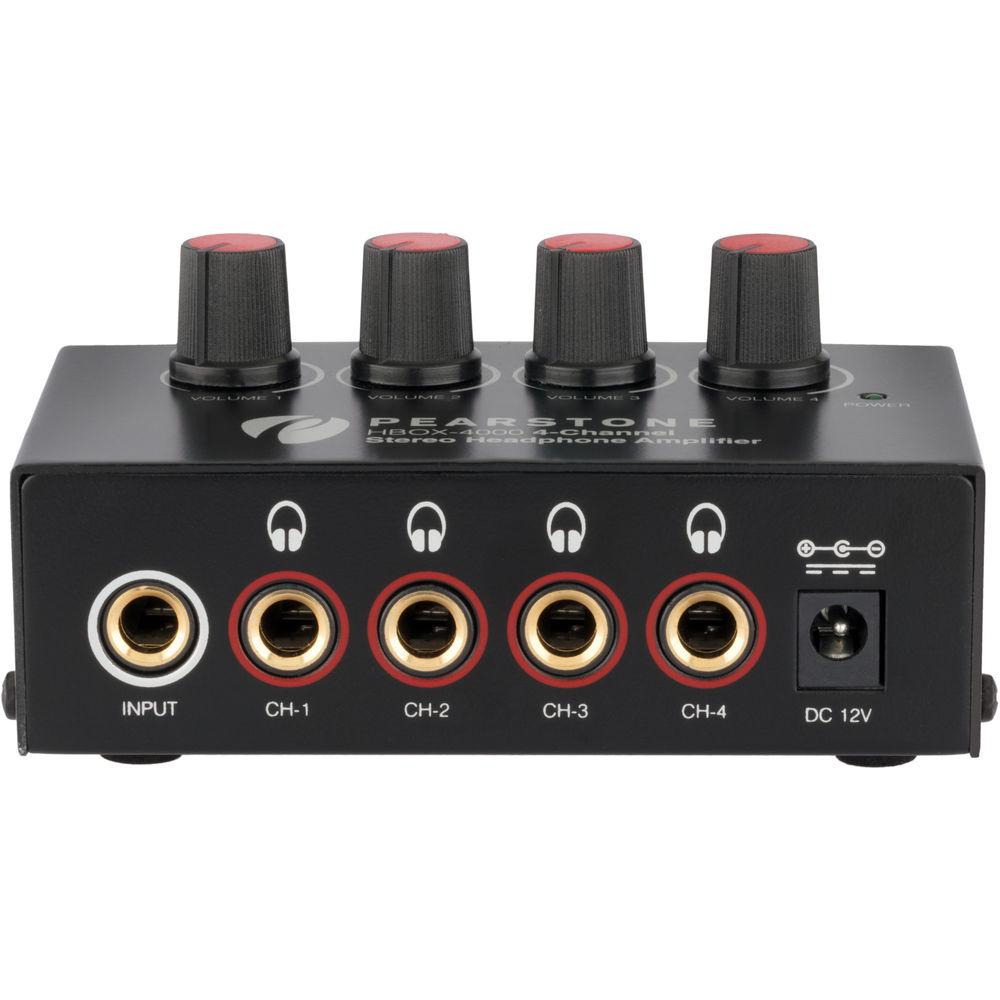

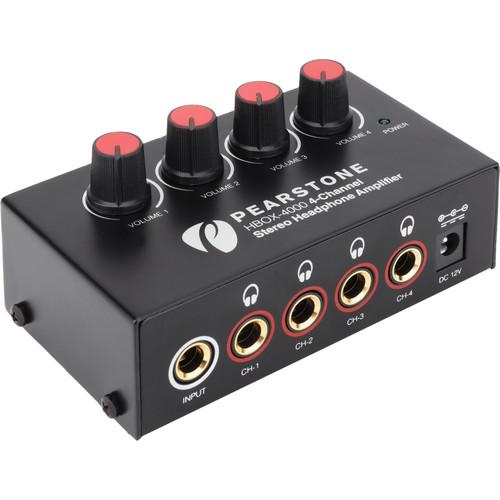

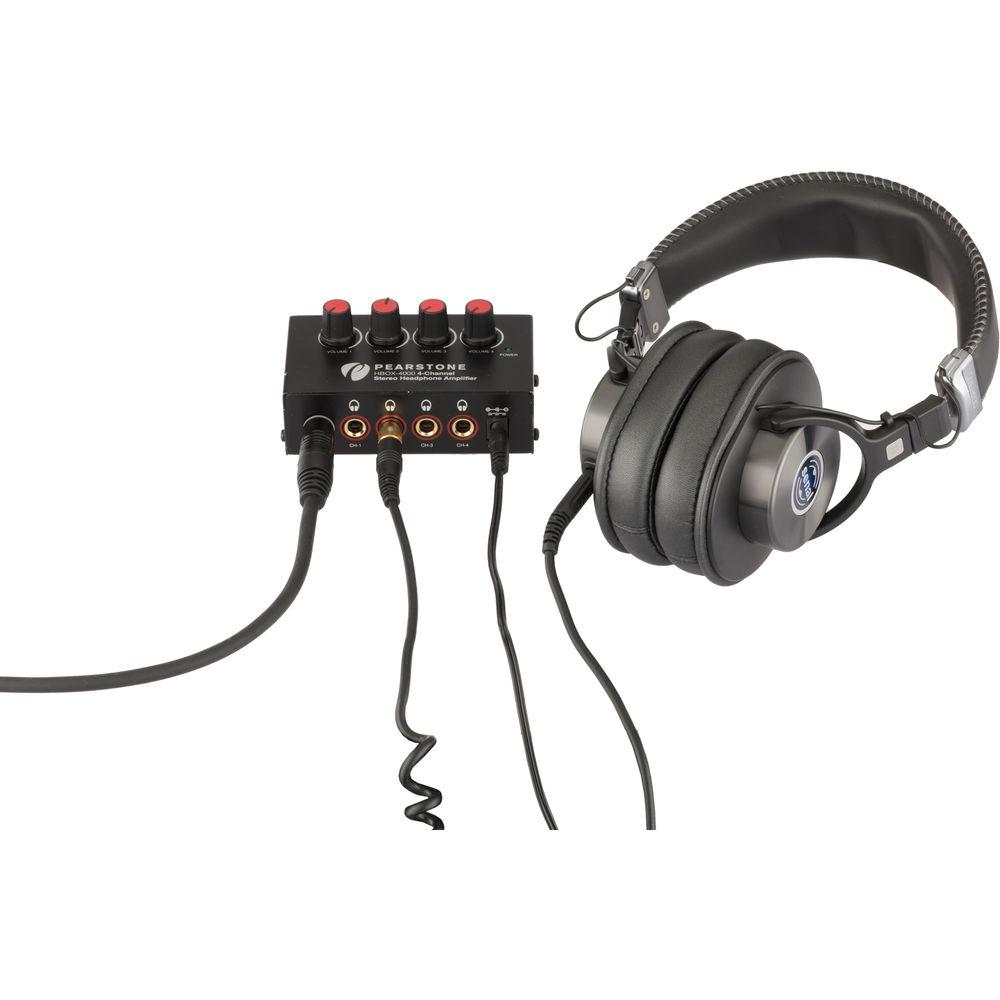

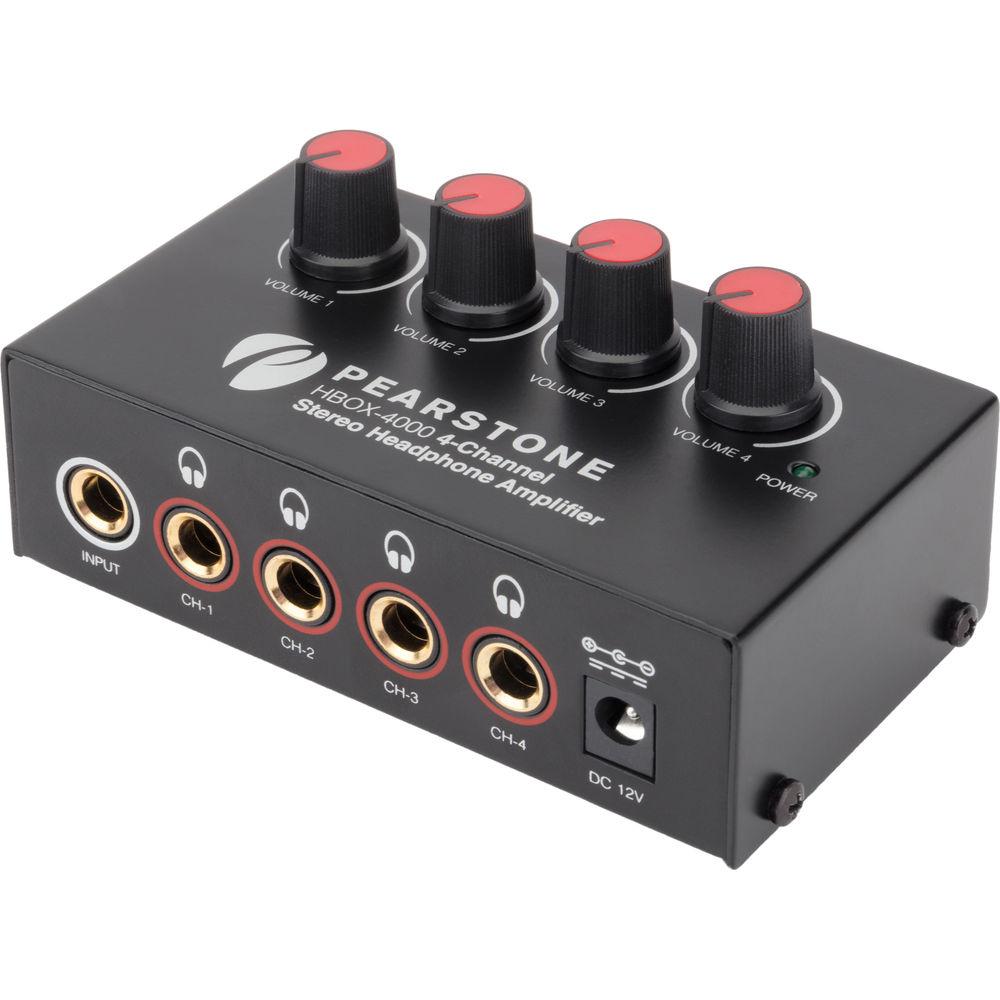

Product description Designed for use in professional and home studios, the Pearstone HBOX-4000 is a compact, four-channel stereo headphone amplifier that allows four headsets to be connected to one stereo audio source at the same time, for podcast, studio recording, or band rehearsal applications. The HBOX-4000 features a stereo 1/4" input jack and four 1/4" stereo headphone output jacks. Each channel has a dedicated volume knob with 20 dB of adjustable gain to ensure that listeners can monitor comfortably while performing or playing back a take. The unit is equipped with a durable and lightweight metal chassis to withstand the rigors of the road. It ships with a 12 VDC power supply. - Key Features
-
- For professional and home studio applications
- Four people can plug in their headphones and listen to the music
- Each channel has its own volume knob with 20 dB of adjustable gain so everyone can listen at a comfortable volume
- 1/4" stereo input accepts signal from any stereo line output
- Durable, lightweight, and compact metal chassis withstands the rigors of the road
- Rubber nonslip feet

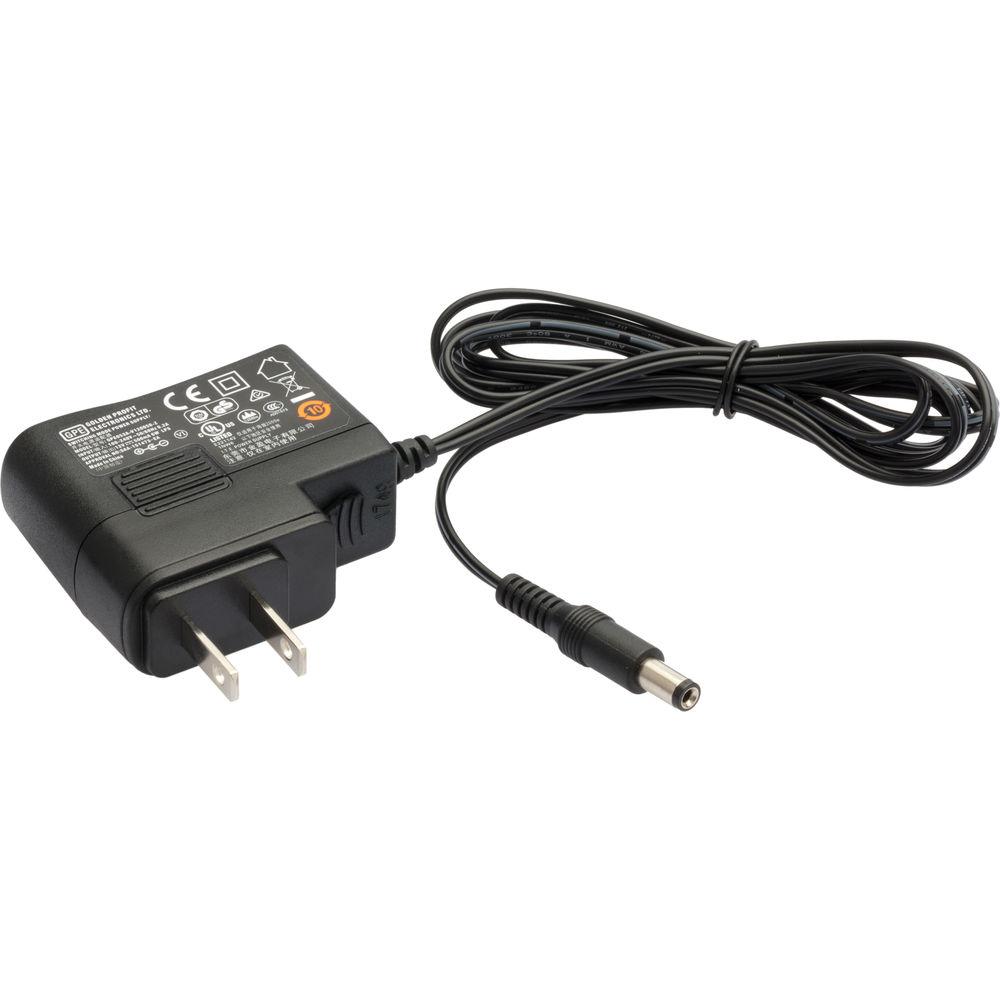

- 12 VDC adapter included
UPC: 847628005259 In the Box Pearstone HBOX-4000 4-Channel Stereo Headphone Amplifier 12 VDC Power Supply Limited 3-Year Warranty User Manual PDF 528.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pearstone HBOX-4000 4-Channel Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPearstone HBOX-4000 Specs | Channels | 4 | | Input Connections | 1 x 1/4" / 6.3 mm TRS jacks, stereo | | Output Connectors | 4 x 1/4" / 6.3 mm TRS jacks, stereo headphone outputs | | Input Impedance | 1000 Ohms | | Output Impedance | 10 Ohms, minimum (per channel) | | Gain | 20 dB, maximum (per channel) | | Maximum Output Level | 22 dB | | Signal to Noise Ratio | >98 dB | | Controls | 4 x volume knobs | | Power Supply | Input: 100-240 V, 50/60 Hz, 0.1 A
Output: 12 V, 200 mA | | Dimensions (L x W x D) | 4.10 x 2.25 x 1.25" / 10.41 x 5.72 x 3.18 cm | | Weight | 8.0 oz / 226.8 g | | | | Package Weight | 0.925 lb | | Box Dimensions (LxWxH) | 7.0 x 5.85 x 2.95" |
