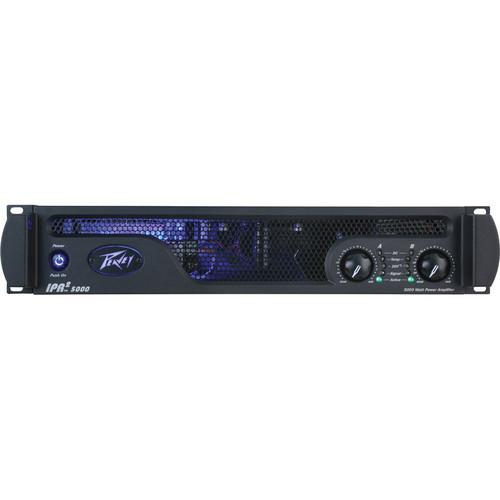

User Manual for Peavey IPR2 5000 2-Channel Power Amp Click to enlarge the picture
Contents of the user manual for the Peavey IPR2 5000 2-Channel Power Amp
- Product category: Power Amplifiers Peavey
- Brand: Peavey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peavey Power Amplifiers
|
User manual for the Peavey IPR2 5000 2-Channel Power Amp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peavey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peavey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peavey product will considerably shorten its lifespan!
|
Product description The Peavey IPR2 5000 2-Channel Power Amp features an advanced design that makes it lightweight while increasing output power, reliability and thermal efficiency. This amplifier is designed with a resonant switch-mode power supply and a high-speed Class D topology that yields a high audio resolution and efficiency. Advanced technology and extensive protection circuitry allow for efficient operation under difficult loads and power conditions.
The DDT (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2Ω. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. This amp also features 2-channel independent fourth order Linkwitz-Riley crossovers and a variable-speed fan housed in a lightweight aluminum chassis. The amplifier’s high-efficiency design allows it to operate at very low temperatures without the need for massive heat sinks to cool. - 2-channel independent, fourth-order Linkwitz-Riley crossovers
- DDT protection for trouble-free operation into loads as low as 2 Ω
- Combination XLR 1/4" inputs
- 4-pole twist lock output connectors
- Individual signal pass 1/4" jacks on each channel
- Standby, LED power present indication
UPC: 014367153422 In the Box Peavey IPR2 5000 2-Channel Power Amp Limited 2-Year Warranty Note: The warranty period can be extended by 3 years if the optional Warranty Registration Card is completed and returned to Peavey by the original retail purchaser within 90 days of purchase. Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey IPR2 5000 2-Channel Power Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeavey 5000 Specs | Rated Power | 2ch x 2 Ω: 3,230 W 20ms repetitive burst / 2,530 W 1% THD both channels driven @ 1 kHz
2ch x 4 Ω: 1,985 W 20ms repetitive burst / 1,700 W 1% THD / 1,470 W 0.15% THD, both channels driven @ 1 kHz
2ch x 8 Ω: 1,175 W 20ms repetitive burst / 1,025 W 1% THD / 880 W 0.15% THD, both channels driven @ 1 kHz Rated power readings made with BW: <10 hz to 22 khz.
All power measurements made at 120 and 240 VAC.
2 Ω power is time limited by circuit breaker. | | RMS Power | 1 x 2,900 W at 2 Ω
1 x 1,780 W at 4 Ω
1 x 975 W at 8 Ω
2 x 2,525 W at 2 Ω
2 x 1,510 W at 4 Ω
2 x 890 W at 8 Ω | | Minimum Load Impedance | 2 Ω | | RMS Voltage Swing | 105 V (maximum) | | Frequency Response | 20 Hz to 22 kHz; +/- 0.5 dB at 1 W
20 Hz to 20 kHz 2ch x 2 Ω: <0.5% @ 2,250 W 20 Hz to 4 kHz, decreasing to 1,640 W @ 20 kHz, both channels driven
20 Hz to 20 kHz 2ch x 4 Ω: <0.15% @ 1,400 W 20 Hz to 10 kHz, decreasing to 1,350 W @ 20 kHz, both channels driven
20 Hz to 20 kHz 2ch x 8 Ω: <0.15% @ 860 W 20 Hz to 4 kHz, increasing to 1,000 W @ 20 kHz, both channels driven | | CMRR | Input: > - 75 dB @ 1 kHz | | Voltage Gain | x 40 (+32dB) | | Crossover | 100 Hz switchable 2nd order high pass and 3rd low pass per channel | | Crosstalk | > -60 dB @ 1 kHz @ 700 W power @ 8 Ω | | Hum and Noise | > -105 dB, "A" weighted referenced to rated power @ 4 Ω | | Slew Rate | > 12 V / μs | | Damping Factor | > 210:1 @ 20 Hz to 1 kHz @ 8 Ω | | Input Sensitivity | 1.95 V +/- 3% for 1 kHz 4 Ω rated power, 1.83 V +/- 3% for 1 kHz 2 Ω rated power | | Input Impedance | 20 kΩ, balanced and 10 kΩ, unbalanced | | Current Draw | @ 1/8: 1,435 VA (890 W) @ 2 Ω, 920 VA (525 W) @ 4 Ω, 625 VA (335 W) @ 8 Ω @ 1/3: 3,050 VA (2,155 W) @ 2 Ω, 1,880 VA (1,200 W) @ 4 Ω, 1,200 VA (715 W) @ 8 Ω | | Idle Consumption | 195 VA, 90 W | | Cooling | 3 temperature-dependent variable speed fans | | Controls | 2 front-panel attenuators, crossover select switch for HPF, Normal and LPF | | LED Indicators | 5 LED indicators per channel: Active, Signal, DDT, Temperature and DC | | Protection | Thermal, DC, subsonic, incorrect loads, under and over voltage | | Connectors | Inputs: Dual combination 1/4" XLR
Outputs: 2 x 1/4" thru, 1 x 2-pin & 1 x 4-pin twist-lock connector | | Construction | 0.062" (0.16 cm) thick aluminum | | Dimensions | 3.5 x 19.0 x 17.0" (9.0 x 48.3 x 43.2 cm)
Handle: 0.6" (1.5 cm) | | Weight | 13.6 lb (6.2 kg) (without power cord) | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 21.6 x 20.9 x 7.1" |
