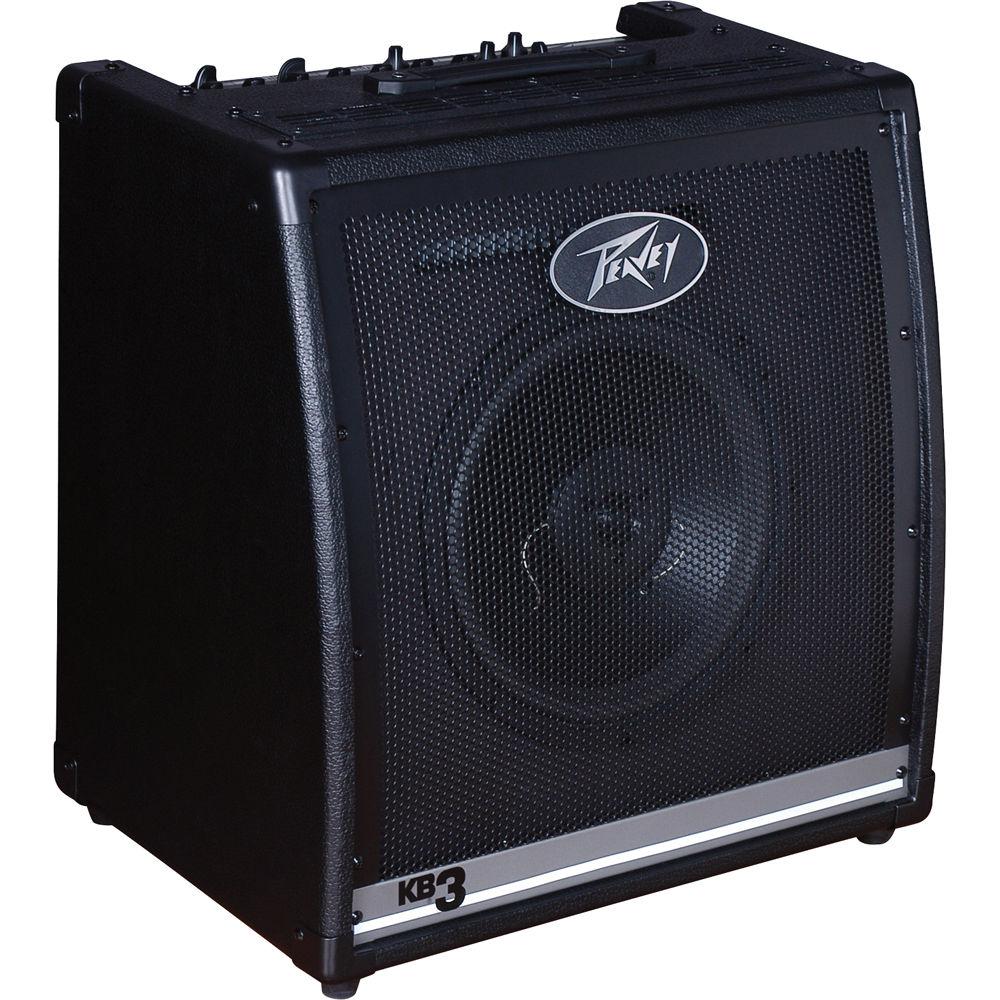

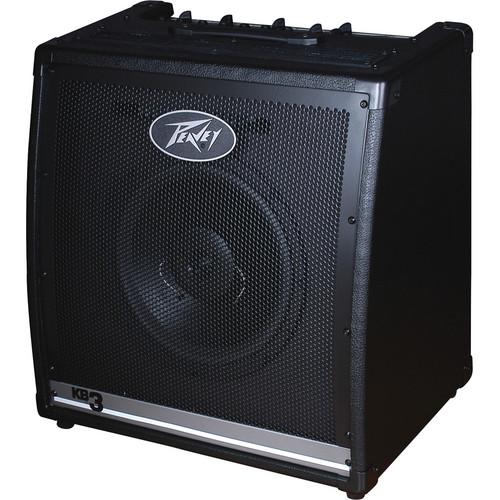

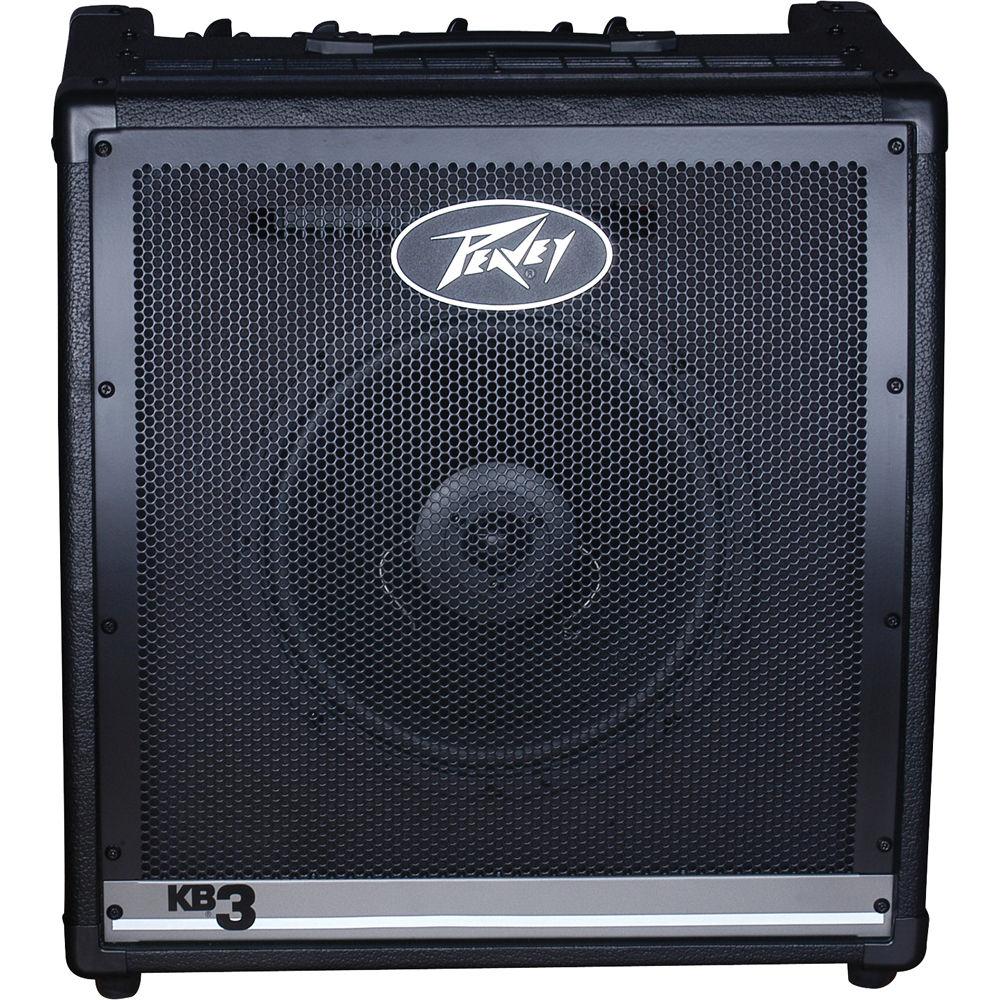

Product description The KB3 Portable Sound System from Peavey is a 60W internal self contained amplifier designed to be used for voice, keyboard, acoustic & electric guitar, and drum & backing machines. The front panel controls feature level, low and high for channels 1 and 2. The microphone channel 3 features a mid range level as well. The KB3's monitoring section provides control for monitor, master and headphone levels. An external speaker jack is provided for connecting an external speaker. - Extension cab capability extends power rating out to 80W
- Channels 1 & 2 have a 2 band EQ and 1/4" inputs
- Channel 3 has a 3 band EQ, 1/4" inputs and XLR
- Channel 4 features 1/4" monitor input with level control
- Headphone output with level control
- External speaker capability
UPC: 014367115932 In the Box Peavey KB3 Portable Sound System Limited 2-Year Standard Warranty Limited 3-Year Warranty Extension with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey KB3 Portable Sound System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeavey KB-3 Specs | | | Inputs | - Channel 1 & 2
- Impedance: 100 kΩ
- Nominal Level: 6 dBV, 2 V RMS
- Minimum Level: -10 dBV, 316 mV RMS
- Channel 3
- Low Z Impedance: 10 kΩ
- Nominal Level: -15 dBV, 178 mV RMS
- Minimum Level: -33 dBV, 22 mV RMS
- High Z Impedance: 75 kΩ
- Nominal Level: -15 dBV, 178 mV RMS
- Minimum Level: -33 dBV, 22 mV RMS
- Channel 4
- Impedance: 10 kΩ
- Nominal Level: 0 dBV, 1 V RMS
- Minimum Level: -25 dBV, 56 mV RMS
| | Headphone Output | - Load Impedance: 8 Ω or greater
- Nominal Output: 100 mW RMS
| | Main Line Out | - Output Impedance: <100 Ω
- Output Level: 18 dBV
| | | | Input Connections | Channel 1: 1/4" jack
Channel 2: 1/4" jack
Channel 3: 1/4" jack and XLR 3 male (microphone low impedance input)
Channel 4: 1/4" jack (monitor input) | | Output Connections | Main line: XLR 3 male
Headphones: 1/4" jack
External speaker: 1/4" jack | | Effect Loop | Send: 1/4" jack
Return: 1/4" jack | | Rated Power & Load | 80 W RMS / 4 Ω or 60 W RMS / 8 Ω (1 kHz, 1% THD @ 120 VAC line) | | Frequency Response | +0, -1 dB, 20 Hz - 20 kHz @ 30 W RMS / 8 Ω | | DDT Dynamic Range | > 20 dB | | DDT Maximum THD | - Below 0.5% THD for 6 dB overload
- Below 1% THD for 20 dB overload
| | Hum & Noise | > 100 dB below rated power | | Power Consumption | - 120 W @ 120 VAC, 50/60 Hz, domestic
- 120 W @ 220-230 / 240 VAC, 60 Hz, export
| | Dimensions | - Height: 21.5" (54.6 cm) including 0.75" (1.9 cm) feet + 0.5" (1.3 cm) for strap handle on top
- Width: 20.3" (51.4 cm)
- Depth:
- at top: 10.9" (27.6 cm)
- at bottom: 14.3" (36.2 cm)
| | Weight | 52.5 lb (23.8 kg) | | | | Package Weight | 56.0 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 18.0" | Note: The preamp specs are measured @ 1 kHz‚ nominal signal levels are with channel level controls set at 5‚ minimum levels are with channel level controls set at 10.
