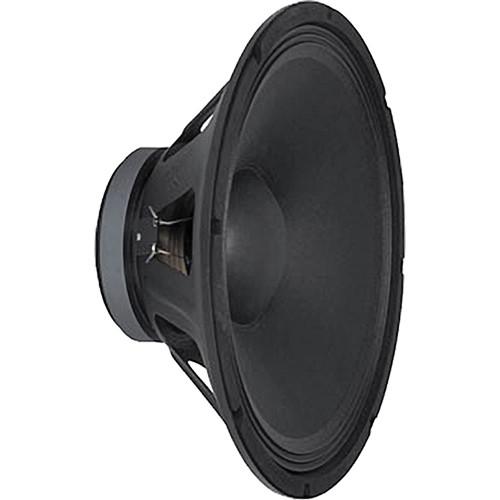

User Manual for Peavey PRO 15 Low Frequency Audio Speaker Click to enlarge the picture
Contents of the user manual for the Peavey PRO 15 Low Frequency Audio
- Product category: Speaker Accessories Peavey
- Brand: Peavey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peavey Speaker Accessories
|
User manual for the Peavey PRO 15 Low Frequency Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peavey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peavey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peavey product will considerably shorten its lifespan!
|
Product description The Peavey PRO 15 Low Frequency Audio Speaker features a Kevlar-impregnated cellulose cone and has a frequency range of 40 Hz to 3 kHz. It has a 2.5" diameter voice coil made of thermally bonded copper wire, Kapton former, and Nomex stiffener. UPC: 014367106428 In the Box Peavey PRO 15 Low Frequency Audio Speaker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey PRO 15 Low Frequency Audio Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeavey PRO 15 Specs | Impedance | 8 Ohms | | Power Capacity | Peak: 800 W peak
Program: 400 W
Continuous: 200 W | | Sensitivity | 96.4 dB (1 W / 39.4" (1.0 m)) | | Frequency Range | 40 Hz to 3 kHz | | Cone Composition | Kevlar-impregnated cellulose | | Voice Coil | Diameter: 2.5" / 63.5 mm
Material: 2 layers, thermally bonded copper wire, Kapton former, and Nomex stiffener | | DC Resistance | Driver: 6.0 Ohms | | Surface Area of Cone (Sd) | 0.086 m2 | | Efficiency | Voice Coil & Magnet System: 13.35 T/M | | Resonance | Free Air: 34.4 Hz | | Volume | Volume of air having the same compliance (springiness) as the driver's suspension: 331.6 liters | | Force | Restorative: 324.6 µM/N | | Mass | Total: 2.3 oz / 66.5 g | | Characteristics | Resonance Characteristics of Mechanical Factors: 3.58
Resonance Characteristics of Electrical Factors: 0.482
Resonance Characteristics of Electrical & Mechanical Factors: 0.425 | | Distance | Distance the cone can move in one direction before the coil begins to leave the magnetic gap: 0.1" / 2.5 mm | | Inductance | 0.74 mH | | Efficiency | Electrical to Acoustical Conversion Efficiency: 2.40 | | Air Displacement | Displacement of the driver from negative Xmax to positive Xmax: 26.1 in³ (428 ml) | | Volume Displaced | 131 in³ (2154 ml) when mounted on its rear flange | | Diameter | 15.0" / 381.0 mm | | Weight | 13.78 lb (6.25 kg) | | | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 8.0" |
