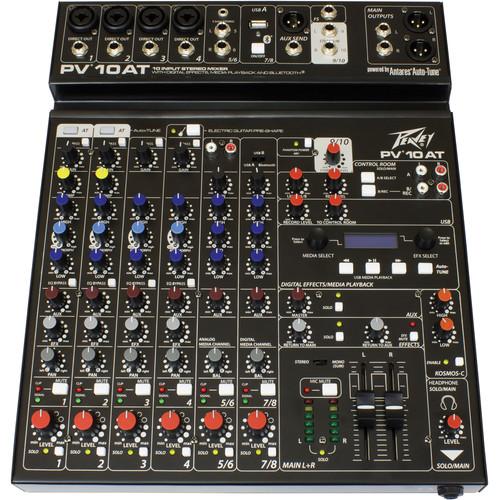

User Manual for Peavey PV 10 AT Mixing Console with Bluetooth and Antares Auto-Tune Click to enlarge the picture
Contents of the user manual for the Peavey PV 10 AT Mixing Console
- Product category: Sound Reinforcement Mixers Peavey
- Brand: Peavey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peavey Sound Reinforcement Mixers
|
User manual for the Peavey PV 10 AT Mixing Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peavey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peavey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peavey product will considerably shorten its lifespan!
|
Product description The PV 10 AT Mixing Console from Peavey is a professional non-powered mixer for studio and live applications. The console features reference-quality microphone pre-amps with a .0007% THD, a pair of direct outputs for recording, a stereo input channel, a dedicated media channel, and an effects send jack with level control.
Additional features include global 48V phantom power, dual selectable control room outputs, built-in stereo compression, an on-board selectable high impedance preamplifier equalized for guitar, 3-band EQ per channel with bypass, signal/clip indicators, and a stereo LED meter bridge. Direct outs on the mic channels allow for connection to most DAW interfaces for recording. Music may also be streamed directly to and from a PC via USB. Direct monitoring can be enabled using the USB to Control Room switch for use with programs such as the included REAPER software. A tablet cradle allows you to a hold a smart device for display and convenient operation.
The included Bluetooth receiver allows seamless connection to almost any "smart" device as well as can stream audio directly to a PC. MP3 playback is also available, just plug a flash drive with MP3 files on it into the USB A port and use the LCD to select and play back music. The PV series Solo feature allows the user to listen to individual channels via headphone or control room outputs, and the EQ bypass allows the user to hear and compare the EQ'd signal to the original signal with the push of a button.
The inclusion of Antares Auto-Tune provides vocalists with a selectable degree of pitch correction for everything from special effects to keeping in tune at the end of a fatiguing set. -
- 4 combination XLR/1/4" low noise mic preamps
- Rugged console design
- EQ bypass per channel
- 2 channels of built-in compression
- Individual channel mutes
- LED clip and signal present indication
- On-board USB-A MP3 playback
- 4 channels of Peavey's exclusive MidMorph®
- 4 Channels of direct out
- 3-band EQ on all channels
- KOSMOS® bass and treble enhancement
- Channel 9/10 stereo return/input
- Dual selectable control room outputs
- Individual Listen/Solo function
- Precision 60 mm faders on master
- Stereo USB-B streaming audio in and out
- One pre-fader AUX send
- High quality master LED meter bridge
- On-board studio quality digital effects with individual channel control Effects and playback LCD display
- Master mic mute
- Stereo pan control per channel
- Studio quality headphone output
- Stereo 1/4", RCA or 3.5mm input channel
- Peavey's exclusive on-board Hi Z guitar input
- Main stereo outputs with 1/4" unbalanced and balanced XLR connectors
- New slim, low-profile design
- Global 48V phantom power
- Convenient tablet cradle
- Bluetooth® wireless connectivity
UPC: 014367646269 In the Box Peavey PV 10 AT Mixing Console with Bluetooth and Antares Auto-Tune Limited 2-Year Warranty (additional 3-Year after registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey PV 10 AT Mixing Console with Bluetooth and Antares Auto-Tune in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeavey PV 10 Specs | Connectors | 4 x 1/4" / XLR, microphone input
1 x 1/4" phone jack, stereo input
2 x RCA, stereo input
1 x 3.5 mm phone jack, stereo input
2 x 1/4" XLR, main stereo output
USB type B, input/output streaming
4 x Direct output | | LED Indicators | Clip
Signal present
Stereo master meter bridge | | Controls | Channel mute buttons
Dual selectable control room outputs
Stereo pan control | | Frequency Response | Max Input Gain: 14 to 25,000 Hz +0 dB/-1 dB
Input Gain at 12:00: 9.5 to 29,000 Hz +0 dB/-0.8 dB | | EIN | -128 dBu (input terminated with 150 ohms, bandwidth 20 kHz) | | Dimensions | 12.75 x 15.1 x 2.1875" (32.39 x 38.35 x 5.56 cm) | | Weight | 8.26 lb (3.75 kg) | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 16.6 x 16.2 x 3.5" |
