User Manual for Peavey PV 6 Mixing Console Click to enlarge the picture
Contents of the user manual for the Peavey PV 6 Mixing Console
- Product category: Sound Reinforcement Mixers Peavey
- Brand: Peavey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peavey Sound Reinforcement Mixers
 |
User manual for the Peavey PV 6 Mixing Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peavey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peavey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peavey product will considerably shorten its lifespan!
|

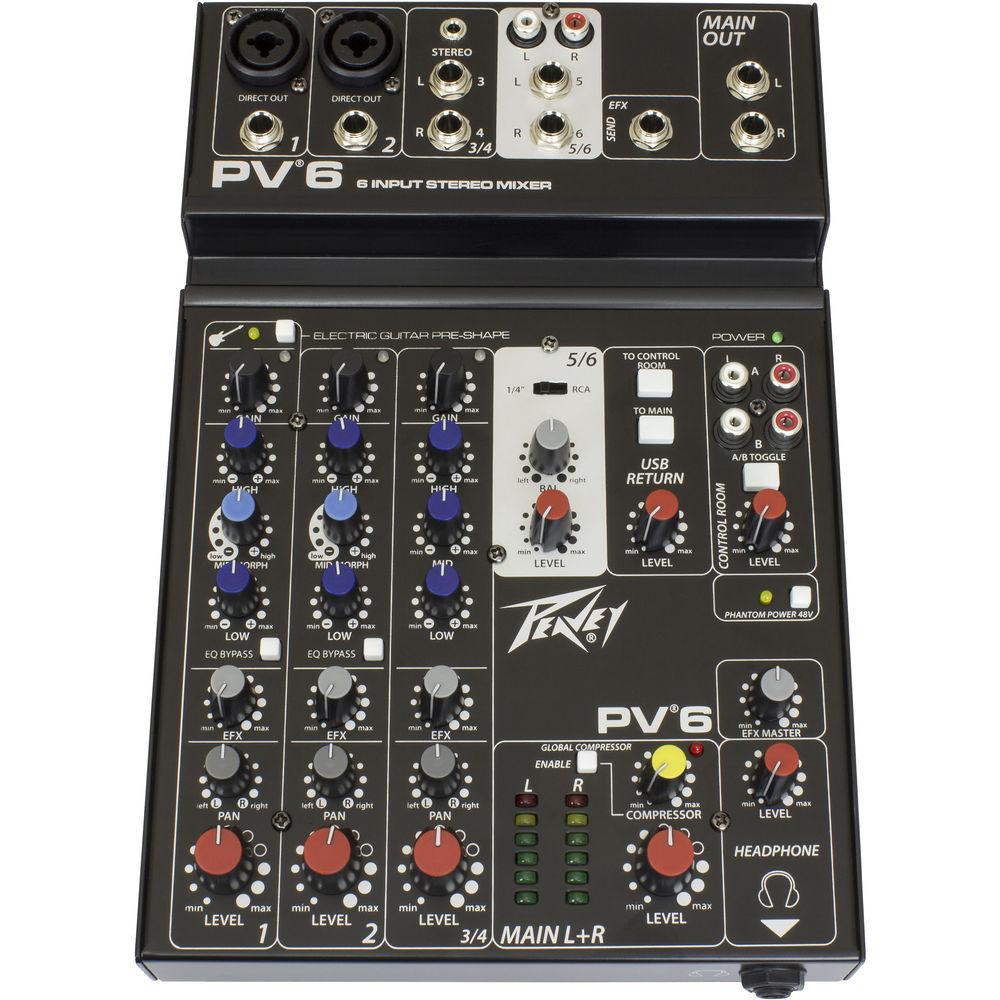

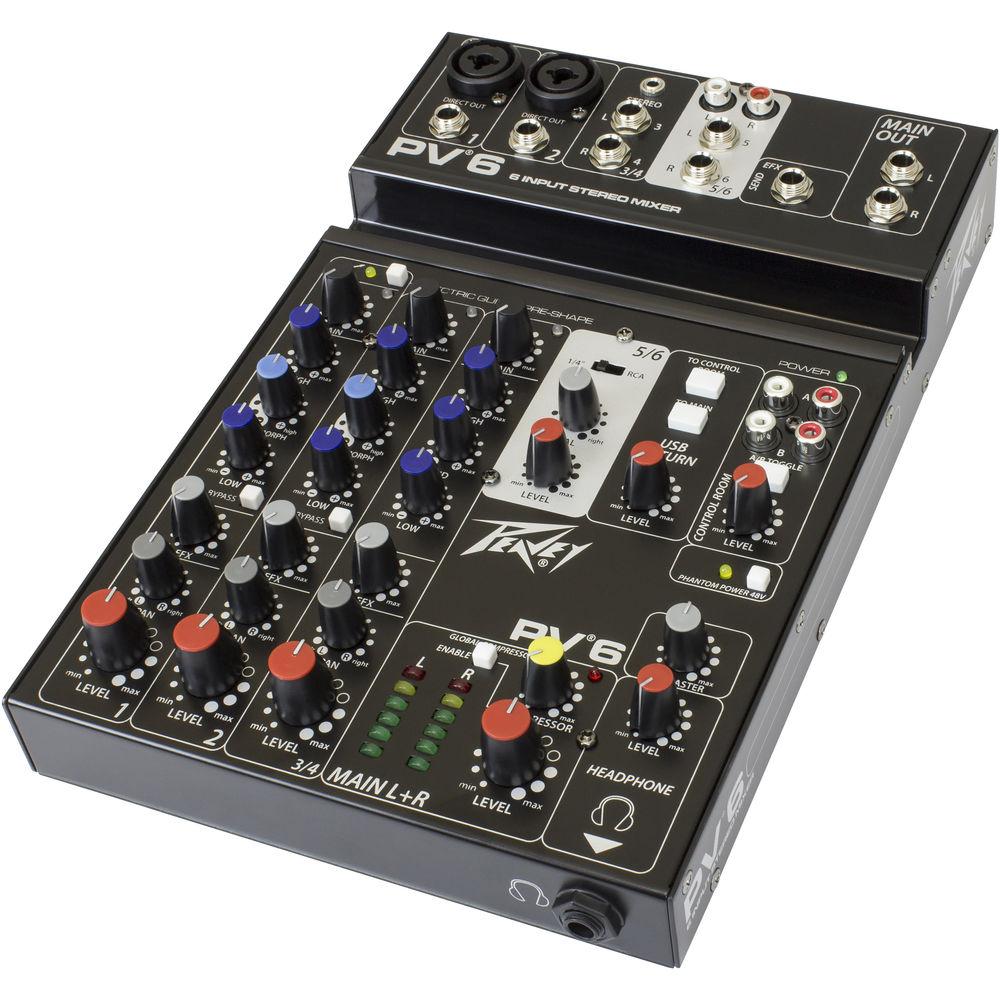

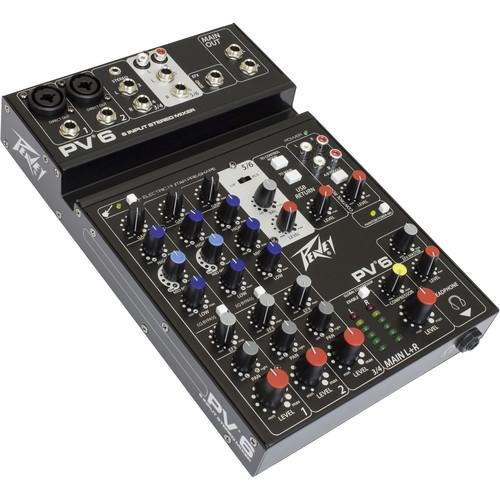

Product description The Peavey PV 6 Mixing Console is a professional non-powered mixer for studio and live applications. The console features reference-quality microphone pre-amps with a pair of direct outputs for recording, a stereo input channel, a dedicated media channel, and an effects send jack with level control.
Additional features include global 48V phantom power, dual selectable control room outputs, built-in stereo compression, an onboard selectable high-impedance preamplifier equalized for guitar, 3-band EQ per channel with bypass, signal/clip indicators, and a stereo LED meter bridge. Direct outs on the mic channels allow for connection to most DAW interfaces for recording. Music may also be streamed directly to and from a PC via USB. Direct monitoring can be enabled using the USB to Control Room switch for use with programs such as the included REAPER software. A tablet cradle allows you to a hold a smart device for display and convenient operation. -
- Rugged, slim, low-profile console design
- Convenient tablet cradle
- 2 x combination XLR/1/4" low noise mic preamps
- 3-band EQ on all channels
- 2 x channels of Peavey's exclusive MidMorph EQ
- EQ bypass per channel
- LED clip and signal present indication
- 2 x Channels of direct out
- Stereo pan control per channel
- Channel 3/4: Stereo 1/4" or 3.5mm input channel
- Channel 5/6: Stereo 1/4" or RCA input channel
- Dual selectable control room outputs
- Main Stereo Outputs: 2 x 1/4"
- High-quality master LED meter bridge
- Built-in master compression
- Studio-quality headphone output
- Stereo USB-B streaming audio in and out, 16-bit, up to 48 kHz sample rates
- Onboard Hi Z guitar input
- Global 48V phantom power
- Power supply included
UPC: 014367646443 In the Box Peavey PV 6 Mixing Console Power Supply Limited 2-Year Warranty (Additional 3 Years After Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey PV 6 Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

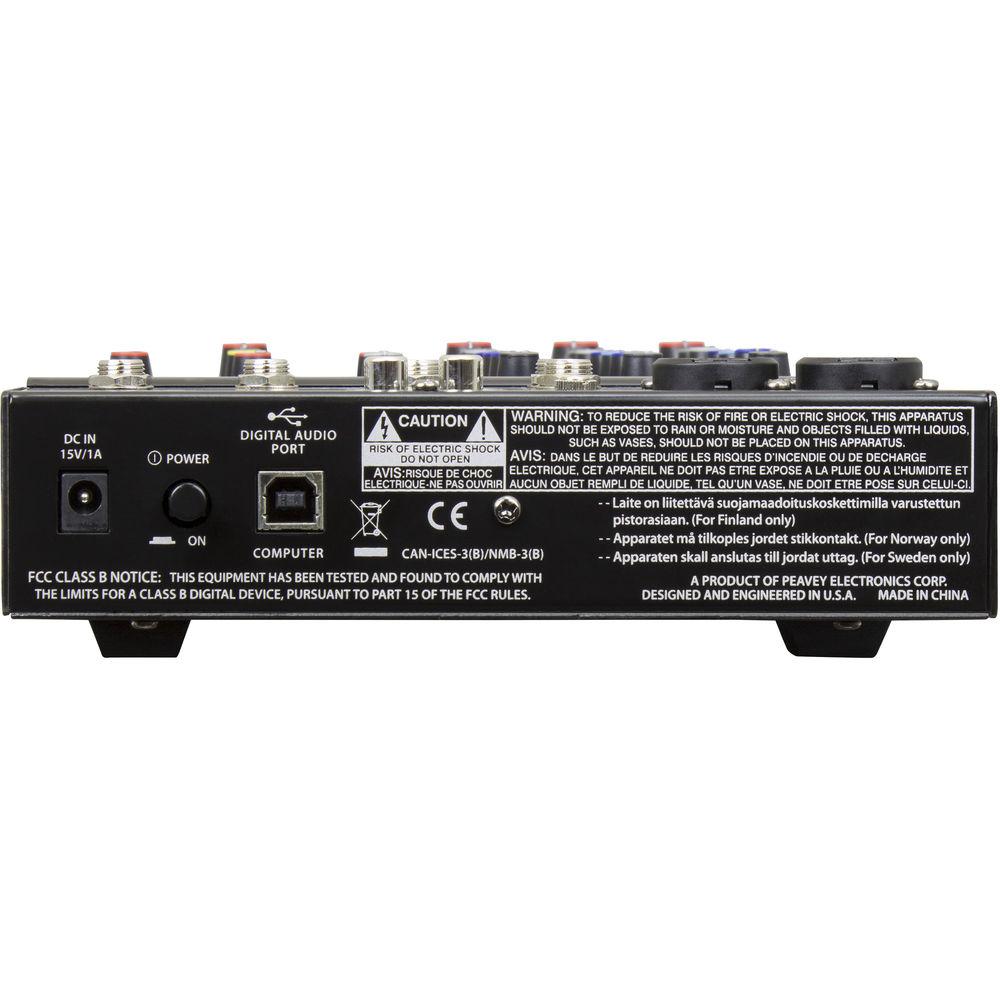

Technical parametersPeavey PV 6 Specs | Connectors | 2 x 1/4" / XLR, microphone input
1 x 1/4" phone jack, stereo input
2 x RCA, stereo input
1 x 3.5 mm phone jack, stereo input
2 x 1/4" phone jack, main stereo output
USB type B, input/output streaming
2 x Direct output | | LED Indicators | Clip
Signal present
Stereo master meter bridge | | Controls | Channel mute buttons
Dual selectable control room outputs
Stereo pan control | | Frequency Response | 10 Hz to 20 kHz +0 dB/-1 dB | | EIN | -126 dBu (input terminated with 150 ohms, bandwidth 20 kHz) | | Dimensions | 7.25 x 11.4 x 2.18" / 18.42 x 28.96 x 5.56 cm | | Weight | 3.99 lb / 1.81 kg | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 12.6 x 11.7 x 3.6" |
