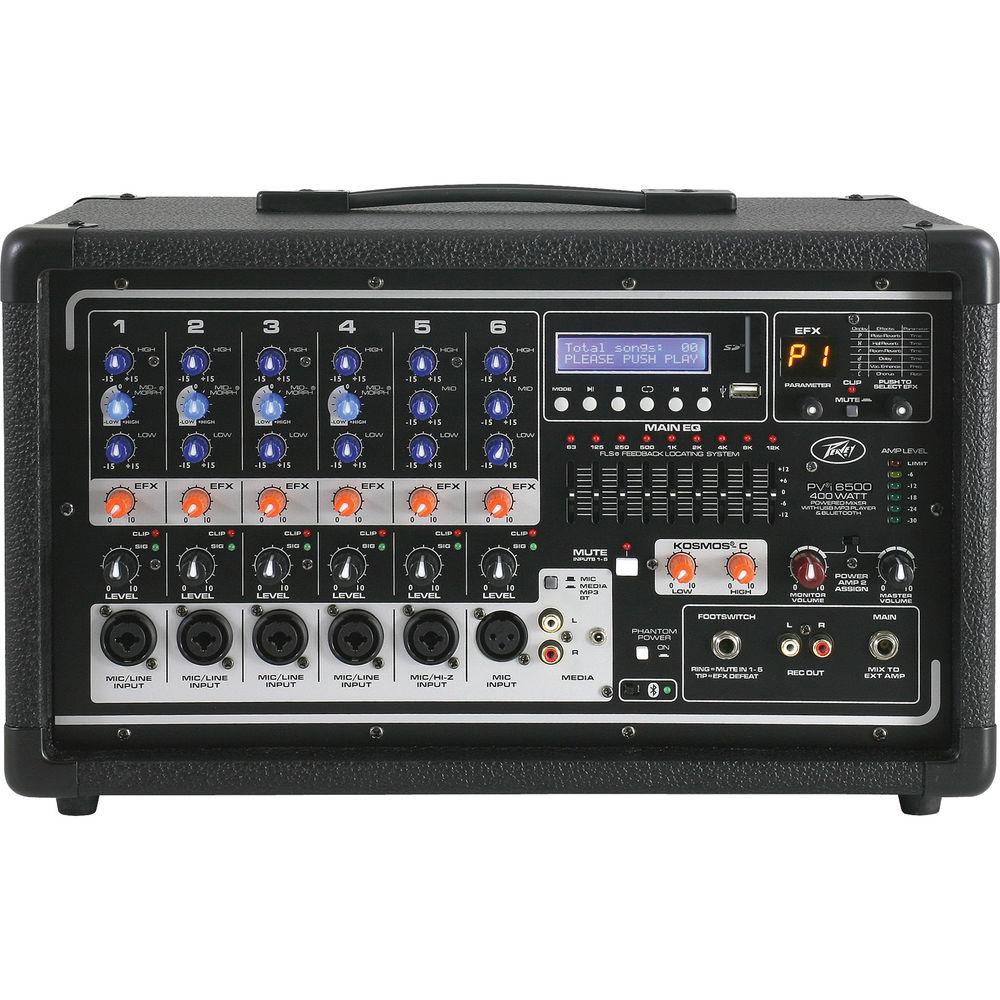

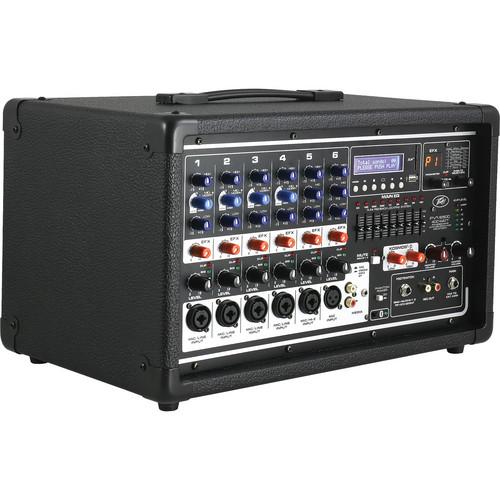

Product description The Peavey PVi 6500 Powered Mixer offers everything a musician needs providing up to 6 simultaneous combination XLR and 1/4" inputs using Peavey’s Silencer microphone preamps, and 400W of power for crystal-clear audio reproduction. The mixer uses features like Mid-Morph EQ to accurately help improve tone and clarity of vocals. Feedback is quickly and easily identified and removed with Peavey's 9-band graphic EQ combined with the FLS (Feedback Locating System).
The PVi 6500 mixer is equipped with Kosmos-C technology, which enhances both the low and high end of the audio spectrum. Foot-switchable built-in 24-bit digital effects compliment the already feature-packed unit by allowing you to select multiple varieties of reverb and delay. Connect almost anything to this versatile mixer via the onboard 1/4", RCA, and 1/8" mini jacks. Note: For proper ventilation, allow 6" (15.5cm) clearance on all sides. - FLS (Feedback Locating System)
- On-board 24-bit digital effects with mute button
- Digital effects parameter control
- Combination XLR and 1/4" input jacks
- 9-band graphic EQ with FLS
- Master mute for channels 1 to 5
- Foot-switchable effects defeat
- Selectable main or monitor dual power section
- Power amp sub-sonic filtering
- Clip light and signal presence indicator
- Bluetooth streaming audio
- Main line level 1/4" output
- DDT speaker protection circuit
UPC: 014367611205 In the Box Peavey PVi 6500 - 400W, 10-Channel Powered Mixer with 24-Bit Digital FX Limited 2-Year Warranty, Extends to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey PVi 6500 - 400W, 10-Channel Powered Mixer with 24-Bit Digital FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeavey PVi 6500 Specs | Input Sensitivity | Microphone In to Full Power at the Power Amplifier, Master Volume Nominal:
Full: -40 dBu
Nominal: -22 dBu
Line In to Full Power at the Power Amplifier, Master Volume Nominal:
Full: -10 dBu
Nominal: +8 dBu | | Equalizer | Channel:
Shelving EQ:
Low EQ: 80 Hz, ±15 dB
Mid-Morph:
Low: 250 Hz, ±15 dB
High: 4 kHz, ±15 dB
High EQ: 12 kHz, ±15 dB
Master:
63, 125, 250, and 500 Hz, ±12 dB
1, 2, 4, 8, and 12 kHz, ±12 dB | | Frequency Response | Microphone to Main: 20 Hz to 20 kHz / +0, -1 dB
Line to Main: 20 Hz to 30 kHz / +0, -1 dB
Microphone to Amplifier: 50 Hz to 20 kHz / +0, -3 dB
Line to Amplifier: 40 Hz to 20 kHz / +0, -3 dB | | Phantom Power | 15 V | | Noise | Main: Main line output, 22 to 22 kHz filter
Amp 1: Amplifier output, loaded at 4 ohms, through AP
AUX-0025 switching amplifier filter
All Controls Full Down:
Main: <-95 dbu
Amp 1: <-70 dbu
Master Volume Nominal:
Main: <-88 dbu
Amp 1: <-67 dBu | | THD | All controls nominal:
<0.01% at Main Line Output, -30 dBu in Microphone Input Channel 1
<0.5% at Amp 1 @ 100 W into 4 ohms
All controls nominal:
<0.005% at Main Line Output, 4 dBu in Line Input Channel 1
<0.05% at Amp 1 @ 100 W into 4 ohms | | Meter Array | Limit: -6, -12, -18, -24, and -30 dB | | Limiter | Amplifier Limiter: Limits amplifier power just before clipping | | Amplifier Output | Power:
120 VAC
Both channels loaded at 8 ohms:
60 W RMS per channel
120 W peak per channel
Both channels loaded at 4 ohms:
100 W RMS per channel
200 W peak per channel | | Power Requirements | 120 VAC, 50 / 60 Hz
74 W nominal | | Dimensions (H x W x D) | 10.25 x 16.50 x 10.75" (26.04 x 41.91 x 27.31 cm) | | Weight | 20.4 lb (9.3 kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 19.3 x 13.0 x 12.5" |
