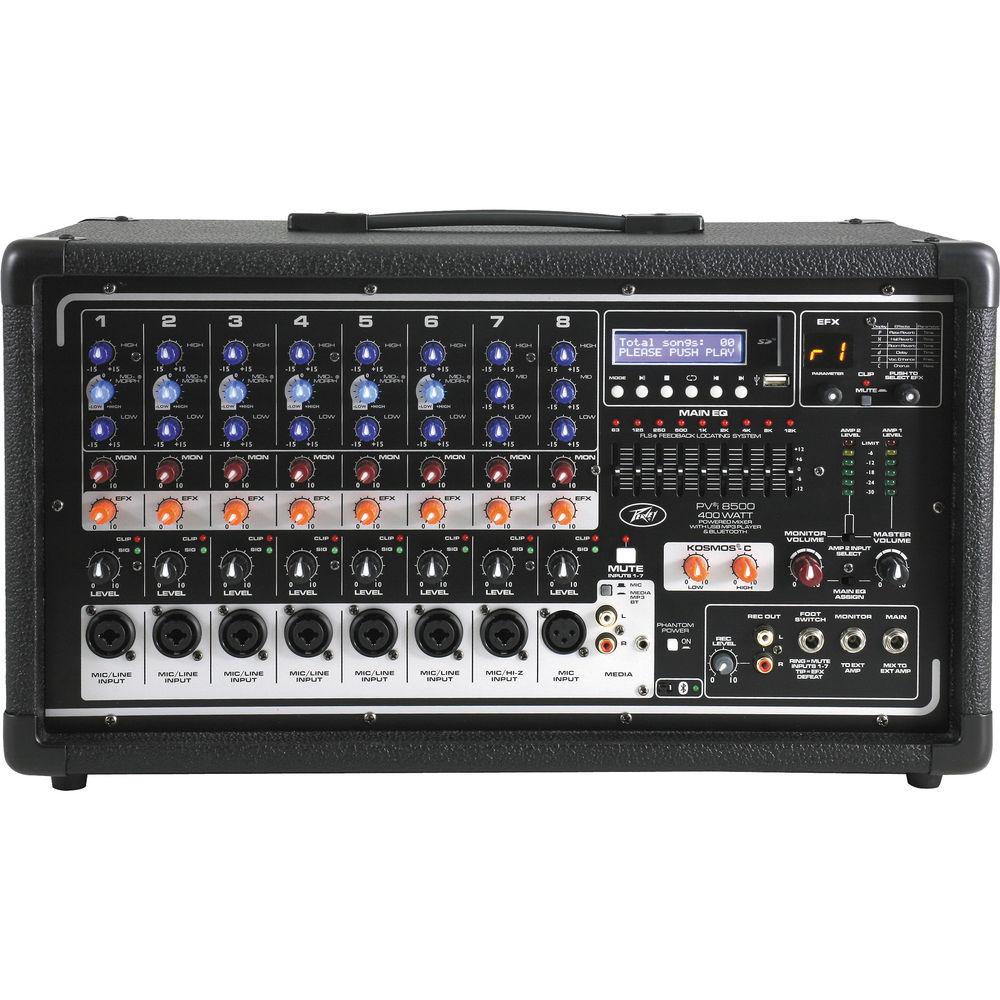

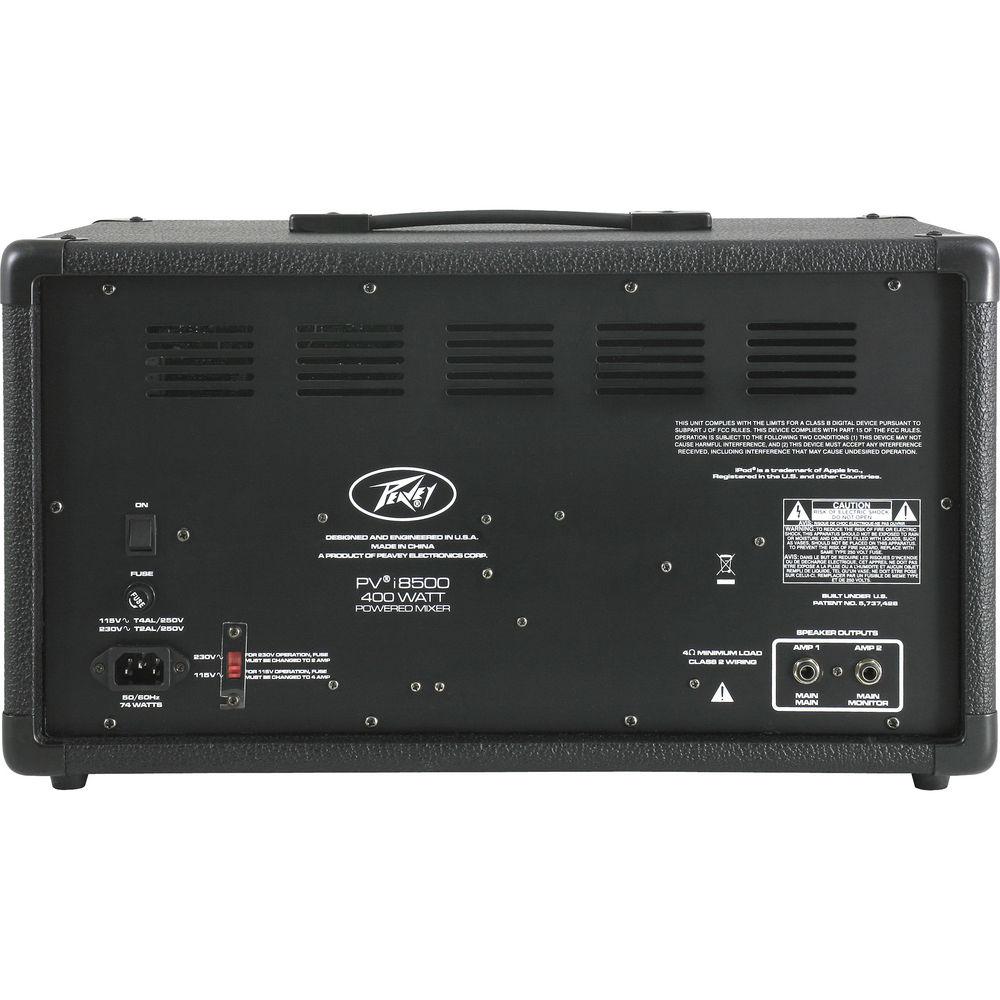

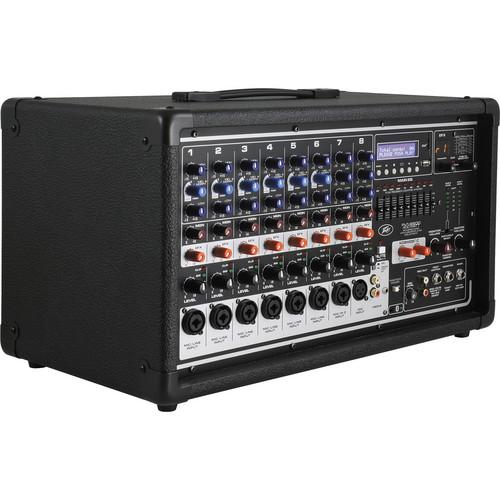

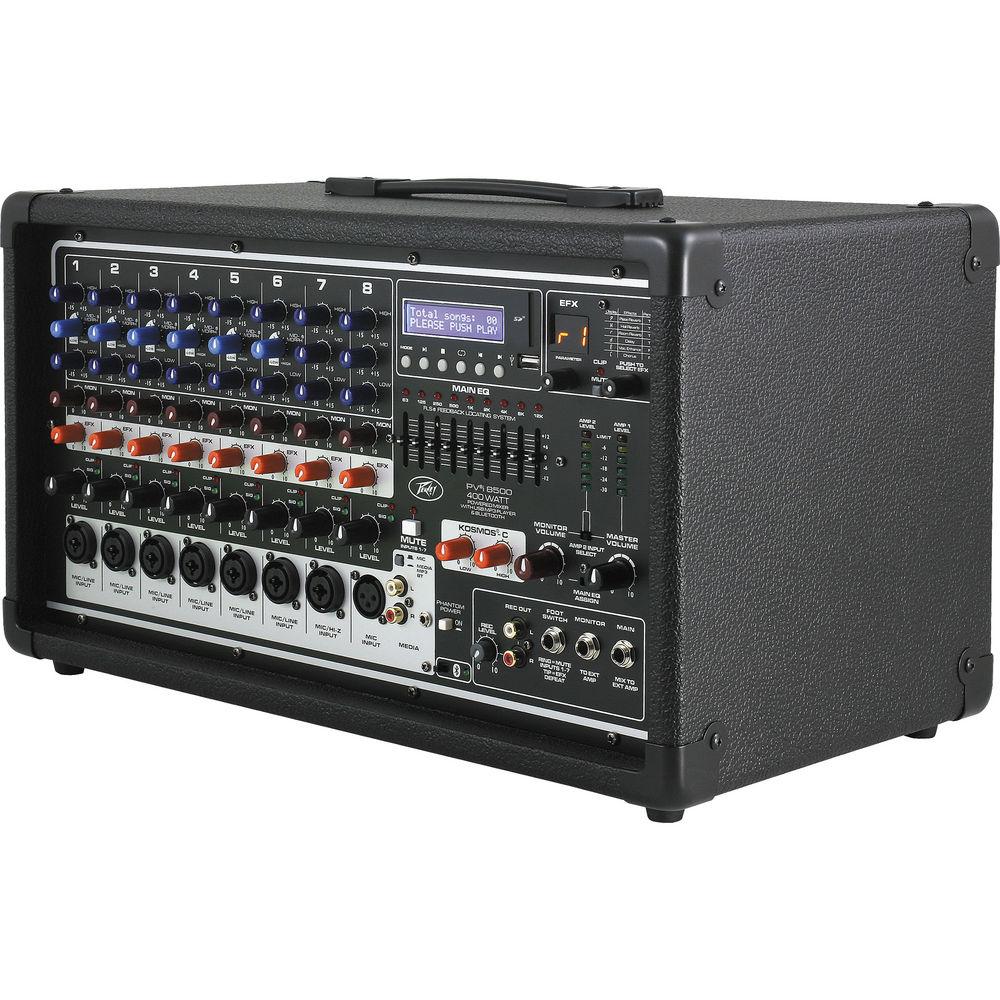

User Manual for Peavey PVi 8500 - 400W, 12-Channel Powered Mixer with 24-Bit Digital FX Click to enlarge the picture
Contents of the user manual for the Peavey PVi 8500 - 400W, 12-Channel
- Product category: Sound Reinforcement Mixers Peavey
- Brand: Peavey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peavey Sound Reinforcement Mixers
 |
User manual for the Peavey PVi 8500 - 400W, 12-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peavey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peavey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peavey product will considerably shorten its lifespan!
|
Product description The Peavey PVi 8500 Powered Mixer offers everything a musician needs providing up to 8 combination XLR and 1/4" inputs using Peavey's Silencer microphone preamps, and 400W of power for crystal-clear audio reproduction. The mixer uses features like Mid-Morph EQ to accurately help improve tone and clarity of vocals. Feedback is quickly and easily identified and removed with Peavey's 9-band graphic EQ combined with the FLS (Feedback Locating System).
The PVi 8500 mixer is equipped with Kosmos-C technology, which enhances both the low and high end of the audio spectrum. Foot-switchable built-in 24 bit digital effects compliment the already feature-packed unit. Connect virtually any music device to this versatile mixer via the onboard 1/4", RCA, and 1/8" mini jacks. Note: For proper ventilation, allow 6" (15.5cm) clearance on all sides. - FLS (Feedback Locating System)
- On-board 24-bit digital effects with mute button
- Digital effects parameter control
- Combination XLR and 1/4" input jacks
- Selectable 9-band graphic EQ with FLS
- Master mute for channels 1 to 7
- Foot-switchable effects defeat
- Selectable main or monitor dual power section
- Power amp sub-sonic filtering
- Clip light and signal presence indicator
- Bluetooth streaming audio
- Main line level 1/4" output
- DDT speaker protection circuit
UPC: 014367611281 In the Box Peavey PVi 8500 - 400W, 12-Channel Powered Mixer with 24-Bit Digital FX Limited 2-Year Warranty, Extends to 5 Years with Registration Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey PVi 8500 - 400W, 12-Channel Powered Mixer with 24-Bit Digital FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Peavey PVi 8500 - 400W, 12-Channel Powered Mixer with 24-Bit Digital FX can be downloaded in PDF format at the link stated below.
Technical parametersPeavey PVi 8500 Specs | Input Sensitivity | Microphone In to Full Power at the Power Amplifier, Master Volume Nominal:
Full: -40 dBu
Nominal: -22 dBu
Line In to Full Power at the Power Amplifier, Master Volume Nominal:
Full: -10 dBu
Nominal: +8 dBu | | Equalizer | Channel:
Shelving EQ:
Low EQ: 80 Hz, ±15 dB
Mid-Morph:
Low: 250 Hz, ±15 dB
High: 4 kHz, ±15 dB
High EQ: 12 kHz, ±15 dB
Master:
63, 125, 250, and 500 Hz, ±12 dB
1, 2, 4, 8, and 12 kHz, ±12 dB | | Clip LED Threshold | Comes on 3 dB before clipping | | Frequency Response | All controls nominal (detent): Microphone to Main: 20 Hz to 20 kHz / +0, -1 dB
Line to Main: 20 Hz to 30 kHz / +0, -1 dB
Microphone to Amplifier: 50 Hz to 20 kHz / +0, -3 dB
Line to Amplifier: 40 Hz to 20 kHz / +0, -3 dB | | Phantom Power | 48 V | | Noise | Main: Main line output, 22 to 22 kHz filter
Amp 1: Amplifier output, loaded at 4 ohms, through AP
AUX-0025 switching amplifier filter
All Controls Full Down:
Main: <-95 dbu
Amp 1: <-70 dbu
Master Volume Nominal:
Main: <-88 dbu
Amp 1: <-67 dBu | | THD | -30 dBu in Microphone Input Channel 1:
<0.01% at main line output
<0.5% at amp 1 @ 100 W into 4 ohms
4 dBu in Line Input Channel 1:
<0.005% at main line output
<0.05% at amp 1 @ 100 W into 4 ohms All controls are nominal. | | Meter Array | Limit: -6, -12, -18, -24, and -30 dB | | Limiter | Amplifier Limiter: Limits amplifier power just before clipping. The limiter holds the amp power without clipping and can be driven up to 18 dB past maximum output. | | Amplifier Output | Power: 120 VAC
Both channels loaded at 8 ohms:
60 W RMS per channel
120 W peak per channel
Both channels loaded at 4 ohms:
100 W RMS per channel
200 W peak per channel | | Power Requirements | 120 VAC, 50 / 60 Hz
74 W nominal | | Dimensions (H x W x D) | 11.250 x 19.375 x 10.750" (28.580 x 49.210 x 27.310 cm) | | Weight | 22.2 lb (10.1 kg) | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 21.6 x 13.0 x 13.0" |
