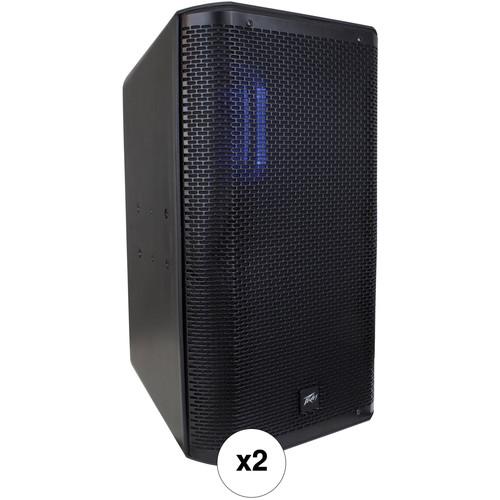

User Manual for Peavey RBN 112 12" 2-Way 1500W Powered Speaker Pair Kit Click to enlarge the picture
Contents of the user manual for the Peavey RBN 112 12" 2-Way 1500W
- Product category: PA Speakers Peavey
- Brand: Peavey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peavey PA Speakers
|
User manual for the Peavey RBN 112 12" 2-Way 1500W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peavey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peavey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peavey product will considerably shorten its lifespan!
|
Product description This B&H Kit includes two Peavey RBN 112 12" 2-way powered speakers, providing a stereo pair of monitors for live sound, stage, DJ setups, and band rehearsals. Each RBN 112 speaker system, rated at 1500W Peak, features a 12" neodymium woofer and a 120mm ribbon high-frequency driver.On-board DSP and an LCD display allow easy adjustments to the built-in equalizer, compressor, and delay. Combo jacks accommodate XLR or 1/4" inputs. A dedicated XLR output is provided for connection to a subwoofer. - 2 x Peavey RBN 112 12" 2-Way 1500W Powered Speaker Enclosure The RBN 112 2-Way Enclosure from Peavey is a two-way, bi-amplified, optimized loud speaker system with a 1500W peak power output that is compatible with the RBN 215 powered subwoofer (available separately). The enclosure features a proprietary 4.7" (120mm) true ribbon high-frequency driver on a low-coloration waveguide and is equipped with a 12" dual-voice coil neodymium Scorpion woofer with a field-replaceable basket assembly.This speaker features two 1/4" XLR combination inputs, a 3.5mm stereo aux input, and a mic/line level selection. Each input features digital infrasonic high-pass filters, a 9-band graphic EQ, and delay. Each output features a compressor/limiter and fourth-order, high-pass/low-pass filters for crossover function and external subwoofer incorporation.The RBN 112 features an internal temperature monitor, plus level and clip indication to ensure optimal performance. The speaker enclosure contains internal presets built into the DSP, allowing users to quickly select the speaker's application or orientation via the LCD on the rear of the enclosure. Combined with auto-off power down, the RBN 112 enclosure can be used for installations or portable applications where audio quality, reliability, and efficiency are of the utmost importance.
- Solid construction and innovative bracing eliminates enclosure noise while producing clear audio
- DSP configuration wizard for easy setup
- On-board advanced digital signal processing
- Processed-thru output for maximizing external subwoofers
- Direct-thru output with combine function
- 12" neodymium NEO Scorpion woofer with dual 2.5" voice coils
- Proprietary 120mm true ribbon high-frequency driver on low-coloration waveguide
- Digital compression/limiting
- Delay of 0-150ms on both inputs
- Subwoofer output with assignable crossover
- Power amp VU meter with LCD display
- Internal temperature monitor
- On-board presets for easy source, application, and material selection
- Side and top handles for easy transportation
UPC: 014367636475 In the Box - 2 x RBN 112 12" 2-Way 1500W Powered Speaker Enclosure
- IEC Power Cord
- Limited 5-Year warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Peavey RBN 112 12" 2-Way 1500W Powered Speaker Pair Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Peavey RBN 112 12" 2-Way 1500W Powered Speaker Enclosure
| | | Configuration | Active 2-Way | | Total Power Capacity | 1500 W Peak
750 W RMS | | Amplifier Power Rating | LF:
1000 W Peak
500 W RMS
HF:
500 W RMS
250 W RMS | | | | HF Driver | 1 x 4.7" / 120 mm Ribbon Tweeter | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2.5" / 63.5 mm | | Magnet | LF:
Neodymium | | | | Frequency Response | 59 Hz to 20 kHz | | Maximum SPL | 130 dB | | Coverage Angle | 110° H x 30° V | | Speaker Sensitivity | 99 dB | | Max Input Level | +14 dBV | | I/O Impedance | Input:
10 kOhms (Balanced)
5 kOhms (Unbalanced) | | THD | <0.1% | | Protections | Infrasonic | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
1 x 1/8" / 3.5 mm TRS Input
1 x XLR Subwoofer Output
1 x XLR Thru/Output | | | | Crossover | 2 kHz, 24 dB/Octave | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | AC Input Power | 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | | | Mounting | 1 x 1.38" / 35 mm Pole Socket
8 x M6 | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 28.0 x 19.0 x 19.0" / 71.1 x 48.3 x 48.3 cm | | Weight | 39 lb / 17.7 kg | | | | Box Dimensions (LxWxH) | 28.5 x 17.0 x 16.2" |
