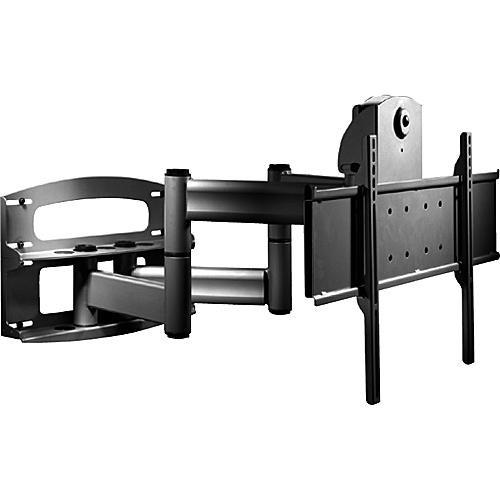

User Manual for Peerless-AV Articulating Dual Wall Arm with Vertical Adjustment Click to enlarge the picture
Contents of the user manual for the Peerless-AV Articulating Dual Wall Arm with
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
|
User manual for the Peerless-AV Articulating Dual Wall Arm with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The Articulating Dual Wall Arm with Vertical Adjustment from Peerless Industries is an excellent way to mount the largest and heaviest of flat-panel plasma or LCD screens. The all-steel, dual-arm design provides support for screens up to 200 lbs. The arm offers swivel, tilt, roll, and vertical adjustment, so it's easy to find the optimal placement and angle. Self-lubricating bushings provide smooth positioning and adjustment. Use this arm to mount screens in lobbies, hotel rooms, boardrooms, or home theaters. - Anti-lockout feature prevents joint binding
- Arm extends up to 32.5" from wall
- ±1" vertical adjustment located within reach behind screen
- Three pivot points with up to 180° swivel
- ±7° roll to level screen horizontally
- Universal models adapt to screens with mounting holes up to 28.7 x 17"
- Includes mesh cord sheath and cable ties to neatly manage cables and cords
- Three horizontal arm positions at 2.6" centers for flexible lateral screen placement
- Mounts to wood stud, concrete, and metal stud (with metal stud accessory)
- Self-lubricating bushings give the arm smooth motion when positioning and adjusting the screen
UPC: 735029243359 In the Box Peerless-AV Articulating Dual Wall Arm with Vertical Adjustment (42-95", Black) Installation Hardware Mesh Cord Sheath Cable Ties 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Articulating Dual Wall Arm with Vertical Adjustment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV PLAV70-UNL Specs | | | Mount Type | Articulating Dual Wall Arm w/ Vertical Adjustment | | Depth From Mounting Source | Flush; Extends out to 32.5" (825.5 mm), retracts to 5.6" (142 mm) | | Max Equipment Size | 42-95" Flat Panel Screen | | Adjustments | Tilt: +10°/-5°
Swivel: ±90°
Roll: ±7°
Vertical: ±1" | | | | Construction | Steel | | Dimensions | Closed: 33.5 x 16.89 x 5.6" (85 x 55 x 14.2cm)
Extended: 33.5 x 16.89 x 30.4" (85 x 55 x 77.2cm) | | Weight Capacity | 200 lbs (90.9kg) | | Weight | Shipping Weight: 72.4 lbs (32.9kg) | | | | Package Weight | 69.7 lb | | Box Dimensions (LxWxH) | 35.0 x 24.0 x 9.0" |
