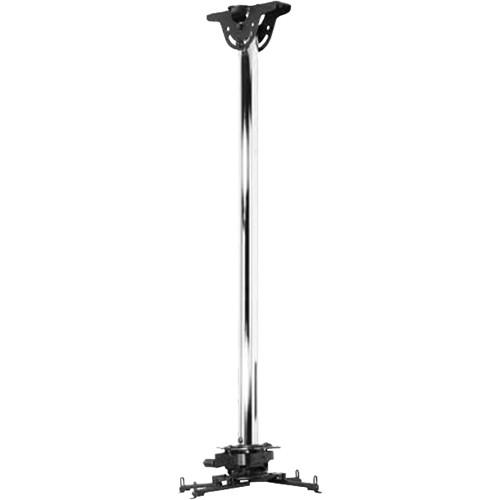

User Manual for Peerless-AV Cathedral Ceiling Plate Kit for Mounting Projectors up to 50 lb Click to enlarge the picture
Contents of the user manual for the Peerless-AV Cathedral Ceiling Plate Kit for
- Product category: Projector Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Projector Mounts
|
User manual for the Peerless-AV Cathedral Ceiling Plate Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description The Cathedral Ceiling Plate Kit from Peerless Industries includes all of the components necessary for mounting a projector (up to 50 lbs) from the ceiling. This pre-assembled kit includes a cathedral ceiling plate, a 9.8' black extension pole, PRGS projector mount, and Universal Spider projector mount adapter.The universal components make it quick and easy to design and configure this custom projector mounting solution, ideal for any application. This mounting can be expanded with additional modular accessories (available separately) to accommodate any custom configurations. - Pre-assembled kit includes a cathedral ceiling plate, 9.8' (3m) long black extension pole, PRGS projector mount, and Universal Spider projector mount adapter
- Cathedral ceiling plate can be angled ±60° for use with vaulted or sloping ceilings
- Configurable projector installation with drops of 9.8' (3m) in height
- Universal Spider adapter designed to work with nearly all projectors weighing up to 50lb (22kg)
- Three axes of precision geared adjustment provided by the PRGS projector mount enables precise image alignment
- Precision gear independent adjustment feature provides +15/-20° pitch, ±5° roll, and 360° swivel
- Installs to wood joists and concrete or to trusses/pipes via an accessory clamp kit MOD-AUB (available separately)
- Integrated cable management protects, contains, and conceals cables for a clean, professional installation
- MOD-PMA mount adapter is attached at the end of the drop column and the PRGS-UNV projector mount attaches to the MOD-PMA
UPC: 735029298915 In the Box Peerless-AV Cathedral Ceiling Plate Kit for Mounting Projectors up to 50 lb (Black) PRGS Series Projector Mount (Black) rxvcrwruruxvacbbrtaybutrsswdrzxxx Cathedral Ceiling Plate for Modular Series Flat Panel Display & Projector Mounts (Black) 118" Extension Pole for Modular Series Flat Panel Display & Projector Mounts (Black) MOD-PMA PRGS Projector Mount Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Cathedral Ceiling Plate Kit for Mounting Projectors up to 50 lb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV MOD-PRGSKIT300-B Specs | | | Weight Capacity | 50 lb (22 kg) | | Tilt | +15 / -20 | | Swivel Yaw | 360° | | Roll | ±5 | | Finish | Powder coat | | Security Features | Non-security hardware | | Distance | From the Ceiling: 3.63 to 4.63" (92.00 to 118.00 mm) | | Dimensions | 4.79 to 17.63 x 3.63 to 4.63 x 4.79 to 17.63" (12.2 to 44.8 x 9.2 to 11.8 x 12.2 to 44.8 cm) | | | | Compatibility | 2" (50 mm) diameter poles | | Load Capacity | 264.0 lb (119.7 kg) | | Dimensions | 8.86 x 4.65 x 3.94" (22.5 x 11.8 x 10.0 cm) | | | | Compatibility | 2" (50 mm) diameter poles | | Dimensions | 118 x 2" (300 x 5 cm) | | | | Dimensions (W x H x D) | 4.645 to 17.637 x 121.968 to 122.952 x 8.858 to 17.637" (11.8 to 44.8 x 30.98 to 31.23 x 22.5 to 44.8 cm) | | Weight | 17.0 lb (7.1 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 10.4 x 10.2 x 8.5" |
