User Manual for Peerless-AV Designer Series Universal Ultra Slim Articulating Wall Mount for 46 to 90" Ultra-Thin Display Click to enlarge the picture
Contents of the user manual for the Peerless-AV Designer Series Universal Ultra Slim
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
|
User manual for the Peerless-AV Designer Series Universal Ultra Slim contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

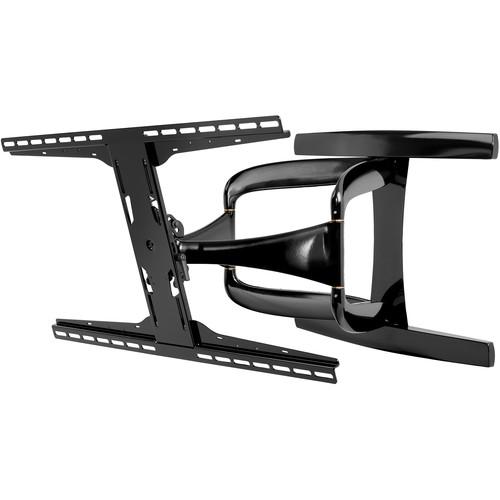

Product description Easily connect cables to your mounted display with the Designer Series Universal Ultra Slim Articulating Wall Mount from peerless-AV. This wall mount features peerless-AV's own I-Shaped Adapter design and allows displays from 46 to 90" weighing up to 125 lb to be mounted in either landscape or portrait orientations for easy viewing. Once mounted the display can be rolled up to 5°, tilted from -15 to +5°, and swiveled ±90°. The arm of the mount allows the display to be retracted to 1.85" and extended up to 24.85" to provide maximum viewing comfort. -
- One-Touch tilt mechanism allows adjustment of +15/-5° without the use of tools
- Dual-arm design enhances the stability of the articulating motion
- Universal mount fits displays with mounting patterns 200 x 100 to 800 x 400 mm
- Landscape or portrait mounting options increases display versatility
- Up to ±0.5" (13 mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Internal cable management provides clean, professional installation finish
- Added ±5° of roll for post-installation display leveling without the use of tools
- Arms retract to 1.85" (47 mm) and extend up to 24.85" (631 mm) from wall
- The I-Shaped Adapter plate's innovative design helps avoid blocking connections on back of display
- Up to ±72.5° of side-to-side swivel
UPC: 735029306405 In the Box Peerless-AV Designer Series Universal Ultra Slim Articulating Wall Mount for 46 to 90" Ultra-Thin Display Limited 5-Year Warranty Table of Contents
|
