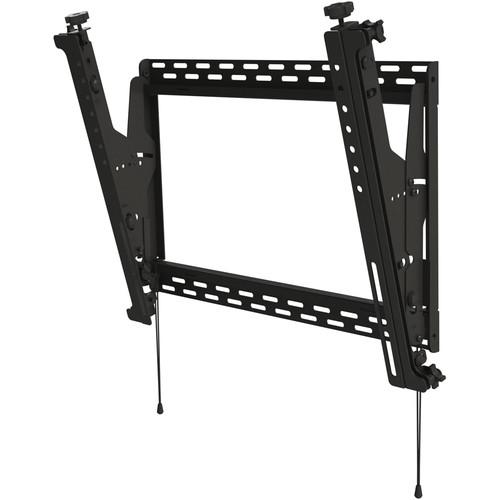

User Manual for Peerless-AV DS-MBZ647P Digital Menu Board Mount with 8-Point Adjustment for 42 to 48" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV DS-MBZ647P Digital Menu Board Mount
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
|
User manual for the Peerless-AV DS-MBZ647P Digital Menu Board Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description With the DS-MBZ647P Digital Menu Board Mount with 8-Point Adjustment from Peerless-AV it is easy to mount displays ranging in size from 42 to 48". This mount features tool-less four corner depth adjustment and tool-less vertical adjustment making it easy to align the display the way you want. The open, easy hang wall plate helps to reduce wall interference while allowing for just one person to install the display. Installation has also been greatly simplified thanks to quick connect latch functionality in which the display automatically engages the wall plate. - Connecting wall plates create a continuous mounting surface thereby reducing installation time and cost and simplifying display alignment
- Kickstand holds the display bottom away from the wall for ease of access during cable connection
- Quick-connect latch automatically engages the wall plate when mounting the display for a speedy setup and secure installation
- Horizontal adjustment allows creating a menu board with a seamless appearance
- Continuous and fixed tilt options (IncreLock) ensures all displays are tilted at the same angle, creating a seamless alignment
- Included security hardware deters tampering and theft
- Open wall plate design ensures that there is no interference with any existing installations on the wall, for example, slim switch boxes and wall plates
- Tool-less vertical height adjustment and leveling adjustment on each universal display adapter bracket for post-installation fine-tuning
- Tool-less 4-corner depth adjustment aligns the displays on the same plane and helps level them even on walls with slightly uneven surfaces
UPC: 735029301042 In the Box Peerless-AV DS-MBZ647P Digital Menu Board Mount with 8-Point Adjustment for 42 to 48" Displays (Portrait, Black) Wall Plate Left Vertical Bracket Right Vertical Bracket Mounting Hardware Security Tool Connection Plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV DS-MBZ647P Digital Menu Board Mount with 8-Point Adjustment for 42 to 48" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS-MBZ647P Specs | | | Supported Screen Sizes | 42 to 48" / 107.0 to 122.0 cm | | Supported Weight Capacity | 100 lb / 45.4 kg | | Mounting-Hole Pattern | 400 x 400 to 550 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | 0 to +15
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
