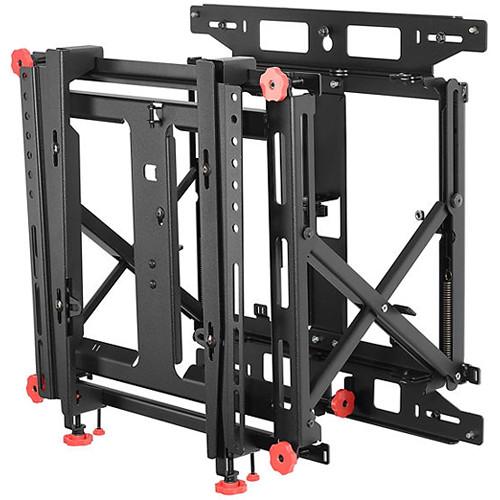

User Manual for Peerless-AV DS-VW775-QR SmartMount Supreme Video Wall Mount with Quick Release for 46 to 60" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV DS-VW775-QR SmartMount Supreme Video Wall
- Product category: Video Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Video Wall Mounts
|
User manual for the Peerless-AV DS-VW775-QR SmartMount Supreme Video Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|
Product description Conveniently install your video wall with the Peerless-AV DS-VW775-QR SmartMount Supreme Video Wall Mount with Quick Release. It supports 46 to 60" displays weighing up to 125 lb and extends from 3.9 to 13.81" from the mounting surface for easy access to the display's connectivity. 1.5" of adjustment along each axis allows precise leveling of your display. It supports 200 x 200 to 400 x 400mm VESA patterns and an accessory for the larger 600 x 400 and 800 x 400mm VESA patterns is available separately. You can release pop-out your display for service with a simple turn of the lever. The SmartMount Supreme supports displays in either portrait or landscape orientation. - VESA 200 x 200 to 400 x 400 compliant; 600 x 400 and 800 x 400 compatibility with an optional adapter.
- The SmartMount Supreme is a modular mount designed for near-unlimited video wall display configurations.
- Security hardware option helps deter tampering and theft.
- Integrated cable management allows cables to move in and out with the display.
- The SmartMount Supreme accommodates displays in landscape and portrait orientation.
- No tools required for micro-adjustment. The mount provides 1.5" of travel on each axis.
- Reusable custom wall spacers are designed to eliminate guesswork and on-site installation calculations.
- Quickly release the pop-out mount for service with a simple turn of the lever.
- The wall plate is compatible with the Peerless-AV install app for a simplified installation.
UPC: 735029317173 In the Box Peerless-AV DS-VW775-QR SmartMount Supreme Video Wall Mount with Quick Release for 46 to 60" Displays Assembly Hardware Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV DS-VW775-QR SmartMount Supreme Video Wall Mount with Quick Release for 46 to 60" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS-VW775-QR Specs | TV Sizes Supported | 46 to 60" / 116.8 to 152.4 cm | | VESA Compatibility | 200 x 200 to 400 x 400 mm
Compatible with 600 x 400 and 800 x 400 mm patterns with optional adapter | | Load Capacity | 125 lb / 56.8 kg | | Distance from Wall | 3.9 to 13.81" / 99 to 351 mm | | Adjustments | Tool-less micro-adjustment of up to 1.5" / 3.8 cm on each axis | | Certification | UL listed, RoHS compliant | | Finish | Powder coat | | Security Features | Security hardware | | Dimensions (W x H x D) | 21.25 x 21.47 x 3.9 to 13.81" / 540 x 545 x 99 to 351 mm | | Weight | 29 lb / 13.2 kg | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 30.15 x 23.25 x 3.75" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
