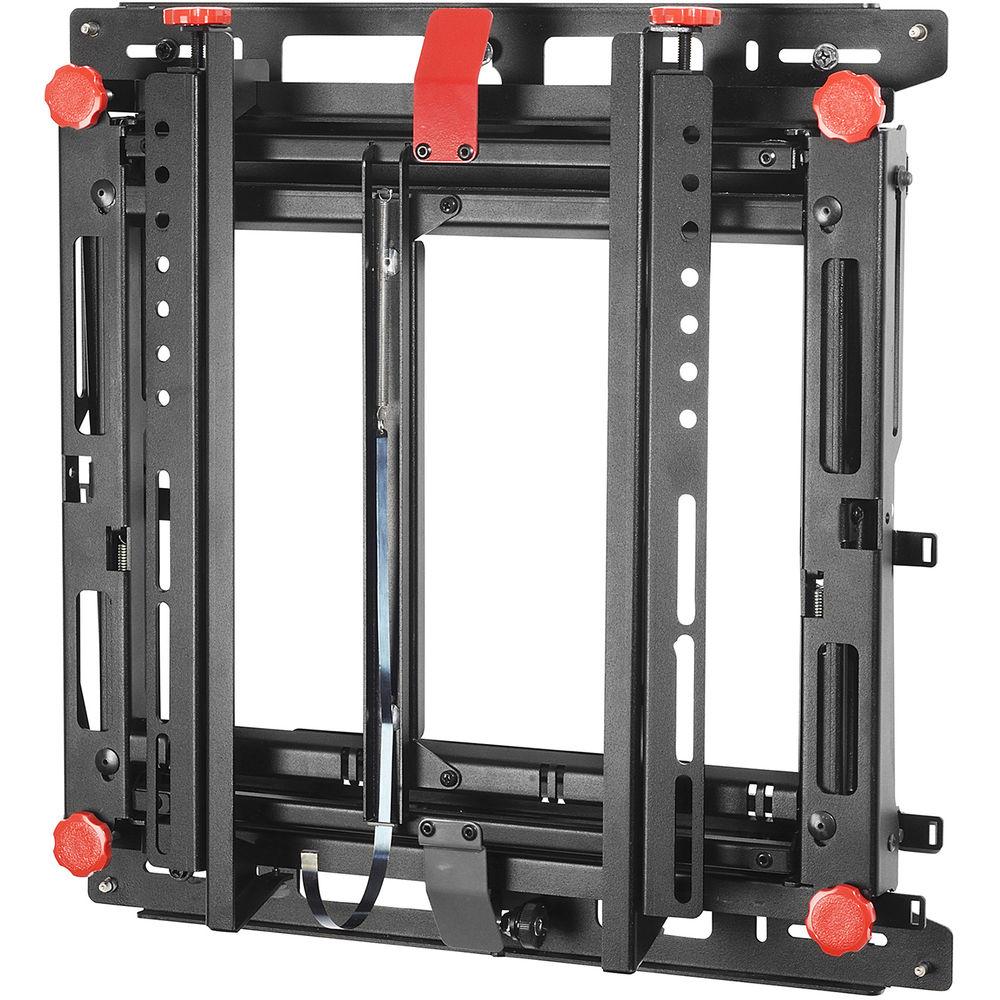

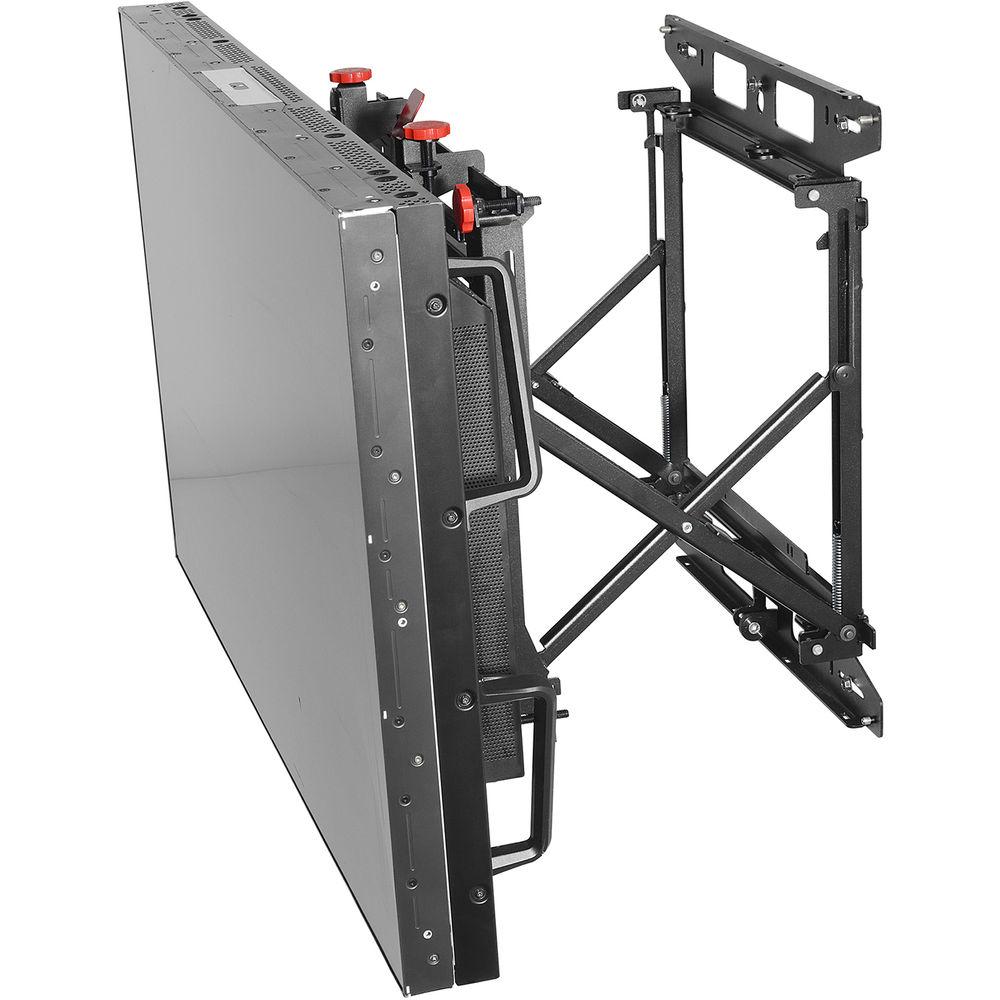

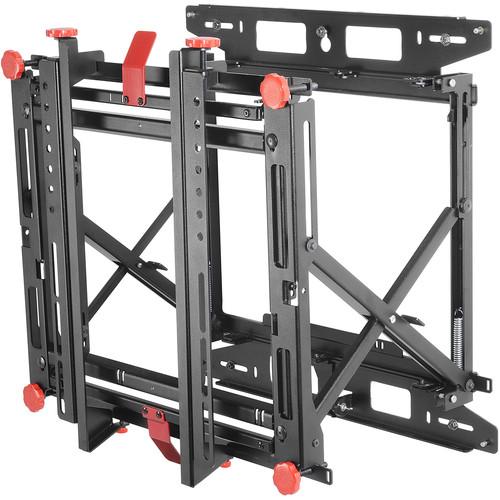

Product description Conveniently install your video wall with the Peerless-AV DS-VW775 SmartMount Supreme Video Wall Mount. It supports 46 to 60" displays weighing up to 125 lb and extends from 3.9 to 14.02" from the mounting surface for easy access to the display's connectivity. 1.5" of adjustment along each axis allows precise leveling of your display. It supports 200 x 200 to 400 x 400mm VESA patterns and an accessory for the larger 600 x 400 and 800 x 400mm VESA patterns is available separately. An optional quick release accessory releases your recessed display for service without pressing on the front of the display. The SmartMount Supreme supports displays in either portrait or landscape orientation. - VESA 200 x 200 to 400 x 400 compliant; 600 x 400 and 800 x 400 compatibility with an optional adapter.
- The SmartMount Supreme is a modular mount designed for near-unlimited video wall display configurations.
- Security hardware option helps deter tampering and theft.
- Integrated cable management allows cables to move in and out with the display.
- The SmartMount Supreme accommodates displays in landscape and portrait orientation.
- No tools required for micro-adjustment. The mount provides 1.5" of travel on each axis.
- Reusable custom wall spacers are designed to eliminate guesswork and on-site installation calculations.
- An optional quick release accessory releases a recessed display for service without pressing on the front of the display.
- The wall plate is compatible with the Peerless-AV install app for a simplified installation.
UPC: 735029308669 In the Box Peerless-AV DS-VW775 SmartMount Supreme Video Wall Mount for 46 to 60" Displays Assembly Hardware Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV DS-VW775 SmartMount Supreme Video Wall Mount for 46 to 60" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS-VW775 Specs | TV Sizes Supported | 46 to 60" / 116.8 to 152.4 cm | | VESA Compatibility | 200 x 200 to 400 x 400 mm
Compatible with 600 x 400 and 800 x 400 mm patterns with optional adapter | | Load Capacity | 125 lb / 56.8 kg | | Distance from Wall | 3.9 to 14.02" / 99 to 356 mm | | Adjustments | Tool-less micro-adjustment of up to 1.5" / 3.8 cm on each axis | | Certification | UL listed, RoHS compliant | | Finish | Powder coat | | Security Features | Security hardware | | Dimensions (W x H x D) | 21.25 x 21.25 x 3.9 to 14.02" / 540 x 540 x 99 to 356 mm | | Weight | 25 lb / 11.4 kg | | | | Package Weight | 29.5 lb | | Box Dimensions (LxWxH) | 28.0 x 24.4 x 5.5" |
