User Manual for Peerless-AV ECMU-03-C Wind Rated Ceiling Tilt Mount Click to enlarge the picture
Contents of the user manual for the Peerless-AV ECMU-03-C Wind Rated Ceiling Tilt
- Product category: Monitor Ceiling Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Ceiling Mounts
 |
User manual for the Peerless-AV ECMU-03-C Wind Rated Ceiling Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

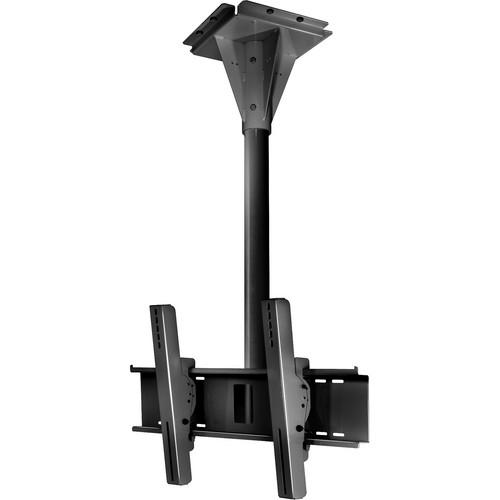

Product description The Peerless Industries ECMU-03-C Wind Rated Concrete Ceiling Tilt Mount (3' Pole Length, Black) is designed for 32" (81.2cm) to 65" (165cm) outdoor flat panel displays and has a maximum load capacity of 200 lb (90.7kg). The tilt mount supports the universal mounting pattern 28.39 x 17.67" (721 x 449 mm) VESA up to 600 x 400 mm.

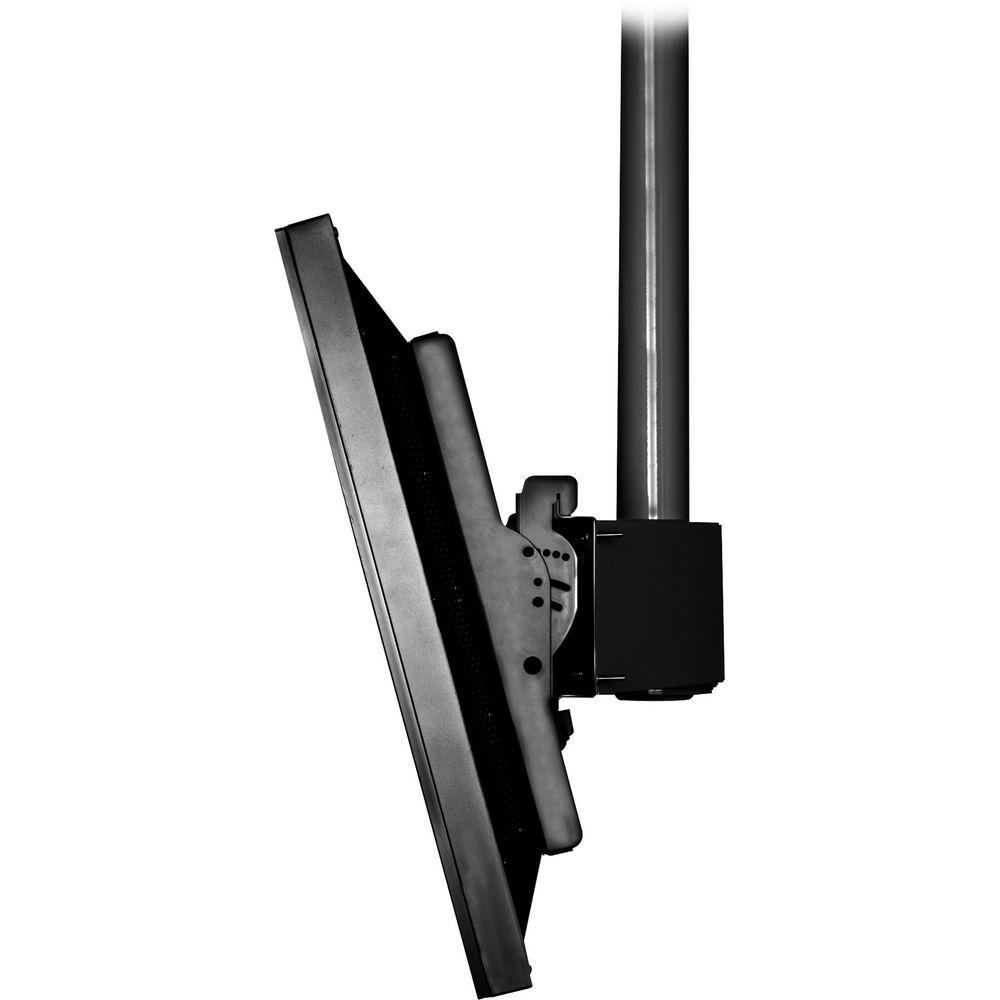

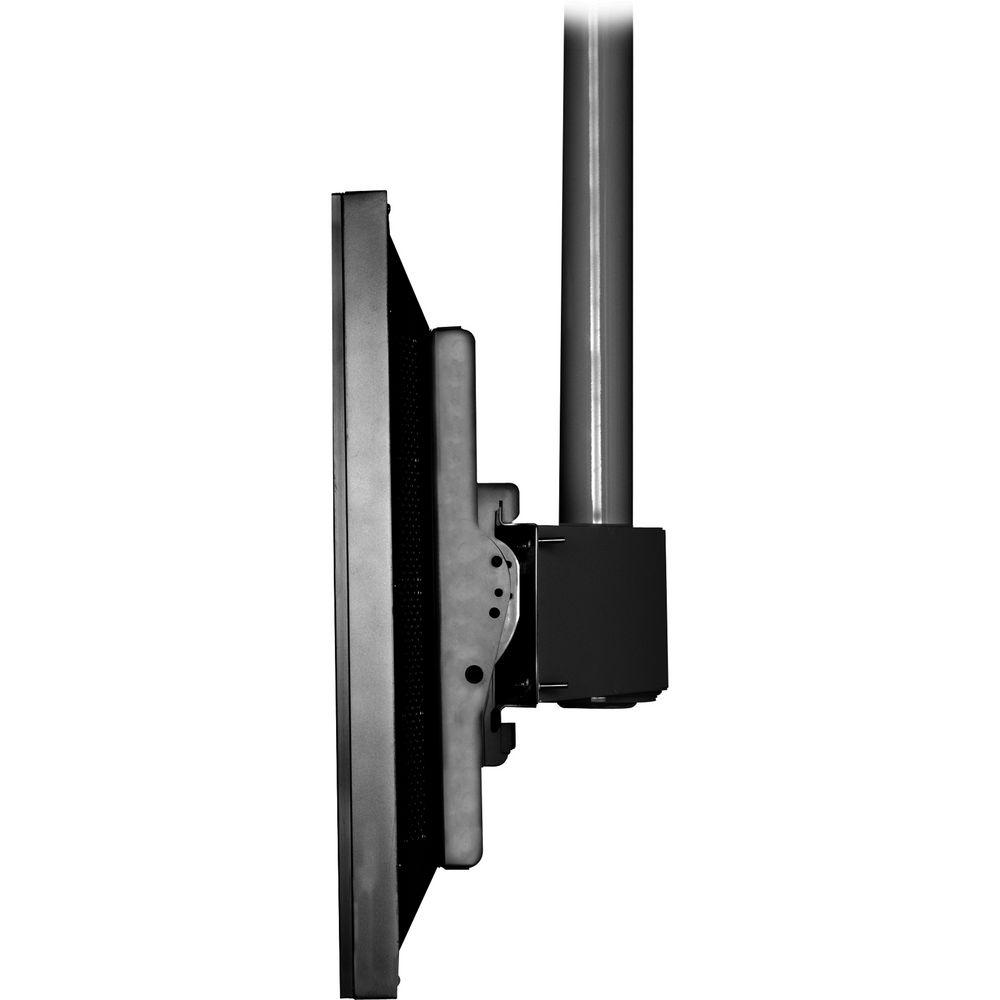

Incremental tilt with angle settings at 0°, 2°, 5°, 10°, and 15° enables wide viewing angle flexibility. You can also set the tilt for 15° forward and 5° back. Easy installation to wood studs, concrete or cinder block is possible owing to the hook-and-hang design. Horizontal positioning of 8" (20.3cm) is also rendered possible.
With a wind rating of 90 mph at an elevation of 200' (60m), it can withstand tough weather conditions. The ECMU-03-C Wind Rated Concrete Ceiling Tilt Mount is constructed from heavy gauge steel sealed with corrosion resistant E-Coat and stainless steel hardware, making it theft resistant, and ideal for screens which have to be used in public places. - Designed for 32" (81.2cm) to 65" (165cm) outdoor flat panel displays
- Maximum load capacity of 200 lb (90.7kg)
- Adheres with universal mounting pattern 28.39 x 17.67" (721 x 449mm) (W x H) VESA up to 600 x 400mm
- Provides wide viewing angle flexibility via incremental tilt with angle settings at 0°, 2°, 5°, 10°, and 15°
- Adjustable tilt can be set 15° forward and 5° back
- Hook-and-hang design - helps in easy installation to wood studs, concrete or cinder block, and allows for 8" (20.3cm) of horizontal positioning
- Wind rating of 90 mph at an elevation of 200' (60m)
- Can withstand tough weather conditions
- Constructed from heavy gauge steel sealed with corrosion resistant E-Coat and stainless steel hardware
- Theft resistant and ideal for screens used in public places
UPC: 735029272496 In the Box Peerless-AV ECMU-03-C Wind Rated Ceiling Tilt Mount (3' Pole Length, Black) Hardware Security Fasteners Concrete Fasteners Limited 5-Year Warranty on Mount Limited 1-Year Warranty on Corrosion Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV ECMU-03-C Wind Rated Ceiling Tilt Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV ECMU-03-C Specs | Dimensions (WxHxD) | 43.63 x 30.75 x 14.75" (1108 x 781 x 375mm) | | Weight | 68 lb (31kg) | | Load Capacity | 200 lb (90.7kg) | | Finish | Outdoor powder paint | | Color | Black |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
