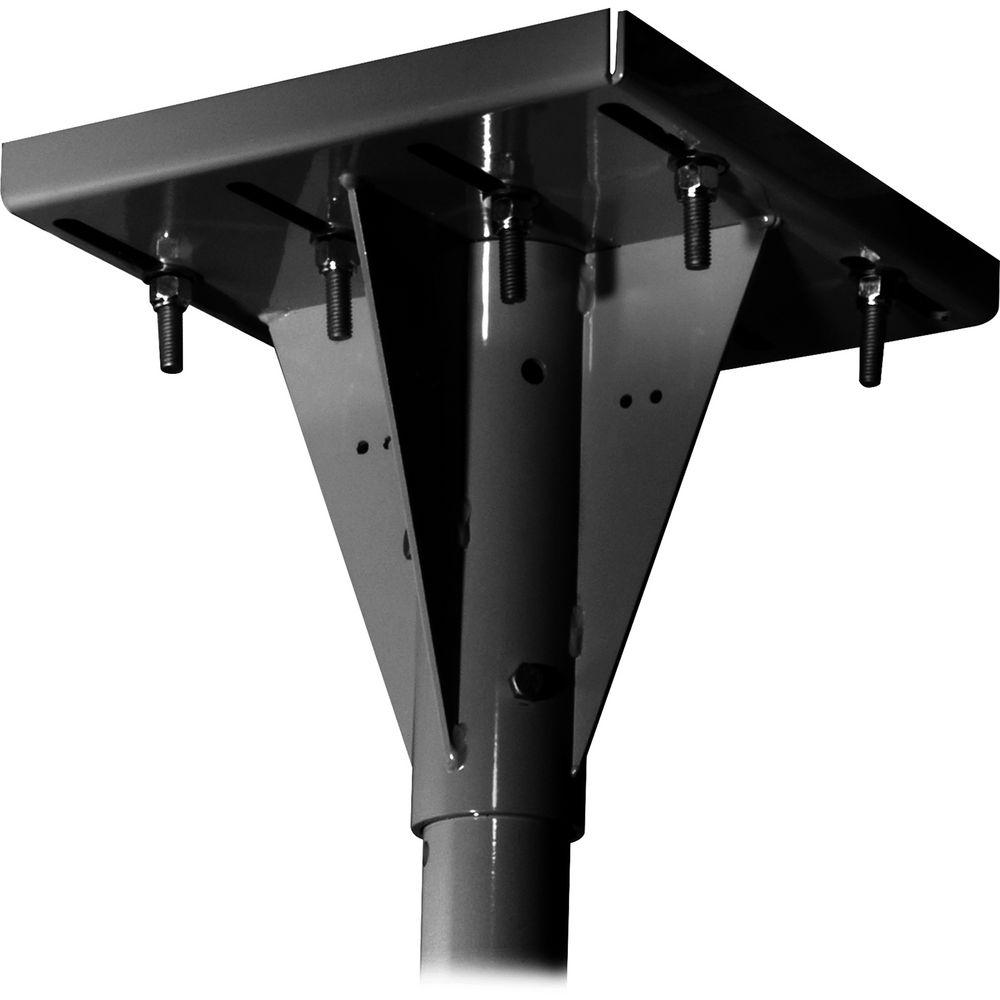

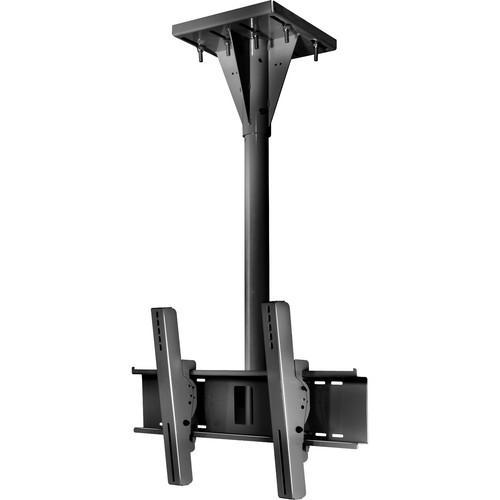

Product description The Peerless Industries ECMU-03-I Wind Rated I-beam Tilt Mount (3' Pole Length, Black) is designed for 32" (81.2cm) to 65" (165cm) outdoor flat panel displays and has a maximum load capacity of 200 lb (90.7kg). The tilt mount supports the universal mounting pattern 28.39 x 17.67" (721 x 449 mm) VESA up to 600 x 400 mm.

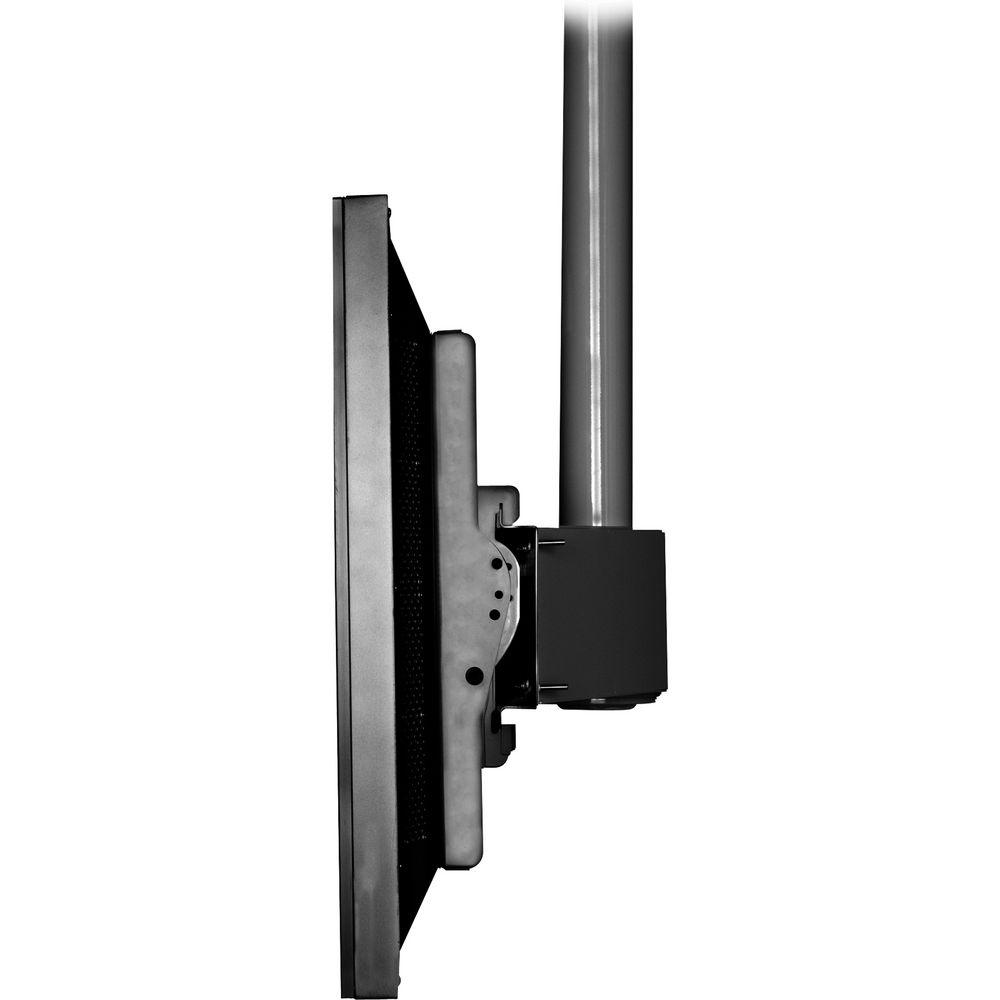

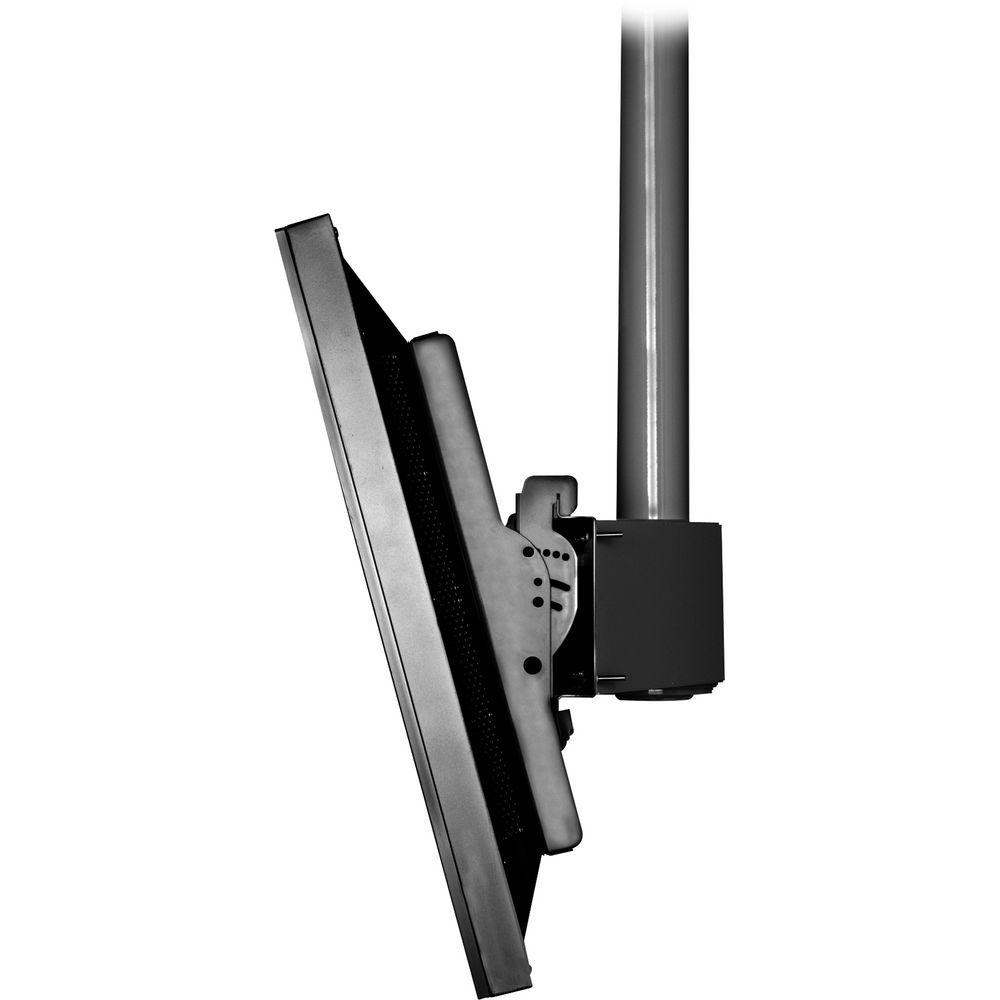

Incremental tilt with angle settings at 0°, 2°, 5°, 10°, and 15° enables wide viewing angle flexibility. You can also set the tilt for 15° forward and 5° back. Easy installation is possible owing to the hook-and-hang design. Horizontal positioning of 8” (20.3cm) is also rendered possible.
With a wind rating of 90 mph at an elevation of 200’ (60m), category D, it can withstand tough weather conditions. The ECMU-03-I Wind Rated I-beam Tilt Mount is constructed from heavy gauge steel sealed with corrosion resistant E-Coat and stainless steel hardware, making it theft resistant, and ideal for screens which have to be used in public places.
- Designed for 32" (81.2cm) to 65" (165cm) outdoor flat panel displays
- Maximum load capacity of 200 lb (90.7kg)
- Adheres with universal mounting pattern 28.39 x 17.67" (721 x 449mm) (W x H) VESA up to 600 x 400mm
- Provides wide viewing angle flexibility via incremental tilt with angle settings at 0°, 2°, 5°, 10°, and 15°
- Adjustable tilt can be set 15° forward and 5° back
- Hook-and-hang design - helps in easy installation, and allows for 8" (20.3cm) of horizontal positioning
- Wind rating of 90 mph at an elevation of 200' (60m), category D
- Can withstand tough weather conditions
- Constructed from heavy gauge steel sealed with corrosion resistant E-Coat and stainless steel hardware
- Theft resistant and ideal for screens used in public places
UPC: 735029272571 In the Box Peerless-AV ECMU-03-I Wind Rated I-beam Tilt Mount (3' Pole Length, Black) Hardware Security Fasteners Limited 5-Year Warranty on Mount Limited 1-Year Warranty on Corrosion Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV ECMU-03-I Wind Rated I-beam Tilt Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV ECMU-03-I Specs | Dimensions (WxHxD) | 43.63 x 30.75 x 15" (1108 x 781 x 381mm) | | Weight | 68 lb (31kg) | | Load Capacity | 200 lb (90.7kg) | | Finish | Outdoor powder paint | | Color | Black |
