User Manual for Peerless-AV ESA763PU Outdoor Articulating Wall Mount for 32 to 80" Displays Click to enlarge the picture
Contents of the user manual for the Peerless-AV ESA763PU Outdoor Articulating Wall Mount
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
 |
User manual for the Peerless-AV ESA763PU Outdoor Articulating Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

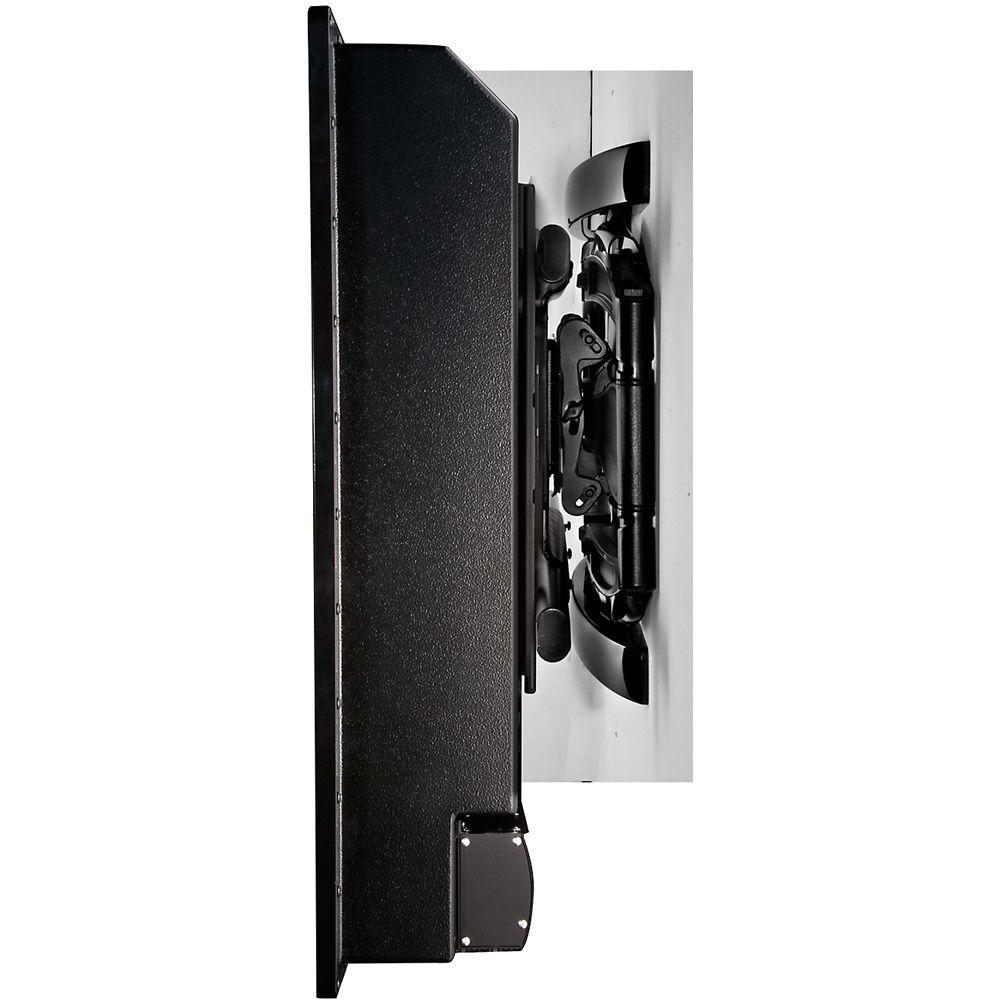

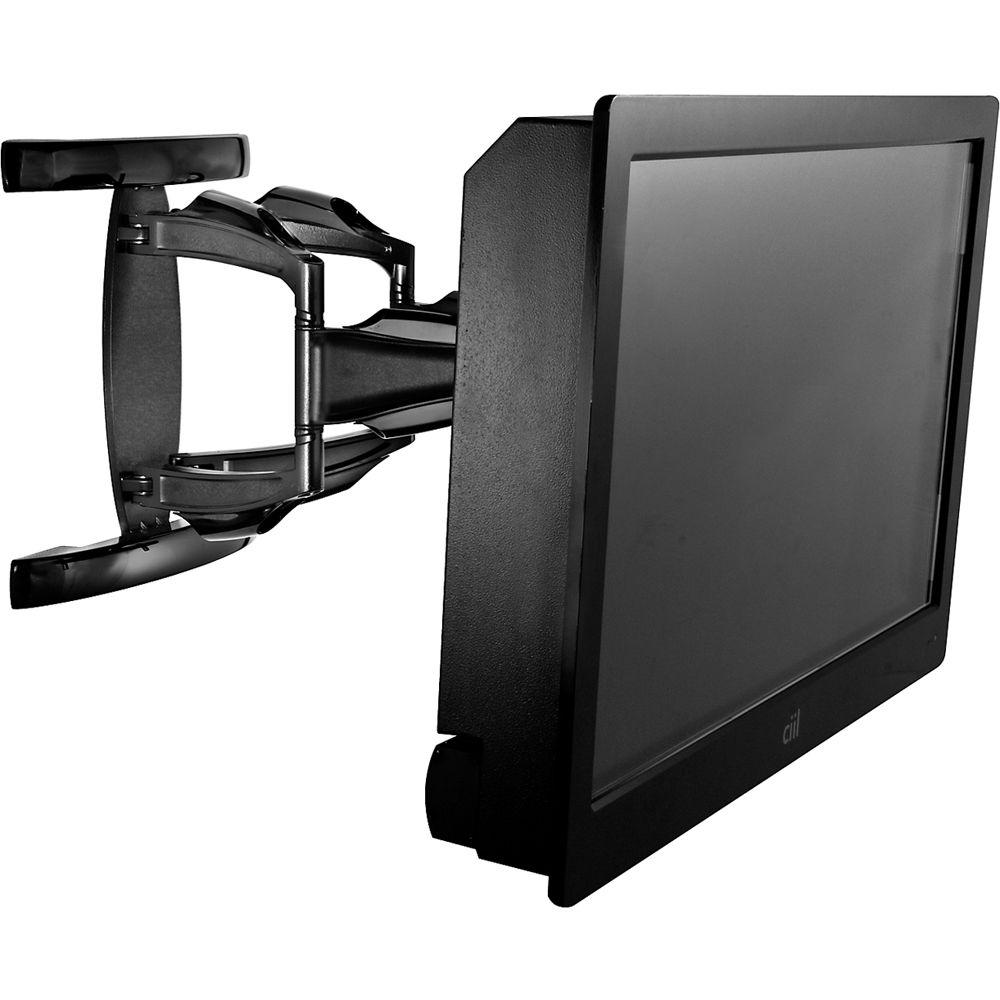

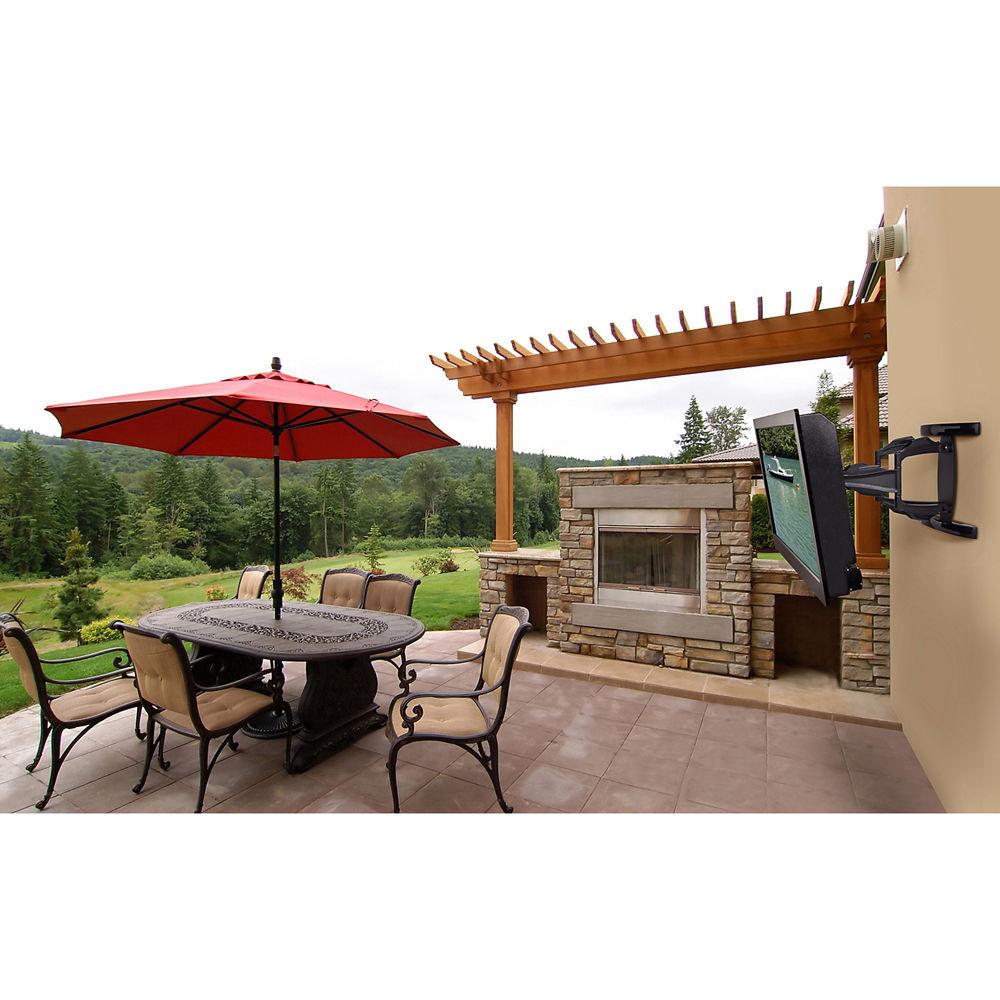

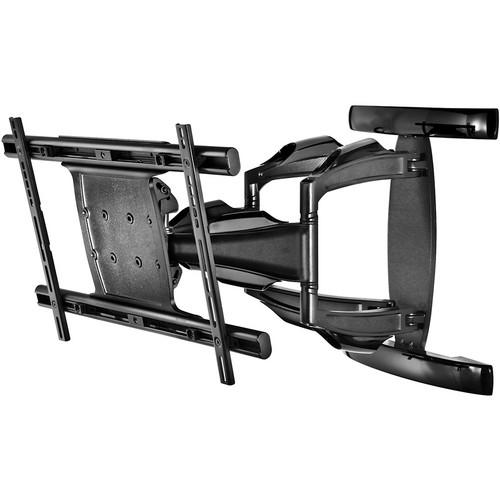

Product description Mount your outdoor display with confidence with the black Peerless-AV ESA763PU Outdoor Articulating Wall Mount. It is made from corrosion-resistant materials in order to withstand the elements. The mount will hold a 32 to 80" display weighing up to 200 lb with a mounting pattern up to 730 x 405mm. It provides -5 to 15° of tilt adjustment, ±90° of swivel yaw, ±5° of roll, and 4.5" of post-installation lateral adjustment to help you achieve your preferred viewing angle. - Made from corrosion-resistant materials for weather resistance
- Supports displays with up mounting patterns up to 730 x 405mm or up to a 600 x 400mm VESA pattern
- Dual-arm construction for enhanced strength and smooth motion
- Extends from 4.44" to 27.94" from the wall
- Wall plate footprint designed for increased wall access

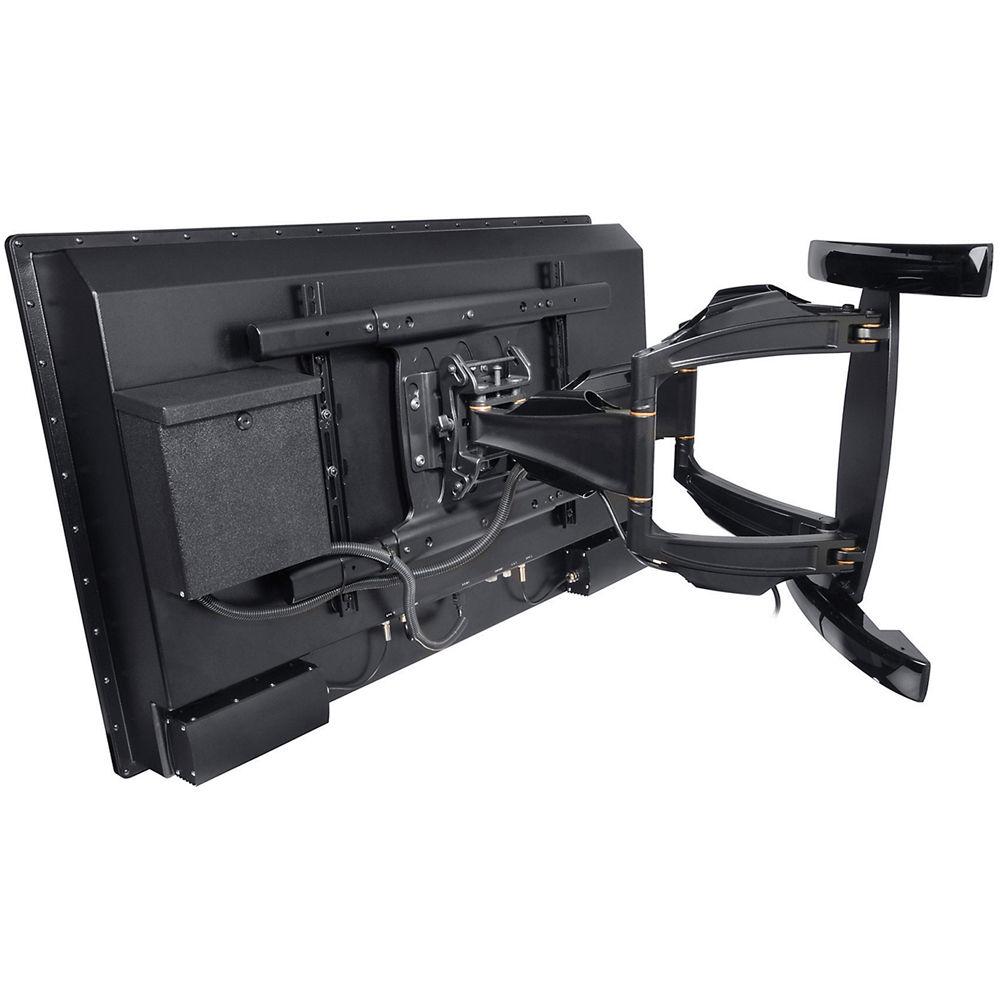

- Integrated cable management provides an area to run cables for a neat-looking installation
- IncreLok tilt allows adjustment from -5 to 15°
UPC: 735029276050 In the Box Peerless-AV ESA763PU Outdoor Articulating Wall Mount for 32 to 80" Displays (Black) Assembly Hardware Wood, Concrete, and Cinder Block Mounting Hardware Limited 5-Year Warranty Brochure PDF 490kbduqfyxeszuzvdweczbtaxrszysyszrxrxeycyx Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV ESA763PU Outdoor Articulating Wall Mount for 32 to 80" Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV ESA763PU Specs | | | Supported Screen Sizes | 32 to 80" / 81.3 to 203.2 cm | | Supported Weight Capacity | 200 lb / 90.7 kg | | Mounting-Hole Pattern | 400 x 200 to 730 x 405 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -5 to +15
