User Manual for Peerless-AV Flat Tilt Wall Mount with Media Device Storage Click to enlarge the picture
Contents of the user manual for the Peerless-AV Flat Tilt Wall Mount with
- Product category: Monitor Wall Mounts Peerless-AV
- Brand: Peerless-AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peerless-AV Monitor Wall Mounts
 |
User manual for the Peerless-AV Flat Tilt Wall Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peerless-AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peerless-AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peerless-AV product will considerably shorten its lifespan!
|

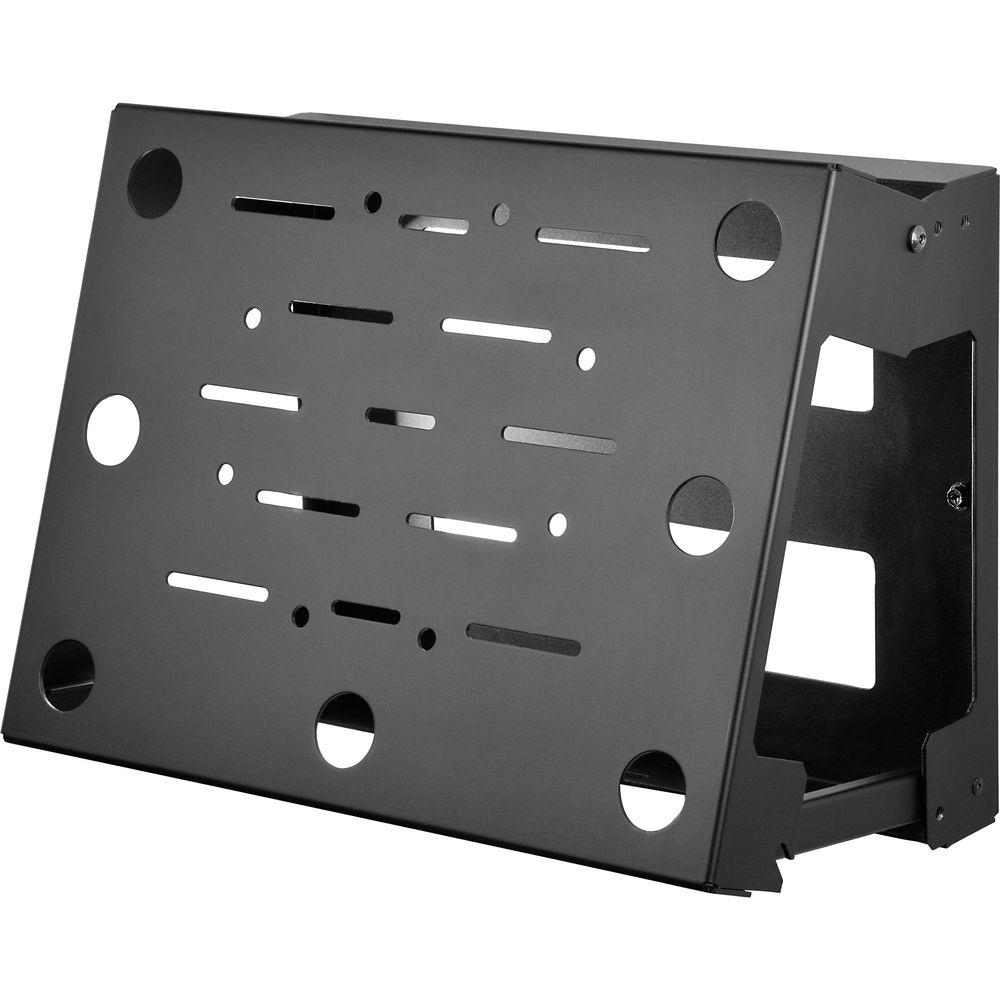

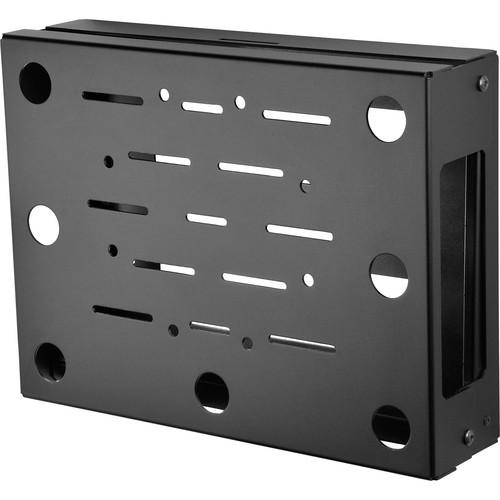

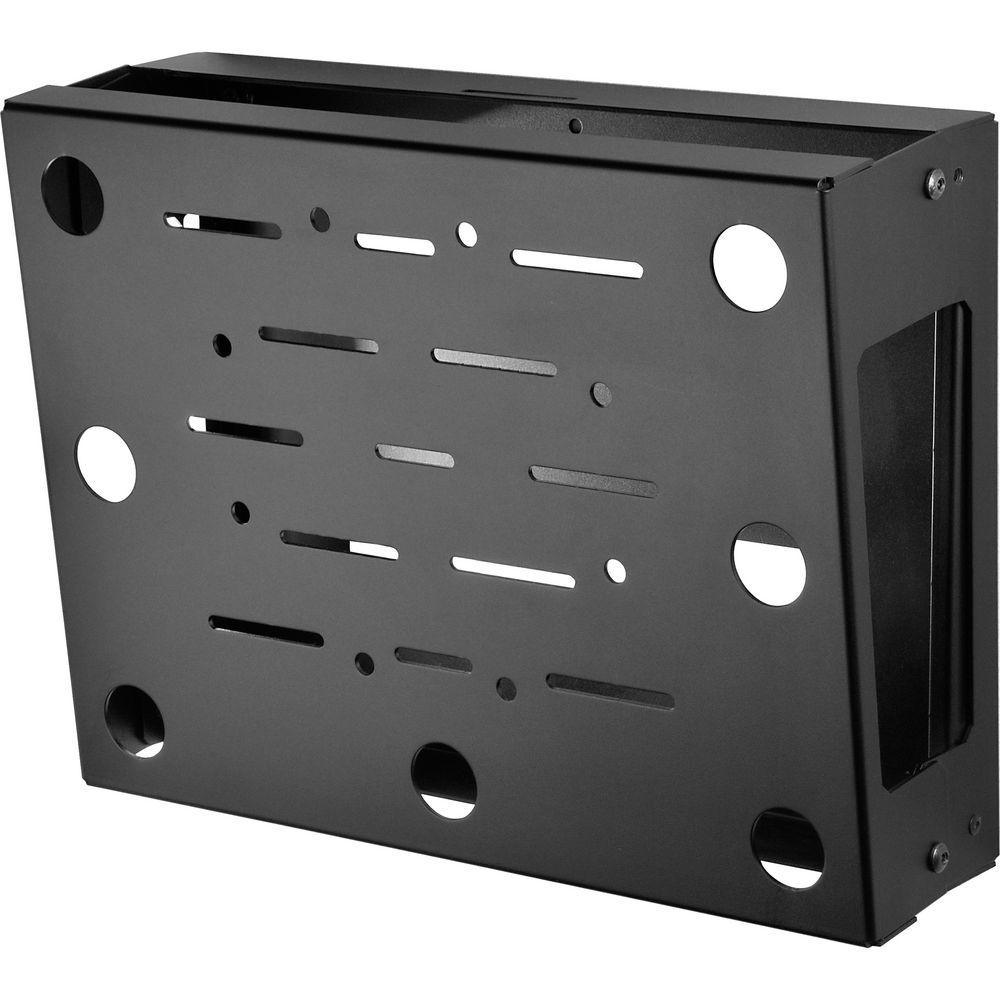

Product description The Peerless Industries Flat/Tilt Wall Mount with Media Device Storage is designed to support digital signage from 27 to 60" (68.6 to 152.5 cm) with a media controller for use in variety of digital display applications. It has standard VESA 100/200mm mounting hole patterns and is compatible with PLP adapter technology to accommodate a variety of flat panel displays. You can easily tilt the display at 0, 5, and 10° for optimum positioning.
An open wall plate design facilitates easy installation of electrical outlets, and ample space for input cables. The cables and external components are neatly tucked in, away from public view for a clean, clutter-free installation. It allows quick and easy access to the stored media controller with a negative tilt offered via a bottom disengaging design. When used with single metal studs for attachment, the mount supports displays up to 60 lb (27 kg). Moreover, dual metal studs can be used to install larger displays up to 200 lb (91 kg). In addition, built-in security feature protects your costly electronics from theft. - Supports displays with 27 to 60" (68.6 to 152.5 cm) screen sizes
- VESA 100 x 100, 200 x 200, 200 x 100 and 200 x 200 mm compliant
- Accommodates media device up to 3.95 x 14.9 x 13.3" (100 x 378 x 337 mm)
- PLP adapter technology compatible
- Screens can be mounted in both landscape and portrait

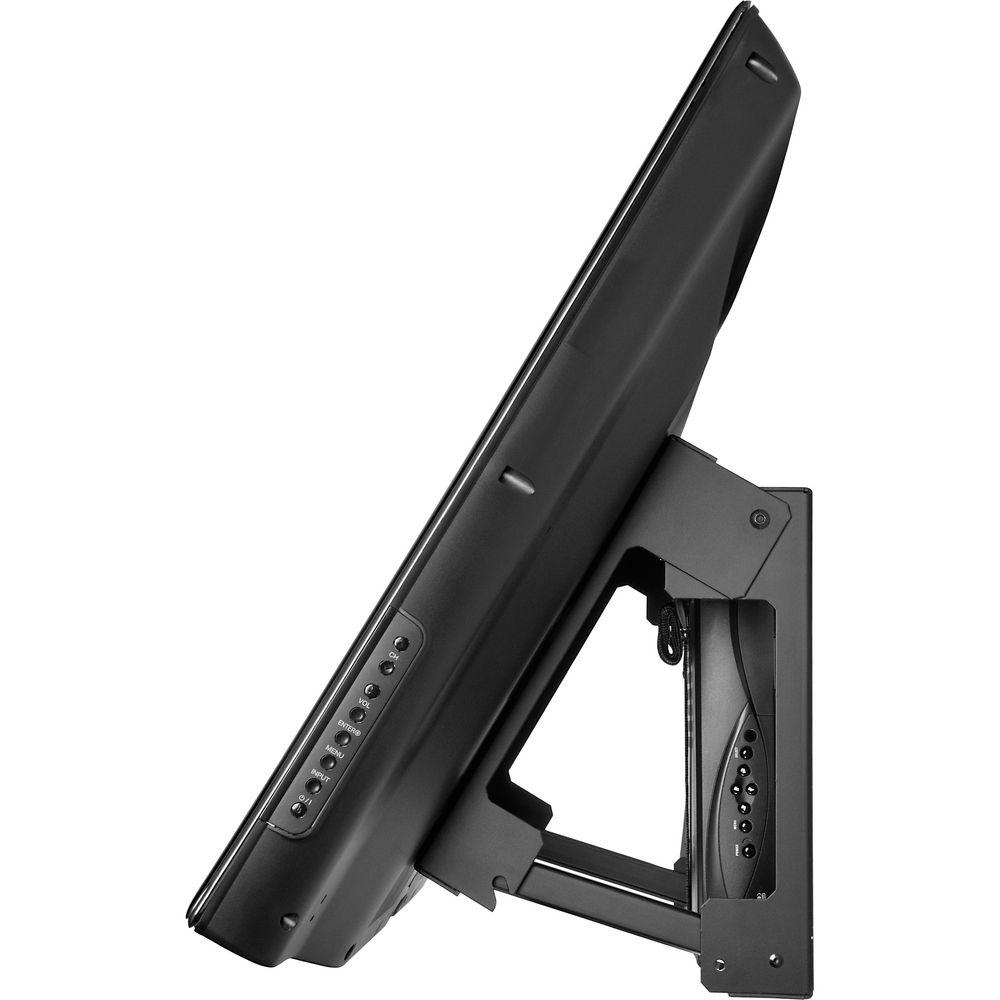

- Optimum display positioning with 0, 5, and 10° tilt
- Open wall plate design for easy installation of electrical outlets
- Ample space for input cables
- Clean and clutter-free installation

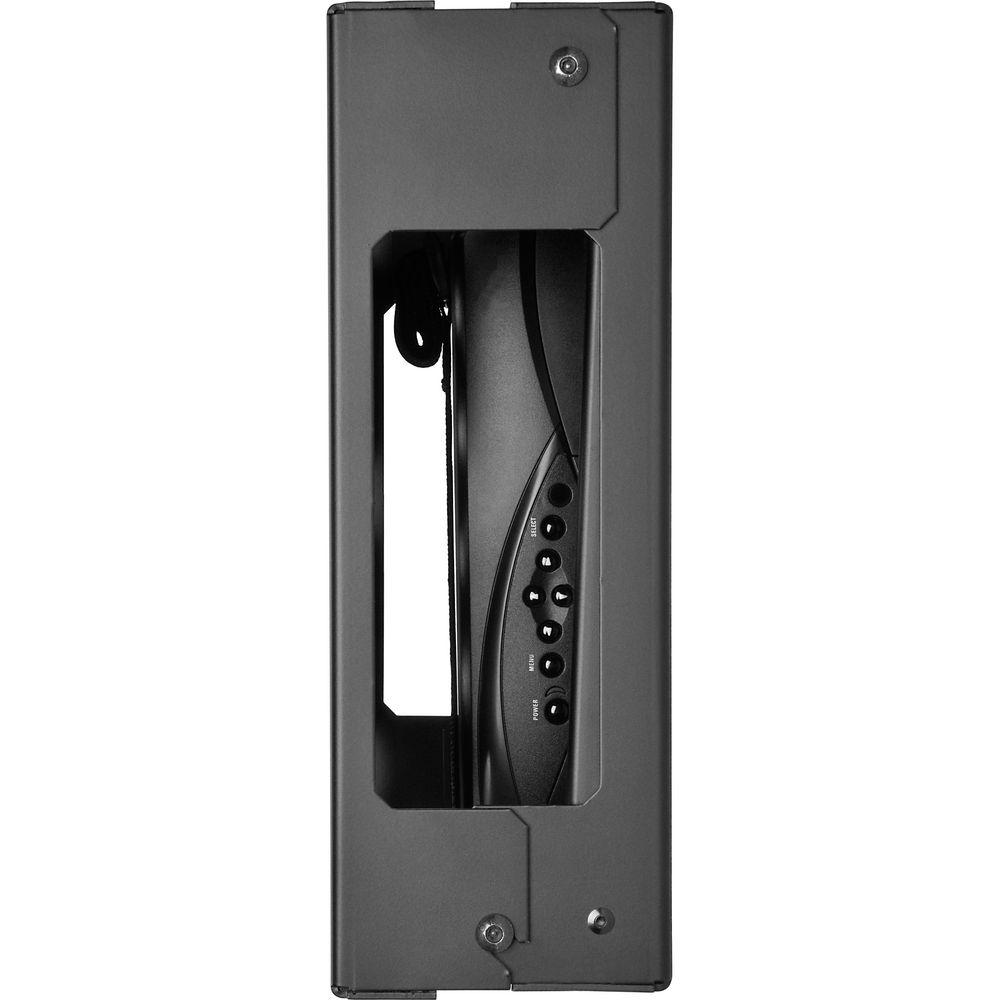

- Easy access to the stored media controller with a negative tilt offered via a bottom disengaging design
- Load capacity rated to 200 lb (91 kg) with dual studs and 60 lb (27kg) with single metal stud
- Built-in security feature protects your costly electronics from theft
UPC: 735029262367 In the Box Peerless-AV Flat/Tilt Wall Mount with Media Device Storage 5-Year Limited Warranty Brochure PDF 206.9kbwsxrqrezbxvscbzsewbxe Table of Contents
|
Upload User Manual
Have you got an user manual for the Peerless-AV Flat Tilt Wall Mount with Media Device Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeerless-AV DS508 Specs | | | Supported Weight Capacity | 200 lb / 90.7 kg | | Number of Displays Supported | 1 | | | | Orientation | Landscape, Portrait | | | | Dimensions | 18.27 x 13.77 x 4.75" / 464 x 350 x 121 mm | | Weight | 19.0 lb / 8.6 kg | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 23.875 x 22.375 x 5.125" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
